Solar Panel Brackets & Mounts

Solar panel mounting brackets are the hardware between a module frame and whatever you fix it to — a roof, an RV, a pole, a wall, a strut channel or the ground. This collection holds 30 stock parts across six mounting methods, for panels from 5 W to roughly 400 W. It is for installers, RV and marine builders, and integrators who want the fixing hardware to arrive with the panels.

LinkSolar is a China-based B2B supplier of custom & OEM solar panels, solar cells and mounting hardware. Mounting brackets and hardware are made in our own bracket factory. Panels for the same project can be supplied as custom solar panels built to your drawing.

Six ways to fix a panel, and what we stock for each

Method Use it when Stock parts
Z-brackets Fixed low-profile mounting on RV, van and shed roofs 4 / 8 / 16-piece aluminium sets, 100 mm kit, long Z pairs
Mini rails and rail kits Spreading load over more fixing points than Z-brackets 4.72 in and 11.81 in rail sets, 30 cm and trapezoidal-roof rail kits
Mid and end clamps Clamping framed modules onto an existing rail or strut 30/35 mm and 35–50 mm clamps, 10–50 piece packs, strut-channel kit
Roof interface hardware Tile, slate and trapezoidal roofs that need a sealed penetration SUS304 hanger bolts 200 mm, M10 nuts, EPDM seals; adjustable tile hooks; tile/slate kit
Pole and wall mounts Cameras, sensors and small off-grid loads away from a building Universal pole kit 5–50 W, adjustable pole bracket 30–60 W, 5 W wall/pole bracket
Drill-free mounts Rented roofs, balconies, anywhere you cannot make a hole ABS corner mounts (4-piece), stainless balcony and rail-fence hooks

Angle-adjustable hardware sits in the tilt mount collection.

Find the bracket by mounting surface

Every part in this collection, grouped by the surface its listing is made for.

Mounting surface Stock parts
Concrete tile and slate roofs Tile and slate roof mounting kit · Adjustable roof hooks for tile roofs · SUS304 hanger bolts, 200 mm, with EPDM seal
Tin, metal, shingle and trapezoidal roofs 10-piece roof mounting kit for tin, metal and shingle roofs · 11.81 in trapezoidal rail kit · 30 cm trapezoidal roof rail kit
RV, van, caravan and boat roofs RV Z-bracket kit, 4 / 8 / 16 pieces · 100 mm Z-bracket kit for RV and caravan · 4-piece aluminium Z-bracket kit for RV, boat and roof · Aluminium Z-brackets · Long Z-bracket pair · Drill-free ABS corner mounts · Tilt bracket for RV roofs
Flat roofs and multi-panel rail layouts 4.72 in mini rail kit · Black mini rail roof kit, 4 panels · Mini rail kit for 4 panels, 30/35 mm frames · 30 cm rail kit with end clamps · 90° L-brackets
Existing strut channel (Unistrut) or rail Clamp kit for 1-5/8 in strut channel · Unistrut mid clamps, 30/35 mm · Unistrut end clamps, 30/35 mm · Black aluminium mid clamps · Mid clamps for 35–50 mm frames
Flat surfaces where you want to set the angle Tilt mount brackets, 15°–60° · Adjustable tilt legs for RV, roof and off-grid
Ground, lawn or concrete pad, no drilling Aluminium ballast plates for tilt stands

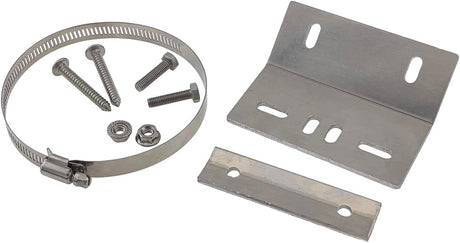

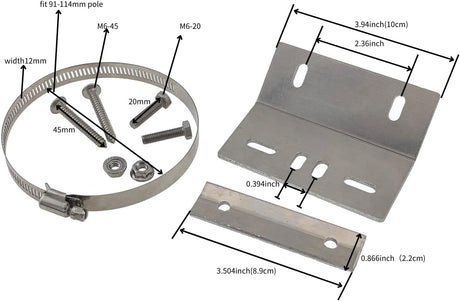

Poles and walls Pole mount kit for 5–50 W panels · Pole mount bracket for 30–60 W panels · Wall / pole bracket for 5 W panels
Balconies, posts and rail fences Stainless steel hooks, 2-pack

How to choose mounting brackets

  1. Start from the surface, not the panel. Tile roof, trapezoidal metal, RV skin, pole and balcony rail each rule out most of the table above, leaving one or two options.
  2. Check the frame thickness. Clamps here are cut for 30/35 mm and 35–50 mm frames; a clamp that does not match will not hold, whatever its rating.
  3. Count fixing points before price. Z-brackets are the cheapest way to hold a panel and the weakest per fastener; rails spread the same load across more anchors, which is why larger panels move to rails.
  4. Compare three numbers, not photographs. Wall thickness in mm, alloy grade, and load rating in PSF or Pa. Two brackets can look identical in a photo and differ by an order of magnitude in strength — thickness is exactly what gets cut when a supplier competes on price. The aluminium bracket reference explains the alloy grades.
  5. Spend up in two situations: roof installs, where fixing a failure costs far more than the hardware, and large deployments, where a small failure rate times unit count eats the saving. In hurricane, hail and heavy-snow regions, specify by load rating only.

Typical builds

RV, van and marine: Z-brackets or mini rails, stainless fasteners, one screw per foot into a roof truss. Sealing is the failure point, not the bracket.

Rooftop and shed: hanger bolts or tile hooks carry the load into the rafter, then a rail carries the module. Short rails often beat full-length ones on small roofs — see the short rail guide.

Cameras, sensors and remote monitoring: pole and wall brackets for 5–60 W panels, where most IoT and CCTV power budgets land.

Bulk & wholesale Z-brackets

Pricing, packaging and timing depend on quantity and specification, so they are confirmed in the quotation rather than listed here.

Material grade is the line item that decides warranty exposure: specify 6063-T5 aluminum (2.5 mm wall minimum, 3.0 mm preferred) and 304 stainless fasteners, with clear anodizing at 15 μm minimum or powder coat at 60 μm minimum. Ask for the mill certificate before you sign the PO.

Send your target quantity, alloy spec and packaging preference and get a wholesale quote.

FAQ

Do you make custom solar bracket fittings?

Yes. Send the frame profile, fixing surface, quantity and required load rating; what belongs in a drawing package is set out in our guide to custom solar bracket fittings.

Which bracket suits a 100 W panel on an RV roof?

A 4-piece Z-bracket set is the usual answer, moving to mini rails above roughly 150 W or where the vehicle sees sustained highway speed. Check frame thickness against the clamp range first.

Are fasteners included?

It varies by part; each product page states what is in the box. Surface fasteners for the roof, wall or ground are usually chosen separately to match the substrate.

What are the main types of solar panel mounting brackets?

Six, by how the panel is fixed: Z-brackets for fixed low-profile mounting on RV, van and shed roofs; mini rails and rail kits that spread the load over more fixing points; mid and end clamps that hold framed modules on an existing rail or strut; roof interface hardware (hanger bolts and tile hooks) for tile, slate and trapezoidal roofs; pole and wall mounts for cameras, sensors and small off-grid loads; and drill-free mounts for surfaces you cannot drill. Angle-adjustable tilt brackets are a seventh option where the panel angle matters.

What are the benefits of adjustable tilt brackets?

You can set the panel angle for the season instead of leaving it flat. The tilt mount brackets here adjust from 15° to 60° on telescopic legs of 390–670 mm, fit framed panels up to 500 W, and fix to roofs, RVs, boats, sheds and other flat surfaces with self-drilling screws. On the ground, the same kind of bracket can stand on ballast plates instead of being screwed down.

Should I use mounting brackets or mounting rails?

Count the fixing points. Z-brackets are the cheapest way to hold a panel and the weakest per fastener; rails spread the same load across more anchors, which is why larger panels move to rails. Rails also carry several panels in a row: two of the rail kits above are sized for four panels, and the 11.81 in kit mixes end and mid clamps for single or multi-panel layouts.

How do you mount solar panels on a flat roof or the ground without drilling?

Put the panel on an adjustable tilt bracket and stand the bracket feet on aluminium ballast plates, then weigh the plates down with bricks, rocks or sandbags. That holds position on grass, yards and concrete pads without making a hole. Recheck each foot after strong wind or the first heavy weather. On RV, caravan and boat roofs, drill-free ABS corner mounts support the four corners of a framed panel without drilling the panel frame.

Building a kit list, or need a fitting that is not in the table? Send the panel model, surface and quantity and you get a bill of materials with load ratings against it. Get a custom quote.
View as

Engineer-Grade Solar Panel Brackets for Off-Grid Systems


Solar panel mounting brackets tie your modules to the real world—roofs, poles, rails and equipment enclosures. They keep panels at a stable angle, handle wind and vibration, and help small off-grid systems stay reliable in everyday use.

Hardware in this collection is used on RV roofs, boats, cabins and industrial IoT sites, often together with portable modules such as our Portable Solar Panel range. For real-world layout ideas, explore the Marine & Yacht, RV & Campervan and IoT Sensors application pages.

Types of Solar Panel Mounting Brackets in This Collection

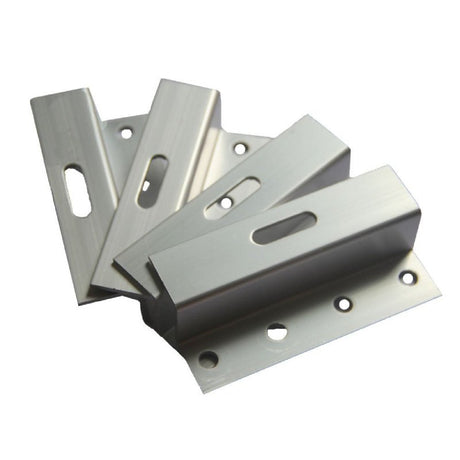

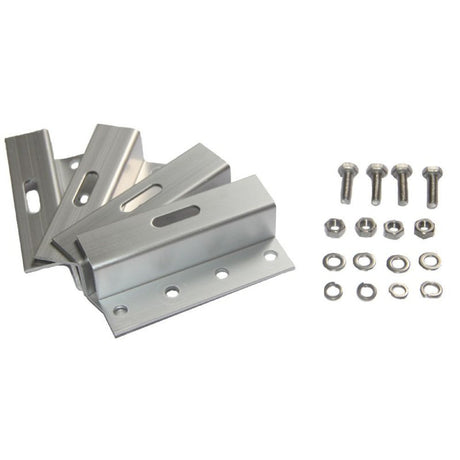

Z Brackets for RVs, Boats & Small Roofs


Z brackets secure framed panels close to a flat surface and are common on RV and camper roofs, boat cabins, sheds and small enclosures. They are a good choice when you want a low-profile, semi-permanent installation and do not need seasonal tilt adjustment.

Adjustable Tilt Brackets for Flat Roofs & Ground


Adjustable tilt brackets lift one edge of the module so you can change angle for winter sun or to shed snow and dust. On flat roofs, platforms and parked RVs they add useful yield without a full racking system. Tilt legs within this Solar Panel Bracket collection are sized for small and mid-size panels typically used in off-grid kits.

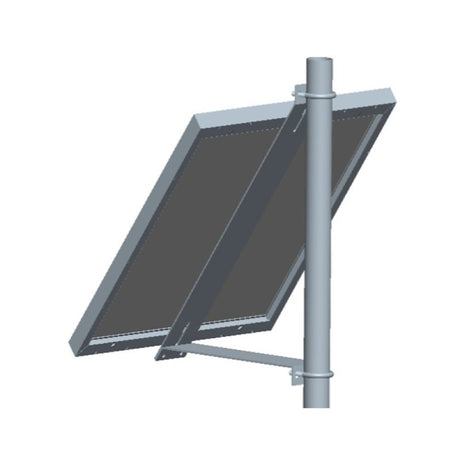

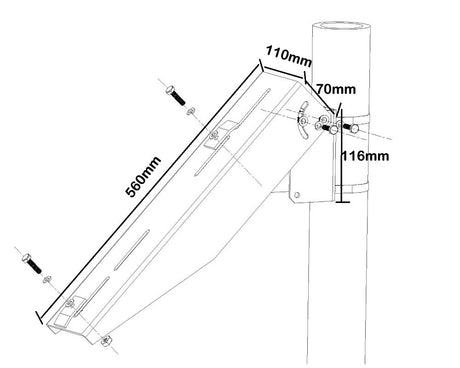

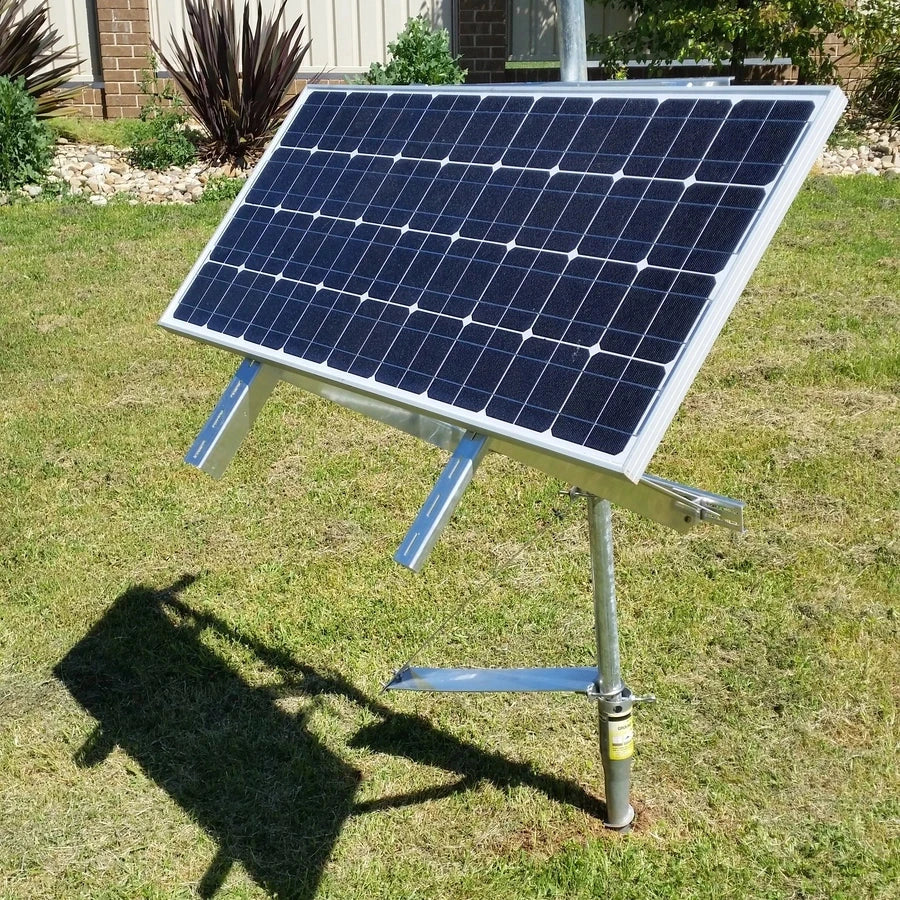

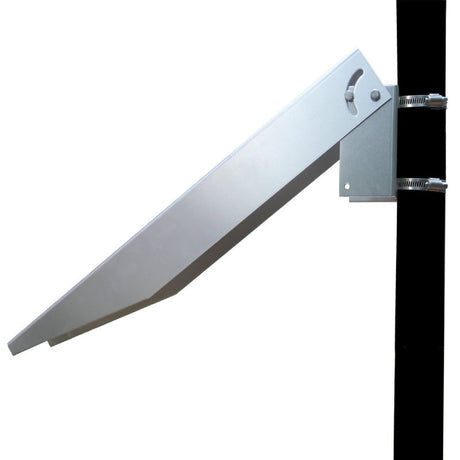

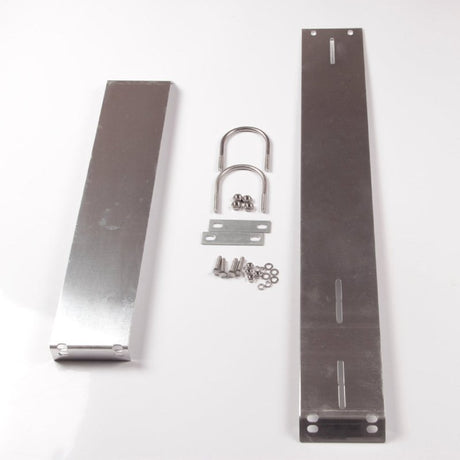

Pole Mount Kits for IoT, Cameras & Monitoring


Pole mount kits clamp panels to round or square posts, putting them above fences, vegetation or casual tampering. They are widely used with radios, sensors and cameras on standalone masts; for typical system layouts see our Solar for Weather Stations and Solar for Security Cameras & Gates guides.

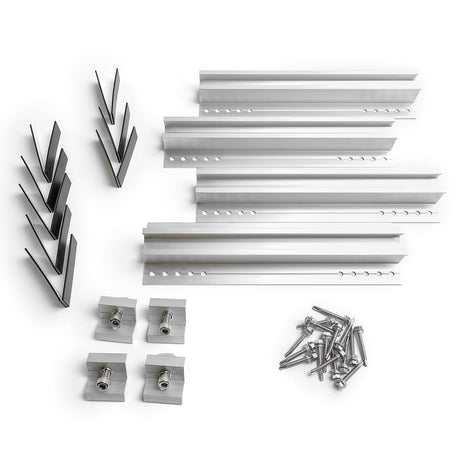

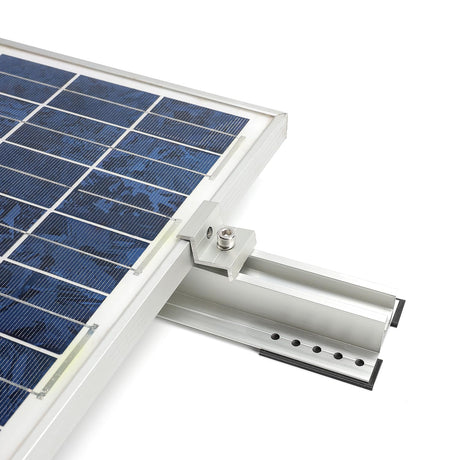

Trapezoidal Metal Roof Rail Kits


Trapezoidal and corrugated metal roofs, including container tops, benefit from rail-style brackets that spread loads across the sheet. These kits let you fix a small module or short row without building a full rail field and are often combined with clamps, drain clips and DC protection from the Accessories collection.

Balcony, Railing & Fence Hooks


Stainless hooks for balconies, railings and fences grip onto the structure without drilling, ideal for temporary or rental installations. Paired with light modules from our Flexible Solar Panels and compact modules in the Mini Solar Panels range, they provide a discreet, reversible way to add generation in tight urban or marina spaces.

Ground Ballast Plates & Hanger Bolts


Ground ballast plates and hanger bolts are used where you cannot or prefer not to penetrate the main structure. Ballast plates hold frames down on concrete pads or flat roofs using blocks or pavers, while hanger bolts anchor brackets into timber or metal under the roof skin. Both help you meet wind and snow requirements on small arrays without overbuilding the rest of the system.

Installation & Safety Notes


Small solar systems are often installed by end users, but the mounting hardware still needs the same care as any other structural connection:

  • Fasten into structural members—rafters, ribs, studs or rated anchors—rather than only thin cladding or sheet metal.
  • Use the stainless-steel hardware supplied with the kit, avoid mixed metals without isolation, and re-check bolt torque after the first season or major storms.
  • Seal any roof or wall penetrations with compatible sealants and follow roof-manufacturer guidelines to protect the substrate and warranties.
  • For larger roofs, public sites or high-wind/snow regions, consider having a local installer or engineer review the mounting layout.

Custom Mounting Solutions


Many LinkSolar customers are system integrators building fleets of RVs, boats, camera poles or sensor nodes, where the goal is a repeatable kit rather than a one-off installation. In these projects the bracket layout is defined once and reused, so every unit ships with the same proven mechanical interface and wiring path.

We can pair custom or semi-custom modules from the Custom Solar Panels collection with ultra-compact devices designed under the Custom Mini Solar Panels program and high-grade cells from our Solar Cells range, then match them with hardware from this bracket collection. Share your target power, mounting surface and environment, and we can help define a bill of materials and bracket pattern that your engineering and field teams can repeat across pilots and full deployments.

Featured Collection

View all

Frequently Asked Questions

What size solar panels do these brackets support?

Most brackets in this collection are designed for small and mid-size framed panels, typically from about 5 W up to 130 W per module. For ultra-compact devices and PCBs, you may find a better match in our Mini Solar Panels and Solar Cells collections.

Are these brackets compatible with other brands’ solar panels?

Yes. As long as your panel has a rigid frame and falls within the recommended size and weight for the bracket, it does not have to be a LinkSolar module. Simply check the frame thickness, overall dimensions and available mounting slots or holes. If you share a datasheet with us, we can confirm compatibility before you buy.

Which bracket should I use for an RV or campervan roof?

For low-profile, permanent installs on RV and campervan roofs, Z brackets and short rail kits are a simple, proven solution. If you want to tilt panels when parked, use adjustable tilt legs from this collection together with panels similar to those shown on our RV & Campervan application page. Curved or lightweight roofs often benefit from more brackets and fastening into structural ribs rather than only the outer skin.

Can I use these brackets on a pole or mast?

Yes. Use a pole-mount bracket when installing on a round or square pole, mast or post. This is common in projects like IoT sensors, gateways, weather stations and security cameras where the panel needs to sit above vegetation, fences or signage. Pole mounts let you set both tilt and direction while keeping wiring short.

Are these brackets suitable for metal roofs and containers?

Several brackets in this collection work well on metal roofs and container tops, especially trapezoidal rail kits and Z-bracket sets. Always confirm roof thickness, rib spacing and the recommended fastener type for your specific roof system. Where possible, fasten through to structural members and seal penetrations carefully to protect the roof and maintain warranties.

How corrosion-resistant are the brackets for marine or coastal use?

Most brackets are made from anodised or coated aluminium with stainless steel hardware, or stainless hooks and fasteners for balcony and rail mounts. This combination holds up well outdoors, including in coastal environments, when installed correctly.

Can I install these brackets myself, or should I hire a professional?

Many RV owners, boaters and DIY users install small panel mounts themselves with basic tools, especially Z brackets, hooks and compact tilt legs. However, for large roofs, high wind or snow areas, or systems tied into existing electrical infrastructure, we recommend working with a qualified installer who can check structure, waterproofing and code compliance.

Do you support custom projects and kits that include brackets and panels?

Yes. LinkSolar regularly supports project teams who need matched brackets, panels, wiring and protection devices as a single repeatable kit. A typical workflow is to define the mechanical interface using this Solar Panel Bracket collection, then select or design modules from our Custom Solar Panels, mini panel and portable ranges. Once the configuration is validated, we can manufacture and ship it as a standard kit for your production or field deployments.
