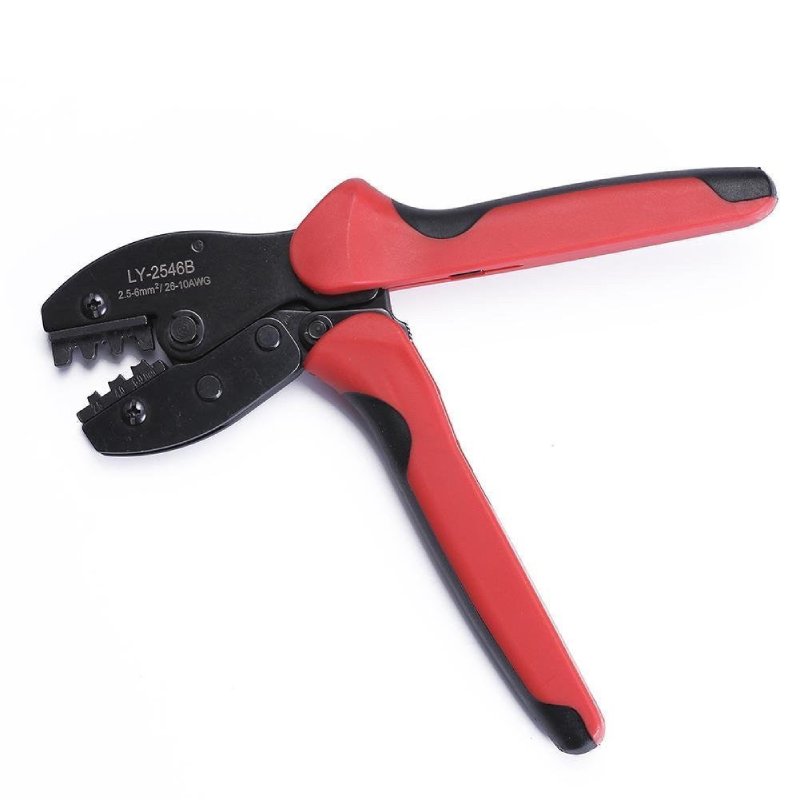

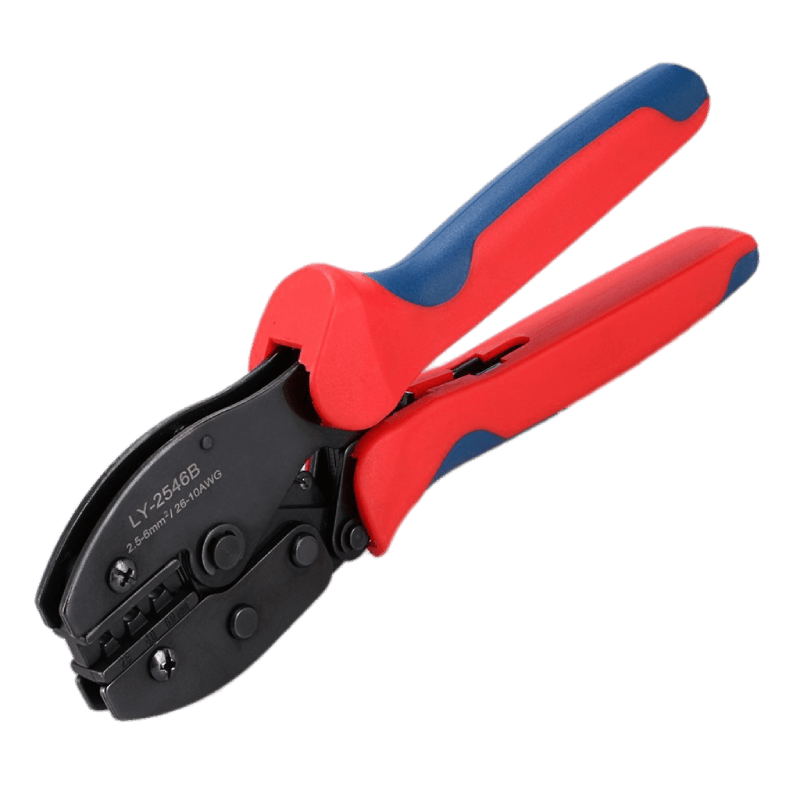

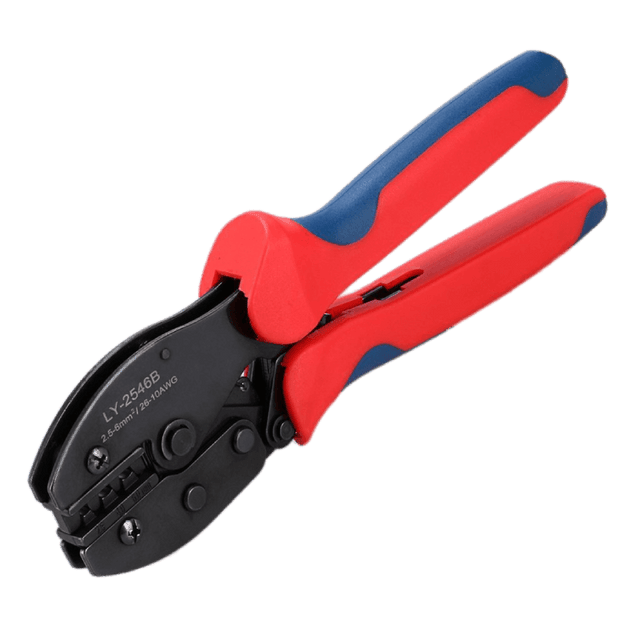

MC4 Solar Connector Crimping Tool for 2.5-6.0mm² Wire

A ratcheting MC4 connector crimper for solar cable from 2.5 to 6.0 mm². The ratchet will not release until the crimp is fully closed, which is the whole point: it removes the main variable in the joint that fails most often in a PV system.

Why the crimp is worth a proper tool

In an outdoor DC string, the connector is the most common failure point, and a poor crimp is the most common reason. A loose or partial crimp leaves contact resistance at the joint. Resistance under load produces heat. Heat degrades the contact further, which raises resistance again — and that loop ends in a connector that melts, arcs, or quietly costs you output for years.

Pliers and generic crimpers produce a joint that looks acceptable and measures badly. A ratcheting tool applies the same compression every time and will not let go early.

Do you need this one?

• Cable size — this tool covers 2.5, 4 and 6 mm², which is the normal range for module leads, string wiring and most small array runs. Larger conductors need a different tool.
• Connector compatibility — it crimps the contact pins used in MC4-compatible connectors, which is the common standard on modules and PV cable. Check that your connector's pin matches before ordering unusual brands.
• Assembling or repairing — worth owning if you are terminating cable at all. If you only ever plug factory leads together, you do not need it.

How to tell your crimp is good

1. Pull test. A correct crimp will not release the conductor under a firm pull. If it slides, redo it.
2. Look at the strip length. Insulation should reach the barrel without entering it, and no visible strands outside. Strands trapped under the insulation are the classic hidden fault.
3. Full ratchet cycle. If the tool releases before the ratchet completes, the crimp is not finished — never force the release.
4. Seat the pin until it clicks. A perfect crimp in a pin that is not fully seated in the housing gives the same failure.
5. Tighten the cable gland. The gland is what keeps water out; a hand-tight gland on an outdoor connector will leak eventually.

Key features

• Ratchet mechanism for controlled, repeatable compression
• Precise crimping dies for 2.5 / 4 / 6 mm²
• Hardened steel construction
• Ergonomic handle, one-hand operation
• Complete locking system with manual release

Package contents

Option 1 — 1 × LY-2546B MC4 PV solar crimping tool

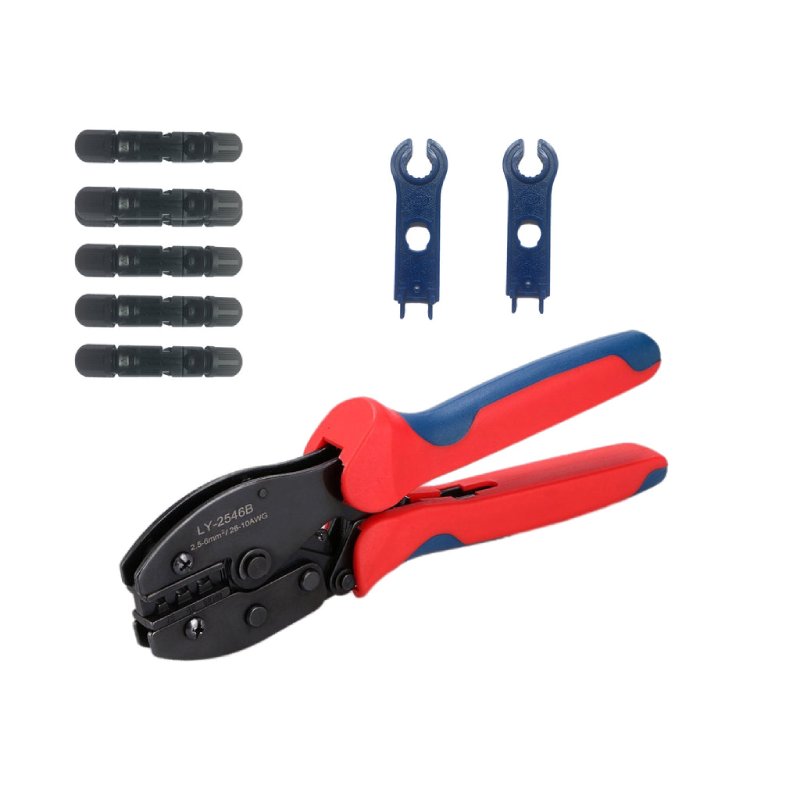

Option 2 (kit) — 1 × LY-2546B crimping tool + 5 pairs of MC4 connectors

What else you will want on the job

A crimper alone does not finish a connection. Cable glands for enclosure entries are in solar accessories and balance-of-system hardware, along with breakers, fuses and connectors. Panel fixing hardware is in brackets and mounts.

Buying several

Installers, training workshops and field service teams usually want more than one. This is a stock item with no minimum order, shipping from inventory. Custom and OEM configurations of balance-of-system hardware start at 200 pcs. Tell us the quantity and destination and we will quote — request a quantity price →

Applications

• Solar panel installation and string wiring
• PV system maintenance and connector replacement
• Professional electrical work
• Field repair kits and service vehicles

Buyer questions

What wire sizes does it crimp?

2.5 to 6.0 mm² (14–10 AWG), with dedicated dies for 2.5, 4 and 6 mm² — the normal range for module leads, string wiring and most small array runs. Larger conductors need a different tool.

Which connectors is it for?

It crimps the contact pins used in MC4-compatible connectors, the common standard on modules and PV cable. For unusual connector brands, check that the pin matches before ordering.

Why a ratcheting tool rather than pliers?

The ratchet will not release until the crimp is fully closed, applying the same compression every time. Pliers and generic crimpers produce a joint that looks acceptable and measures badly — and a poor crimp is the most common reason a connector fails in an outdoor DC string.

How do I check the finished crimp?

Pull test the conductor, check the strip length (insulation reaches the barrel without entering it, no strands outside), let the ratchet complete its full cycle, seat the pin until it clicks in the housing, and tighten the cable gland — the gland is what keeps water out.

What ships in the box?

Option 1 is the LY-2546B tool alone; Option 2 (kit) adds 5 pairs of MC4 connectors. The tool is 150 mm long, 0.45 kg, hardened steel with one-hand operation and manual release.
