Product Description
Solar DC Circuit Breakers engineered for maximum protection in photovoltaic systems. These DIN Rail DC Breakers offer reliable overcurrent and short-circuit protection for PV installations with voltages ranging from 250V to 1000V DC.
Key Features
- Bidirectional current protection capability
- Pre-wired design with Input/Output on the same side
- Non-polarity sensitive installation
- Visual position contact indication with green strip
- Lockable OFF position for maintenance safety
- Enhanced isolation with inter-pole barriers
- Compliant with IEC/EN 60947-2 standards
Technical Specifications
| Parameter | Specification |
|---|---|

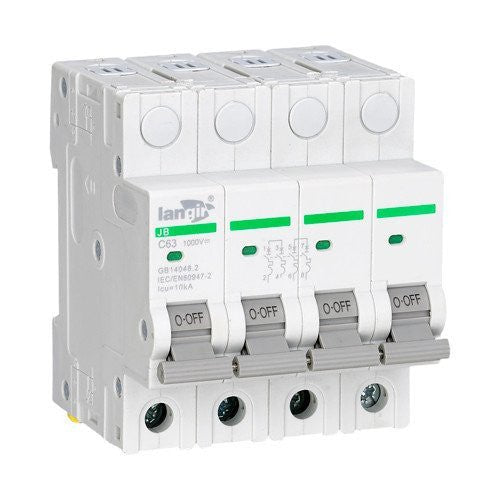

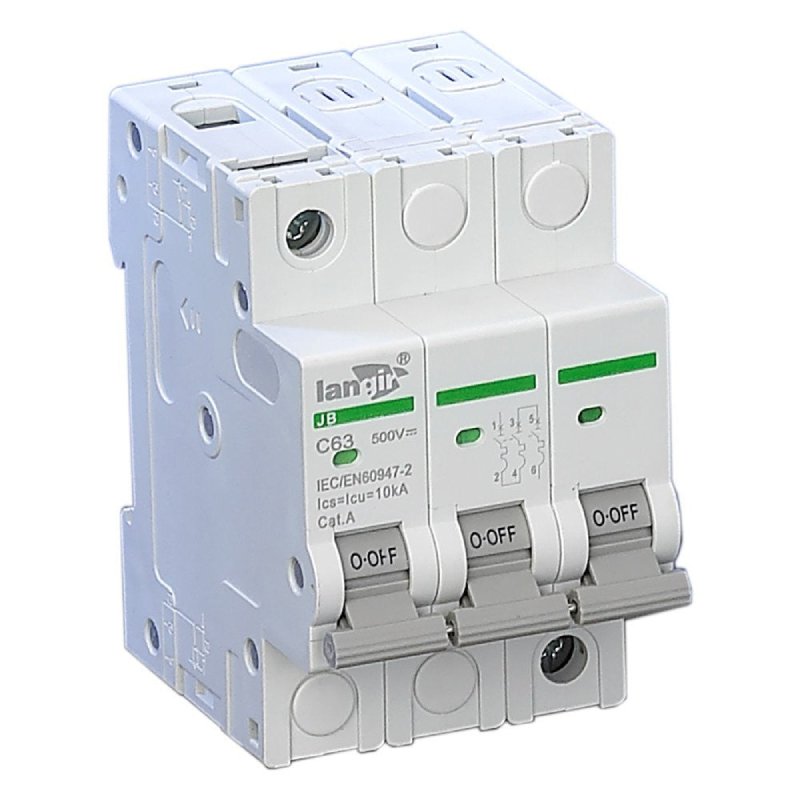

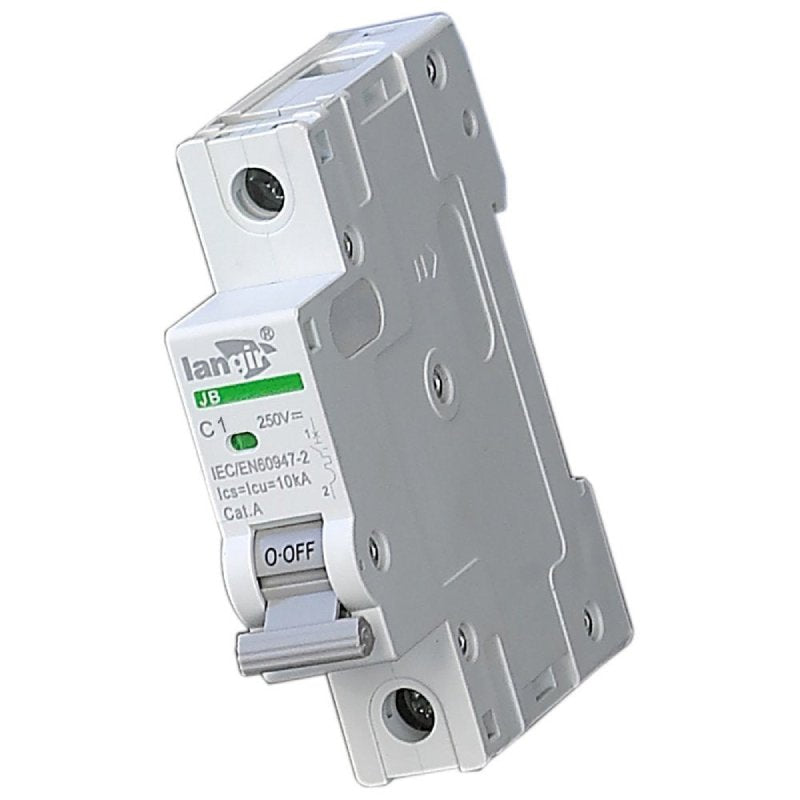

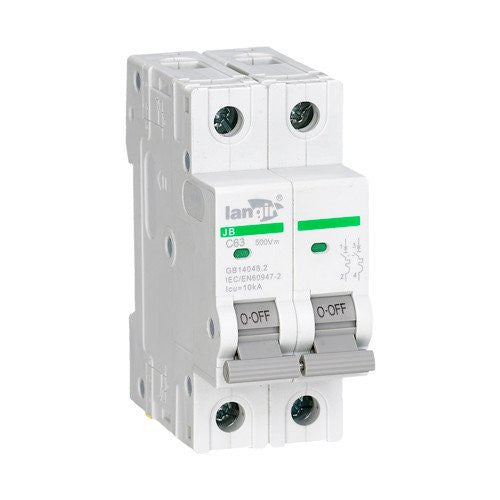

| Operating Voltage | 1P: 250V DC 2P: 500V DC 3P: 750V DC 4P: 1000V DC |
| Breaking Capacity (Icu) | 10 kA |
| Service Breaking Capacity (Ics) | 100% of Icu |
| Rated Insulation Voltage | 1000V DC |
| Operating Temperature | -25°C to 70°C |
| Protection Grade | IP40 |
| Electrical Endurance | 1,500 cycles (L/R=2ms) |
| Mechanical Endurance | 20,000 cycles |
| Installation | DIN Rail mounting |
Applications
Perfect for solar PV system protection, including:
- Multi-string photovoltaic installations
- Solar inverter protection circuits
- DC power distribution systems
- PV string combiner boxes
Safety Features
- Integrated isolation function for safe maintenance
- Compatible with residual current devices
- Suitable for insulation monitoring systems
- Enhanced protection with earth leakage detection options
Ideal for professional solar installers, electrical contractors, and PV system integrators looking for reliable DC protection solutions.
This DC Circuit Breaker ensures maximum system reliability and safety in photovoltaic applications, making it an essential component for modern solar energy installations.
How long does it take to ship after placing an order?
For standard products in stock, we usually process and ship within 1-3 business days after you place an order and successfully pay. The shipping time of customized products or pre-sale products will be separately stated on the product page or in the order confirmation.
Can I change or cancel an order I have placed?
If you need to change or cancel an order, please contact our customer service as soon as possible. If the order has not been processed or shipped, we can usually do it for you. However, if the order has entered the shipping process or has been shipped, it may not be changed or canceled. Please refer to our cancellation policy or contact customer service directly for details.
How do I clean and maintain my LinkSolar solar panel?
Regularly checking and cleaning the surface of the panel is key to maintaining efficiency. Gently wipe it with a soft cloth, sponge and clean water. Avoid using abrasive materials or strong chemical cleaners. The frequency of cleaning depends on the environment. If there is a lot of dust or pollution such as bird droppings, it should be cleaned in time. Also check whether the cable connections are secure.
What power solar panel do I need?
To calculate the required power, you need to consider:
① the total power of all your electrical devices (watts);
② the number of hours these devices are used each day, calculate the total power consumption (watt-hours Wh);
③ the average daily effective sunshine hours in your area;
④ system losses (usually reserve 20-30%).
The formula is approximately: total panel power required = (total daily power consumption Wh / average sunshine hours h) / system efficiency factor (such as 0.7-0.8).
