Mini Solar Panels for IoT Devices: Custom Design, Sizing and OEM Guide

Miniature solar panels look simple from the outside—just a small dark rectangle with two pads or two wires—but for an IoT device they are basically the fuel tank and the charger in one component. If you get the voltage, power or packaging wrong, your sensor fleet may quietly die in the field long before the business case pays back.

This guide explains how to design and specify custom mini solar panels for IoT and other low-power electronics. We’ll walk through:

• What mini PV assemblies are and which electrical and mechanical specs actually matter
• How to choose nominal voltage and power bands based on your device duty cycle
• How encapsulation materials (PET, EVA, fiberglass, ETFE) change lifetime and yield
• Integration options: SMT-level PV, pre-wired modules and adhesive-back panels
• Mounting hardware choices for roof, pole, ground, RV and marine installs
• A practical OEM/ODM workflow—from DFM and prototyping to validation and mass production

Throughout the guide we use LinkSolar as an example OEM partner. When you’re ready to move from concept to hardware, you can send your project brief via our
Custom Mini Solar Panels OEM page to get a concrete proposal.

---

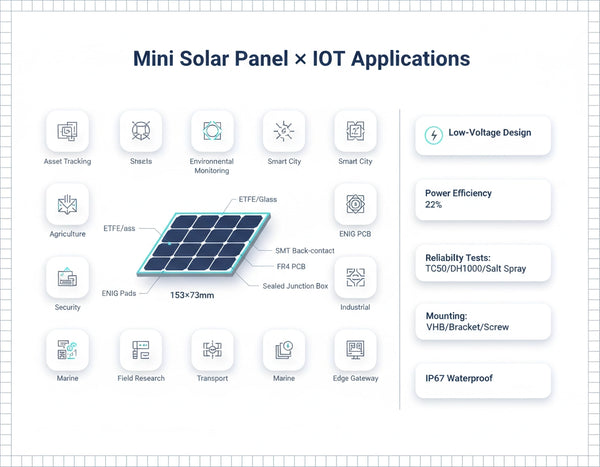

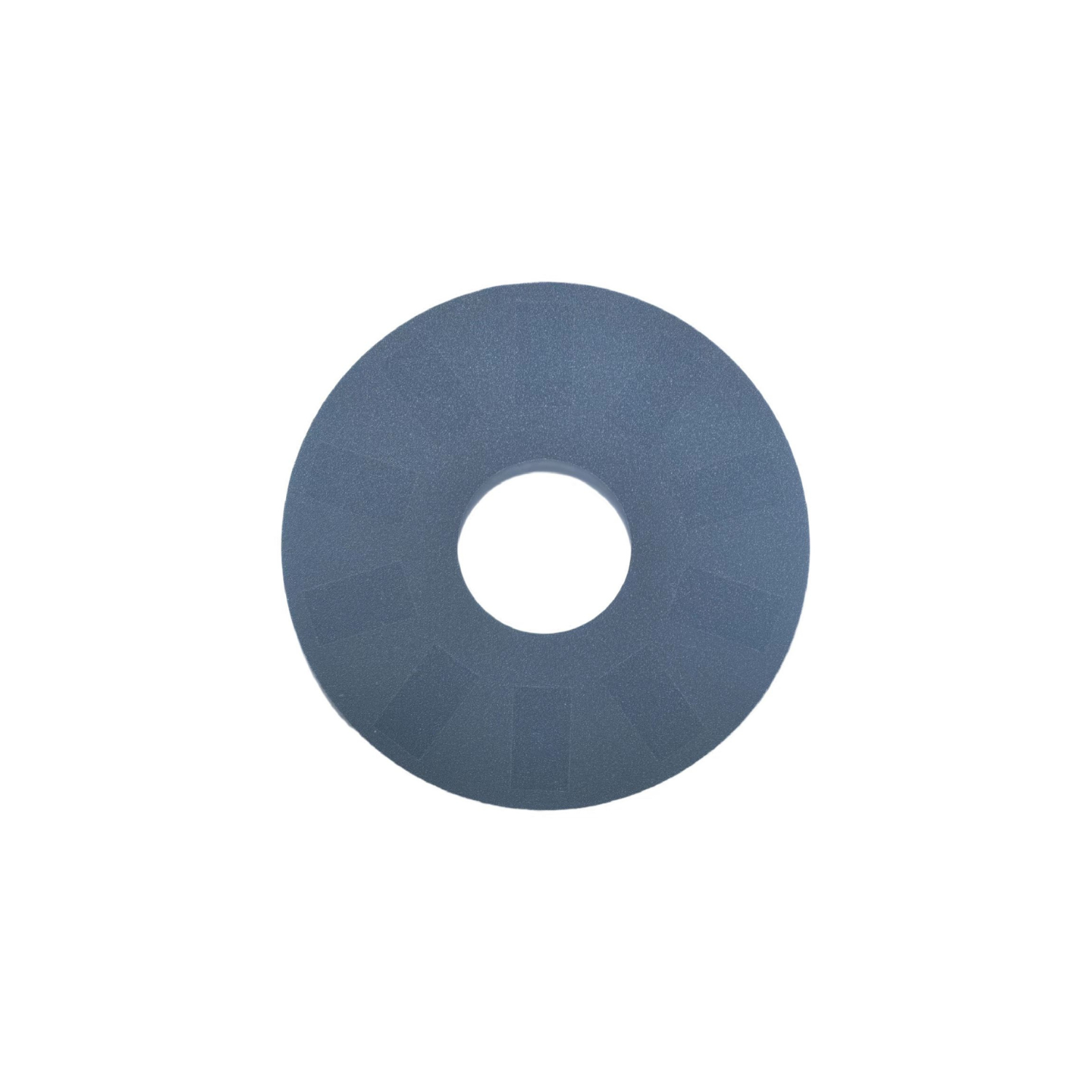

1. What custom mini solar panels are and why IoT devices need them

Custom mini solar panels are compact photovoltaic assemblies tuned to the specific voltage, power and footprint your embedded electronics require. Instead of buying a random “5V hobby panel” and hoping for the best, OEM teams usually start by clarifying three things:

• The nominal operating voltage (or input window) that their regulators and batteries expect
• The average daily energy budget the device needs to stay online
• The mechanical envelope available on the enclosure, bracket or housing

Based on those constraints, one or more high-efficiency cells are combined into a protected package with robust interconnects so that, under realistic light, the panel delivers:

• A predictable open-circuit voltage (Voc)
• Enough current at the operating point (I at Pmax)
• Consistent daily energy harvest across seasons and weather conditions

Key specs to look at on a mini module datasheet:

• Nominal voltage (5V, 6V, 9V, 12V, etc.)
• Voc and Isc (for sizing diodes, regulators and protection parts)
• Pmax and current at Pmax (for charging speed and energy-budget math)
• Dimensions and thickness
• Encapsulation and backing (PET, ETFE, fiberglass, potting, etc.)

A well-designed mini panel gives you harvested energy sized to the device duty cycle. That lets you shrink battery capacity, reduce truck-rolls to change batteries, and increase uptime for distributed IoT fleets.

Which design choices matter the most depends heavily on the application:

• Daytime-only sensors care more about effective area and cell efficiency than about 10-year lifetime.
• Always-on, permanently exposed equipment cares more about encapsulation, corrosion resistance and mechanical robustness than squeezing the last 1–2% of efficiency.

These trade-offs drive your voltage and power selections and will influence encapsulation stacks and mounting options later in the design.

---

2. How to choose voltage and power for mini solar panels

Mini modules are usually offered in nominal voltages that map directly to common device rails and charger inputs. The table below summarizes typical voltage bands and where they’re used.

2.1 Typical voltage bands and applications

Some practical points from real projects:

• Voc must sit above your system minimum
  Open-circuit voltage needs comfortable headroom over your regulator or charger minimum so the system still operates under clouds, dust and higher temperatures.
• Power range is efficiency × area
  For a given footprint you are trading cell efficiency against cost, thermal behavior and lifetime.
• Pmax current tells you “how fast you refill”
  After a high-power event (camera recording, radio TX), this number tells you how long it takes to bring the battery back into a safe state of charge.

For custom designs it helps to specify:

• Target nominal voltage (or input range of your regulator/charger)
• Rough daily energy need in Wh/day
• Mechanical limits (max length/width/thickness and “no-go” zones)
• Desired autonomy (e.g., 3–5 days without sun)

With that, a mini panel OEM can optimize series/parallel cell counts and layout to hit your energy budget with real-world margins. If you already have these numbers, you can send them through our
Custom Mini Solar Panels OEM page and we’ll convert them into concrete layouts and sample options.

---

3. How encapsulation materials change lifetime and performance

Encapsulation is what turns bare solar cells into something that survives outside. It protects against moisture, UV, abrasion and mechanical stress, but it also affects light transmission and long-term stability.

Common encapsulant / backing materials for mini modules:

PET (polyester)

• Good dimensional stability
• Reasonable UV resistance
• Solid choice for framed or semi-rigid modules
• Usually preferred in cost-sensitive projects with moderate lifetime targets

EVA (ethylene-vinyl acetate)

• Classic laminated encapsulant in many PV modules
• Economical and mature in process
• Without proper stabilization it can yellow or degrade under long-term exposure

Fiberglass backings

• Provide rigid structural support
• Excellent mechanical protection for rugged installs
• Suitable for high-impact, high-vibration or higher-temperature environments

ETFE (ethylene tetrafluoroethylene)

• Very strong UV and abrasion resistance
• High light transmission
• Ideal for long-life outdoor deployments, marine applications and high-UV sites

The “right” stack depends on:

• Exposure: coastal, desert, shaded urban canyon, under trees, etc.
• Service life: 2–3 year pilot vs 10-year city infrastructure
• Mechanical behavior: must it flex around a curve, or is rigid OK or even better?

Understanding these trade-offs helps you avoid situations where marketing promises 10 years and the field sees delamination or yellowing in year 3.

Simple examples:

• For a 2-year consumer gadget, PET might be just fine.
• For a smart-city pole sensor, ETFE + fiberglass with salt-fog testing is usually a better bet.

If you’re not sure which encapsulation stack best fits your environment, you can send we your enclosure design and target lifetime through the
Custom Mini Solar Panels OEM page and we’ll outline a couple of options with pros/cons.

---

4. Integration options: SMT-level PV, adhesive-back and pre-wired modules

How you integrate the mini panel into your device has a huge impact on assembly flow, reliability and cost. OEM teams usually choose between three main approaches.

4.1 SMT-level mini solar modules (our SunPower-based approach)

SMT-level PV modules are designed with standard solder pads and footprints so they can be:

• Placed by pick-and-place
• Run through a standard reflow profile
• Protected with conformal coating together with the rest of the PCB

In this area LinkSolar’s approach is to build SMT mini panels primarily from SunPower high-efficiency cells that we cut to size. These are back-contact cells—all the contacts are on the back, the front surface has no metal grid lines. That gives you:

• Higher effective efficiency for the same area, compared with many typical small epoxy-potted panels
• A much cleaner, more “finished” look on the front side, which matters when your device is a branded IoT node or a security product, not a DIY kit

So compared to a lot of the small, epoxy-potted panels you see on marketplaces:

• Our SunPower-based mini panels typically deliver more power in the same footprint, and they behave better at higher temps
• The front surface looks neat and consistent, so the finished device doesn’t feel like a hacked-on solar accessory

Of course, not every project needs the “best of the best” cell technology:

• If your mechanical space is generous and not extremely tight
• And if lowest possible cost is more important than every last percent of efficiency

then a more conventional cell + traditional lamination or potting process can be a very good fit. This process has been used in the industry for decades; it’s mature, proven and cost-efficient.

Another practical point that many teams care about: MOQ and tooling.

• For custom SMT mini panels, we keep the barrier low: there is basically no hard minimum order quantity
• Typically there is just a tooling / jig charge starting around 50 USD, depending on the size and structure
• After that, you can place small batches as you ramp from engineering samples → pilot → mass production

In practice this makes it much easier to experiment, iterate and ramp gradually instead of being forced into huge volumes on day one.

Overall, SMT-level mini solar panels offer:

• Fewer manual soldering and wiring steps
• A simpler BOM (fewer connectors, glands, harnesses)
• Better mechanical robustness—no loose wires hanging in the field
• Ultra-low profile designs that fit inside tight housings like cameras or slim sensors

You do need to pay attention to:

• Early DFM for pad geometry and stencil openings
• Reflow temperature profiles to avoid harming the cells or encapsulant
• How conformal coating and cleaning are done around the PV area

For medium- to high-volume OEM runs, SunPower-based SMT integration usually delivers a combination of higher power density, cleaner appearance and improved long-term reliability. For more cost-sensitive projects with relaxed space constraints, conventional cells and processes remain a very solid option.

You can explore SMT-oriented module options and DFM guidance through our
Mini Solar Panel SMT Integration page or by contacting our engineering team直接.

4.2 Adhesive-back mini panels

Adhesive-back panels are thin modules with pressure-sensitive adhesive (PSA) on the rear surface. They are:

• Easy to place by hand or with a simple robot
• Useful for retrofits and field upgrades
• Good for surfaces where you can’t drill holes or use brackets

Limitations:

• Adhesive can creep under heat and humidity over years
• Sealing is limited unless backed by gaskets or over-molding
• Not ideal for high-vibration or high-impact environments

4.3 Pre-wired modules

Pre-wired mini modules come with cables, connectors or flying leads already attached. They are best when:

• You’re routing cables through glands into IP-rated enclosures
• You already have a harness architecture and just treat the panel as another peripheral
• Volumes are low and manual assembly time is acceptable

Trade-offs:

• More manual labor and handling steps
• Cables and connectors are very often the weakest link for water ingress and mechanical stress
• Cable and connector spec must line up with your enclosure and routing plan

A quick comparison:

---

5. Mounting hardware and mechanical design for B2B installs

Even a perfectly designed mini panel will underperform—or just fail early—if the mounting system is wrong. Brackets have to address:

• The attachment surface and the underlying structure
• Wind and snow loads
• Corrosion exposure (urban, industrial, coastal)
• Installation ergonomics (time, tools, access, re-work)

Common bracket types:

Environment-specific guidance:

• Roof: focus on lightweight, easy-install brackets with correct flashing and sealing.
• Ground: heavier structures with foundations or ballast sized to local codes.
• Pole: moment calculations and stiffness checks; damping to protect connectors and laminates.
• RV & marine: corrosion resistance and adjustability to handle motion, tilt changes and severe salt-fog.

If you’re designing the whole system (panel + bracket), you can combine this guide with mounting hardware resources for roof, ground and pole designs, then add mini PV modules on top of that mechanical平台.

---

6. OEM/ODM workflow: from DFM to mass production

Once your targets are clear, a structured OEM/ODM process keeps projects on schedule and within budget. A typical flow for custom mini panels includes:

DFM assessment

• Cell and series/parallel layout selection
• Encapsulation stack matched to environment
• SMT pad geometry and tolerances for pick-and-place and reflow
• Mounting and cable-interface considerations

Tooling and jig fabrication

• Fixtures for lamination, curing, cutting and assembly
• Jigs for electrical test and alignment
• Tolerance locking before pilot runs

Rapid prototyping

• Quick-turn samples (often 7–10 days) to validate electrical and mechanical fit
• Early I-V characterization and basic environmental checks

Validation testing

• Electrical: I-V curves, insulation, leakage
• Environmental: UV, temp-humidity cycles, salt-fog for marine use
• Mechanical: vibration, shock, impact, cable-strain

Pilot production and scale-up

• Controlled lamination presses and tooling for consistent modules
• Quality gates between pilot and full mass production
• Process tuning for yield, takt time and consistency

At LinkSolar, as an engineering-led OEM partner, we typically support this flow end-to-end:

• Two lamination / compression presses and a coordinated tool-and-mold network
• Sample lead times around 7–10 days, OEM runs around 3–5 weeks per batch
• Full documentation to feed PPAP/FAI processes where needed

---

7. Quality control and compliance for reliable IoT deployments

For industrial and infrastructure customers, paperwork and repeatability matter as much as watt-hours. A common quality flow for custom mini panels looks like:

• IQC (Incoming Quality Control)
  • Verification of cells, encapsulants, backings, cables and connectors
  • Supplier certification and lot traceability
• IPQC (In-Process Quality Control)
  • Solder and lamination inspections
  • Monitoring of key process parameters (temperature, pressure, time)
  • In-line electrical checks during tabbing/stringing
• OQC (Outgoing Quality Control)
  • Final electrical tests (Voc, Isc, Pmax, insulation)
  • Visual inspection for cracks, bubbles, delamination and cosmetic issues
  • Packaging and labeling checks

Compliance documentation often includes:

• RoHS / REACH declarations
• PPAP / FAI packages for automotive or regulated applications
• Traceability records for critical materials and process steps

These staged quality gates reduce the risk of field failures and support procurement teams that need formal production evidence, not just promises.

---

8. Typical B2B applications and a simple sizing example

Mini PV assemblies support many B2B use cases where small but dependable power is required without frequent maintenance:

• Remote environmental sensors and data loggers
• Battery-assisted security cameras and access-control points
• Smart-city nodes (air-quality, parking, traffic or lighting controllers)
• RV and marine auxiliary systems and telemetry
• Outdoor signage, counters and edge gateways

Each application will push you toward different choices in encapsulation, mounting, voltage and integration:

• Urban smart-city nodes: low profile, tamper-resistance, pollution and shading tolerance
• Marine systems: salt-fog testing, marine-grade fasteners, ETFE or glass topsheets
• Security cameras: higher power bursts, 9V/12V rails, housings that hide panels but still collect sun

8.1 A simple sizing example for a remote sensor

Take a sensor that draws 50 mA at 3.3 V for 10 minutes per day and otherwise sleeps at microamp level.

• Daily active energy ≈ 0.05 A × 3.3 V × (10 / 60) h ≈ 0.0275 Wh
• Add overhead for conversion and battery inefficiencies, say ×1.5 ⇒ ~0.04 Wh/day
• If your site delivers a conservative 2 sun-hours equivalent in winter,
  the panel needs to provide at least 0.04 Wh / 2 h = 0.02 W average.

In real projects we usually give this some margin, so a 100–150 mW mini panel is typically enough.

A 5V or 6V mini module plus the right energy-harvesting IC and a small Li-ion or LiFePO₄ cell will easily support this load with several days of autonomy, even including self-discharge and system overhead.

For heavier devices (for example an LTE camera), the math is exactly the same—just with bigger numbers. If you share those numbers with our team via the
Custom Mini Solar Panels OEM page, we can propose panel ratings and battery pairings tailored to your duty cycle and climate.

---

9. What to prepare before contacting a mini solar panel OEM

To move efficiently from “idea” to real hardware, it helps to prepare a short but complete brief. At minimum:

Electrical

• Target nominal voltage (or acceptable input range)
• Estimated daily energy use (Wh/day) and desired autonomy (days without sun)
• Peak current / power events (e.g., camera recording, radio transmission)
• Charger or power-management IC details, if you already picked one

Mechanical

• Maximum panel footprint (length × width × thickness)
• Planned integration method: SMT, adhesive-back, bracket, pre-wired, etc.
• Enclosure layout and cable-routing constraints

Environment

• Installation type: smart-city pole, roadside cabinet, marine, rooftop, indoor near window, etc.
• Expected temperature range, UV exposure and pollution (dust, salt, chemicals)
• Target lifetime (pilot vs long-term deployment)

Quality & Compliance

• Required standards (RoHS/REACH, automotive, telecom, etc.)
• Need for PPAP/FAI or other formal documentation
• Expected annual volume and ramp-up plan

With this information, an OEM partner like LinkSolar can quickly:

• Propose appropriate mini panel specs and encapsulation
• Recommend SMT or wired integration and matching mounting options
• Provide realistic lead time and cost ranges for samples and mass production
• Align quality flows and documentation with your procurement process

You can start that conversation by submitting your brief through our
Custom Mini Solar Panels OEM page and, if helpful, browsing standard modules in our
mini solar panel catalog as a reference point.
