SUS304 Solar Hanger Bolts, 200 mm, M10 Nuts & EPDM Seal (6/10 Pcs)

LinkSolar  |  SKU: ACC-RG810-06
$1599 USD
Taxes, discounts and shipping calculated at checkout.

Features

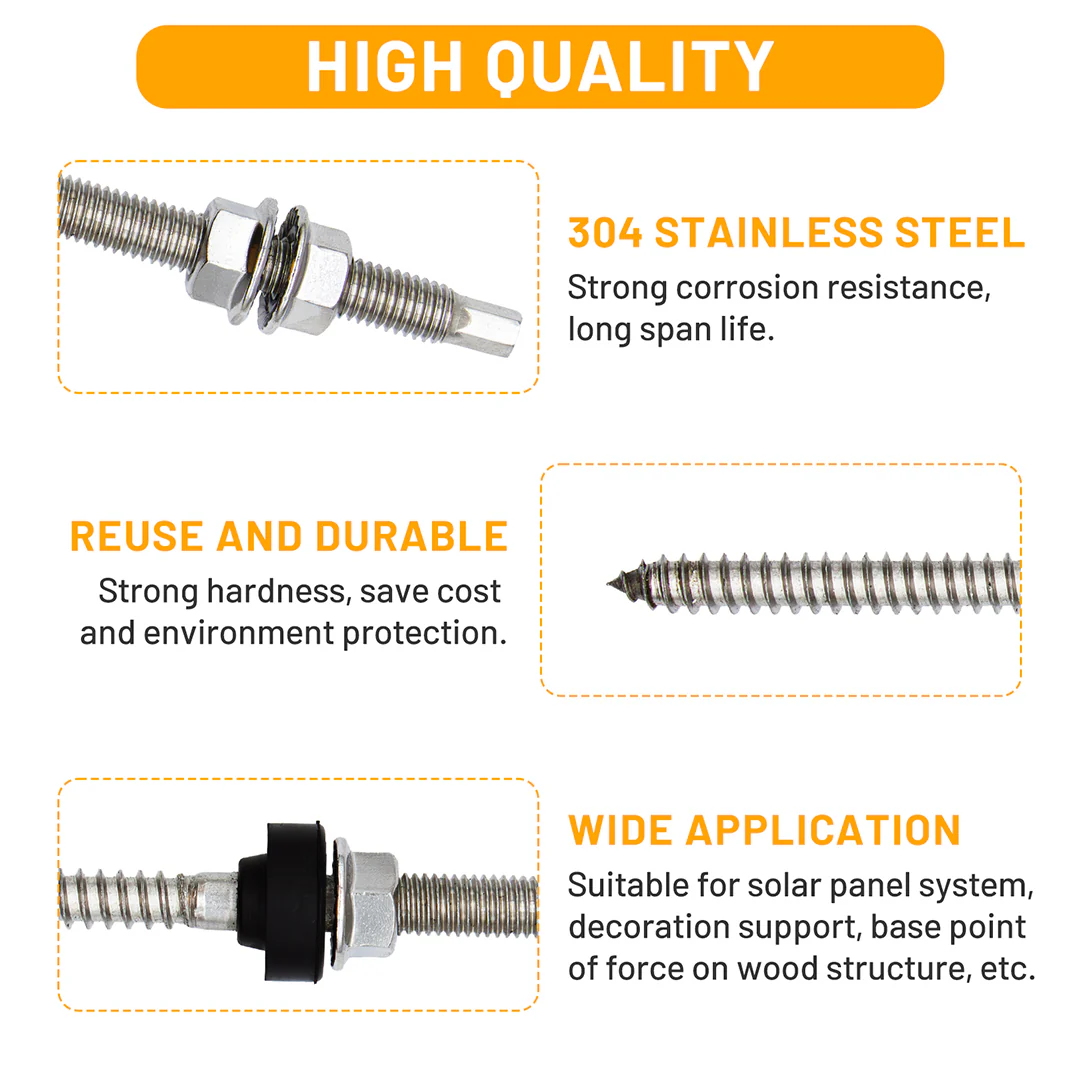

  • 304 stainless steel — strong corrosion resistance, long service life.
  • Double-threaded design — wood thread + machine thread; includes M10 flange nuts for secure fastening and height tuning.
  • Weather-sealed — EPDM rubber ring helps seal penetrations.
  • Fast setup — pre-assembled; drive with a spanner or use double-nut method for easier insertion.
  • Wide scene coverage — roof / marine / caravan / shed / other flat surfaces; compatible with common tilt / rail / roof-hook brackets.
  • Per-bolt load — about 20 kg per bolt.

Pre‑assembled SUS304 stainless steel hanger bolts for fastening solar rails/L‑feet to wooden substructures. The set includes M10 flange nuts for height adjustment and EPDM rubber rings for weather sealing. Length 200 mm. Suitable for rooftops and other wood‑based structures; typical uses include roof, marine, caravan, shed, and other flat‑surface PV installs.

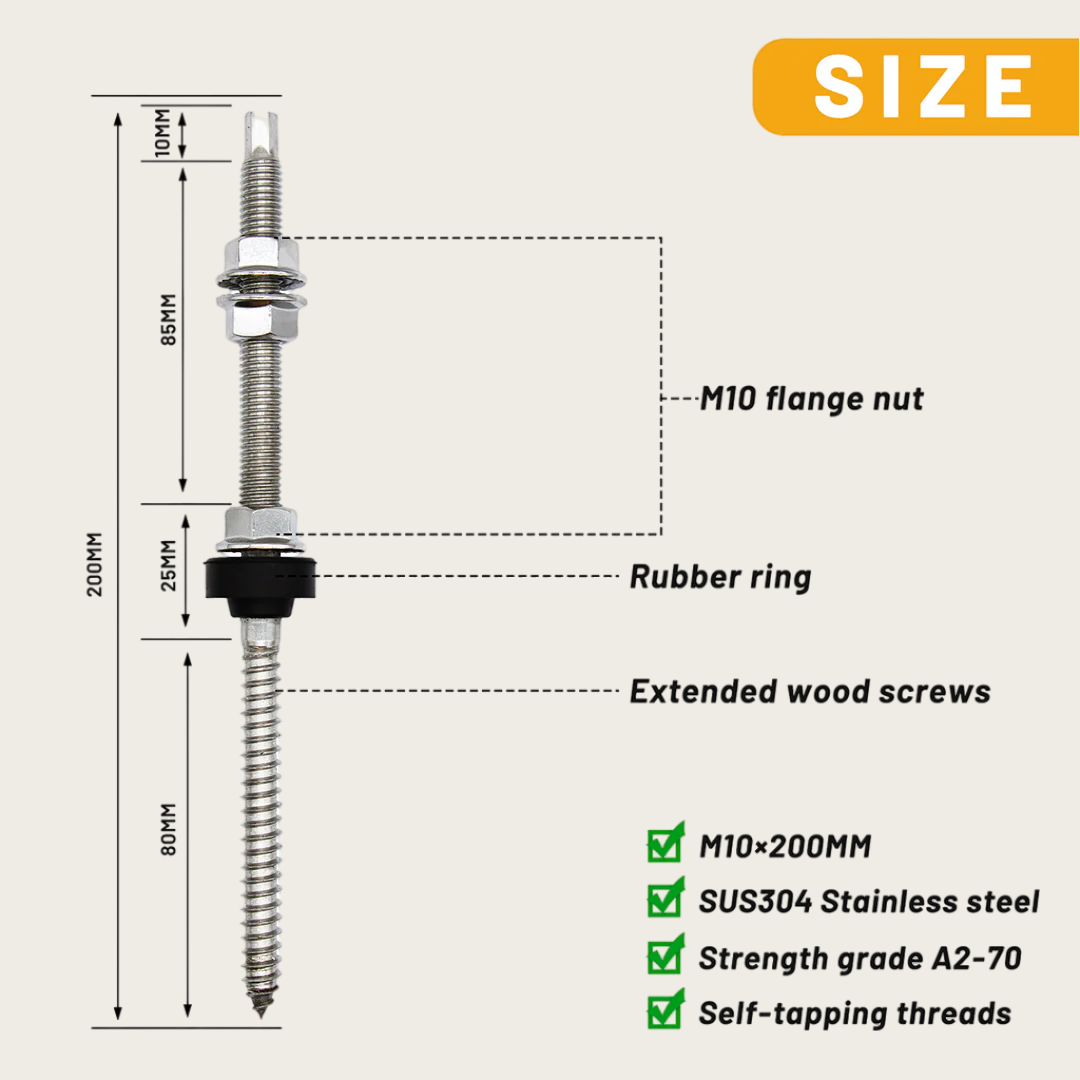

Specifications

Item Detail
Length 200 mm
Material SUS304 stainless steel
Threading Wood thread + machine thread; supplied with M10 flange nuts
Sealing EPDM rubber ring
Mounting substrate Wood structures
Typical applications Roofs, marine, caravan, shed; PV rail/L‑foot attachment
Approx. load (per bolt) ~20 kg

Installation (Quick Guide)

  1. Mark positions on wood substructure; pre‑drill pilot holes as needed for the wood thread.
  2. Drive hanger bolt using a spanner or two‑nut method until EPDM ring compresses for sealing.
  3. Adjust height with M10 flange nuts; fix rail/L‑foot and torque nuts.
  4. Re‑check after first thermal cycles/heavy weather.

What’s in the Box

6‑Piece Set

  • 6 × 200 mm SUS304 hanger bolts
  • 18 × M10 flange nuts
  • 6 × EPDM rubber rings/seals

10‑Piece Set

  • 10 × 200 mm SUS304 hanger bolts
  • 30 × M10 flange nuts
  • 10 × EPDM rubber rings/seals
