0.33W 2.75V Ring Solar Panel - PET Back-Contact Cell, Customizable

LinkSolar  |  SKU: LS-MSP-S204
$990 USD
Free shipping on orders up to 2 kg to our delivery countries; rates for orders over 2 kg and up to 25 kg are calculated at checkout. For orders over 25 kg or destinations unavailable at checkout, contact us for a shipping quote before checkout.


Features

  • 0.33W rated output at 2.75V.
  • Ring format with 85mm outer and 21mm inner diameter.
  • Matte PET surface and two solder pads.

0.33W 2.75V mini solar panel for compact energy harvesting and low‑power devices.

Key features:
• Electrical: 0.33W, 2.75V nominal (peak current ≈ 0.12A in strong sunlight)
• Dimensions: Outer diameter 85 mm, Inner diameter 21 mm
• Surface: Matte PET (low‑glare), waterproof and UV‑resistant
• Cells & Build: High‑efficiency genuine SunPower Maxeon IBC back‑contact cells, SMT‑mounted to PCB

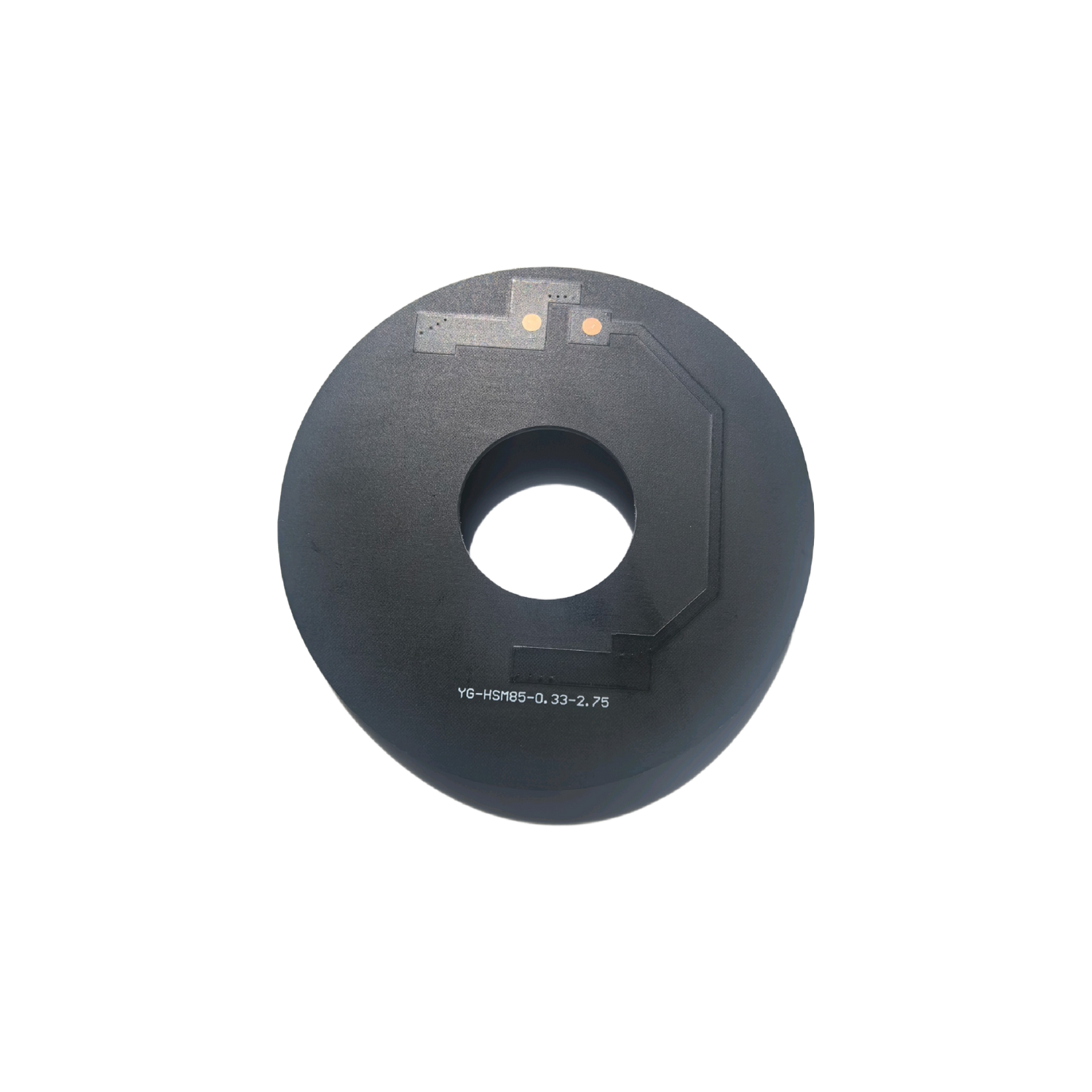

• Connectivity: 2 × solder pads for easy wiring
• Note: Not recommended for high‑vibration or impact‑prone environments

Typical uses: DIY sensors, IoT nodes, beacons, data loggers, and other low‑power applications.
Custom size or voltage needed? Contact us to discuss.

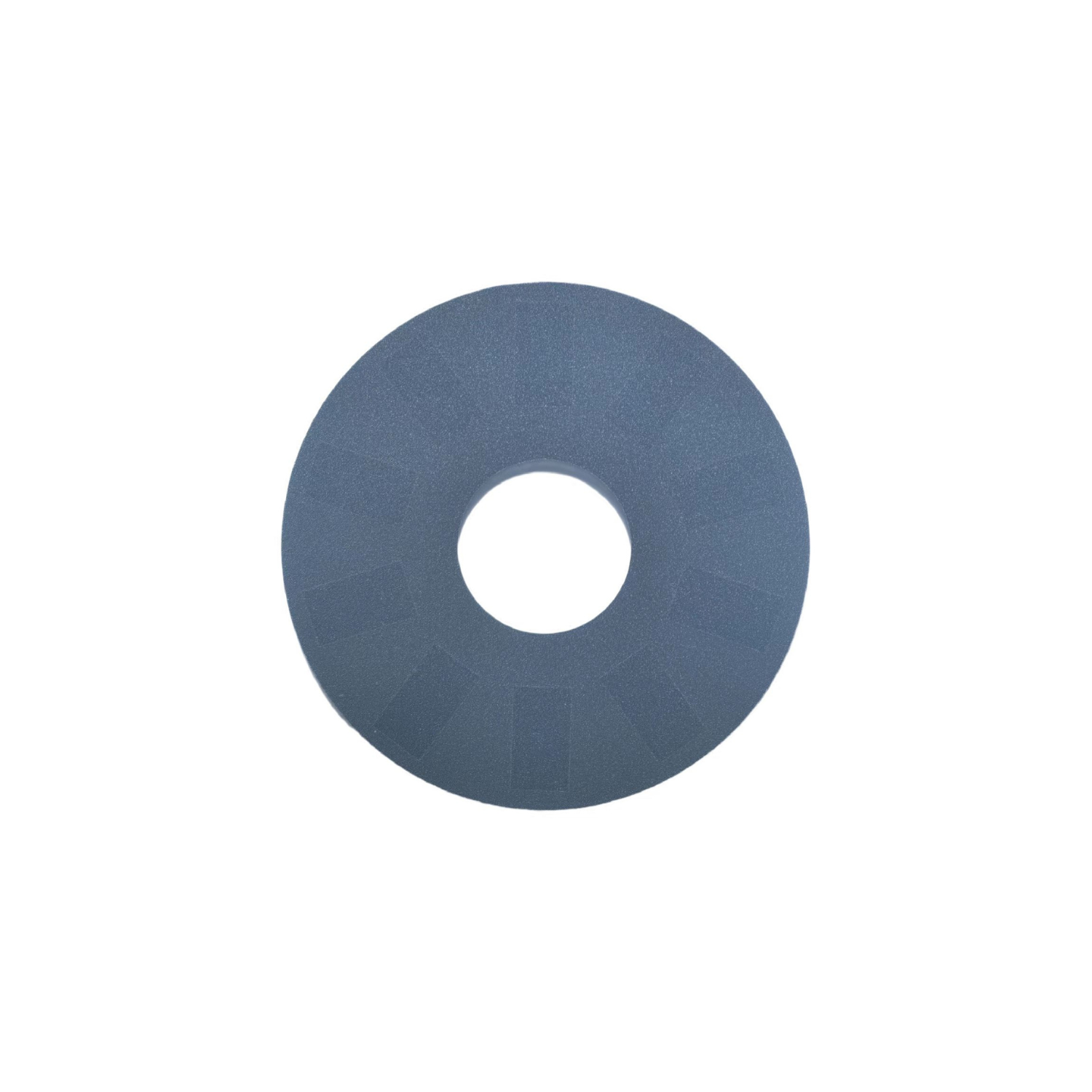

Working with a ring-format panel

The active area forms a ring: 85 mm outer diameter around a 21 mm inner opening. The center of the panel stays open where a solid panel of the same outer size would block it — that is the point of choosing a ring format over a standard panel with similar output. Check both diameters against the installation before ordering: the ring needs 85 mm of clear surface, and anything passing through the middle must fit the 21 mm opening.

Electrically, the panel is a 0.33 W source at 2.75 V nominal, with a peak current of about 0.12 A in strong sunlight. That is energy-harvesting scale — sized for DIY sensors, IoT nodes, beacons, data loggers and other low-power applications, not for running loads. Wiring is through the two solder pads; the genuine SunPower Maxeon IBC back-contact cells are SMT-mounted to a PCB.

The matte PET surface is low-glare, waterproof and UV-resistant, which suits it to visible installations and outdoor exposure. As with other SMT-mounted mini panels, it is not recommended for high-vibration or impact-prone environments. A different size or voltage is a custom option — contact us to discuss what the project needs.

Buyer questions

What is the center opening for?

The panel is a ring — 85 mm outer diameter with a 21 mm inner opening — so the center of the mounting position stays clear instead of being covered by a solid panel.

What does 0.33 W at 2.75 V power?

Energy-harvesting loads: DIY sensors, IoT nodes, beacons, data loggers and other low-power devices. Peak current is about 0.12 A in strong sunlight.

What is the surface finish?

Matte PET — low-glare, waterproof and UV-resistant, with genuine SunPower Maxeon IBC back-contact cells SMT-mounted to a PCB. Two solder pads provide the wiring interface.

Can it take vibration?

It is not recommended for high-vibration or impact-prone environments; mount it in a protected position.

Can I get a different size or voltage?

Yes, as a custom panel — contact us to discuss the size and voltage the project needs.

LinkSolar supplies mini solar panels to B2B buyers; ships from China.

SunPower and Maxeon are trademarks of their respective owners. LinkSolar is not affiliated with SunPower Corporation.
