4 Pcs Aluminum Ground Solar Mount Ballast Plates – Pallet & Shim Support

LinkSolar  |  SKU: MNT-TL202
$3999 USD
Taxes, discounts and shipping calculated at checkout.

Features
  • Non-penetrating anchoring — uses heavy objects as ballast; easy to hold in place / without damaging the surface.
  • Ideal for use with solar panel tilt mount
  • Aluminum construction — corrosion-resistant, lightweight plates help spread load and improve stability.
  • Leveling aid — listing references shim block support for better fit on uneven ground.
  • Fast setup — position plates under the feet, add ballast, set the tilt; no digging or anchors required.

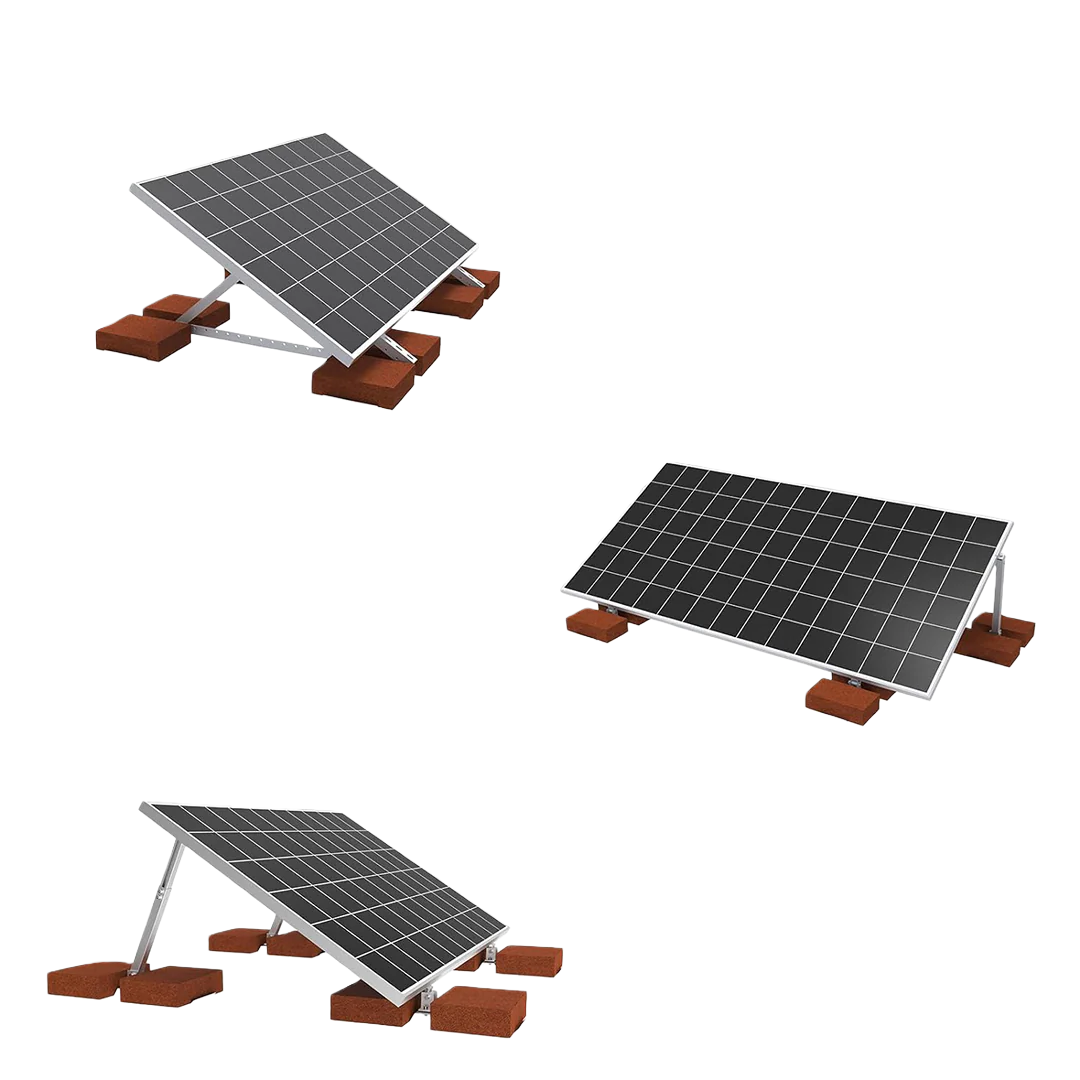

Aluminum ballast plates designed to stabilize adjustable ground-mount tilt brackets. Place the plates under the bracket feet and weigh down with heavy objects (bricks/rocks/sandbags) to hold position without damaging the surface—ideal for grass lawns, yards and hardstand areas where drilling is not desired.

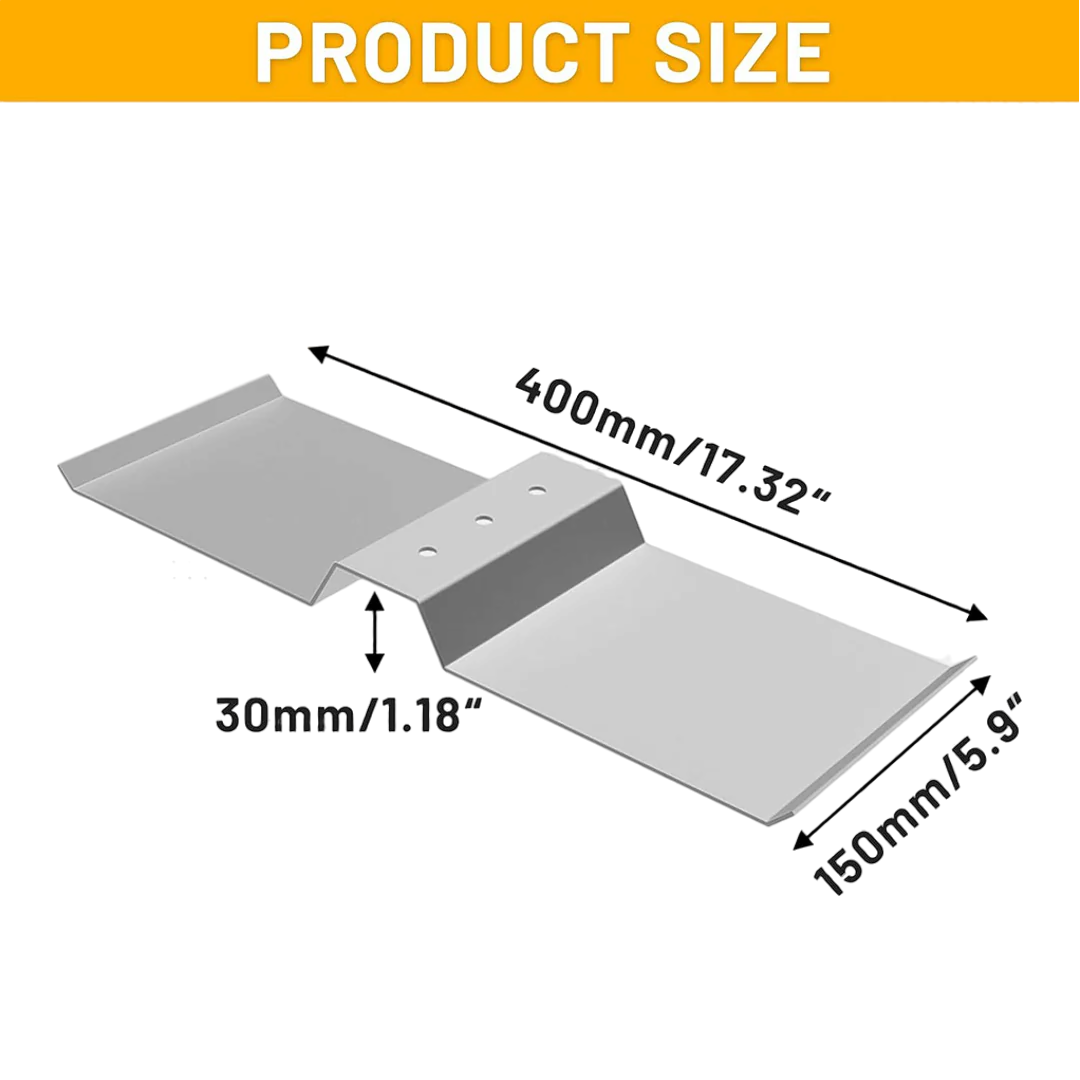

Ground Solar Mount Ballast Plates Specifications

Item Detail
Kit type Ground-mount ballast plates / pallets for adjustable tilt brackets
Quantity 4-Pack
Material Aluminum (lightweight, corrosion-resistant)
Leveling Shim block support referenced in listing
Mounting method Non-penetrating; place plates under bracket feet, add heavy-object ballast
Typical scenes Grass/yard, concrete pad, other ground surfaces where drilling isn’t desired

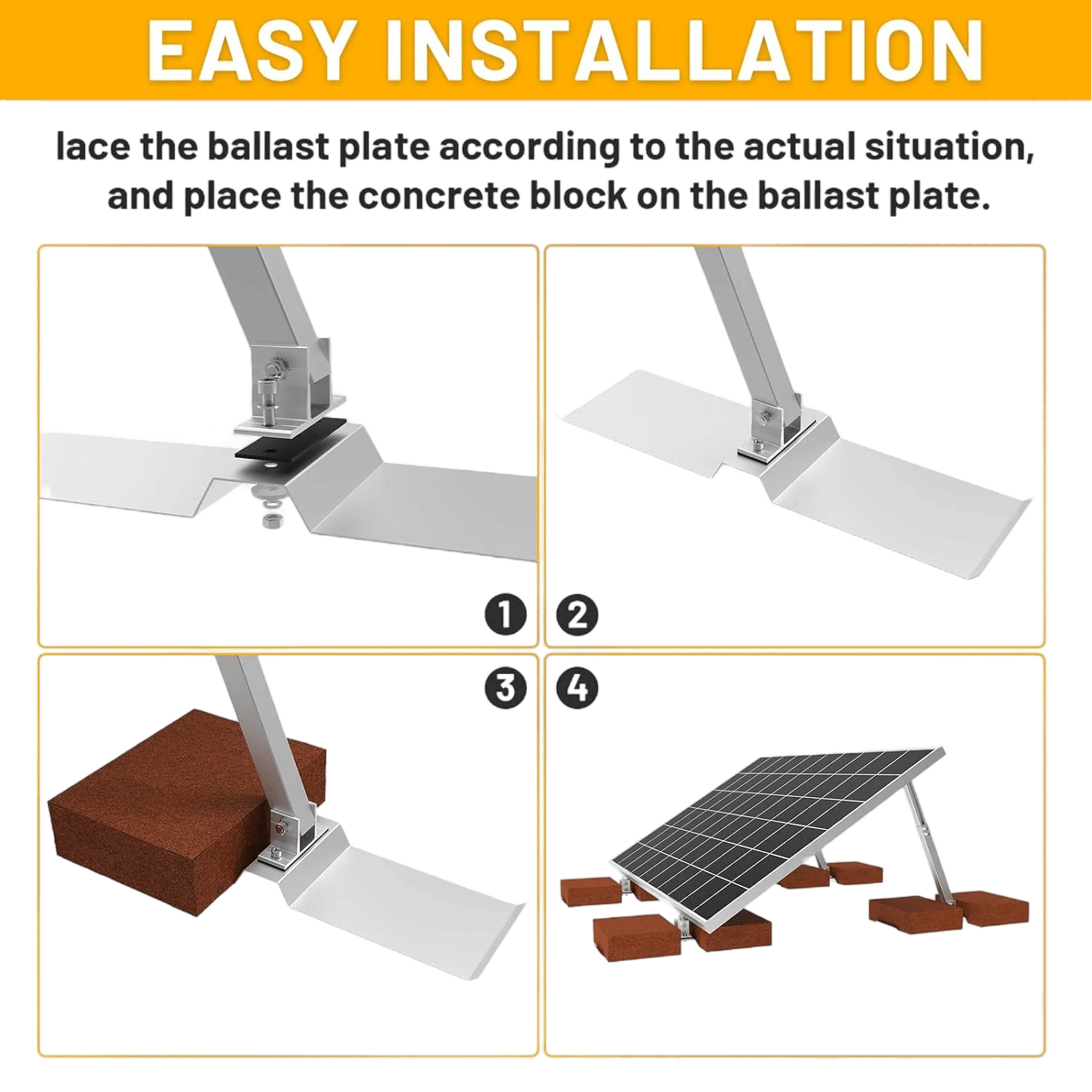

Installation

  • Assemble and place your tilt bracket at the target location.
  • Slide aluminum pallets under the front and rear feet.

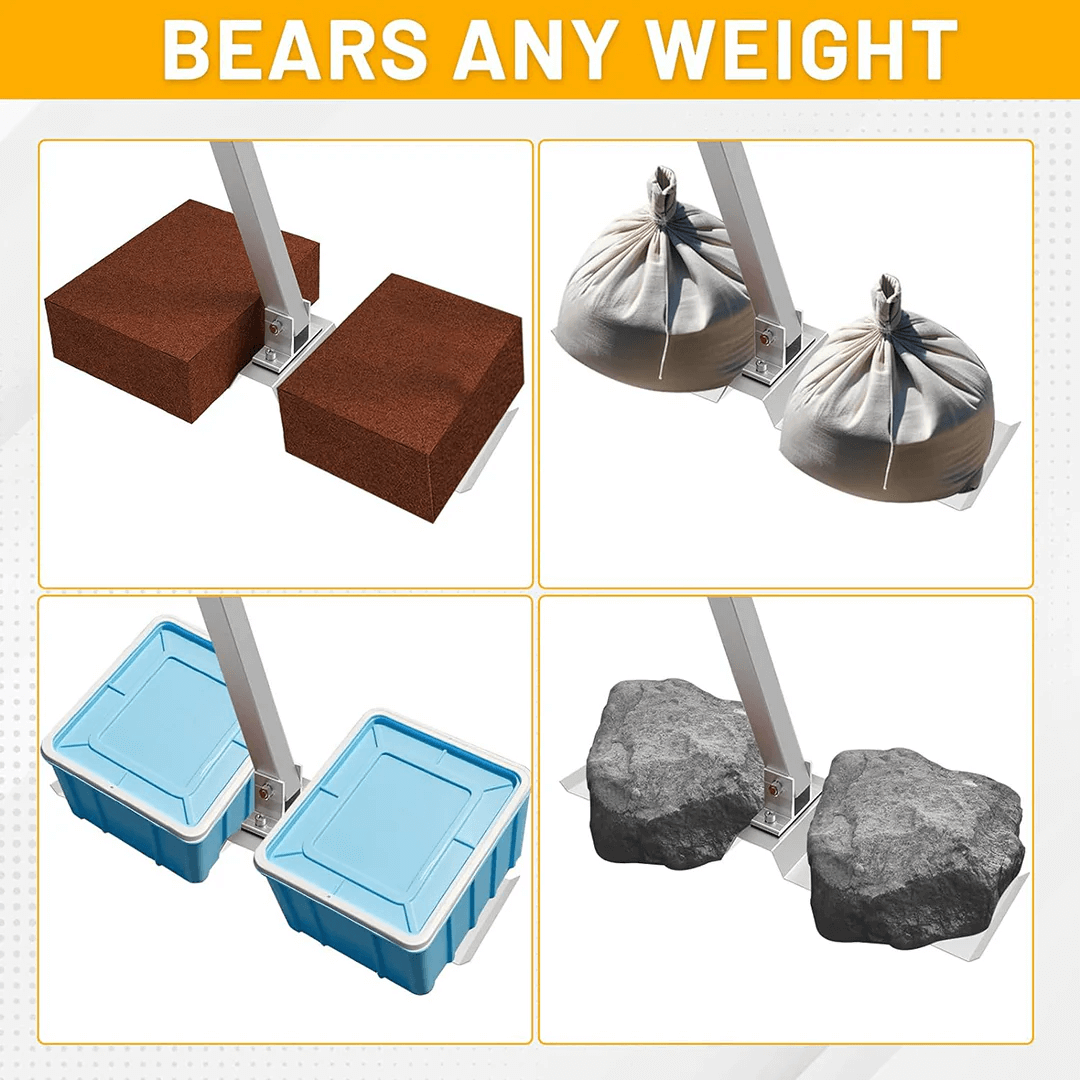

  • Add heavy objects (bricks/rocks/sandbags) on/around the plates to ballast the system.
  • Set the tilt angle, check that each foot is evenly supported; re-check after strong wind or first heavy weather.

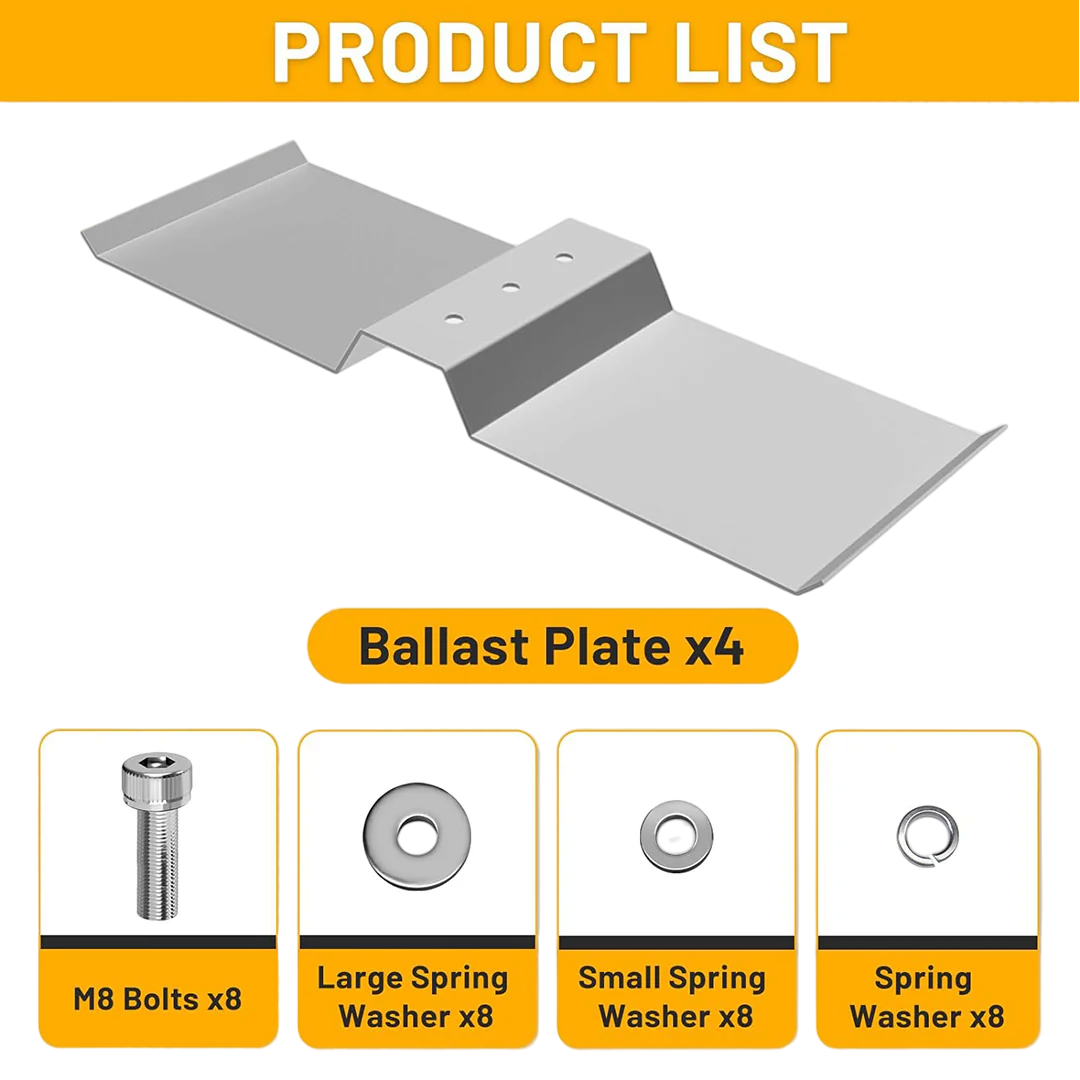

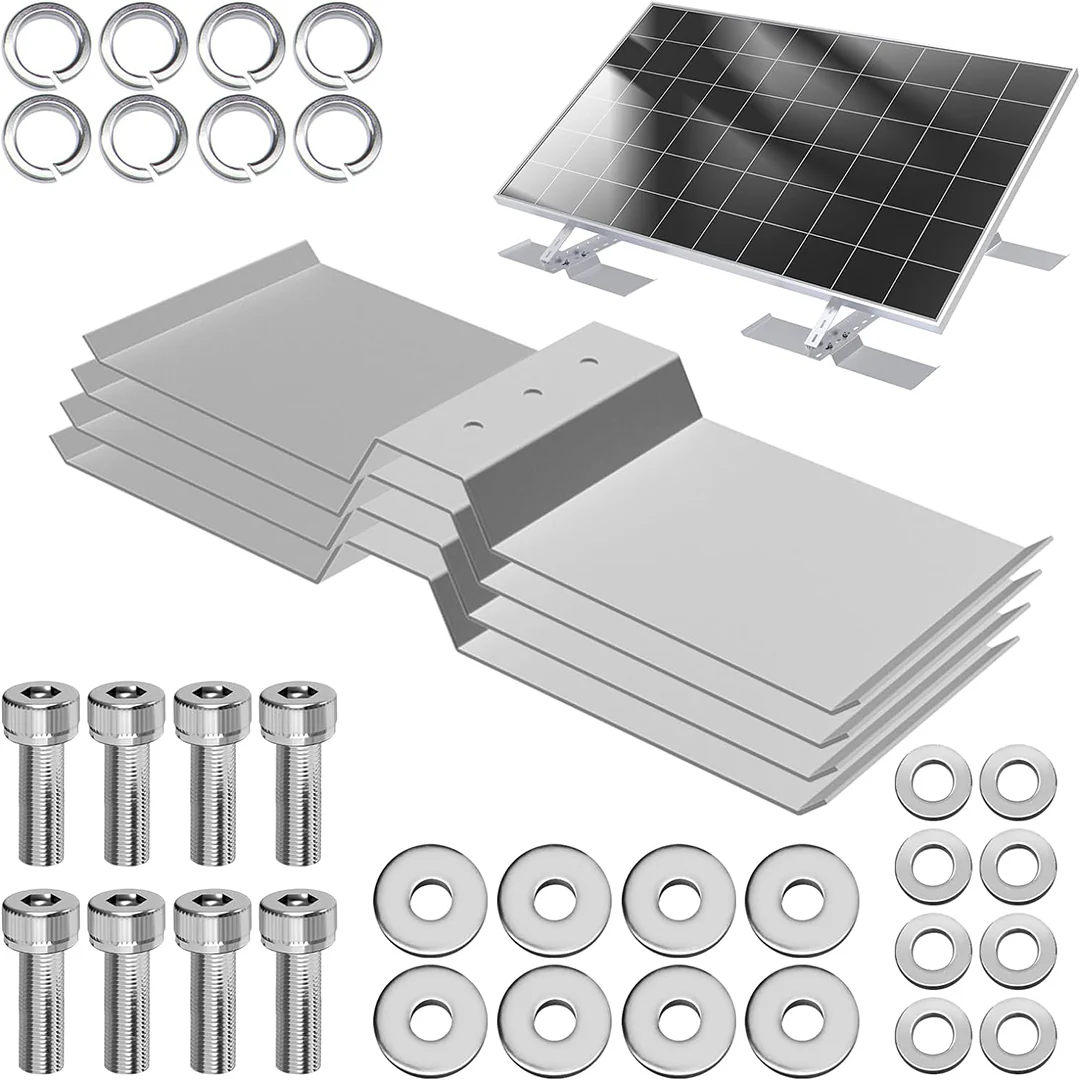

What’s in the Box

  • Aluminum ballast plates ×4
  • M8 bolts and nuts ×8
  • Large spring washer ×8
  • Small spring washer ×8
  • Spring washer ×8
