Solar Panel Mount Bracket Kit, 11.81″ Trapezoidal Rails, Roof/RV/Flat-Surface
Solar Panel Mount Bracket Kit, 11.81″ Trapezoidal Rails, Roof/RV/Flat-Surface - 4 Pcs 11.81″ Trapezoidal Rails set is backordered and will ship as soon as it is back in stock.
Features
Features
Solar Panel Mount Bracket Kit, 11.81″ Trapezoidal Rails, Roof/RV/Fl...
Description
A lightweight, roof-friendly mounting kit designed for framed solar modules with 30–35 mm frame thickness. The aluminum mini rails distribute load on corrugated or flat roofs while self-drilling screws and sealing pads deliver fast, secure installs across shingle, slate, wood, metal, and glazed tile roofs. Mix end and mid clamps to fix single or multi-panel layouts.
Use Cases
Small PV arrays on residential or mobile setups (RVs, cabins, sheds) where low weight, simple assembly, and corrosion resistance matter.
Specifications
| Item | Detail |
|---|---|

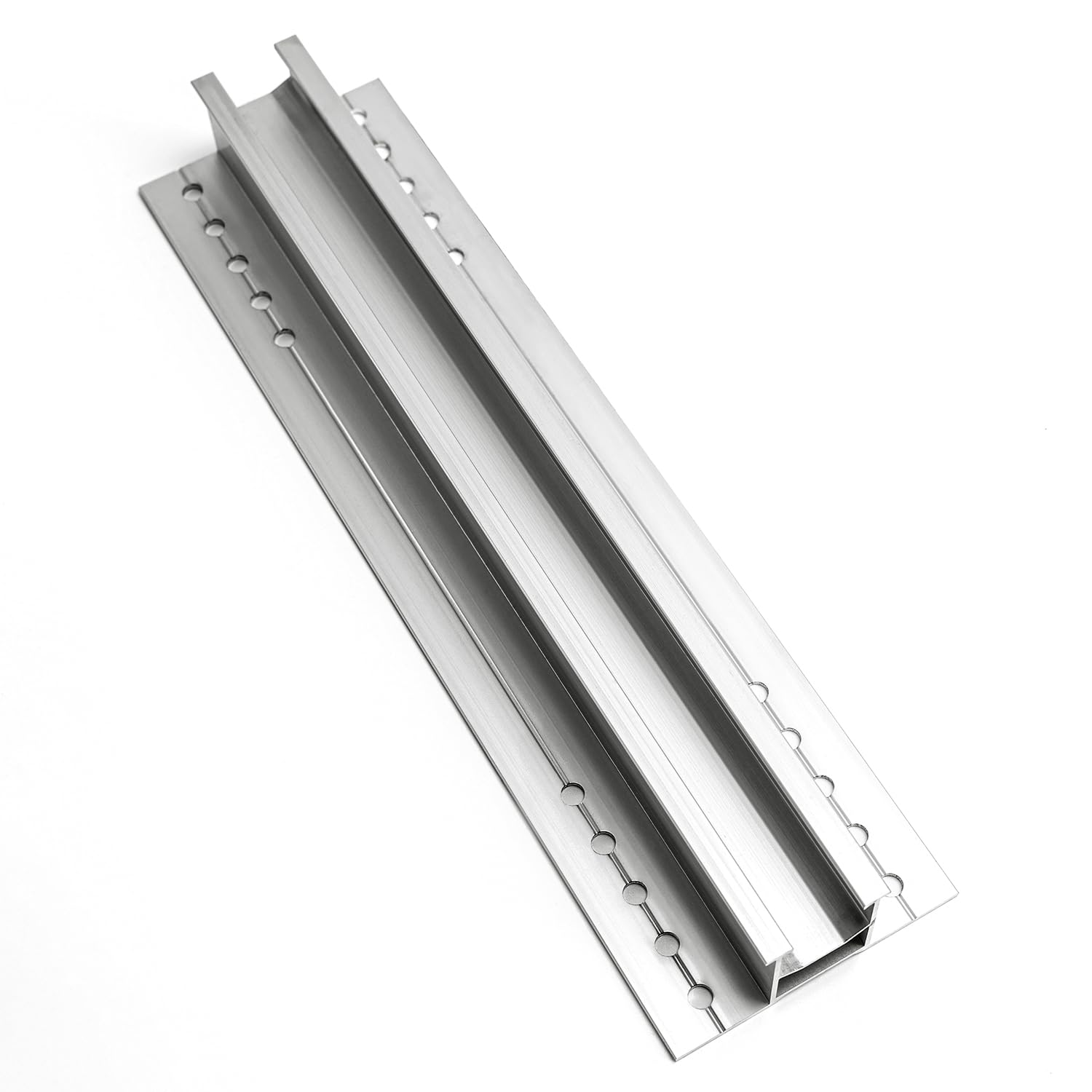

| Rail type & length | Trapezoidal mini rail, 11.81 in (300 mm) |
| Panel frame compatibility | 30–35 mm framed modules（Support 95% solar panels） |
| Roof compatibility | Shingle / Slate / Wood / Metal / Glazed Tile |

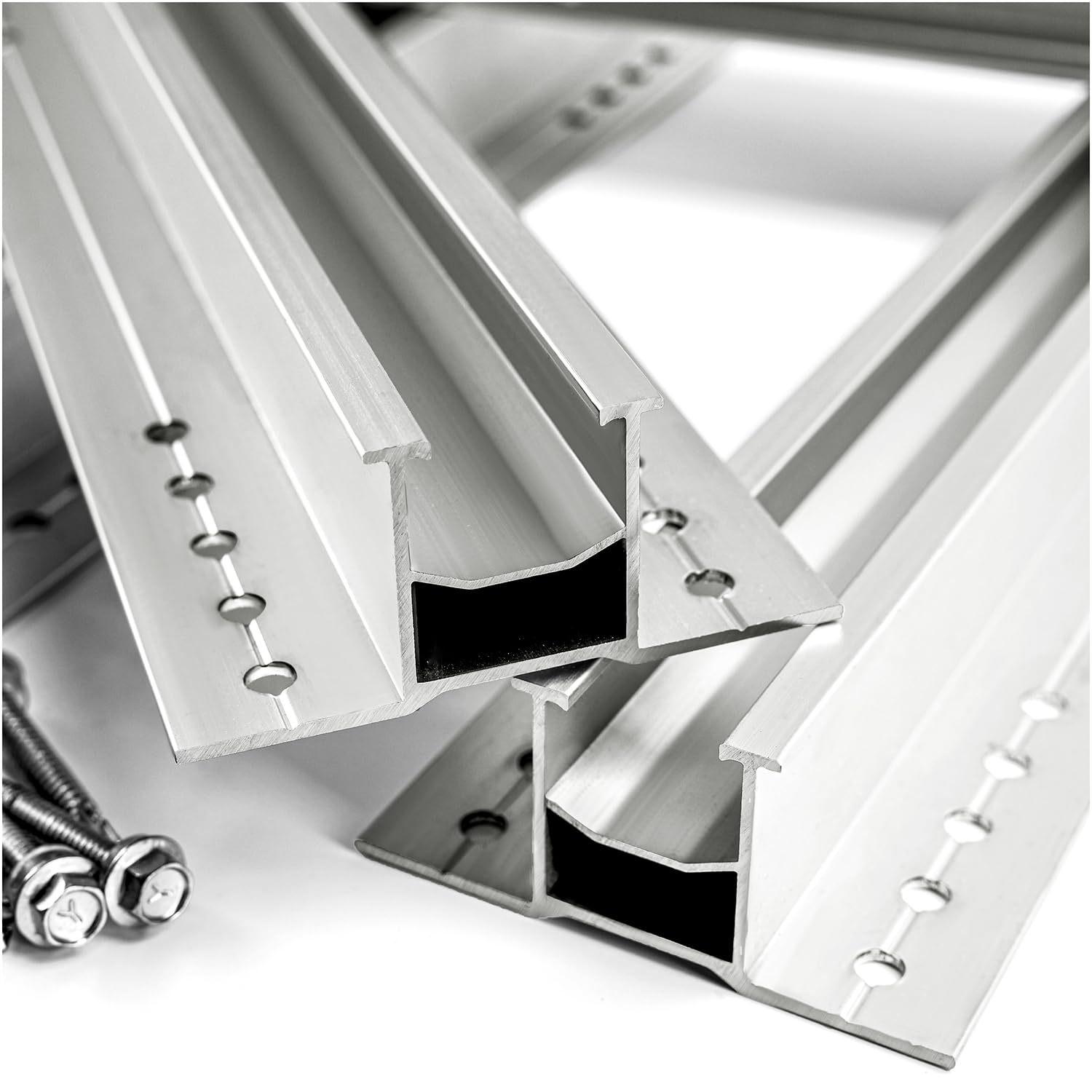

| Material (rails) | Aluminum |
| Fasteners & pads | Self-drilling roofing screws + rubber sealing pads |
| Typical use cases | Homes, RVs, sheds, cabins, boats / other flat surfaces |
Installation (Quick Guide)
-
Mark rail positions on roof.
-
Bond rubber pads to mini rails; screw rails to roof.
-

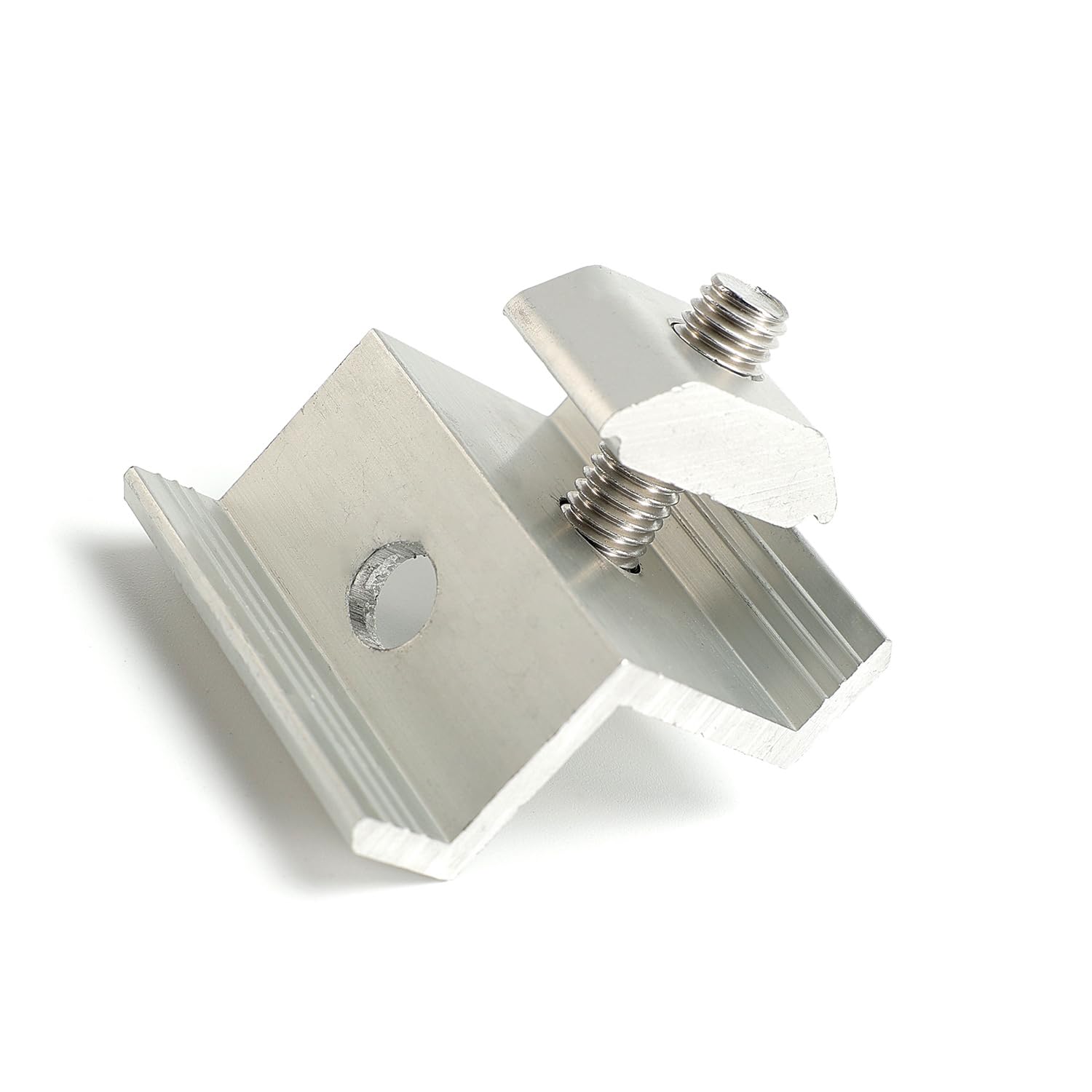

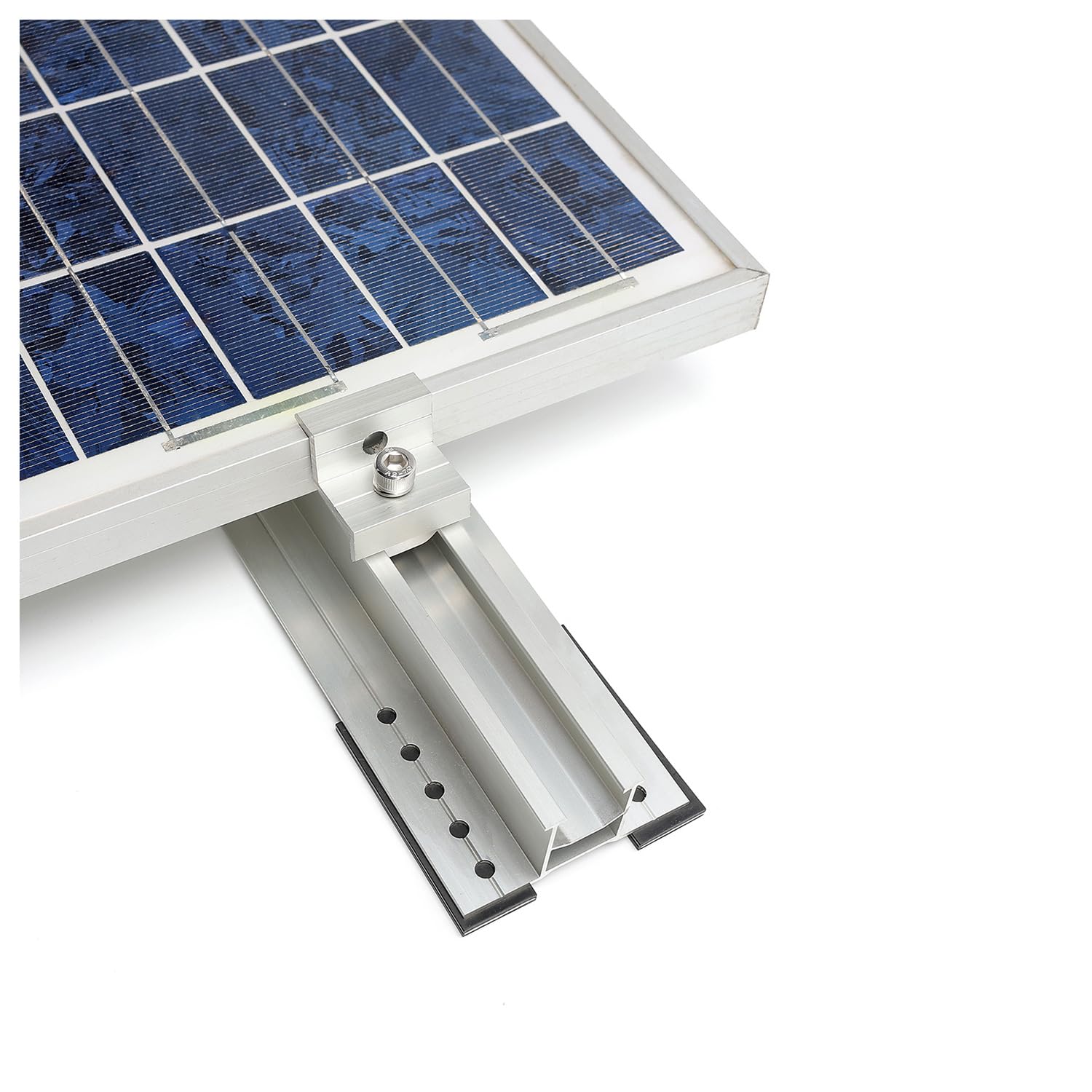

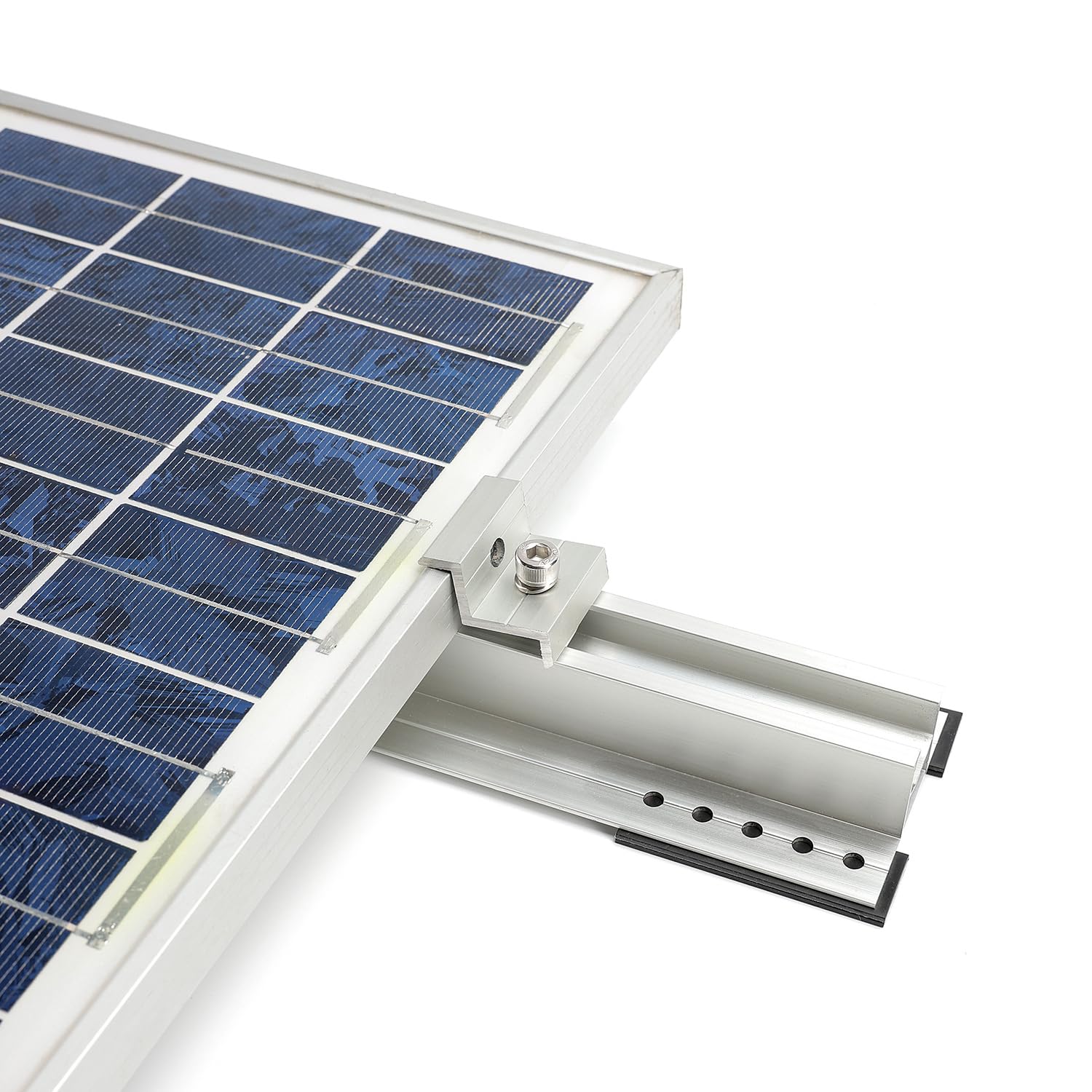

Place first panel, fix with end clamps.
-
Place second panel (if any), fix shared edge with mid clamps, outer edge with end clamps.

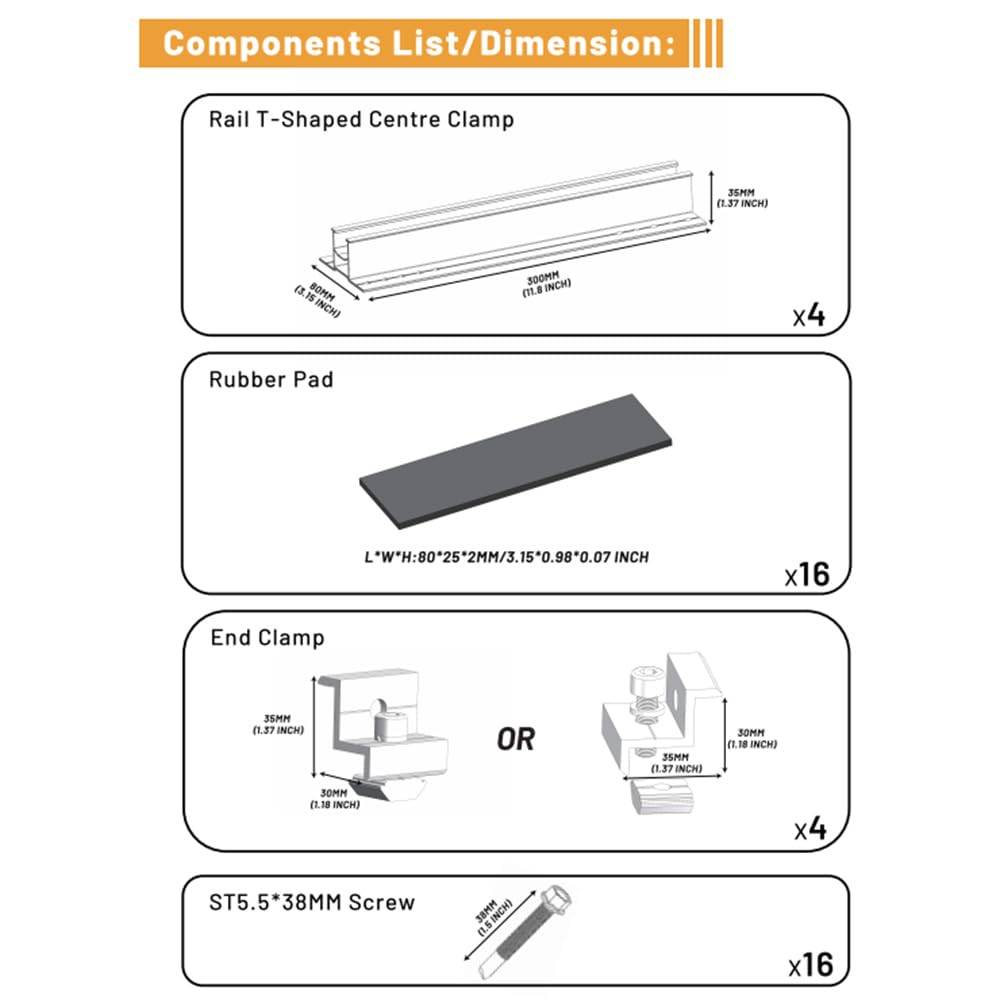

What’s in the Box (Choose Your Set)
4 × 11.81" Trapezoidal Rail Set
-
Rails ×4, End Clamps ×4, Self-drilling Screws ×16, Rubber Pads ×16.
