Adjustable Solar Panel Mount Brackets - Tilt Legs for RV, Roof & Off-Grid
Adjustable Solar Panel Mount Brackets - Tilt Legs for RV, Roof & Off-Grid - 22 Inch is backordered and will ship as soon as it is back in stock.
Features
Features
Adjustable Solar Panel Mount Brackets - Tilt Legs for RV, Roof &...
Upgrade your solar setup with a flexible tilt-mount solution designed for real-world installations. These adjustable solar panel tilt mount brackets are made for rigid framed solar panels and help improve panel positioning for better sun exposure across different seasons, locations, and installation types.
Suitable for RV roofs, rooftops, wall-mounted applications, sheds, garages, marine setups, and small off-grid systems, this bracket set combines lightweight anodized aluminum construction with a simple adjustable design that is easy to assemble and easy to use.
Why Choose This Adjustable Solar Panel Tilt Mount Bracket
- Adjustable tilt design for better solar exposure
- Available in 22", 28", and 41" sizes
- Lightweight anodized aluminum for outdoor durability
- Suitable for RV, roof, wall, marine, and off-grid use
- Simple structure for fast assembly and angle adjustment
- Hardware included for bracket assembly

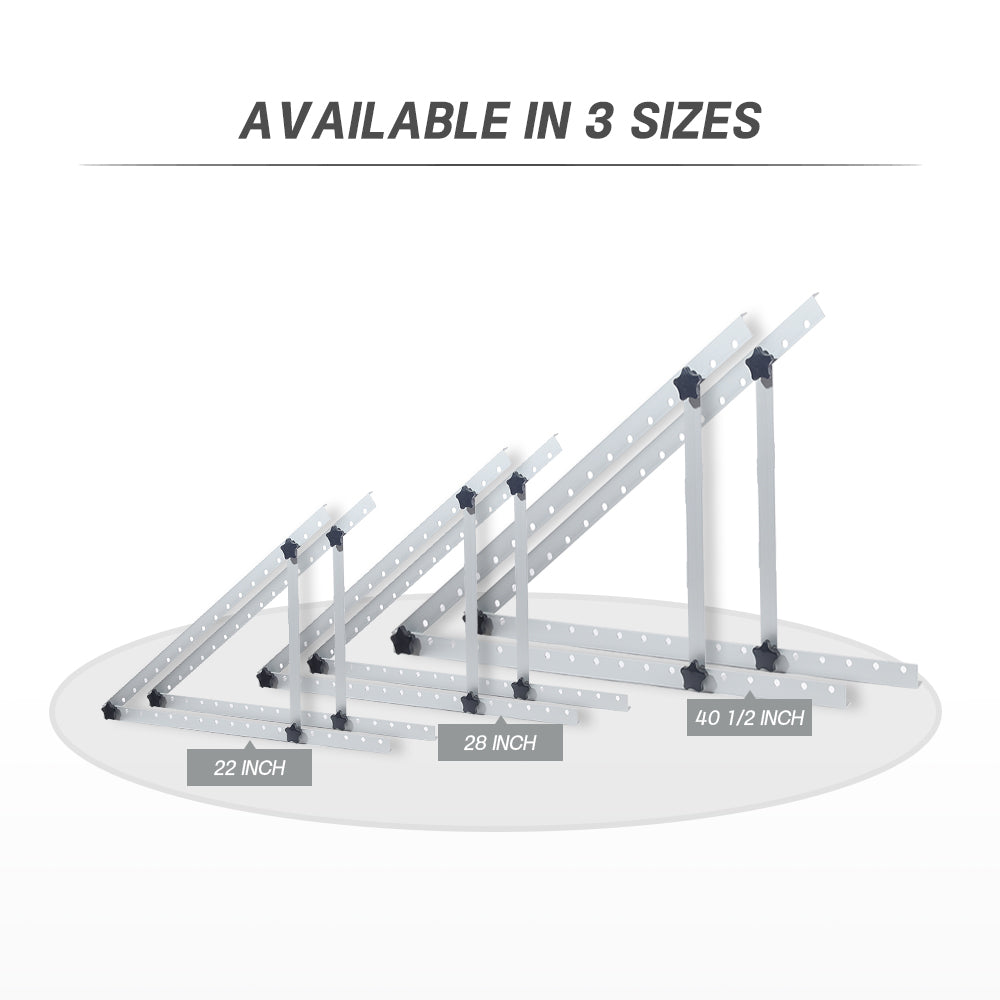

Available in 3 Sizes
This product is available in three bracket sizes to support different panel dimensions and installation needs.
| Bracket Size | Dimensions | Reference Panel Guidance | Typical Use |
|---|---|---|---|

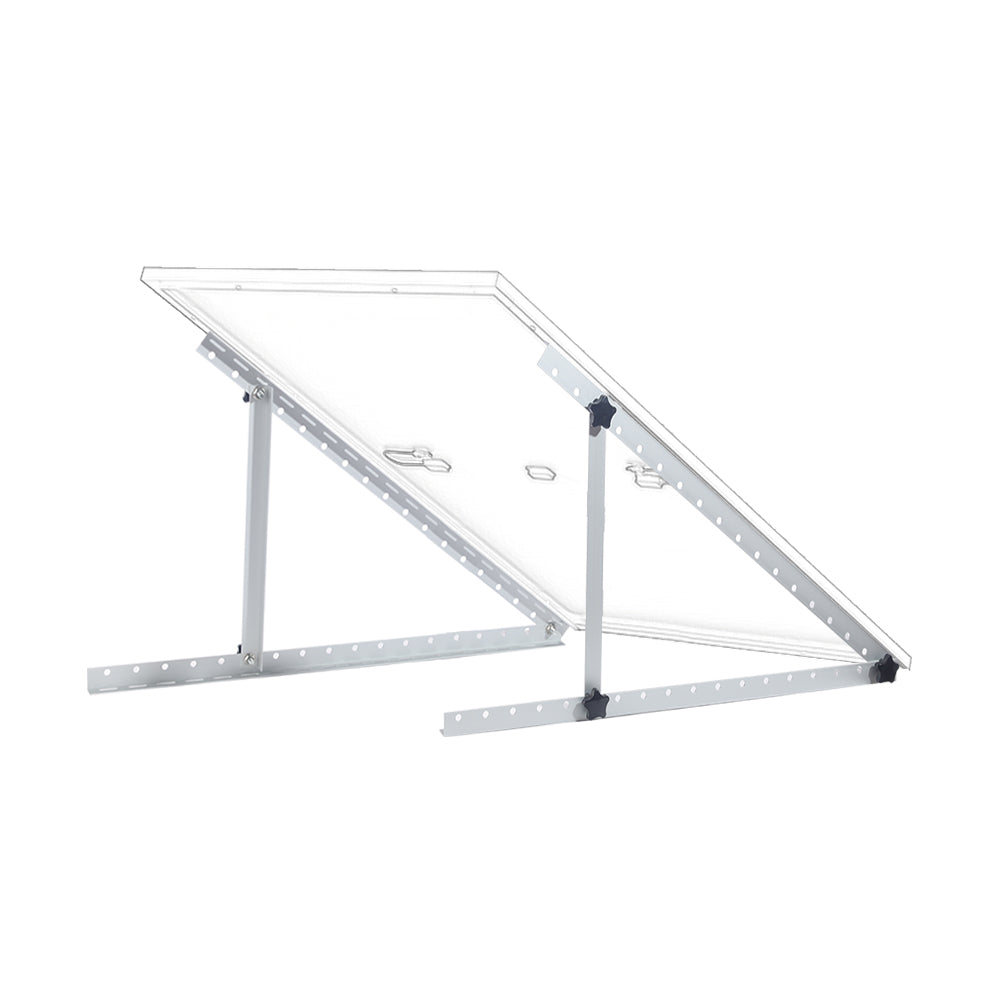

| 22 Inch | 22 x 2 x 1 inches | Based on the 22IN reference size: vertical max panel reference 50W; horizontal max panel reference 100W / 180W / 200W | Compact RV systems, sheds, small rooftop and off-grid setups |

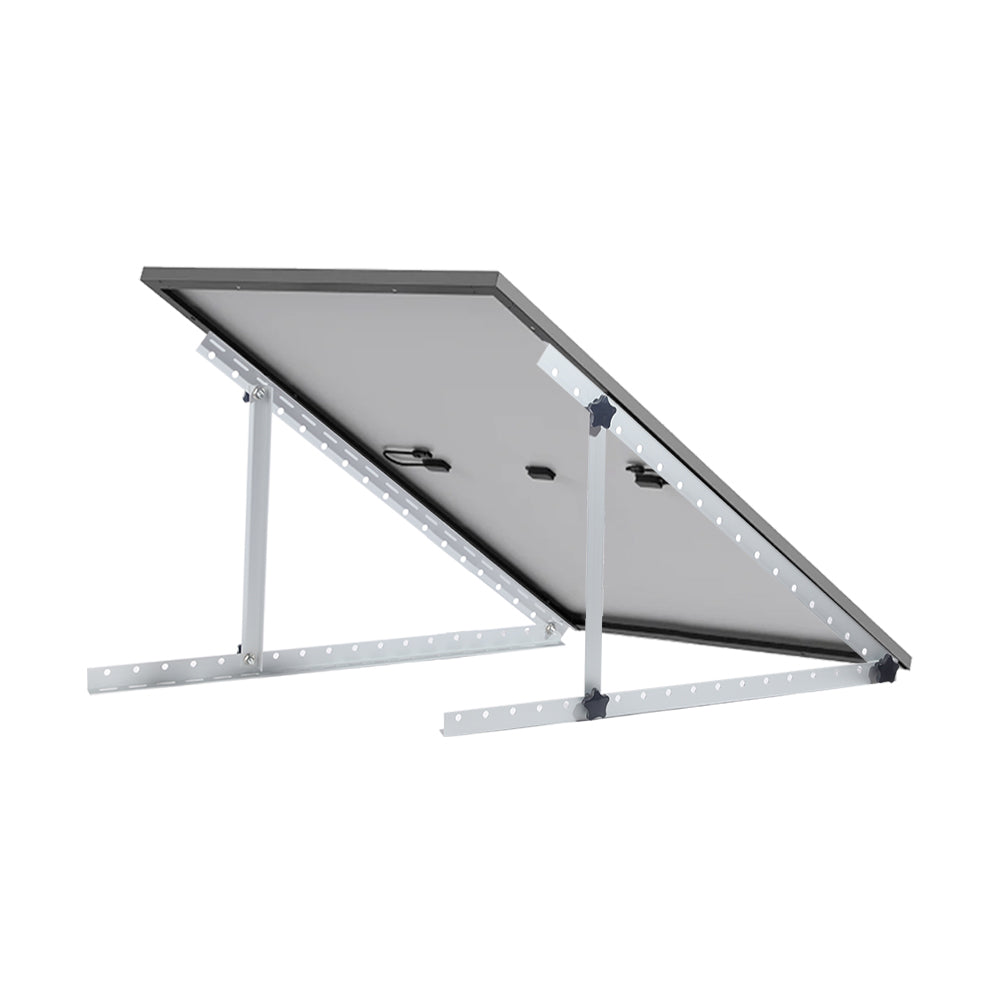

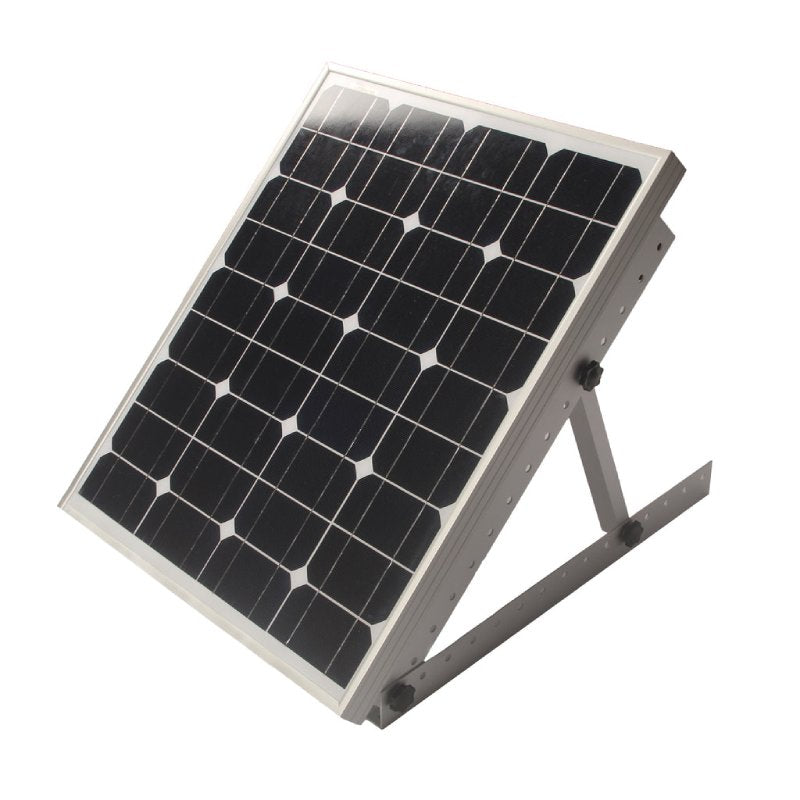

| 28 Inch | 28 x 2 x 1 inches | Based on the 28IN reference size: vertical max panel reference 100W / 120W; horizontal max panel reference 100W / 180W / 200W / 300W | Mid-size rooftop, wall, ground, and general off-grid installations |

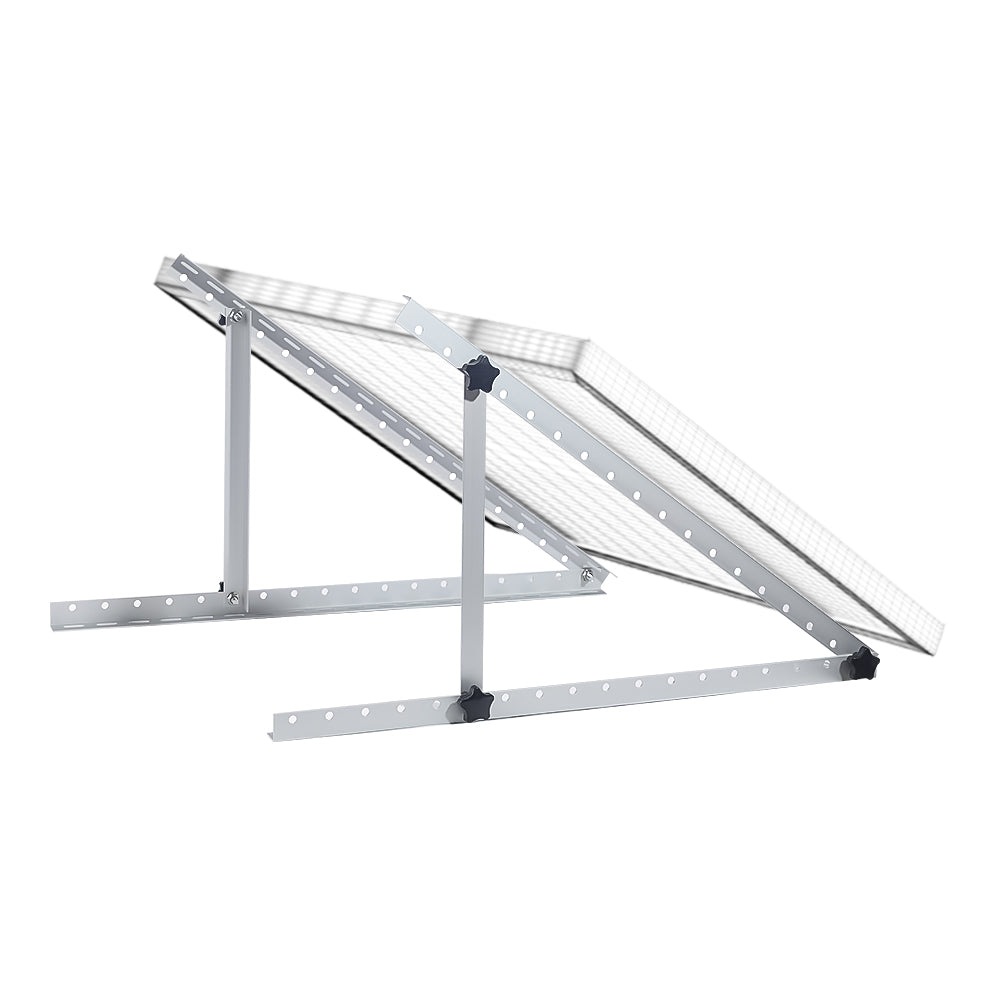

| 41 Inch | 40.5 x 3 x 2 inches | Based on the 41IN reference size: vertical max panel reference 100W / 180W / 200W; horizontal max panel reference 100W / 180W / 200W / 300W / 400W | Larger off-grid systems, cabins, wider rooftops, and larger framed panel setups |

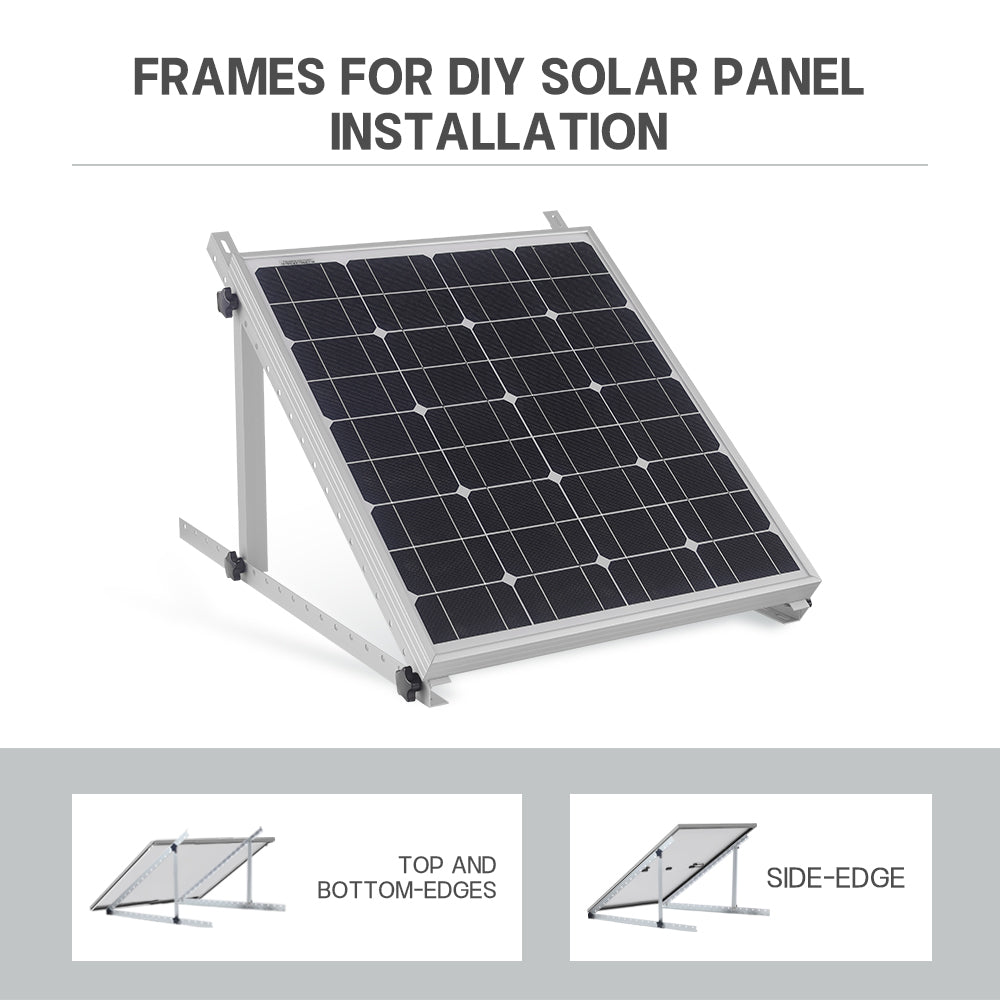

Compatible Mounting Methods
This bracket system is designed for rigid framed solar panels and supports different installation approaches depending on your panel frame style and project design.
- Top-and-bottom edge mounting
- Side-edge mounting

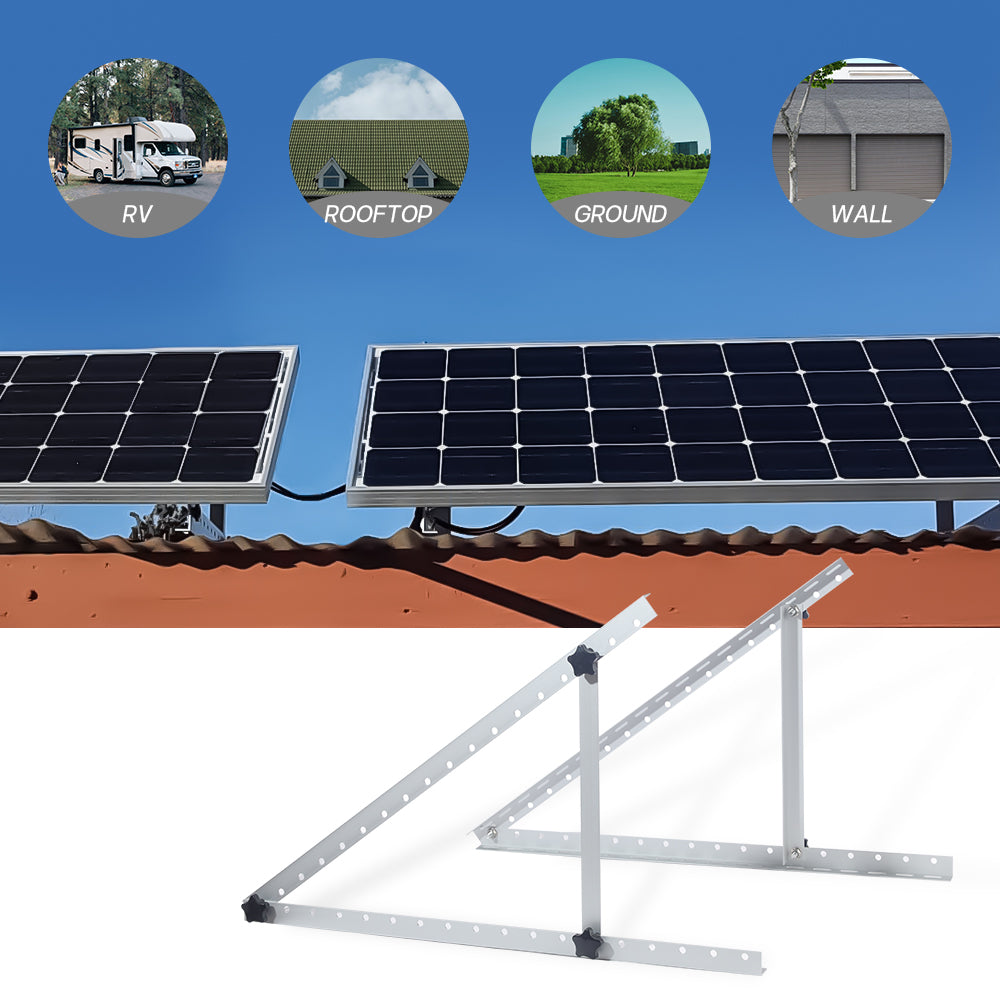

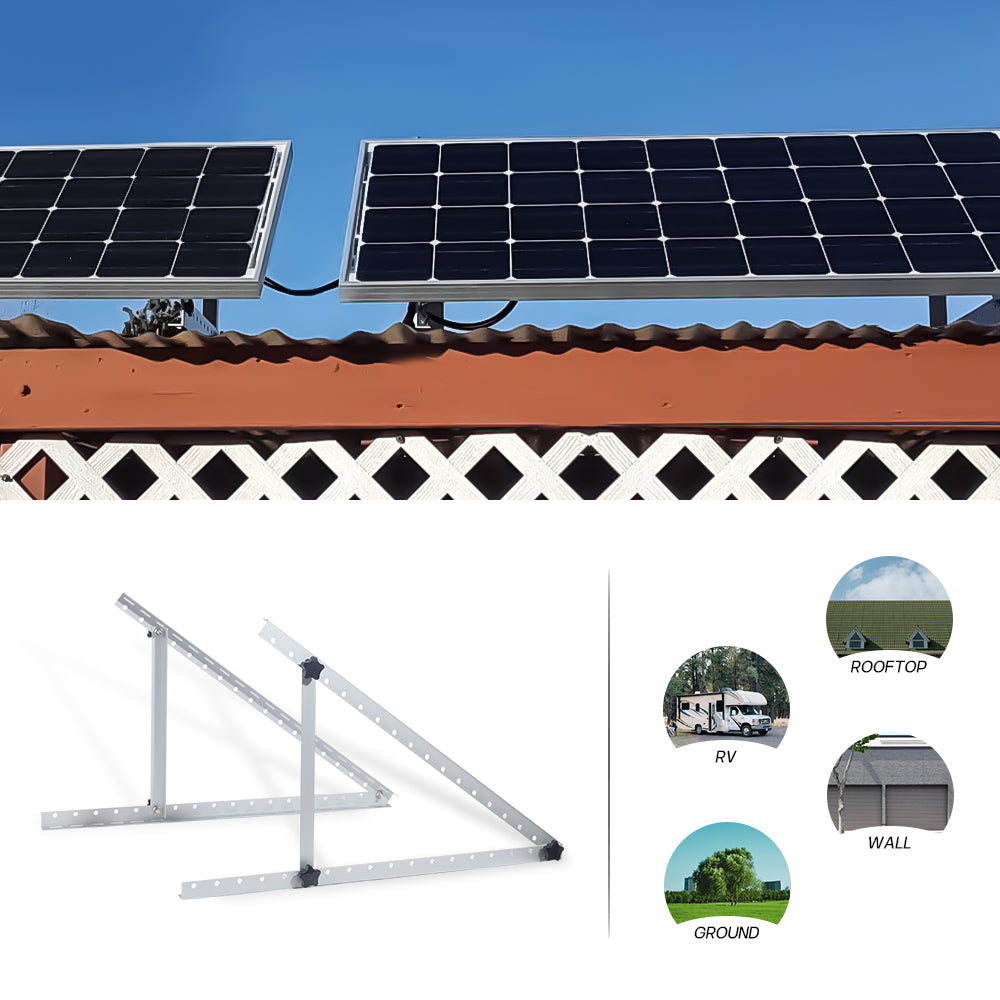

Suitable Applications
- RV solar panel systems
- Rooftop solar installations
- Wall-mounted solar panel setups
- Ground-based small solar systems
- Marine and boat applications
- Off-grid cabins, sheds, and remote power projects

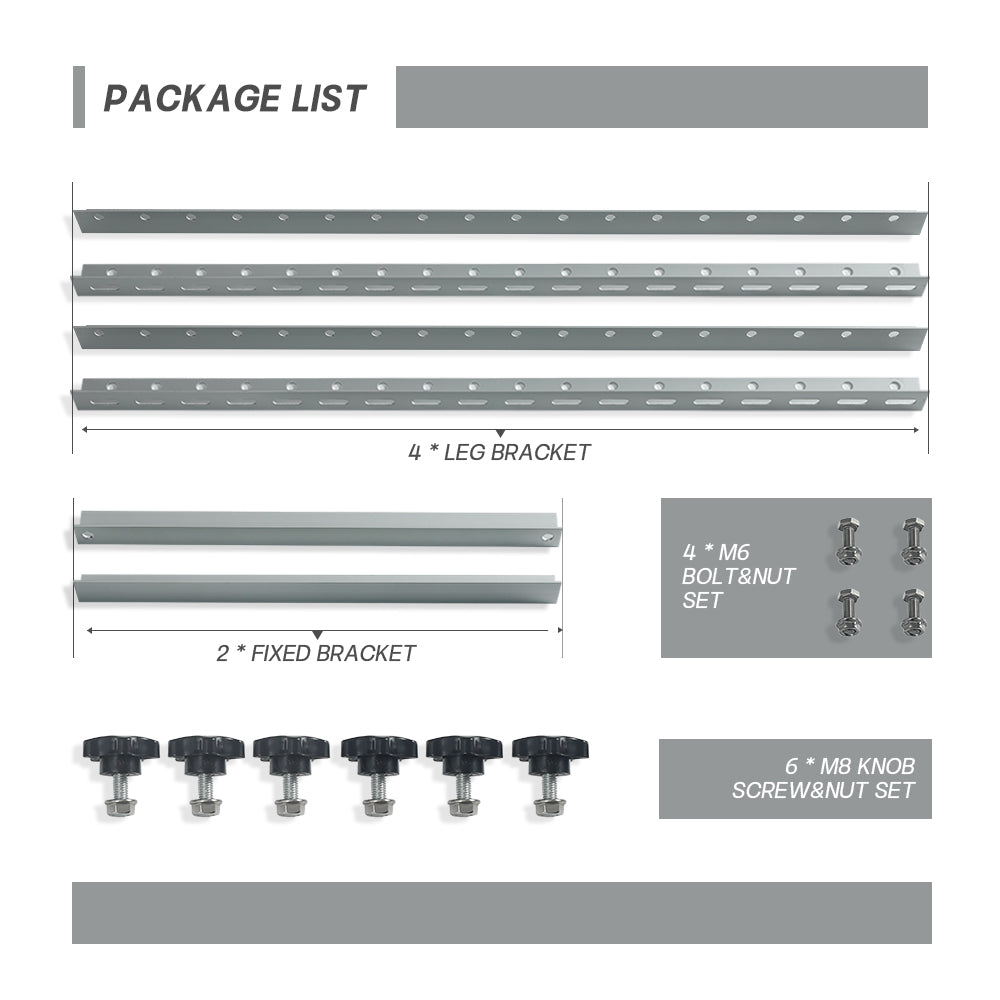

What's Included
Each set includes the main bracket components and assembly hardware needed for the tilt mount structure. The package contents are the same across all three sizes, with bracket length varying by selected size.
- 4 × Leg brackets
- 2 × Fixed brackets
- 4 × M6 bolt and nut sets
- 6 × M8 knob screw and nut sets
Material & Build Quality

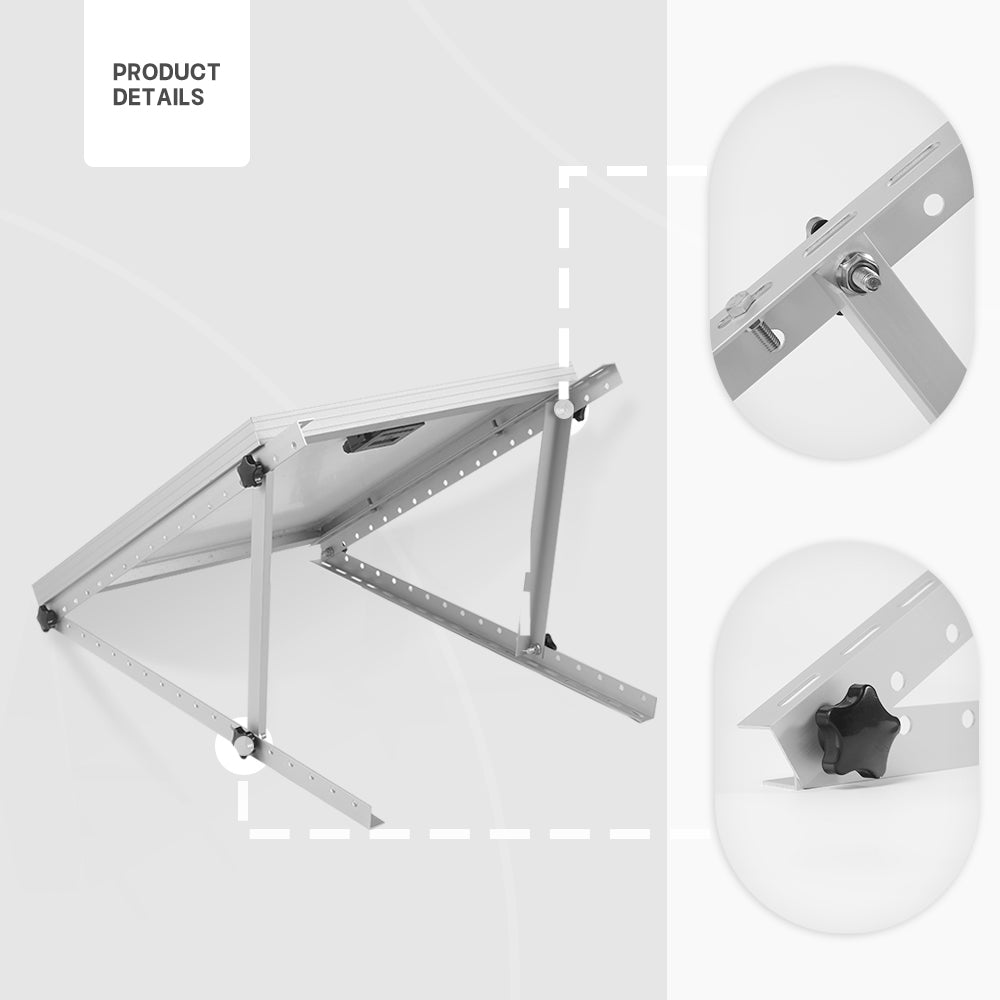

Made from anodized aluminum, this solar panel tilt mount bracket is lightweight, corrosion-resistant, and suitable for outdoor environments. The slotted rail design allows position adjustment, while the fastening structure makes tilt-angle setup simple during installation.
Installation Notes
- Designed for rigid framed solar panels
- Confirm your panel frame dimensions before selecting the bracket size
- Use mounting fasteners suitable for the installation surface
- For rooftop installations, proper sealing is recommended
- Safety gloves are recommended during installation
FAQ
What type of solar panels is this bracket compatible with?
This bracket is designed for rigid framed solar panels. Please check your panel frame dimensions and mounting points before purchase.
Can I use this bracket on an RV roof?
Yes. It is suitable for RV solar installations when the roof structure, panel size, and mounting method are appropriate for the project.
Can this bracket be used for wall-mounted solar panels?
Yes. It can be used for wall-mounted installations when the mounting surface and fasteners are properly selected.
Does the package include all installation hardware?
The set includes the bracket assembly hardware shown in the package list. Surface fasteners for roof, wall, or ground attachment may need to be selected separately based on the installation surface.
Which size should I choose: 22", 28", or 41"?
Choose the size based on your solar panel frame dimensions, intended tilt range, and installation layout. You can also use the reference panel guidance in the size chart to compare common panel size and wattage ranges.

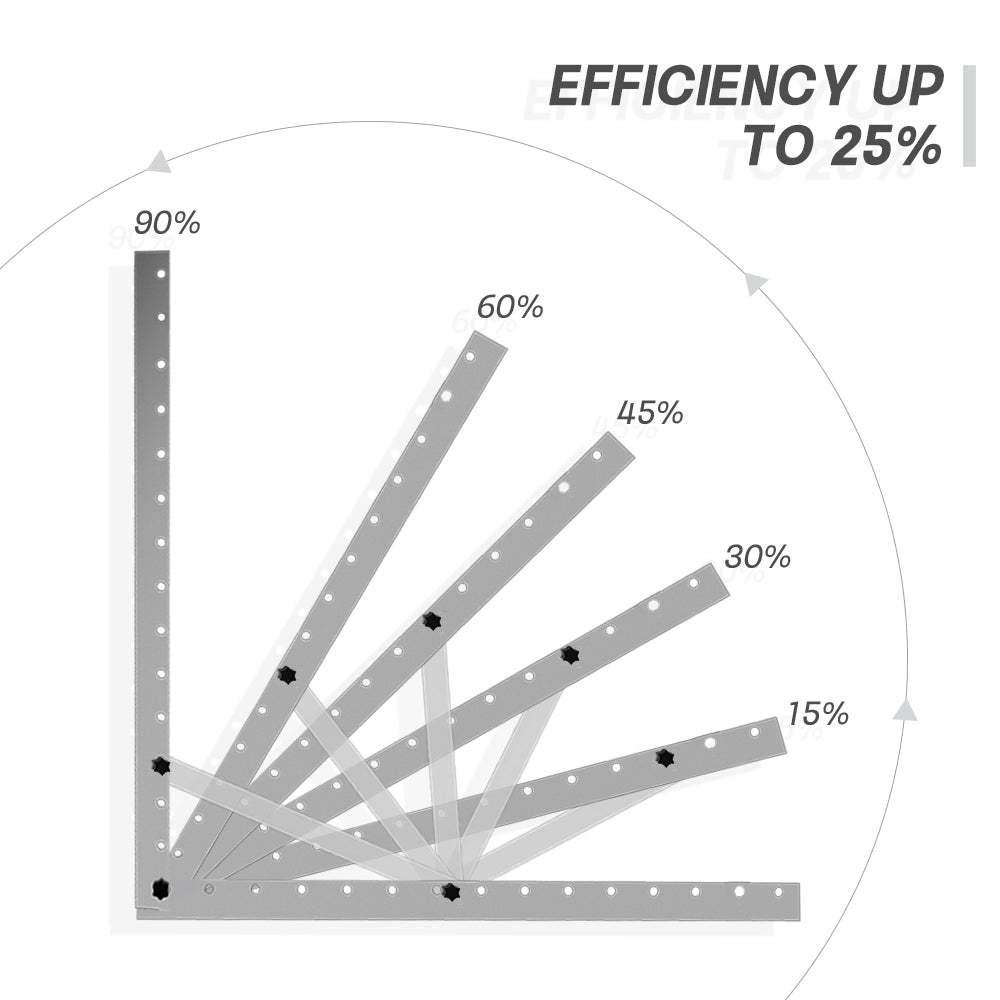

Can a tilt bracket help improve solar performance?
A tilt-adjustable bracket can help position the panel more effectively toward sunlight, which may improve energy capture depending on location, season, and installation angle.
