How to Charge Camera Batteries With Solar: 2026 Field Guide

Your last mirrorless battery reads 8% and the trailhead is two days out. Or your trail camera stopped sending photos three weeks ago because the stock solar panel can't keep up with a canopy that blocks half the sky. Either way, the fix isn't complicated — but it's also not as simple as duct-taping a panel to your battery and hoping.

Charging camera batteries with solar means matching a panel's output to what the battery, or the device around it, actually accepts — voltage, current, and connector type all have to line up, or you risk a fried board instead of a charged one. This guide covers real power numbers for mirrorless cameras, DSLRs, trail cams, and solar security cameras, a field-tested charging setup, and what to check before you buy a panel.

Can You Charge a Camera Battery Directly From a Solar Panel?

No — connecting a bare solar panel straight to a camera battery is one of the fastest ways to damage it, and it's also the single most common mistake in field charging setups. Solar panels output an unregulated voltage that shifts with cloud cover, sun angle, and temperature. A panel rated for 6V can spike well above that in bright, cold conditions, and camera batteries expect a stable, regulated input, not a moving target.

The safe path has one extra step: a regulator between the panel and the battery. A power bank is a battery-buffered intermediary that absorbs a panel's fluctuating output and re-delivers it as a stable, regulated charge — which is why the setup most photographers actually use isn't a raw charge controller at all, it's a USB power bank charged by the panel, which then charges the camera battery through its normal USB-C or dock charger. The power bank soaks up the panel's voltage swings and hands the camera a clean 5V or 9V.

This is the same failure mode that shows up constantly in trail camera and security camera forums: a 6V camera wired to a 12V panel with no controller burns out the board. The rule of thumb — 4×AA battery compartments run at roughly 6V, 8×AA at 12V, and USB-powered devices expect 5V — is worth checking before you connect anything. Multi-voltage panels that switch between 5V, 6V, 9V, and 12V output remove this guesswork entirely, which is why compact solar panels built for camera gear are usually specced that way instead of a single fixed voltage.

Solar Panel Comparison by Device: How Much Power Does a Camera Battery Need in 2026?

The power a camera battery needs depends entirely on what's draining it — a mirrorless body idling on a tripod, a trail camera firing dozens of times a day, or a cellular unit uploading every photo it takes. The table and comparison below break down typical energy demand by device type so you're not guessing at panel wattage. If you would rather mount a fixed panel than carry a folding one, the 4 W to 25 W mini panels with 5 V, 6 V, 9 V and 12 V outputs cover the same device classes.

Mirrorless and DSLR batteries: what "full charge" actually costs

Most current mirrorless bodies — including Canon's EOS R series and comparable models from other brands — charge their batteries in-camera over USB-C using standard PD (Power Delivery) chargers, the same protocol laptops use. A typical battery, like Canon's LP-E6-series packs used across the EOS R and 5D lines, stores roughly 14–20 Wh at a nominal 7.2V. A 5–10W panel feeding a power bank recharges one of these in about 3–5 hours of direct sun; a fully overcast day can stretch that past 8 hours, which is why most photographers carry a power bank as a buffer rather than charging straight off the panel.

Trail and security cameras: connectivity is what drains the battery

Most people underestimate how much a cellular connection costs in power. A non-connected trail camera sipping 0.5–1.5 Wh a day can run for weeks on a 2–3W panel. Add cellular photo uploads and daily demand jumps to 3–8 Wh; add video clips and it climbs to 8–15 Wh — a 5–10x increase over the same camera shooting stills with no connectivity at all. Solar security cameras hit the same wall: a stock 2.2W panel needs 3–4 hours of full, unobstructed sun just to keep pace, which is why north-facing installs and heavy cloud cover are the two most common causes of "my solar camera keeps dying."

Field Setup: Panel, Power Bank, and USB-C Charging Path

The most reliable field setup uses three components in a fixed order: panel, power bank, camera. Here's how to wire it without frying anything.

1. Match the panel's output to your power bank's input. Most USB power banks accept 5V, so a panel with a USB-A or USB-C output — not raw DC leads — skips the regulator step entirely and charges the bank directly.

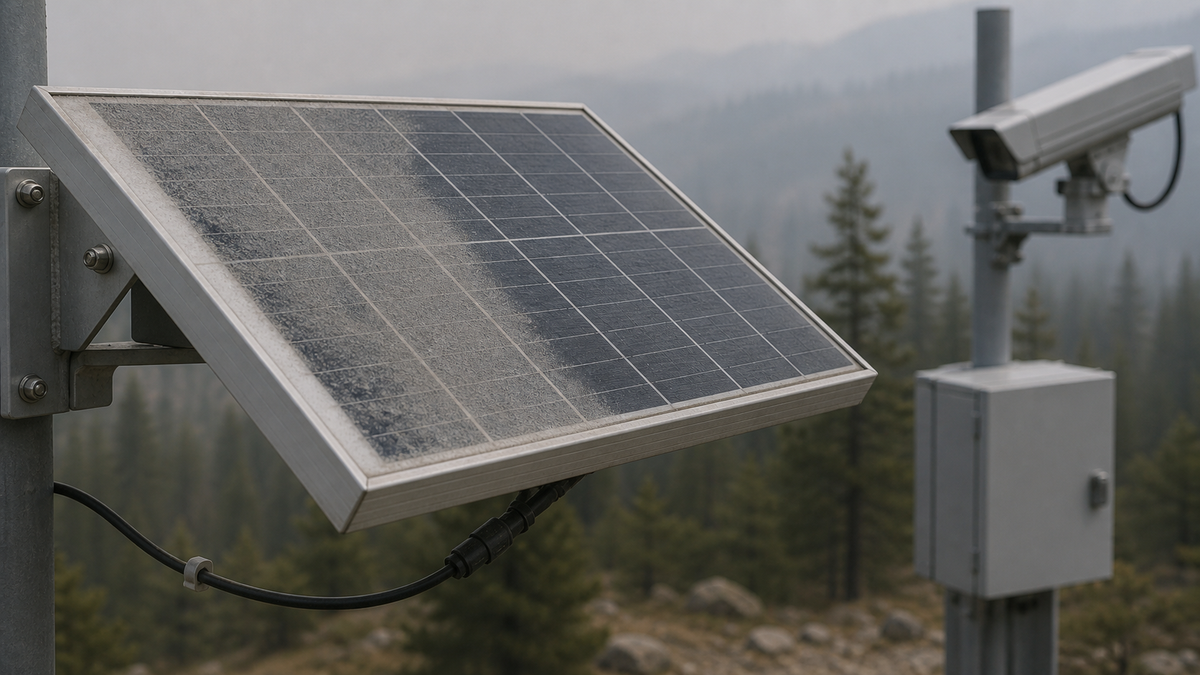

2. Position the panel for sun, not for the camera. Mounting the panel and the camera separately, connected by a cable, lets the camera stay in a shaded or hidden spot while the panel gets full exposure — the same logic solar security camera installers use when they run a long cable between a shaded mount point and a sun-facing panel.
3. Charge the power bank first, the camera battery second. Let the panel feed the power bank all day; pull from the power bank to top up the camera battery on demand. This buffers against a cloudy afternoon instead of leaving the camera dependent on real-time sun.
4. Confirm voltage before the first connection. Check whether your device compartment runs 4×AA (~6V), 8×AA (~12V), or USB (5V) before you plug anything in — a custom or multi-voltage panel removes this step, and custom solar panels built to a specific output voltage are worth it if you're standardizing a fleet of trail cameras that all run different voltages.
5. Weatherproof every joint. Field connectors should carry at least an IP65 rating; anything left exposed at a tower base or ground mount for a season needs IP67 or IP68 to survive standing water and rodent intrusion.

Trail Camera and Wildlife Monitoring: What Changes in the Field

Canopy cover and cold weather are the two variables that break most solar trail camera setups, and both are predictable if you plan for them. Wildlife researchers who deploy trail cameras for long-term monitoring — documented in the National Park Service's overview of trail camera research methods and in camera-based wildlife monitoring programs like the one at Point Reyes National Seashore — face the same power constraints as any hobbyist running a camera under tree cover for months at a time.

Usable daylight under a forest canopy typically runs 2–3 hours a day, compared to 5–6 hours in open ground, and charge-controller losses cut another 30–40% off a panel's rated output once real-world conditions are factored in. A panel spec'd for open-sky performance can underdeliver by half once it's mounted under trees, so size for the canopy, not the spec sheet — a 5W panel under heavy cover behaves more like a 2–3W panel in the open.

Cold climates add a second penalty, this time on the battery side. Lead-acid batteries lose 30–50% of usable capacity at 0°C, while LiFePO₄ batteries hold onto 70–80% of rated capacity down to −20°C, which is why LiFePO₄ has become the standard choice for northern trail camera and remote monitoring deployments. If you're setting up a season-long station in snow country, a foldable panel you can angle steeply to shed snow outperforms a fixed flat panel that accumulates a layer and drops to near-zero output until it's cleared.

Buying Checklist: Certifications, Standards & What to Look for in a Solar Charger for Camera Gear

A good field charger comes down to five checks: output voltage, controller type, cable length, weatherproofing, and certified construction. Skipping any one of them is how "the panel doesn't work" support tickets get written.

• Output voltage: USB-C PD (5V/9V) for cameras and power banks; multi-voltage 5V/6V/9V/12V for trail and security cameras with different compartment types — check this before ordering, not after a board burns out.
• Controller type: MPPT (Maximum Power Point Tracking) controllers track a panel's optimal voltage in real time and typically convert at around 97.5% efficiency, recovering 15–20% more usable energy than a fixed PWM controller in overcast or low-light conditions — the difference that matters most under canopy or on short winter days.
• Cable length: A separated panel-and-device setup, similar to the 13-foot runs common on solar security cameras, lets you place the panel for sun and the camera for coverage or concealment independently.
• Weatherproofing: IP65 minimum for exposed connectors; IP67 or IP68 for anything buried or left in standing water risk over a full season.
• Certifications and standards: aluminum-framed panels tested to IEC 61215 mechanical load standards and mounting hardware rated to UL 2703 hold up better than unbranded units with no load rating. For panels headed to the EU, confirm CE marking and RoHS compliance for restricted substances. ISO 9001 certified manufacturing partners are a reasonable proxy for consistent quality control batch to batch — ask for it the same way you'd ask a supplier for a load rating.

For a single-camera setup, an 11W portable solar charger with USB-C output covers a mirrorless battery and a power bank in one panel. For a multi-camera trail or security setup where devices run different voltages and you're outfitting more than one unit, it's worth comparing the full range of portable solar panels rather than buying the first one that shows up in search — wattage, voltage output, and cable length all vary more than the product photos suggest, and the same logic applies to any solar charging setup for outdoor electronics beyond cameras, from weather stations to remote sensors.

FAQ

Can I charge my battery directly from a solar panel?

Not safely for most camera batteries. A bare panel's output voltage swings with sun and temperature, and camera charging circuits expect a stable input. Route the panel through a USB power bank or an MPPT/PWM charge controller first, then charge the battery from that regulated source.

Why is my Ring camera battery not charging with a solar panel?

Ring's stock solar panel outputs 2.2W and needs 3–4 hours of full, direct sun to keep the battery topped up. North-facing mounts, partial shade, or winter's shorter days routinely fall short of that, which is the most common cause of a Ring battery draining despite having a solar panel attached. A 5W or larger panel closes most of that gap.

Can I charge a solar camera with a phone charger?

Yes, if the camera or its power bank charges over USB. A standard phone charger or power bank supplies the same regulated 5V a solar panel's USB output would provide — it's a fine backup or primary charging method when sun isn't available, and it's the reason a USB-based charging path is more flexible in the field than a raw DC solar connection.

How can I charge my camera battery?

Three practical options: charge in-camera over USB-C from a power bank or wall charger, use an external dock charger for a spare battery while shooting with another, or charge the power bank itself from a solar panel during the day and pull from it on demand. For multi-day trips, the solar-to-power-bank path is the only one of the three that doesn't run out.

Key Takeaways

Camera batteries and solar panels don't connect directly — a power bank or charge controller in between is what keeps a panel's swinging voltage from damaging the cell. Size the panel for what's actually draining power: 5–10W covers a mirrorless battery, 2–3W covers a basic trail camera, and cellular connectivity can push that need up to 12W. Canopy cover and cold weather both cut real-world output well below the spec sheet, so plan for 2–3 sun hours under trees and LiFePO₄ batteries below freezing, not the open-sky, room-temperature numbers on the box.

Sources: National Park Service, Urban Ecology Research Learning Alliance — Transects & Trail Cameras; National Park Service, Point Reyes National Seashore — Wildlife Monitoring Camera Systems FAQ; U.S. Department of Energy — Solar Photovoltaic Technology Basics.
