Custom Solar Bracket Fittings: Specs, Materials & Bulk Ordering Guide

By LinkSolar Engineering Team  •   12 minute read

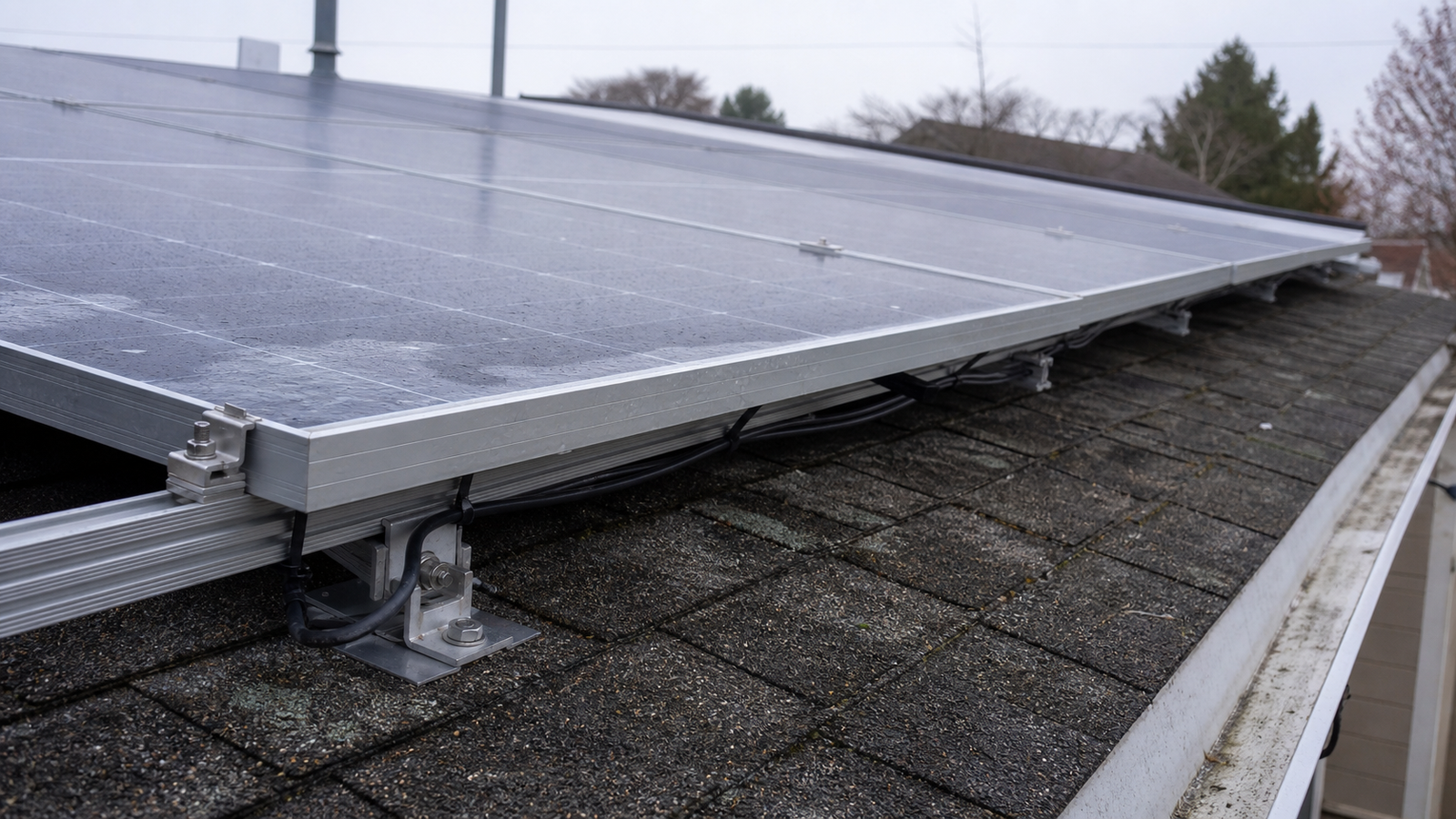

Rooftop solar array mounted on aluminum rails, with end clamps, L-feet and stainless bolts securing the module frames over weathered shingles under overcast light.

Quick answer: A solar bracket fitting is a load-bearing connector — end clamp, mid clamp, splice, L-foot, or Z-tab — that ties a module to its mounting structure. Spec it by three things: material and coating (6005-T5 aluminum body, SS304 stainless hardware, anodized finish), load rating (verified against IEC 61215 module load and UL 2703 system requirements), and order terms (MOQ, tooling, and lead time). Custom fittings make sense when your module frame height, rail slot, or corrosion environment falls outside standard parts.

TL;DR for procurement teams
  • Five fitting families: end clamps, mid clamps, rail splices, L-feet, Z-tabs. Each does one job in the load path.
  • Default material stack: 6005-T5 or 6063-T6 aluminum body + SS304 stainless bolts, washers, and T-nuts. Anodize for coastal or high-humidity sites.
  • Certify at system level: IEC 61215 governs the module; UL 2703 governs the mounting and bonding system. Ask for both on the qualification sheet.
  • Custom triggers: module frame outside 30–46 mm, non-standard rail slot, salt-air corrosion, or a hole pattern your rail does not carry.
  • Order math: typical MOQ 500–1,000 sets for a new profile, tooling for a custom extrusion die runs into four figures, samples in 7–10 days and mass production in 3–4 weeks through our partner factories.

What Counts as a "Fitting"

A solar bracket fitting is any discrete connector in the mounting load path between the module frame and the building or ground structure. In practice, buyers are sourcing five families, and each has a single job. Confusing one for another is the most common line-item error we see on a first purchase order.

Macro view of an aluminum solar end clamp, mid clamp and Z-tab bracket with stainless flange nuts and T-nuts, showing clamp jaws, bonding teeth and the Z-tab bend radius.
Fitting Job in the load path Typical spec to lock
End clamp Grips the outer edge of the first and last module in a row Jaw range matched to module frame height (30–46 mm)
Mid clamp Sits between two modules and secures both at once Jaw range plus integrated bonding teeth for grounding
Rail splice Joins two rail sections into a continuous span Insert length and bolt count for the rail's moment load
L-foot Attaches the rail to a roof or surface at 90 degrees Slot pattern, base thickness, and fastener pull-out rating
Z-tab / Z-bracket Direct module-to-surface mount without a rail Bend-radius integrity and base hole spacing

Solar panel end clamps and solar panel mid clamps do the same thing — hold a module edge — but a mid clamp carries two frames and usually integrates the bonding path, so its jaw and fastener spec is not interchangeable with an end clamp. Rail splices are the part buyers most often under-spec: a splice that is too short lets a long array flex, and flex is what fatigues fasteners over a multi-year service life. L-feet and Z-tabs are the two ways to reach the roof — a rail-plus-L-foot system spreads load across rafters, while a Z-tab bolts the module close to the surface for a lighter, lower-cost install. If you are comparing those two approaches for a bulk order, our guide to vetting a z bracket solar panel supplier before a bulk commitment walks through the tradeoffs in detail.

One field note from bracket teardown data: the failures buyers report on cheap fittings are rarely in the flat body — they are at the bend. A Z-tab formed from low-grade "pot metal" instead of true aluminum alloy shows stress cracks at the tight bend radius under magnification, and those cracks propagate under the vibration and thermal cycling a rooftop array sees. Material grade is not a cosmetic choice on a fitting; it is the whole game.

Material & Coating Options

The default material stack for a durable solar fitting is a 6005-T5 or 6063-T6 aluminum body paired with SS304 (AISI 304) stainless steel hardware. Aluminum gives you a high strength-to-weight ratio and self-passivating corrosion resistance; stainless fasteners avoid the galvanic and rust problems that carbon-steel bolts create the moment they meet an aluminum bracket outdoors. The U.S. Department of Energy's overview of solar photovoltaic technology is a useful primer on why component durability drives system lifetime economics.

Aluminum body

6005-T5 is the standard extrusion alloy for structural mounting because it holds tight tolerances through a die and takes a clean anodized finish. 6063-T6 is common for formed brackets and L-feet where the profile is simpler. Both sit far above the "pot metal" die-cast zinc alloys that populate the bottom of the price band — those look identical after a bead-blast finish but carry a fraction of the yield strength at the bend.

Stainless hardware

SS304 bolts, flange nuts, T-nuts, and washers are the corrosion baseline. For coastal or marine sites with chloride exposure, SS316 is the upgrade — it costs more but resists pitting where salt air would eventually stain and weaken 304. A fitting is only as durable as its weakest fastener, so hardware grade belongs on the purchase order, not left to the factory's default.

Coating and finish

Anodizing builds a hard oxide layer on the aluminum, typically specified between 10 and 25 microns depending on the environment. Clear anodizing is standard; black anodizing is available for low-visibility rooftop arrays at a small tooling and cost premium. For fittings that carry a grounding path — such as bonding mid clamps — the anodized layer is deliberately broken by stainless teeth so the electrical bond survives, which ties directly into the UL 2703 requirements covered below. Where a fitting kit includes the weatherized parts of the array — cable glands, junction-box entries, or grounding-lug covers — those carry an ingress rating of IP67 or IP68, sealing the connection against dust and water where the bracket meets the electrical side. Material declarations should confirm RoHS compliance so the fitting clears restricted-substance checks, and a CE mark keeps the shipment clean for buyers importing into the EU.

Custom Fitting Specs We Can Commission

Custom solar bracket fittings are worth commissioning when your module frame, rail slot, hole pattern, or corrosion environment falls outside standard parts — and our manufacturing partners can adjust three variables independently: material thickness, hole pattern, and load rating. We are a sourcing partner with factory-side QA and direct production access, not the factory owner, so what we commit to is the spec, the certification target, and the inspection gate on every batch of solar mounting hardware.

Variable Typical customizable range Why it moves
Body thickness 2.0–4.0 mm for clamps and Z-tabs; heavier gauge for splices Higher wind/snow load or longer module cantilever
Hole pattern M8 or M10 fastener holes; slot vs. round; custom pitch Match to your rail slot or existing structure
Jaw / clamp range 30–46 mm to fit thin-frame and thick-frame modules Module frame height varies by supplier
Load rating Sized against the design wind and snow load for the site Certification and structural sign-off
Finish Clear or black anodize; SS304 or SS316 hardware Corrosion environment and visual spec

The load rating is where custom work earns its keep. A mounting system has to survive the mechanical load test conditions in IEC 61215 — the standard that puts a module through a static load of at least 2,400 Pa (roughly 50 PSF), with high-wind designs qualified up to 5,400 Pa (about 112 PSF). The fitting is not tested in isolation; it is tested as part of the system, which is why the system-level UL 2703 standard for rack and mounting hardware governs mechanical load, grounding, and bonding together. When you specify a custom thickness or hole pattern, you are effectively moving the load rating, so the drawing and the certification target have to be locked at the same time. For the safety context around field installation loads, the OSHA solar guidance is a practical reference for installer-side requirements.

Factories that hold ISO 9001 quality-management certification give you a documented, repeatable process — which matters far more on a structural fitting than on a decorative part, because a bad batch is not a return, it is a roof failure. If your project also needs custom modules to match the hardware, our partners cover both sides through the same sourcing channel; see our custom solar panels capability for how the module and fitting spec get coordinated.

Matching Fittings to Rail Profiles

A fitting only works if its base geometry matches the rail it bolts into, so the first custom question is always: what rail slot and T-nut standard are you on? Clamps, splices, and L-feet index into a rail either through a top-loading slot or a channel that takes a captive T-nut, and a clamp built for one slot profile will not seat in another. Sending the rail cross-section with your inquiry saves a full sample cycle.

Cross-section technical diagram of a solar mid clamp connecting a module frame to a mounting rail, showing the bolt, the T-nut locked in the rail channel and the load path.

There are three compatibility checks that decide whether a fitting drops in or needs a custom base:

  1. Slot width and depth. The clamp's foot or the L-foot's boss has to fit the rail channel and let the T-nut rotate and lock. A 2 mm mismatch here is the difference between a captive, load-rated joint and a bolt that spins.
  2. Fastener size. Most structural rails run M8 or M10 hardware. The fitting's hole and the rail's T-nut have to agree, or you are shimming in the field.
  3. Jaw range vs. frame height. An end or mid clamp has to close on the module frame — commonly 30 to 46 mm — with enough thread engagement to hit torque spec. Thin-frame modules need a shorter jaw; thick-frame modules need a taller one.

When a buyer's rail is proprietary or legacy and no standard clamp fits, the custom path is to reverse-engineer the base geometry from a sample rail section and cut a new die or forming tool. This is the same reason we ask for the rail profile up front rather than a photo: a fitting is a precision interface, and "close enough" on a structural joint is how arrays loosen in year two. Buyers moving from a rail system to a rail-free approach should note that Z-tabs sidestep the rail-compatibility question entirely by bolting the module frame straight to the surface — at the cost of the load-spreading a rail provides.

MOQ, Tooling & Lead Times

The minimum order quantity for a custom solar bracket fitting typically runs 500 to 1,000 sets for a new profile, because a custom extrusion die or forming tool has to be amortized across the run. Standard fittings pulled from an existing die carry a far lower MOQ — often a few hundred sets — since there is no tooling to recover. The single biggest cost driver on a first custom order is whether your part needs new tooling or can run on an existing die with a modified hole pattern.

Aluminum fabrication workshop with an extrusion press and die, stacked solar rail profiles and bins of stainless fasteners and bracket blanks on a worn steel worktable.
Order type Typical MOQ Tooling Lead time
Standard fitting, existing die 200–500 sets None 2–3 weeks
Modified fitting (new hole pattern, existing die) 500 sets Low (fixture only) 3–4 weeks
Fully custom profile (new extrusion/forming die) 500–1,000 sets Four-figure die cost, amortized 4–6 weeks after tooling

For reference on the standard side, catalog Z-bracket sets sit in the $9–$11 range per four-piece set, and pole-mount and mini-rail bracket kits run higher as assemblies. Those numbers anchor a custom quote: a modified fitting lands close to the catalog part, while a fully custom profile carries the tooling recovery until volume absorbs it. Through our partner factories, samples ship in 7–10 days and mass production runs 3–4 weeks once the drawing is approved, which lets a buyer validate fit and finish before committing to the full run.

One practical note on total landed cost for buyers importing structural hardware: fittings are low-value, high-count line items, so freight and duty are a meaningful share of the delivered price. Consolidating fittings with a module or panel order — rather than shipping hardware separately — usually beats ordering each part in isolation. Our custom project case studies show how mixed module-and-hardware orders get bundled to keep the per-set landed cost down.

Sample & Drawing Request Workflow

The fastest way to a correct custom fitting is a drawing-first workflow: send the dimensioned drawing or the rail sample, approve a physical sample, then release the production run. Skipping the sample step to save a week is the most expensive shortcut in structural hardware, because a fit error found in production is a full re-run. Here is the sequence our sourcing team runs on a custom fitting order.

  1. Share the spec. Send a dimensioned drawing (PDF or STEP), or ship a rail section and a module frame sample if you do not have a drawing. Include the target certification (IEC 61215 module load, UL 2703 system) and the corrosion environment.
  2. Quote and DFM review. The factory returns a quote with a design-for-manufacture note — for example, whether a hole pattern is too close to a bend for reliable forming. This round catches the problems before tooling money is spent.
  3. Sample build. A physical sample ships in 7–10 days for standard modifications. You check jaw fit, slot engagement, fastener torque, and finish against your rail and module.
  4. Sample approval and inspection plan. On sign-off, we lock the inspection gate — dimensional check, salt-spray or coating-thickness check where the finish is critical, and a documented first-article report.
  5. Production and pre-shipment QA. Mass production runs 3–4 weeks. Factory-side QA inspects against the approved sample before the batch ships, so you are not discovering a drift on the receiving dock.

The point of the workflow is to move every risk to the cheap end of the timeline. A drawing correction costs an email; a DFM catch costs a day; a bad sample costs a week; a bad production run costs the whole order. Front-loading the spec and the certification target is what keeps a custom fitting on schedule and on budget.

FAQ

What counts as a solar bracket fitting?

A solar bracket fitting is a load-bearing connector in the mounting path — an end clamp, mid clamp, rail splice, L-foot, or Z-tab. Each ties the module to the structure and carries part of the wind and snow load, which is why material grade and load rating matter more than on a decorative part.

What material are custom solar mounting fittings made from?

The durable default is a 6005-T5 or 6063-T6 aluminum body with SS304 stainless hardware, anodized for corrosion resistance. Coastal and marine sites step up to SS316 fasteners. Avoid die-cast "pot metal" fittings, which crack at the bend radius under load and thermal cycling.

Can solar bracket fittings be custom manufactured, and what can change?

Yes. Through partner factories, three variables move independently: material thickness (typically 2.0–4.0 mm), hole pattern (M8 or M10, slot or round, custom pitch), and load rating sized to the site's wind and snow load. Jaw range and finish are also customizable to match your module frame and environment.

What is the MOQ and lead time for custom solar brackets?

A fully custom profile that needs a new die typically starts at 500–1,000 sets; a modified fitting on an existing die can run from about 500 sets. Samples ship in 7–10 days and mass production takes 3–4 weeks after drawing approval. Standard catalog fittings carry lower MOQs and no tooling cost.

Are custom solar brackets certified to UL 2703 and IEC 61215?

Certification is done at the system level, not the single-fitting level. IEC 61215 governs the module under mechanical load (at least 2,400 Pa), and UL 2703 governs the rack and mounting-hardware system for mechanical load, grounding, and bonding. Lock the certification target in the drawing so the load rating and the test scope match.

How do I request a sample or drawing-based quote?

Send a dimensioned drawing or a rail and module-frame sample, plus your target certification and corrosion environment, and we return a quote with a design-for-manufacture review. After you approve a physical sample, the production run is released against a documented inspection plan.

Sourcing the right fitting for your array

Custom solar bracket fittings reward buyers who spec three things before they ask for a price: the material and hardware stack, the load rating tied to a certification target, and the order terms that fit their volume. Get those locked and the sample-and-production cycle is fast and low-risk; leave them vague and you pay for it in re-runs.

Ready to spec a fitting? Email ding@linksolar.net with your rail profile, module frame height, target volume, and certification requirement, and we will return a drawing-based quote and a sample timeline. To scope standard parts while you scope the custom work, browse our solar bracket and clamp collection for the mounting hardware that ships from stock.
