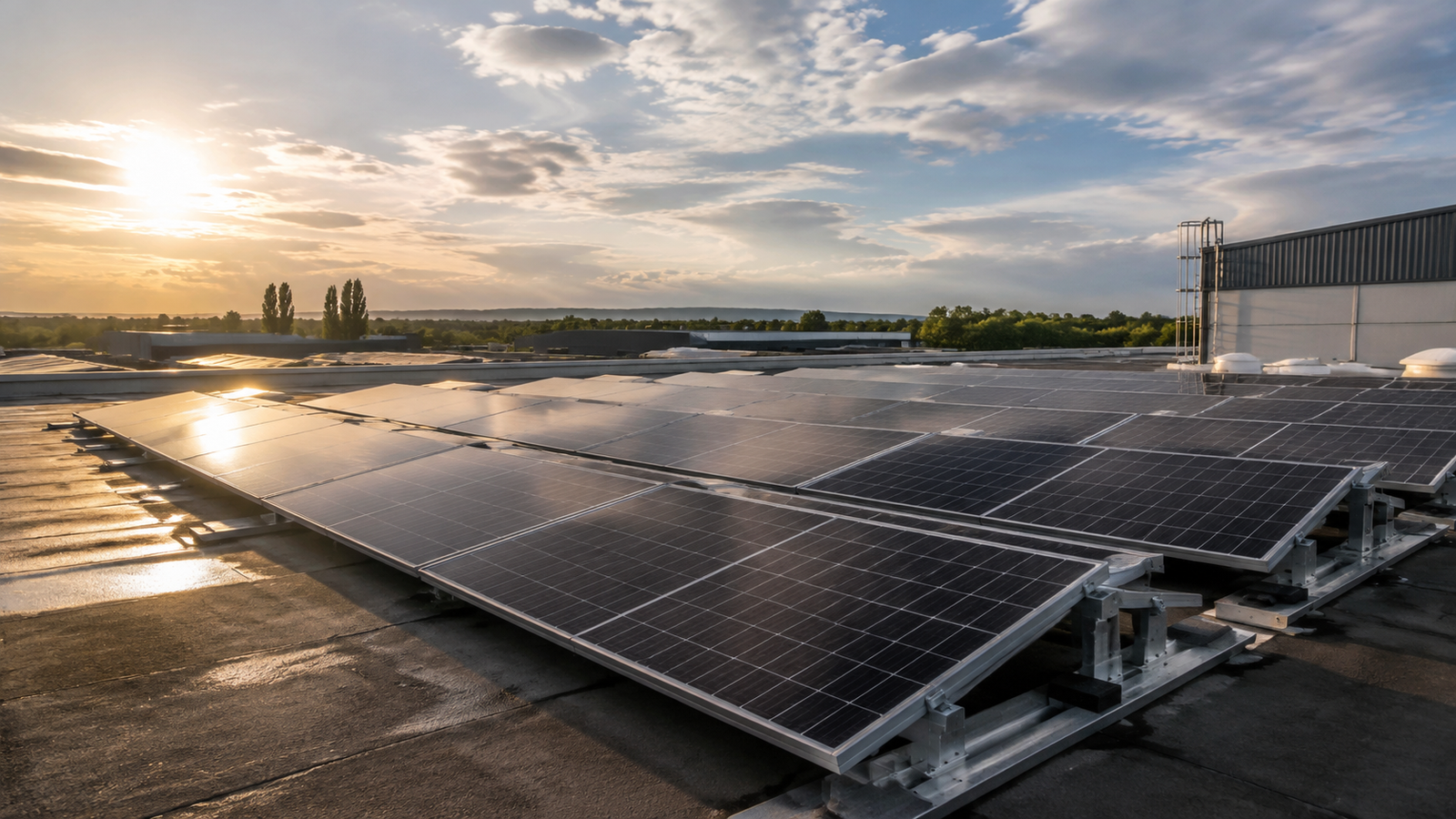

What Is Flat Roof Solar Mounting?
Flat roof solar mounting refers to the racking systems used to install photovoltaic panels on roofs with slopes of less than 5° (often 0-2°). Unlike pitched residential roofs, flat roofs present unique engineering challenges: water pooling, wind uplift, limited self-cleaning from rain, and the need to add tilt without creating excessive structural load.
The global commercial flat roof solar market has grown substantially as warehouse, retail, and industrial building owners seek to monetize unused roof space. In the U.S. alone, commercial buildings offer an estimated 40-50 billion square feet of flat roof area suitable for solar, according to NREL building stock analysis. A typical 10,000 sq ft flat roof can accommodate a 100-150 kW system, generating enough electricity to offset 60-80% of a warehouse's annual consumption.
For B2B buyers, flat roof mounting represents a high-margin product category with repeat order potential. Unlike residential installs (one-time per homeowner), commercial installers purchase mounting hardware in recurring volume for multi-building portfolios. Our manufacturing partners report that ballasted aluminum rail kits are the most requested flat roof product for OEM orders, driven by the commercial sector's preference for non-penetrating solutions that preserve roof warranties.
3 Flat Roof Mounting Systems: Ballast, Penetrating, and Hybrid
Every flat roof installation falls into one of three categories. Understanding the tradeoffs is essential for matching the right hardware to the project.
1. Ballasted Systems
Ballasted racks rely on weight—typically concrete pavers or precast ballast blocks—to hold panels in place without penetrating the roof membrane. The racks themselves are aluminum rail assemblies with low-profile frames (6-12 inches high) that tilt panels to 10-15°.
Ballast is the preferred solution for single-ply membrane roofs (TPO, PVC, EPDM) where owners want to preserve waterproofing warranties. The downside is weight: a ballasted system adds 8-15 kg per square meter of roof area. For a 100 kW system covering 650 m², that's 5,200-9,750 kg of additional dead load. Older buildings or those with limited structural capacity may require a structural engineer's sign-off. Field data from commercial installers shows ballasted systems reduce installation time by 30-40% compared to penetrating mounts because no sealing, flashing, or waterproofing steps are required.
2. Penetrating (Mechanically Attached) Systems
Penetrating mounts anchor directly into the roof's structural deck or trusses using standoffs, posts, or L-feet with waterproof flashing. These systems handle significantly higher wind loads—up to 112 PSF (5,400 Pa) in hurricane zones, versus 50 PSF (2,400 Pa) for basic ballasted designs.
The critical detail is waterproofing. Every penetration must be flashed with compatible materials (TPO-coated flashing for TPO roofs, EPDM boots for EPDM roofs). A single improperly sealed penetration can cause thousands of dollars in water damage. Installers typically budget 15-20 minutes per penetration for proper sealing, versus zero minutes for ballast. However, penetrating systems weigh 40-60% less than ballasted alternatives, making them suitable for roofs with limited load capacity.
3. Hybrid Systems
Hybrid designs use minimal penetration (e.g., one anchor per 4-6 panels) combined with reduced ballast. This approach balances the waterproofing benefits of low penetration with the structural load savings of lighter ballast. Hybrid systems are increasingly popular for mid-rise commercial buildings in wind zones that exceed pure ballast ratings but where full penetration is undesirable.
Comparison: Top Flat Roof Mounting Specs for B2B Buyers in 2026
When sourcing flat roof mounting hardware for resale or installation, these specifications separate professional-grade systems from consumer kits:
| Spec | Ballasted | Penetrating | Hybrid |
|---|---|---|---|
| Roof load (kg/m²) | 8-15 | 3-6 | 5-10 |
| Max wind load (PSF) | 50-65 | 90-112 | 65-90 |
| Tilt angle options | 10°, 15°, 20° | 10-30° adjustable | 10-15° typical |
| Install time (per kW) | 0.8-1.2 hrs | 1.5-2.5 hrs | 1.0-1.5 hrs |
| Roof warranty impact | None | Requires flashing | Minimal |
| Structural review needed | Usually | Always | Usually |
| B2B cost per watt (hardware) | $0.08-0.14 | $0.06-0.10 | $0.09-0.15 |
| Best for roof type | TPO, PVC, EPDM | Metal, concrete, built-up | All membrane types |
Tilt Angle: Why 10-15° Is the Sweet Spot for Flat Roofs
Flat-mounted panels (0° tilt) suffer from two problems: poor self-cleaning and modest yield reduction. Rainwater does not sheet off horizontal panels effectively, allowing dirt, pollen, and bird droppings to accumulate. In dusty climates, soiling losses on 0° panels reach 15-25% between cleanings, versus 5-10% on tilted panels.
Tilting to 10-15° solves the self-cleaning problem while adding 5-8% annual energy yield compared to 0° mounting, according to U.S. Department of Energy PVWatts modeling for mid-latitude locations. Steeper tilts (20-30°) add marginal yield (1-2% more) but increase wind exposure and require taller, more expensive racks. For most commercial flat roofs, 10-15° represents the optimal balance of yield, cost, and wind load.
One exception: east-west oriented flat roofs. In this configuration, a 5-10° tilt with panels facing east and west (rather than south) can increase total system capacity by 20-30% because the shallow tilt reduces row-to-row shading. This "flat roof east-west" layout has become popular in Northern Europe where land and roof space are expensive.
Structural Engineering: Load Calculations and Wind Uplift
Every flat roof mounting system must withstand dead load (the weight of the system itself), live load (maintenance personnel), and wind uplift (the force of wind trying to lift panels off the roof). Wind uplift is the governing factor for most flat roof designs.
The baseline wind load standard in the U.S. is ASCE 7 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures). ASCE 7-22 requires that solar mounting systems be designed for the specific wind speed, exposure category, and roof height of the installation site. A warehouse in Miami (Design Wind Speed 175 mph, Exposure C) requires dramatically more ballast or stronger anchors than an identical building in Chicago (Design Wind Speed 115 mph, Exposure B).
Under ASCE 7, solar panels on flat roofs create a unique aerodynamic effect. Wind flowing over the leading edge of a panel array generates negative pressure (suction) on the upstream panels, while positive pressure pushes on downstream panels. This means the front row of panels typically experiences 2-3x the uplift force of interior panels. Professional mounting systems account for this with increased ballast or additional anchors on the perimeter.
IEC 61215 sets the minimum mechanical load test for PV modules at 2,400 Pa (50 PSF). However, mounting systems in high-wind zones must be engineered to 5,400 Pa (112 PSF) or higher. Our manufacturing partners produce ballasted rail systems with engineering letters certifying compliance up to ASCE 7-22 wind zones, with PE-stamped calculations available for permit submission.
Buying Checklist: 7 Questions to Ask Your Supplier
Use this filter before placing a volume order for flat roof mounting hardware. The answers separate engineered systems from commodity aluminum.
- What wind-load rating does the system carry, and do you provide PE-stamped engineering letters? Demand ASCE 7 compliance documentation specific to the wind zone. Generic "rated to 90 mph" claims are insufficient for permit approval.
- What aluminum alloy and wall thickness do you use for rails and brackets? 6063-T5 aluminum is the industry standard. Wall thickness below 1.5 mm risks deflection under snow load. Insist on mill certificates.
- What certifications does the system carry? See the certifications section below. The certificate must name the factory, not a trading intermediary.
- Can you customize rail length, tilt angle, and ballast tray dimensions for OEM orders? A factory with extrusion capabilities should offer custom rail lengths, anodized colors, and branded ballast trays at MOQs of 500-1,000 kg.
- What is the warranty on the mounting system? Look for 10-year structural warranties on aluminum components and 5-year warranties on fasteners and hardware.
- Do you supply compatible flashing and sealing kits for penetrating mounts? Suppliers who only sell rails without compatible waterproofing create liability for the installer. Complete kits should include boots, sealant, and step-by-step sealing diagrams.
- What is the lead time for volume orders, and do you hold aluminum inventory? Custom extrusion from billet takes 3-4 weeks. Suppliers with stocked standard profiles can ship in 5-7 days.
Certifications & Standards Every Flat Roof Mounting System Must Carry
Certifications are non-negotiable for commercial installations where permit approval and insurance coverage depend on code compliance.
| Standard | What It Covers | Required For |
|---|---|---|
| IEC 61215 | PV module design qualification (mechanical load 2,400 Pa) | Global baseline for panel strength |
| UL 2703 | PV mounting systems (structural, grounding, corrosion) | U.S. and Canada |
| UL 1703 | Flat-plate PV modules and panels (fire safety) | U.S. and Canada |
| ASCE 7 | Wind and snow load design criteria | U.S. structural engineering |
| CE | EU conformity for structural aluminum | European market |
| RoHS | Hazardous substance restriction | EU; expected globally |
| MBMA 2012 | Metal building design and construction standards | Metal building installations |
| IP65 / IP67 | Dust and water ingress on electrical enclosures | Junction boxes and combiners |
| ISO 9001 | Factory quality management system | B2B buyer confidence |
A common trap in flat roof mounting: a supplier shows you a UL 2703 certificate for a different rail profile or a different factory. Always cross-reference the certificate number on the UL certification database. Our manufacturing partners can produce to UL 2703, CE, and RoHS standards, with certification testing and documentation arranged according to the customer's target market requirements.
Ballast vs Penetration: Which Saves More on Labor?
From a total installed cost perspective, the hardware price is only one component. Labor, structural review, and roof warranty implications often dominate the decision.
Ballasted systems cost 10-20% more in hardware per watt but save 30-40% on installation labor because no waterproofing is required. A typical 100 kW ballasted install takes 2-3 days versus 4-5 days for a penetrating system. At $75/hour labor rates, that saves $4,500-7,500 in labor costs.
However, ballasted systems require a structural engineer's review ($800-2,000) to confirm the roof can handle the dead load. Penetrating systems also require structural review ($1,000-2,500) to verify anchor points hit structural members. The engineering cost gap narrows for large projects where the review is amortized over more capacity.
Roof warranty is often the deciding factor. Many commercial roof warranties (particularly single-ply membranes) are voided by penetrating mounts unless the installation is performed by the roofing manufacturer's certified contractor. Ballasted systems typically do not void roof warranties, provided the installer uses protective mats under the ballast blocks to prevent membrane abrasion.
Custom OEM & Private Label: MOQ and Lead Time
For B2B buyers looking to launch a private-label flat roof mounting line, the economics favor standard aluminum extrusion over custom die development.
Standard 6063-T5 aluminum rail profiles (40x40 mm, 40x60 mm) are extruded from existing dies with no tooling cost. Custom profiles (e.g., integrated cable management channels or unique clamp geometries) require new extrusion dies costing $3,000-8,000 per profile. At volumes of 5,000+ kg per year, the die cost amortizes to $0.60-1.60 per kg—acceptable for differentiated products but unnecessary for commodity rails.
OEM branding options include laser-etched part numbers, custom anodized colors (black, bronze, or clear), branded packaging with installation manuals, and PE-stamped engineering letters in the buyer's company name. These options add $0.10-0.30 per kg at volume but create significant brand differentiation in a market where most mounting hardware looks identical.
Lead times: stock profiles with custom anodizing and packaging ship in 3-4 weeks. Custom extrusion profiles ship in 6-8 weeks. Our manufacturing partners hold inventory of standard rail profiles in 6-meter lengths, cutting to order for North American and European customers.
5 Common Flat Roof Mounting Mistakes
These mistakes appear repeatedly in failed inspections, warranty claims, and delayed project completions.
- Ignoring the roof membrane type. TPO, PVC, and EPDM have different chemical compatibility with sealants and flashings. A butyl rubber sealant that works on EPDM can degrade TPO. Always verify sealant compatibility with the roofing manufacturer.
- Undersizing ballast for the actual wind zone. A system designed for ASCE 7-16 Exposure B may fail in ASCE 7-22 Exposure C because the newer code increased wind pressures by 10-15% in many regions. Always design to the current code edition.
- Creating ponding zones. Ballasted racks and elevated rails can block roof drainage, creating standing water that accelerates membrane degradation. Installers must maintain clear drainage paths and verify slope after rack placement.
- Mixing incompatible metals. Aluminum rails fastened with zinc-plated steel bolts create galvanic corrosion. Use stainless steel (304 or 316) or aluminum fasteners. This is specified in UL 2703 but overlooked on budget jobs.
- Neglecting thermal expansion. A 100-foot aluminum rail experiences 0.6 inches of thermal expansion between 0°F and 100°F. Rigidly fixing both ends of a long rail causes buckling. Professional systems use expansion splices or sliding clamps.
FAQ
- Can I mount solar panels on a flat roof?
- Yes, flat roofs are well-suited for solar installations. Commercial flat roofs typically offer large, unobstructed areas ideal for solar arrays. The key is selecting the appropriate mounting system—ballasted, penetrating, or hybrid—based on the roof's structural capacity, membrane type, and local wind loads.
- What is the 33% rule in solar panels?
- The "33% rule" refers to the maximum roof coverage ratio recommended by some structural engineers for ballasted solar systems. It means ballasted arrays should cover no more than 33% of the total roof area to keep dead loads within safe limits. This is a conservative guideline, not a code requirement; actual limits depend on the building's structural analysis.
- How is solar installed on a flat roof?
- Flat roof solar installation follows these steps: (1) structural engineering review and permit approval, (2) layout design with row spacing for shading avoidance, (3) placement of protective mats (ballasted) or marking of anchor points (penetrating), (4) assembly of aluminum rail racks at the specified tilt angle, (5) mounting of PV panels with clamps, (6) electrical wiring and grounding per NEC / local code, and (7) final inspection and commissioning.
- What is the 36 inch solar rule?
- The 36-inch rule (NEC 690.12 Rapid Shutdown) requires that rooftop solar arrays have a rapid shutdown device that reduces voltage to safe levels within 30 seconds of activation. For flat roof installations, this typically means installing module-level power electronics (MLPEs) such as power optimizers or microinverters, or using string inverters with rapid shutdown transmitters. The 36-inch measurement refers to the boundary within which voltage must be reduced.
- What tilt angle is best for flat roof solar?
- For most flat roof installations, 10-15° is optimal. This angle provides adequate self-cleaning from rainfall while maintaining a low profile that reduces wind uplift. Steeper angles add marginal yield but increase structural load and installation cost.
- Do flat roof solar mounts void the roof warranty?
- Ballasted systems typically do not void roof warranties if installed with protective mats and proper drainage. Penetrating mounts may void warranties unless the installation is performed by the roofing manufacturer's certified contractor or approved flashing methods are used. Always check the roof warranty terms before specifying the mounting type.
- How much weight does a ballasted solar system add?
- Ballasted flat roof systems add 8-15 kg per square meter (1.6-3.1 PSF), depending on the wind zone and tilt angle. Higher wind zones require more ballast. A structural engineer must verify that the roof deck and supporting structure can handle this additional dead load plus any required snow load.
