Solar Mounting Kit for Concrete Tile and Slate Roofs
Product Overview

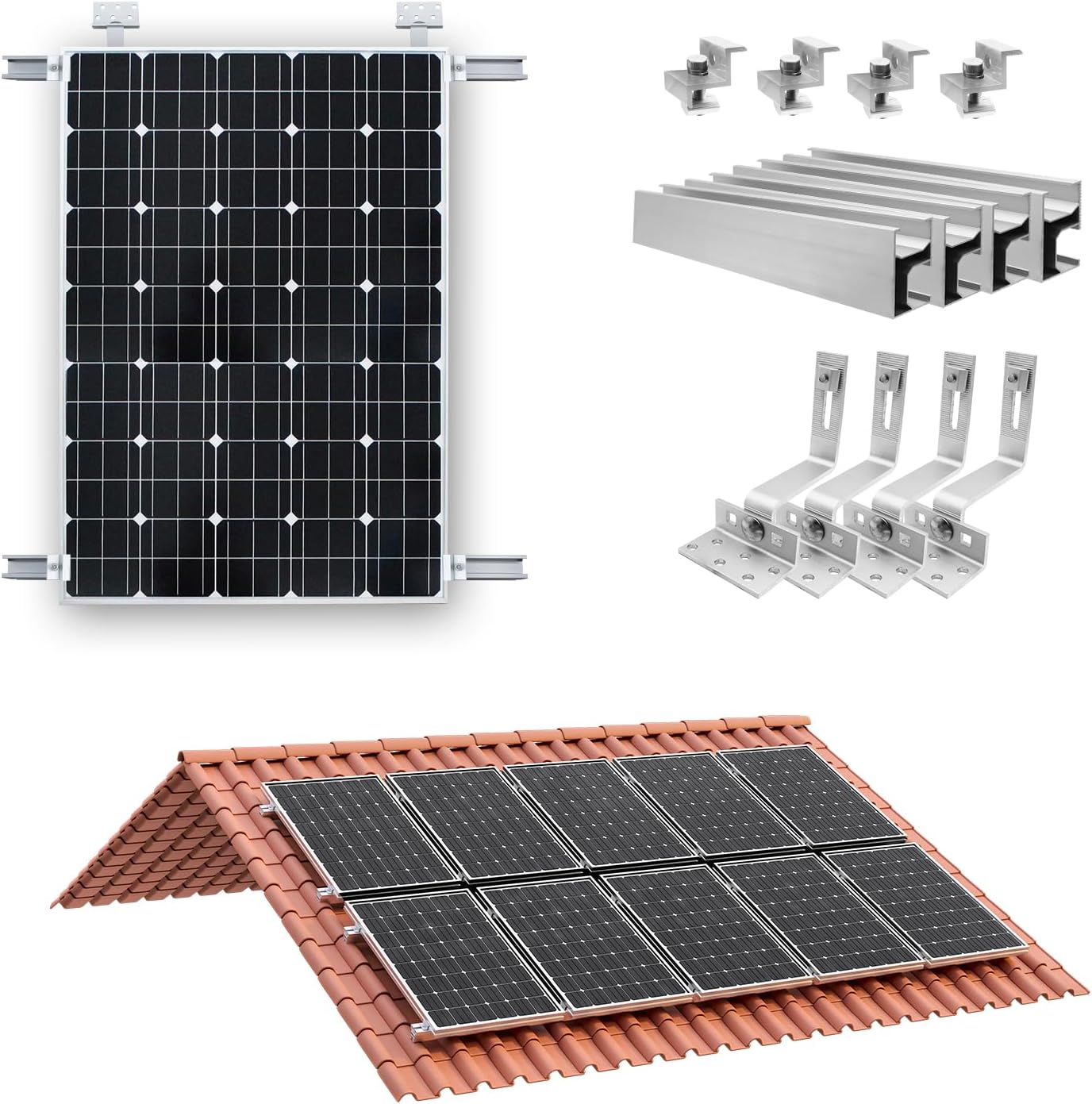

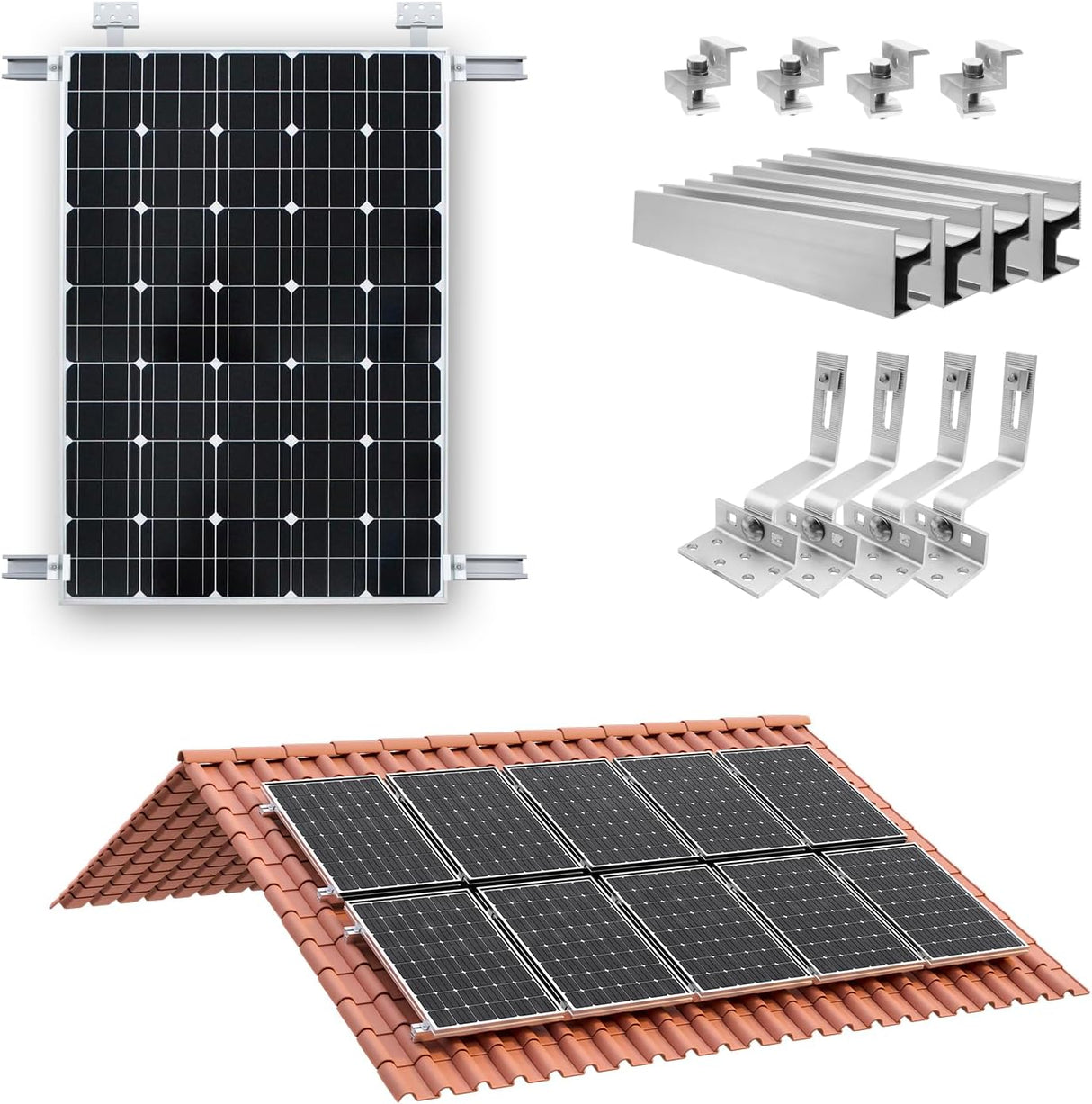

This solar panel mounting kit for tile roofs is a compact hardware set for installing a framed solar module on tile or slate roof applications. The kit includes aluminum mounting rails, roof hooks, L-shaped mounts, clamps, and fasteners for a roof-mounted solar panel setup.
The kit is intended for projects where the solar panel frame thickness matches the reported 30-35 mm range. Roof structure, tile type, fastener suitability, and local installation requirements should be checked before use.
Key Features
- Tile and slate roof mounting format: Designed around roof hooks, rails, clamps, and fasteners for compatible roof-mounted solar panel projects.
- Aluminum mounting hardware: Aluminum rails and listed stainless steel fasteners help keep the kit practical for outdoor solar mounting applications.

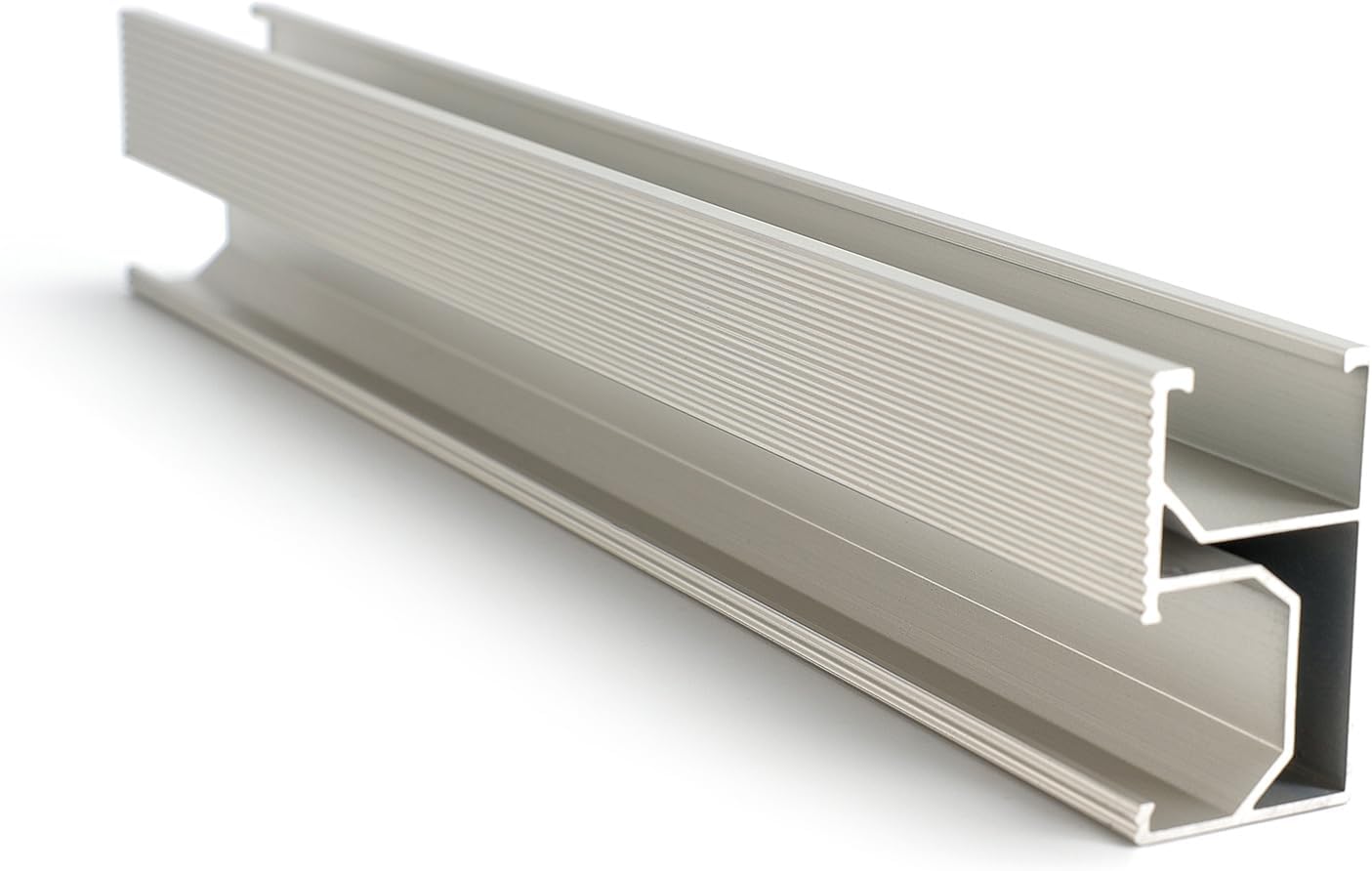

- 11.8 in. rail sections: Short rail pieces provide a compact mounting base for a single-panel installation layout.

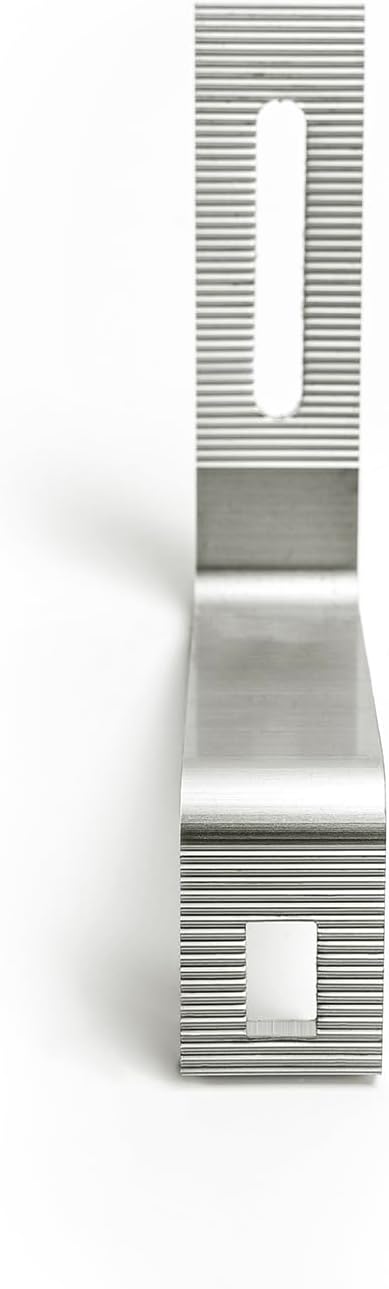

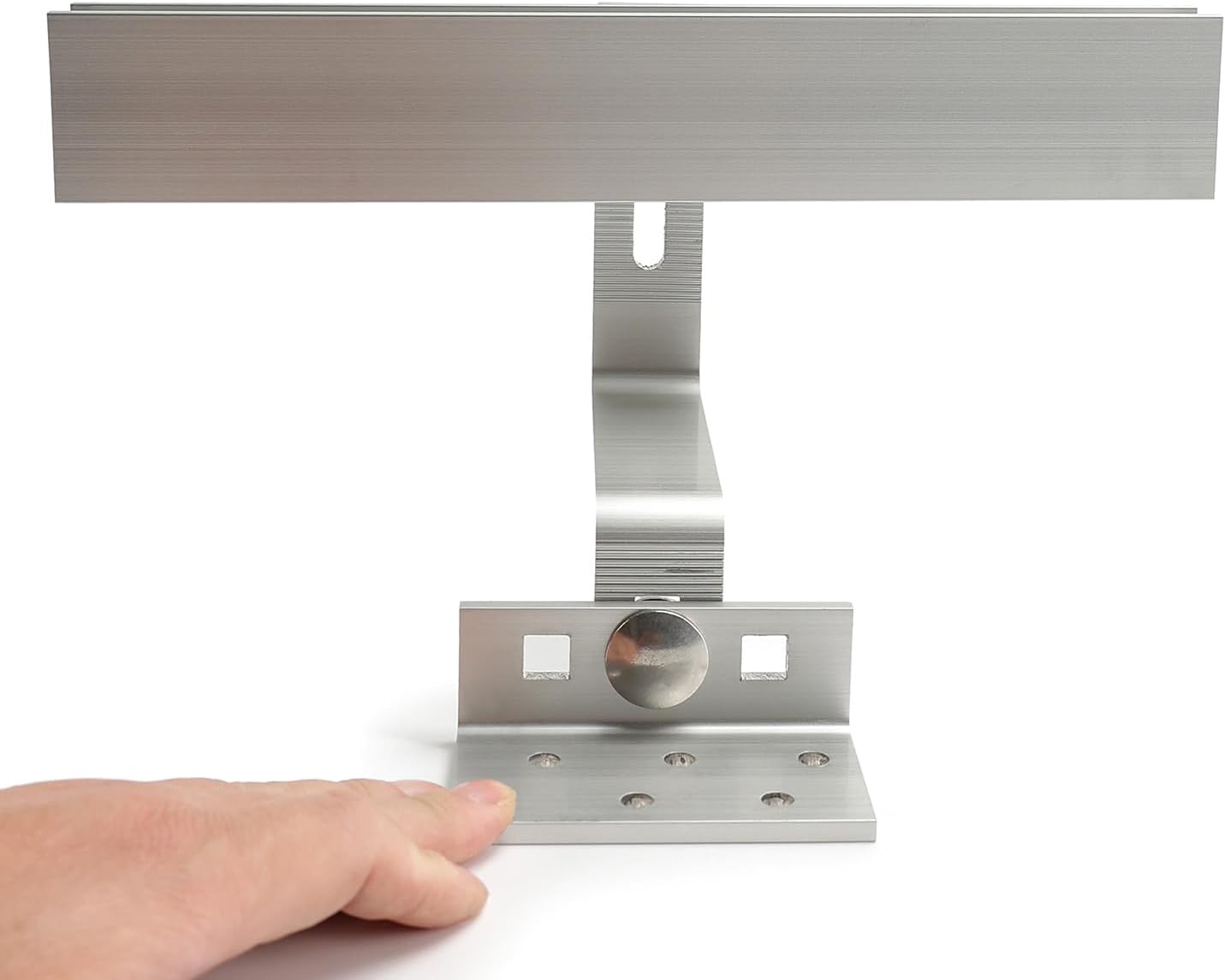

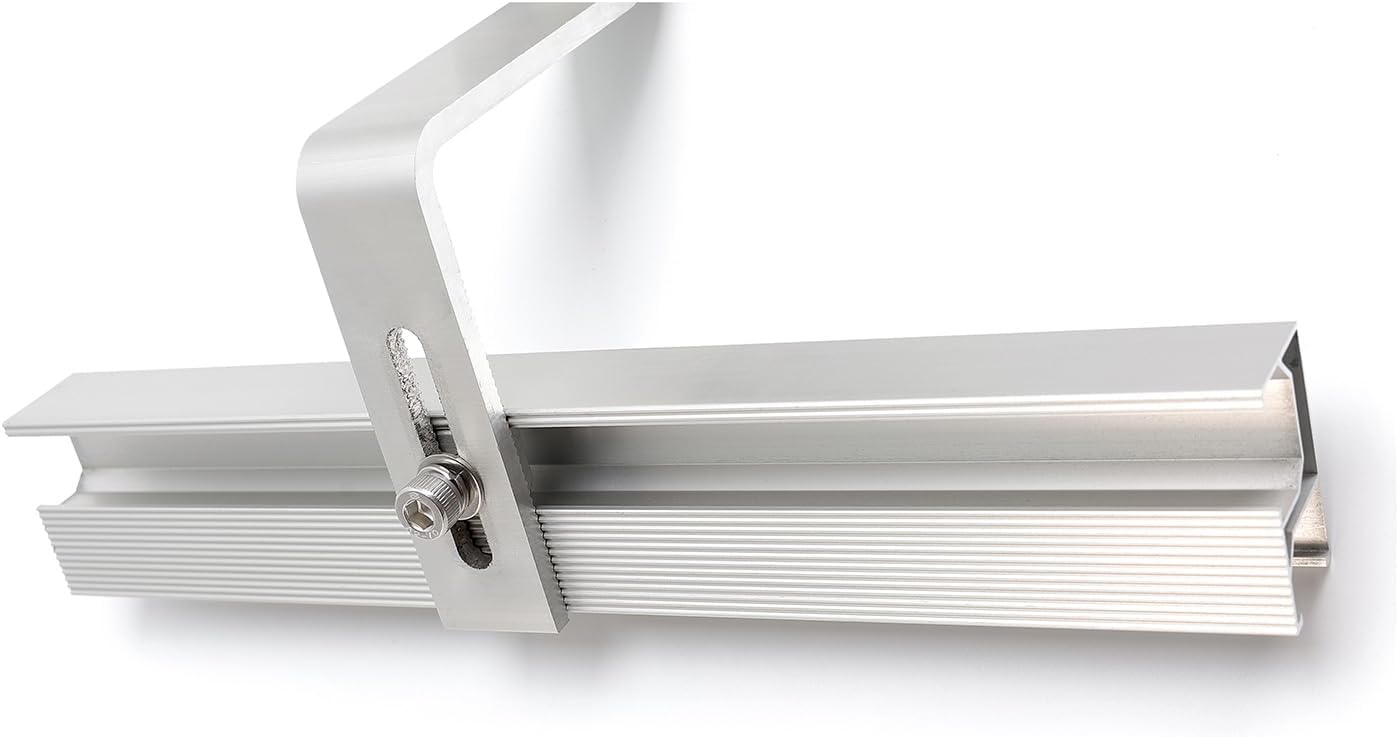

- Adjustable roof hooks: Source mirrors list a 57 mm height adjustment range to help fit supported tile-roof mounting conditions.
- Complete hardware bundle: Includes rails, hooks, L-shaped mounts, end clamps, bolts, T nuts, and self-drilling screws listed by the source mirrors.
Best For
- Single framed solar panel mounting projects on compatible tile or slate roofs
- DIY solar installations where the panel frame thickness is within the confirmed range
- Installers who need a compact roof hook and rail hardware kit

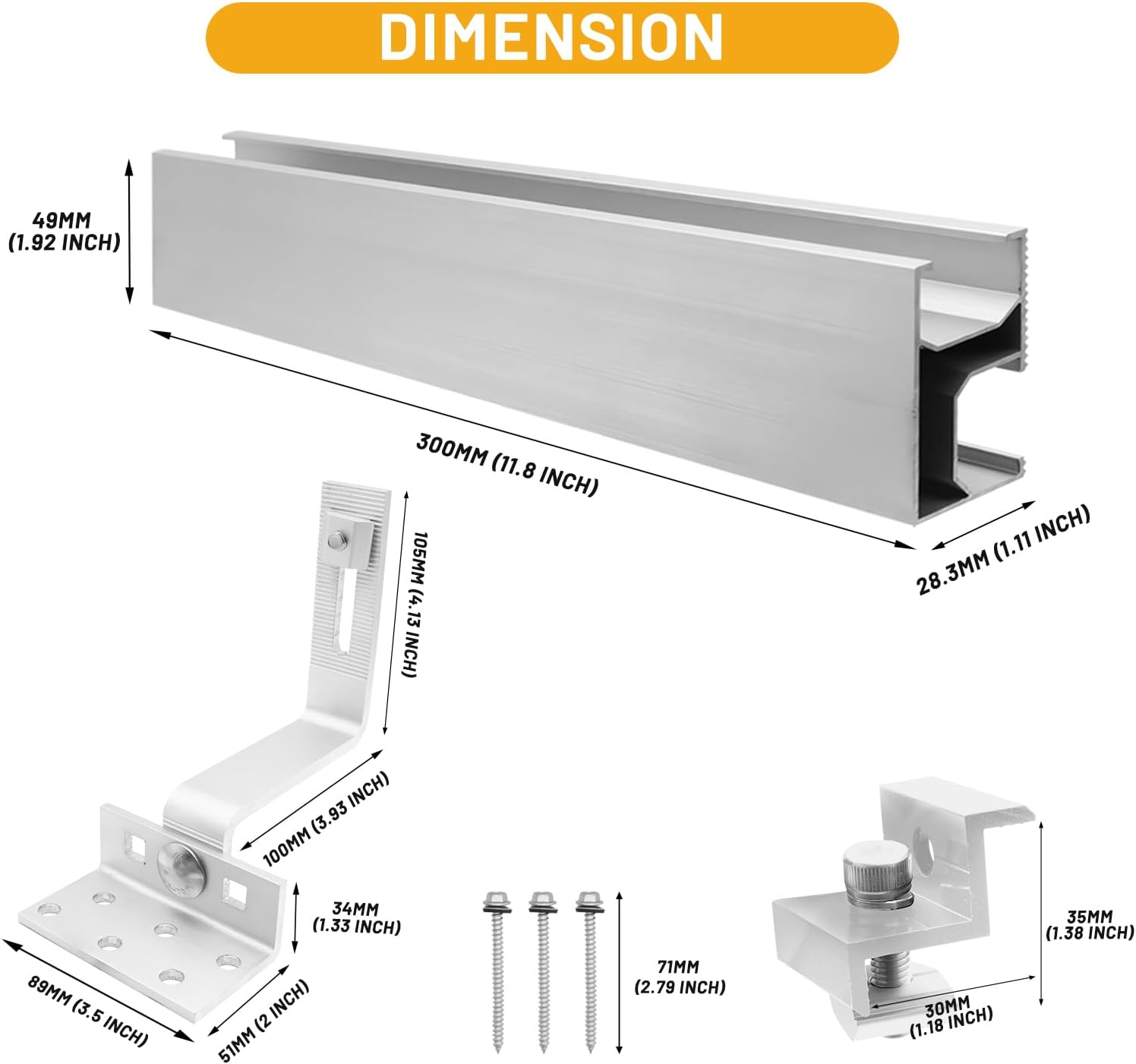

Details & Specs
| Product type | Solar panel roof mounting kit |
| Material | Aluminum Rails; stainless steel hardware listed in package details |
| Roof application | Tile or slate roof solar panel mounting |
| Compatible panel frame thickness | under 35 mm |
| Mounting rail length | 11.8 in. |
| Roof hook adjustment range | 57 mm |
Compatibility & Notes
- Confirm the solar panel frame thickness before ordering or installing.
- Confirm the roof material, roof structure, and fastener requirements before installation.
- Installation should be completed by qualified users or installers familiar with roof-mounted solar hardware.

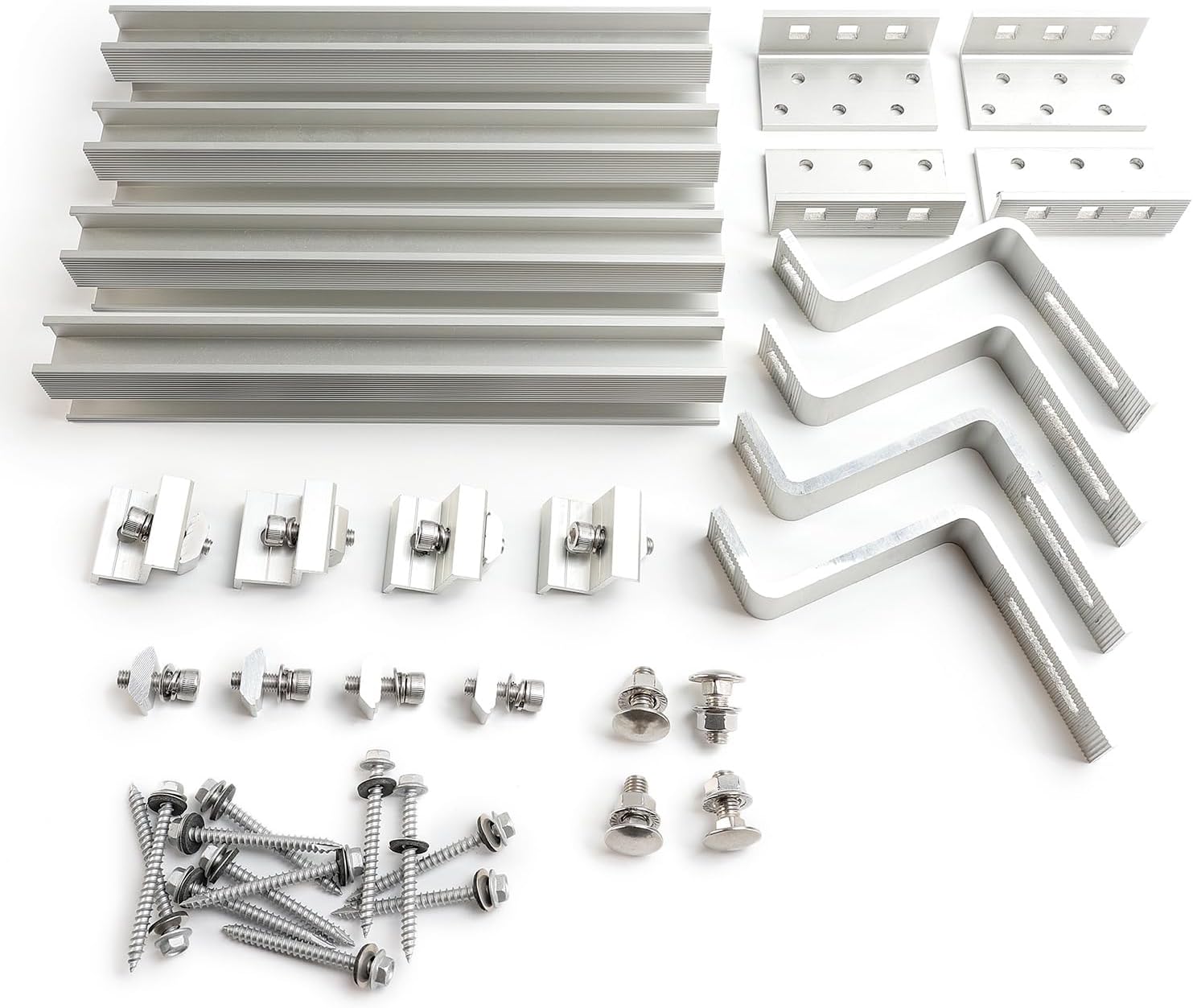

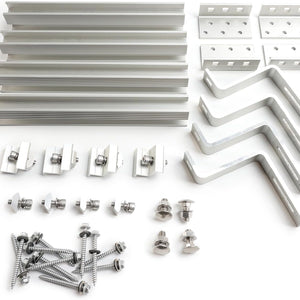

Package Contents
- 4 x 11.8 in. mounting rails
- 4 x roof hooks with 57 mm height adjustment range

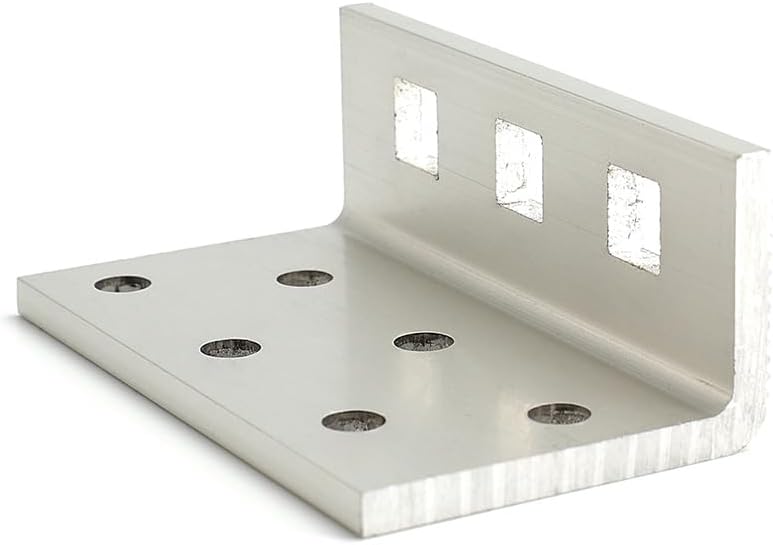

- 4 x L-shaped sheet mounts
- 4 sets x end clamps

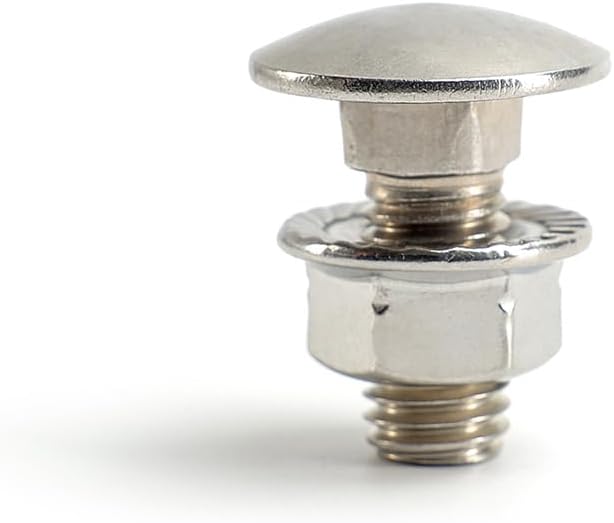

- 4 sets x M10 x 25 mm bolts and T nuts
- 4 pcs x stainless steel bolts and nuts kit
- 12 pcs x ST6.3 x 65 mm self-drilling tail screws
Related mounting parts and guides
- All solar panel brackets and mounts
- Adjustable roof hooks sold separately, 2/4 pack
- How a solar panel racking system goes together
- Solar panel fastener selection guide
Buyer questions
Which roofs is this kit for?
Tile and slate roof applications, built around roof hooks, aluminum rails, clamps and fasteners. Roof structure, tile type, fastener suitability and local installation requirements should be checked before use, and the work done by qualified installers.
Which panel frames does it fit?
Framed modules in the reported 30–35 mm range. Confirm the solar panel frame thickness before ordering or installing.
How many panels does one kit mount?
It is laid out as a compact single-panel set: four 11.8 in. rail sections provide the mounting base for one framed module.
How much height adjustment do the hooks give?
The roof hooks list a 57 mm height adjustment range to help fit supported tile-roof mounting conditions.
What exactly is included?
4 × 11.8 in. mounting rails, 4 adjustable roof hooks, 4 L-shaped sheet mounts, 4 sets of end clamps, 4 sets of M10 × 25 mm bolts and T nuts, 4 stainless steel bolt-and-nut sets, and 12 ST6.3 × 65 mm self-drilling tail screws.
