0.9W 5.5V Mini Solar Panel, Matte PET, SMT SPIC Back-Contact Cell, 75×69.5mm

LinkSolar  |  SKU: LS-MSP-S207
$1309 USD
Taxes and shipping calculated at checkout.

Features
  • 0.9W compact output: Delivers a 5.5 V operating point in a small-format panel for low-power electronics.
  • Near-square rectangular footprint: Measures 75 × 69.5 × 2 mm for integration where enclosure space is limited.
  • Waterproof, UV-resistant surface: Matte PET provides a low-glare black finish suitable for outdoor product designs.
  • Back-contact SMT construction: SPIC cells are mounted to an FR4 PCB, keeping electrical contacts on the rear.
  • Bare solder-pad connection: Two polarity-marked 5 mm copper pads support direct integration into a custom wiring harness.
  • OEM-ready customization: Lead wires, connectors, dimensions, and panel outlines can be customized for volume projects.

Product Overview

This 0.9W 5.5V mini solar panel combines a compact 75 × 69.5 mm near-square rectangular footprint with a waterproof, UV-resistant matte PET surface. Genuine SunPower Maxeon IBC back-contact cells are SMT-mounted to an FR4 PCB, with a clean dark front and two rear solder pads for integration.

At its maximum power point, the panel is rated for 5.5 V and 163.6 mA. Open-circuit voltage is 6.5 V and short-circuit current is 175 mA under the specified test conditions.

Key Features

  • 0.9W compact output: Delivers a 5.5 V operating point in a small-format panel for low-power electronics.
  • Near-square rectangular footprint: Measures 75 × 69.5 × 2 mm for integration where enclosure space is limited.
  • Waterproof, UV-resistant surface: Matte PET provides a low-glare black finish suitable for outdoor product designs.
  • Back-contact SMT construction: SunPower Maxeon IBC cells are mounted to an FR4 PCB, keeping electrical contacts on the rear.
  • Bare solder-pad connection: Two polarity-marked 5 mm copper pads support direct integration into a custom wiring harness.
  • OEM-ready customization: Lead wires, connectors, dimensions, and panel outlines can be customized for volume projects.

Best For

A practical choice for DIY electronics, compact IoT sensor nodes, beacons, small monitoring devices, and OEM products that need a waterproof low-power solar input in a compact footprint.

Details & Specs

Rated maximum power 0.9 W
Working voltage (Vm) 5.5 V
Working current (Im) 163.6 mA
Open-circuit voltage (Voc) 6.5 V
Short-circuit current (Isc) 175 mA

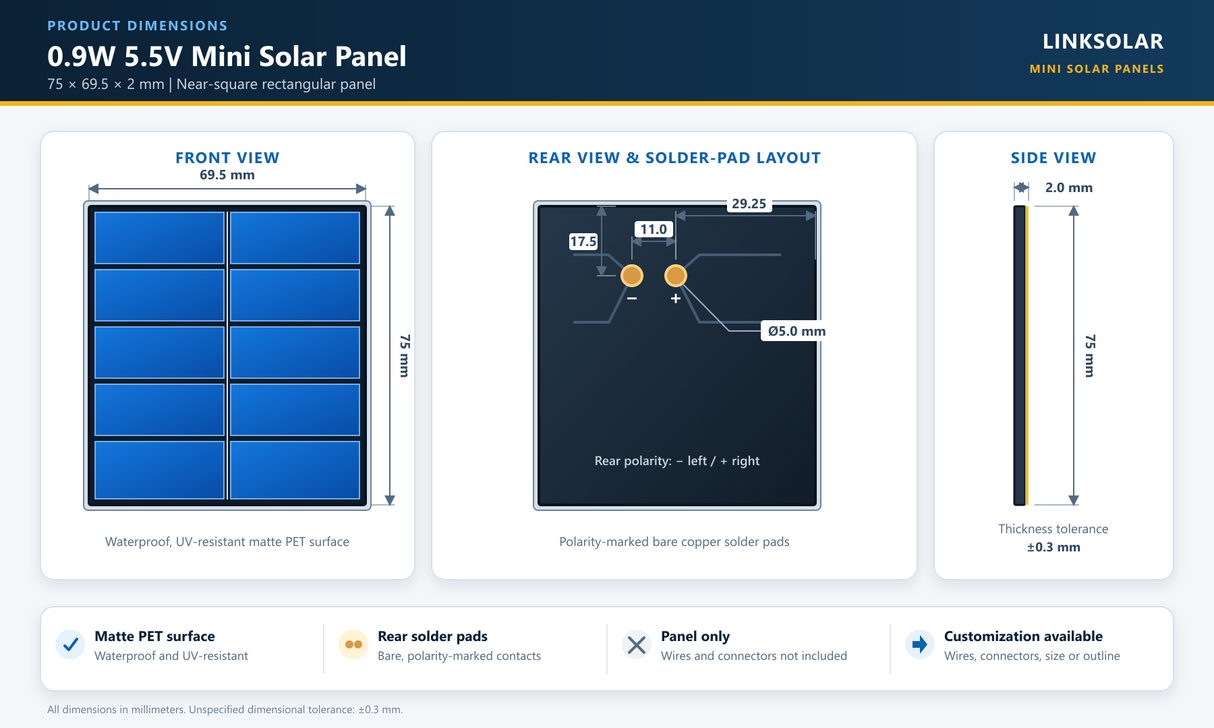

Dimensions 75 × 69.5 × 2 mm
Shape Near-square rectangle

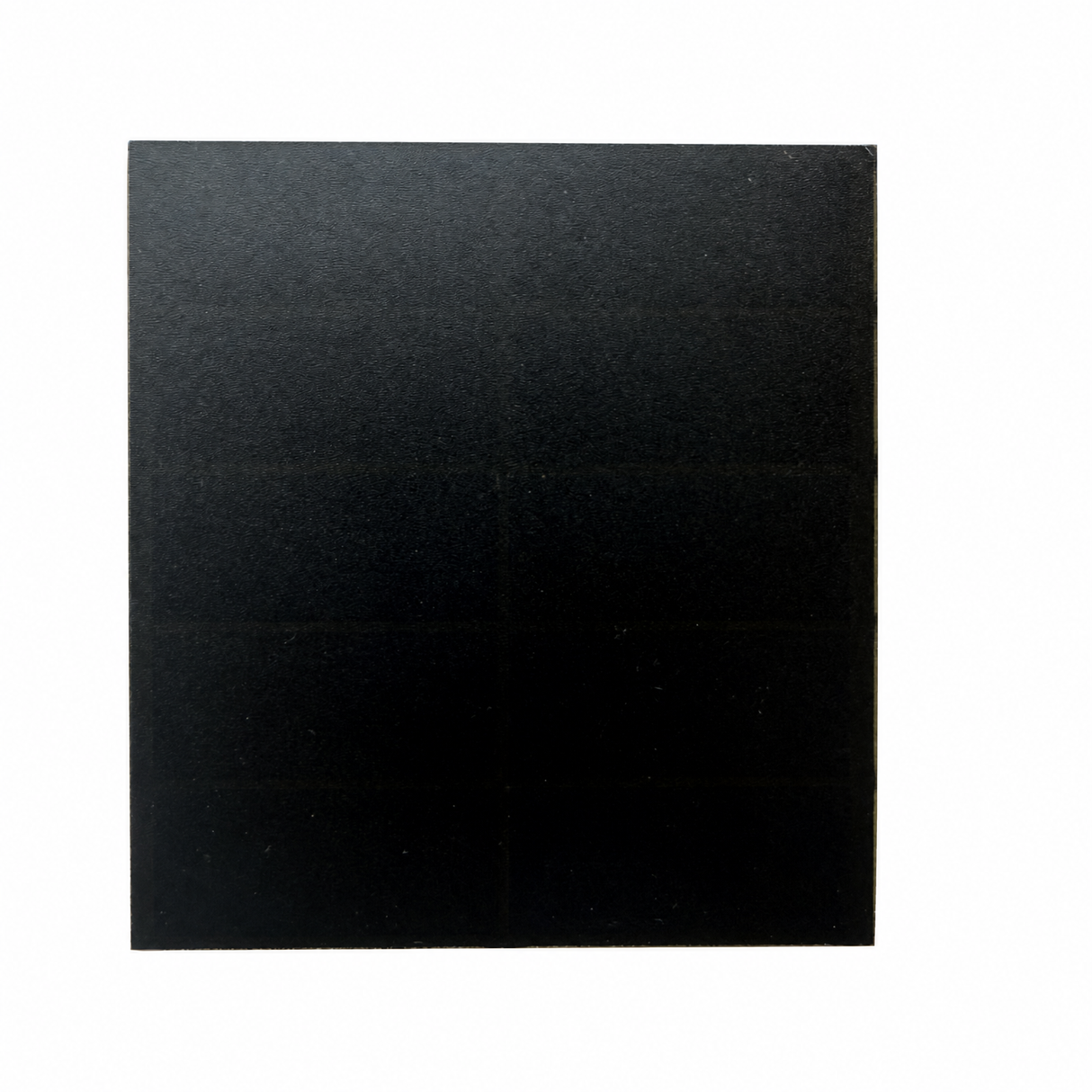

Surface Waterproof, UV-resistant matte PET
Cell and build Genuine SunPower Maxeon IBC back-contact cells, EVA encapsulation, SMT-mounted to double-sided FR4 PCB
Electrical tolerance Voltage ±10%; current ±10%

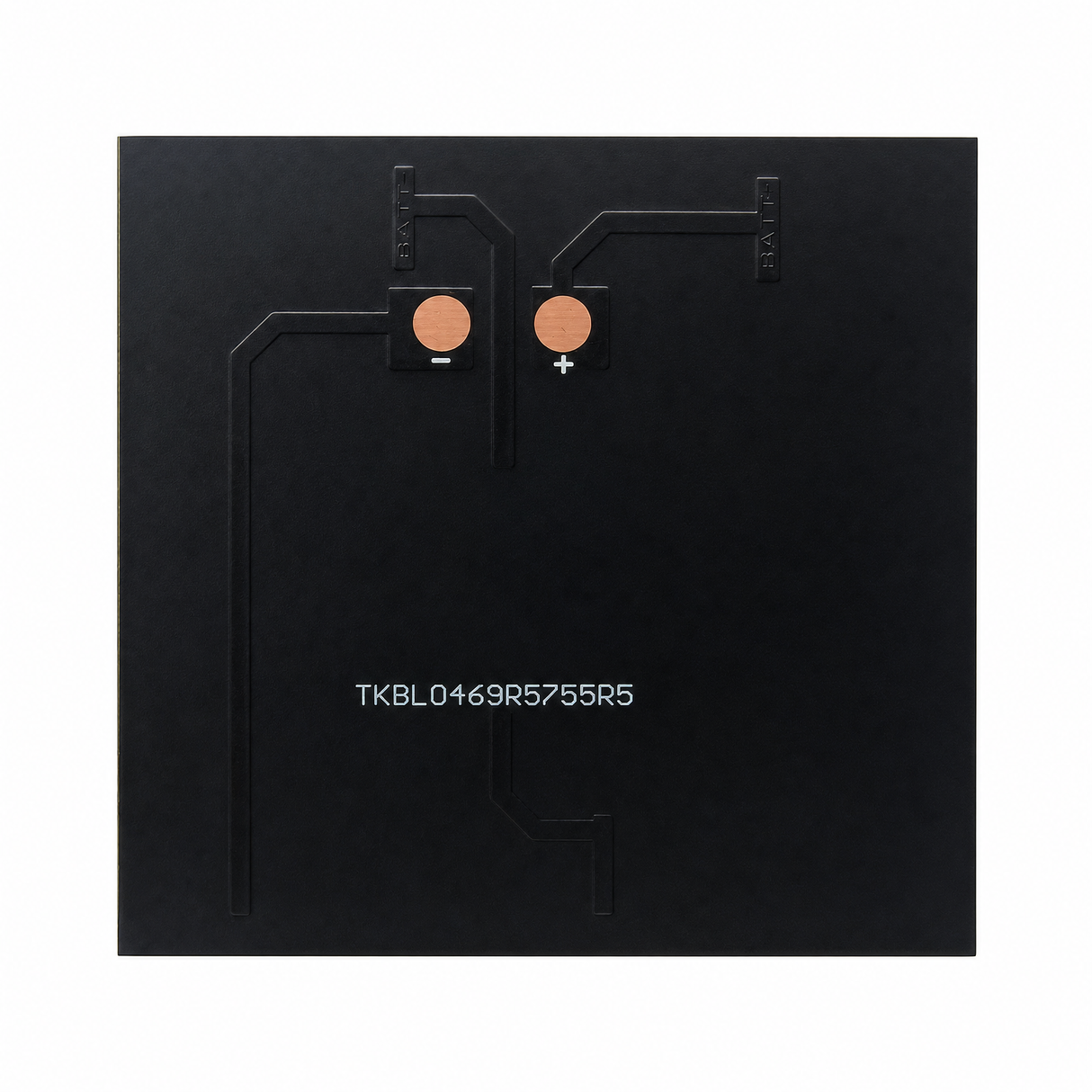

Rear terminals 2 × polarity-marked bare solder pads, Ø5 mm, 11 mm center spacing
Single-panel net weight Approximately 17 g
Rated test conditions 1000 W/m², 25°C, AM1.5

Need a different connection or footprint? Contact LinkSolar about custom lead wires, connectors, dimensions, or panel outlines.

SunPower and Maxeon are trademarks of their respective owners. LinkSolar is not affiliated with SunPower Corporation.
