Solar Panel Mounting Brackets and Mini Rail Kit for 4 Panels, 30/35mm

Overview

These solar panel mounting brackets form a complete mini rail kit for securing four framed modules in a single row. The kit includes ten 4.72-inch rails, six middle clamps, four reversible end clamps, rubber pads, and stainless steel screws, with Silver and Black finish options.

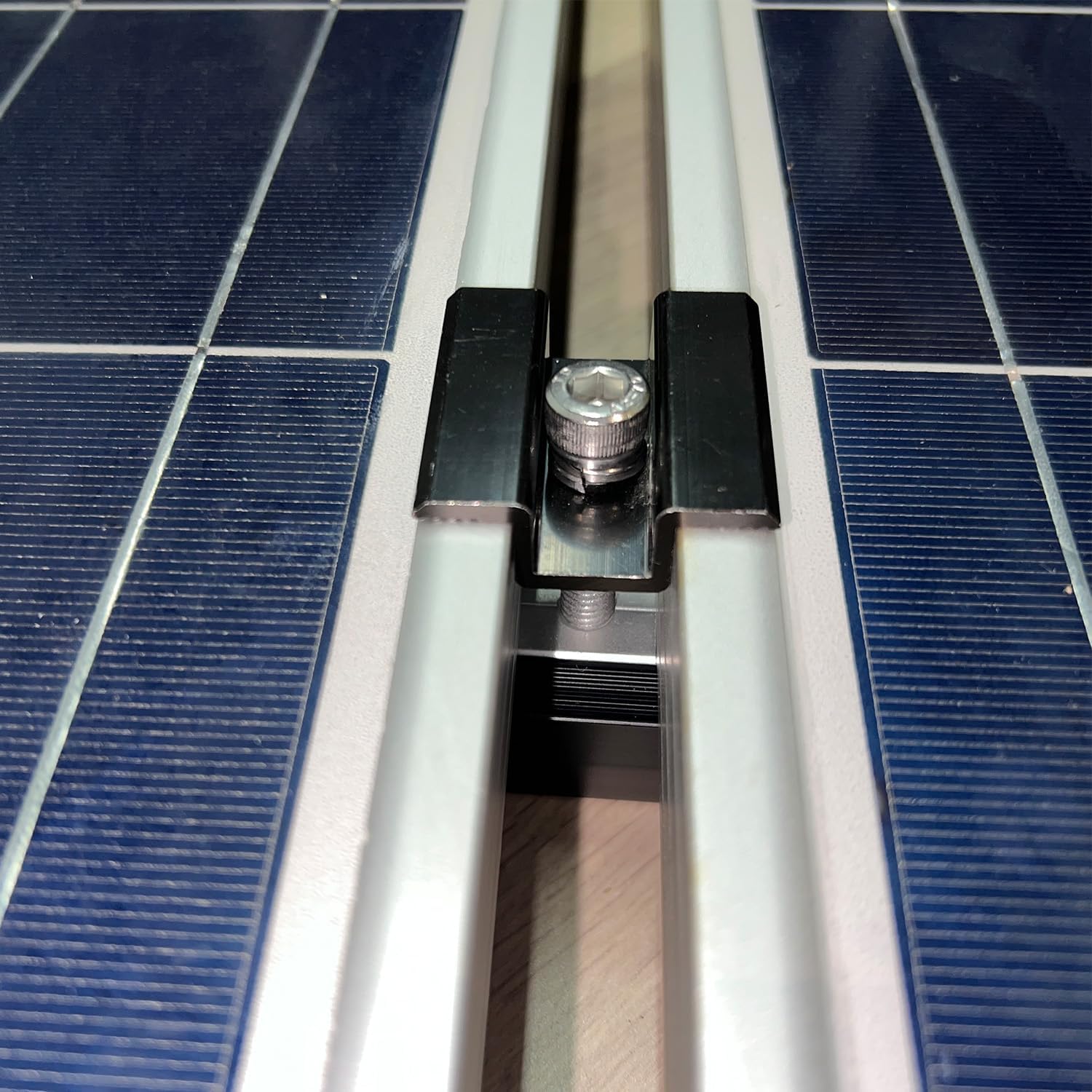

The adjustable clamp format supports 30 mm and 35 mm solar panel frames. Aluminum alloy rails and clamps provide the mounting structure, while EPDM pads sit beneath the rails at compatible attachment points.

Key Features

• Four-panel mounting kit: The included rail and clamp quantities support a four-module, single-row layout.

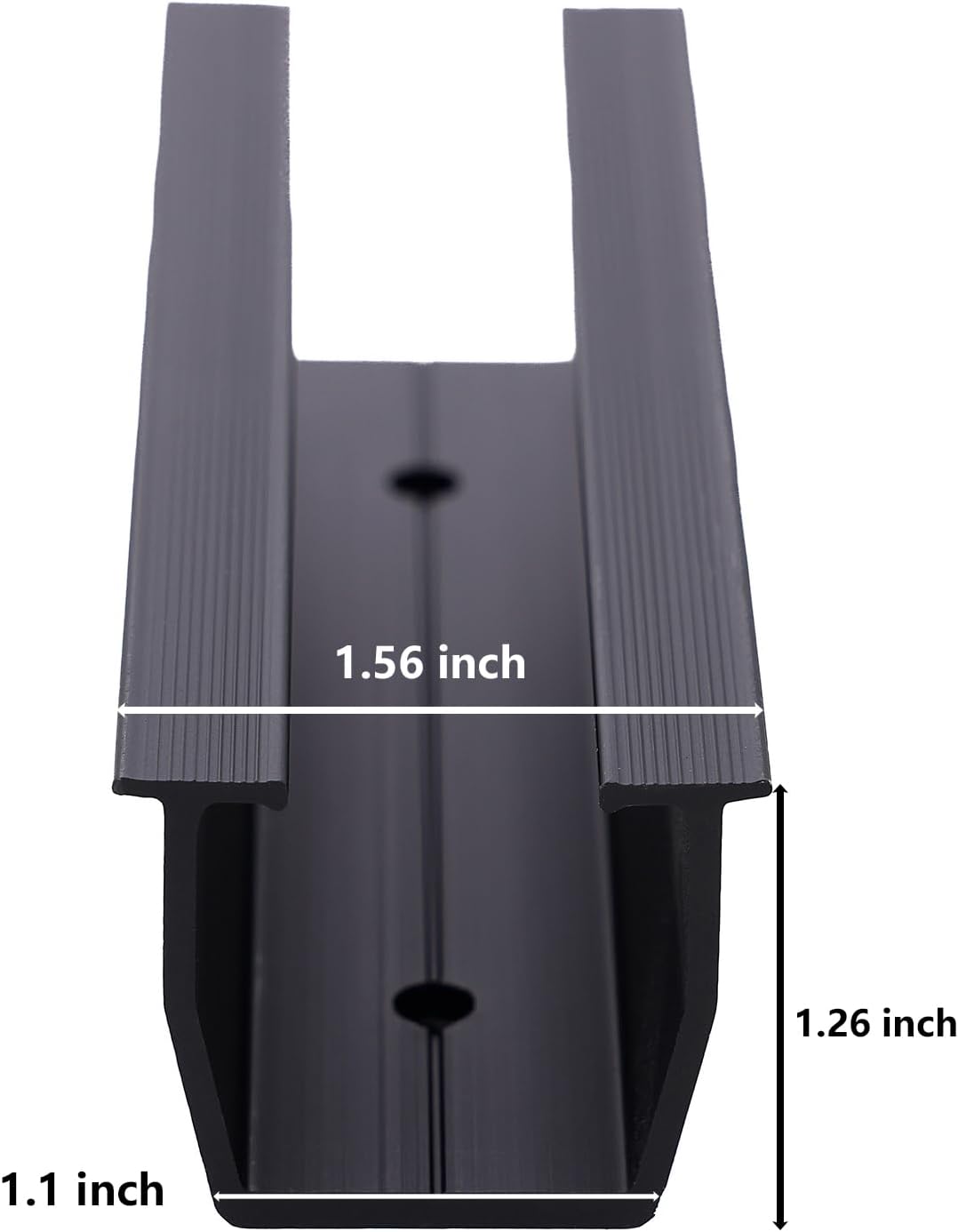

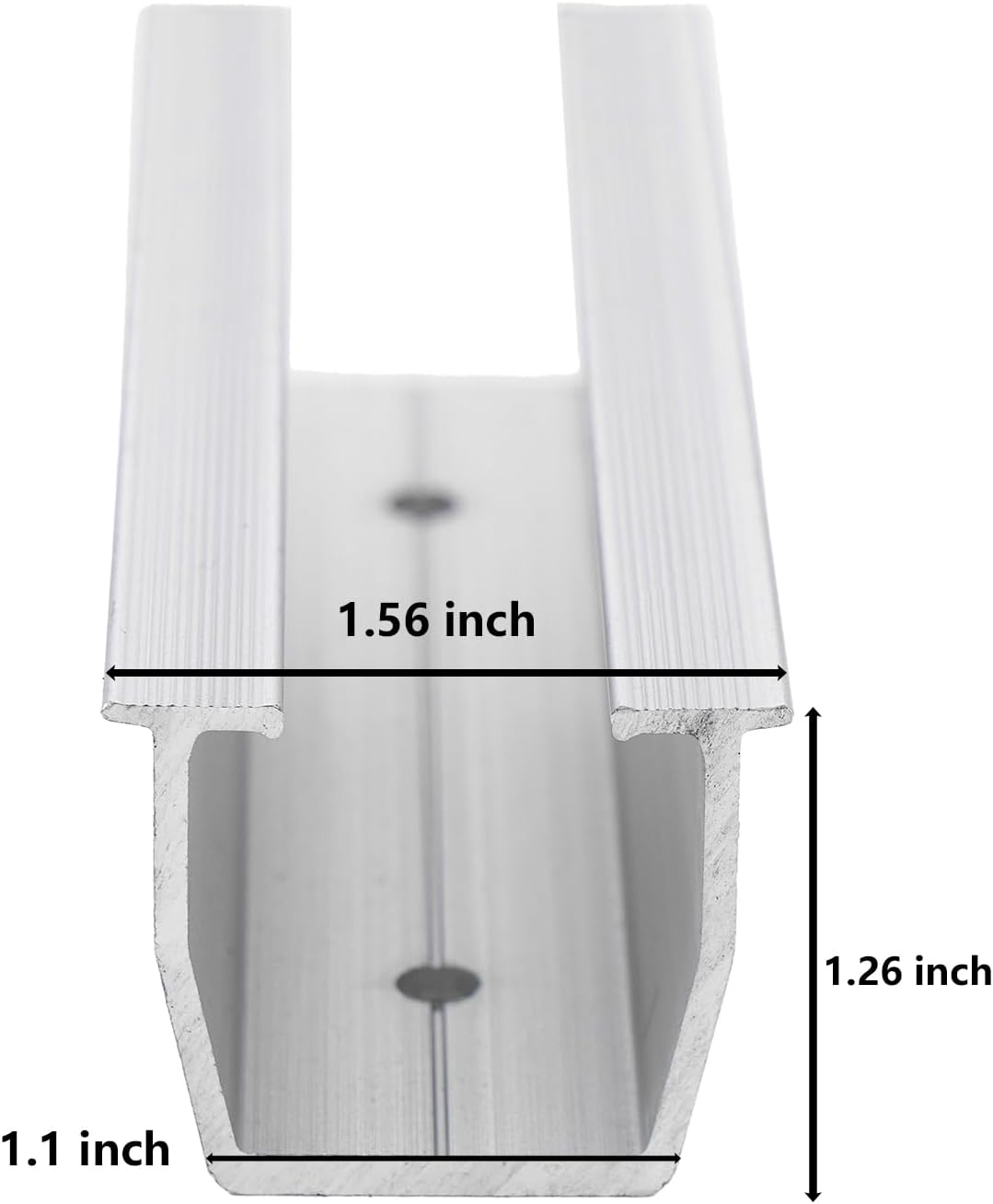

• Compact 4.72-inch mini rails: Ten short rail sections create distributed mounting points without full-length rails.

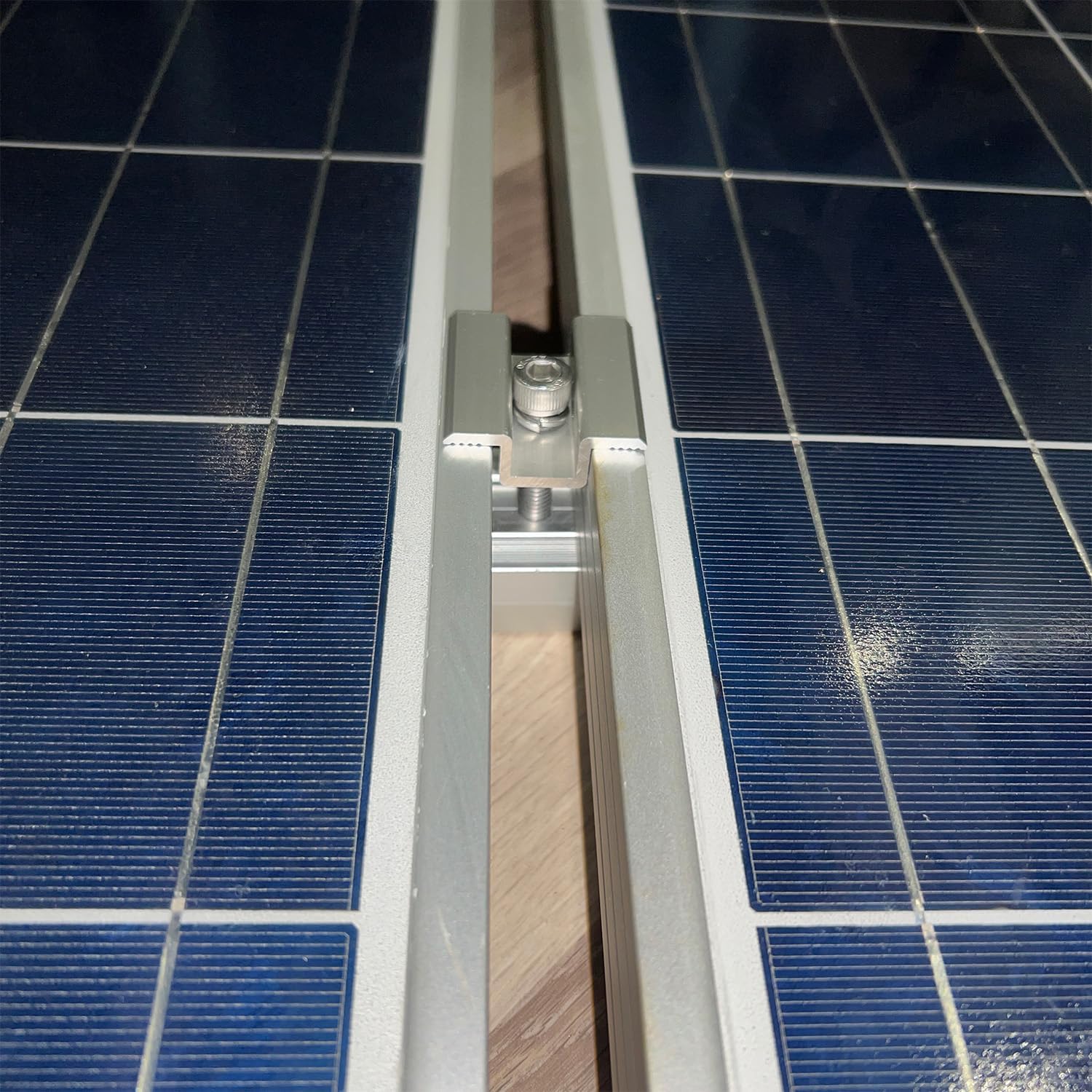

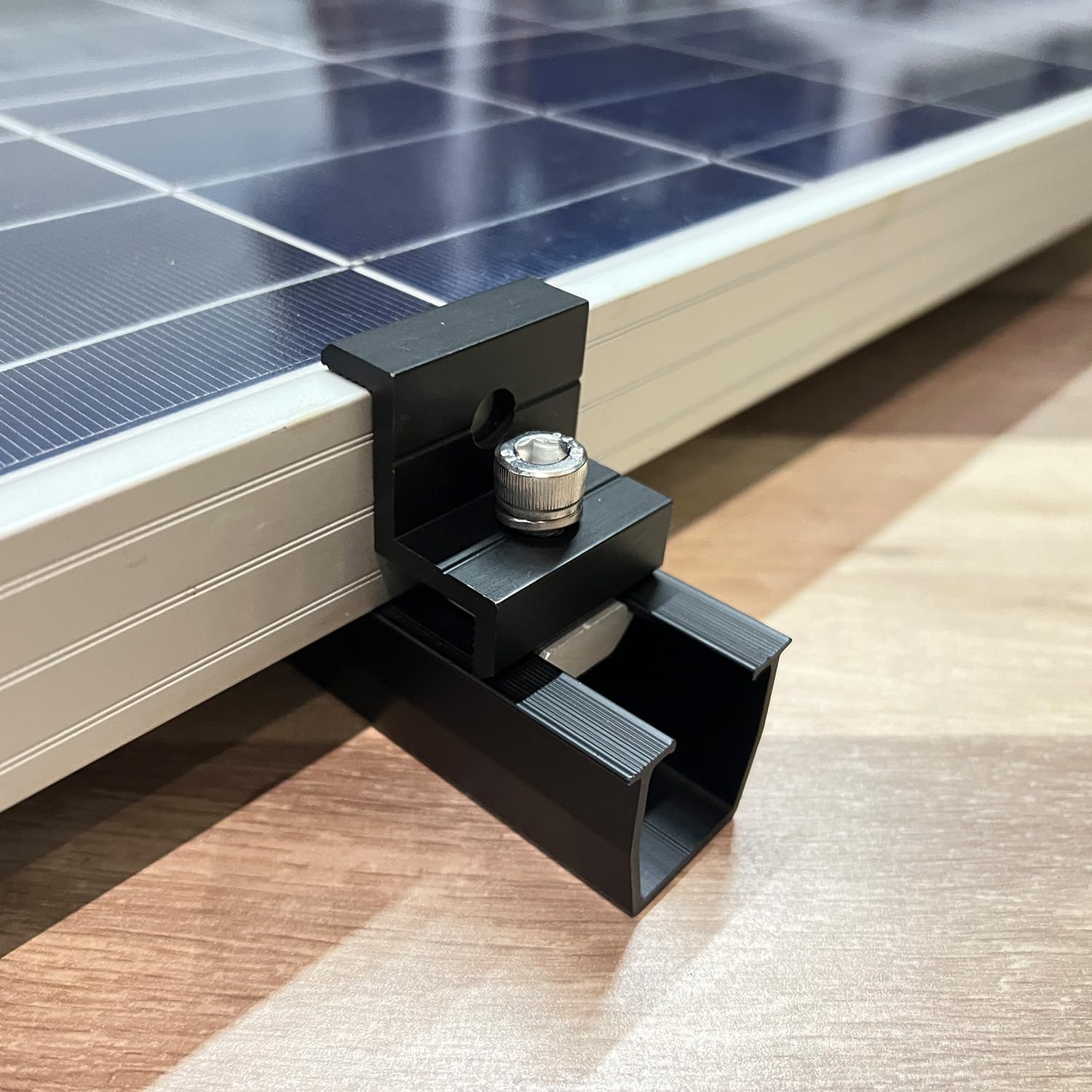

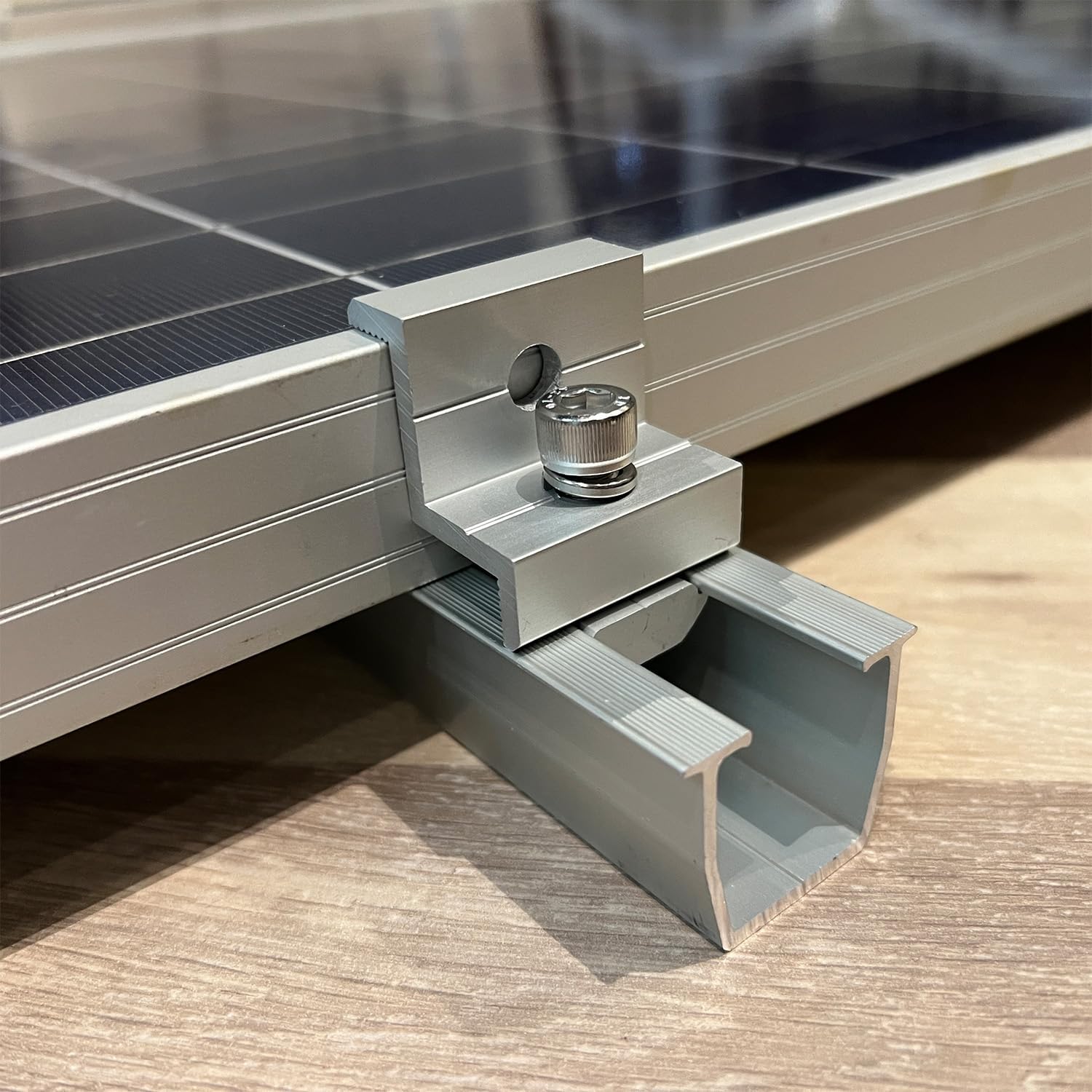

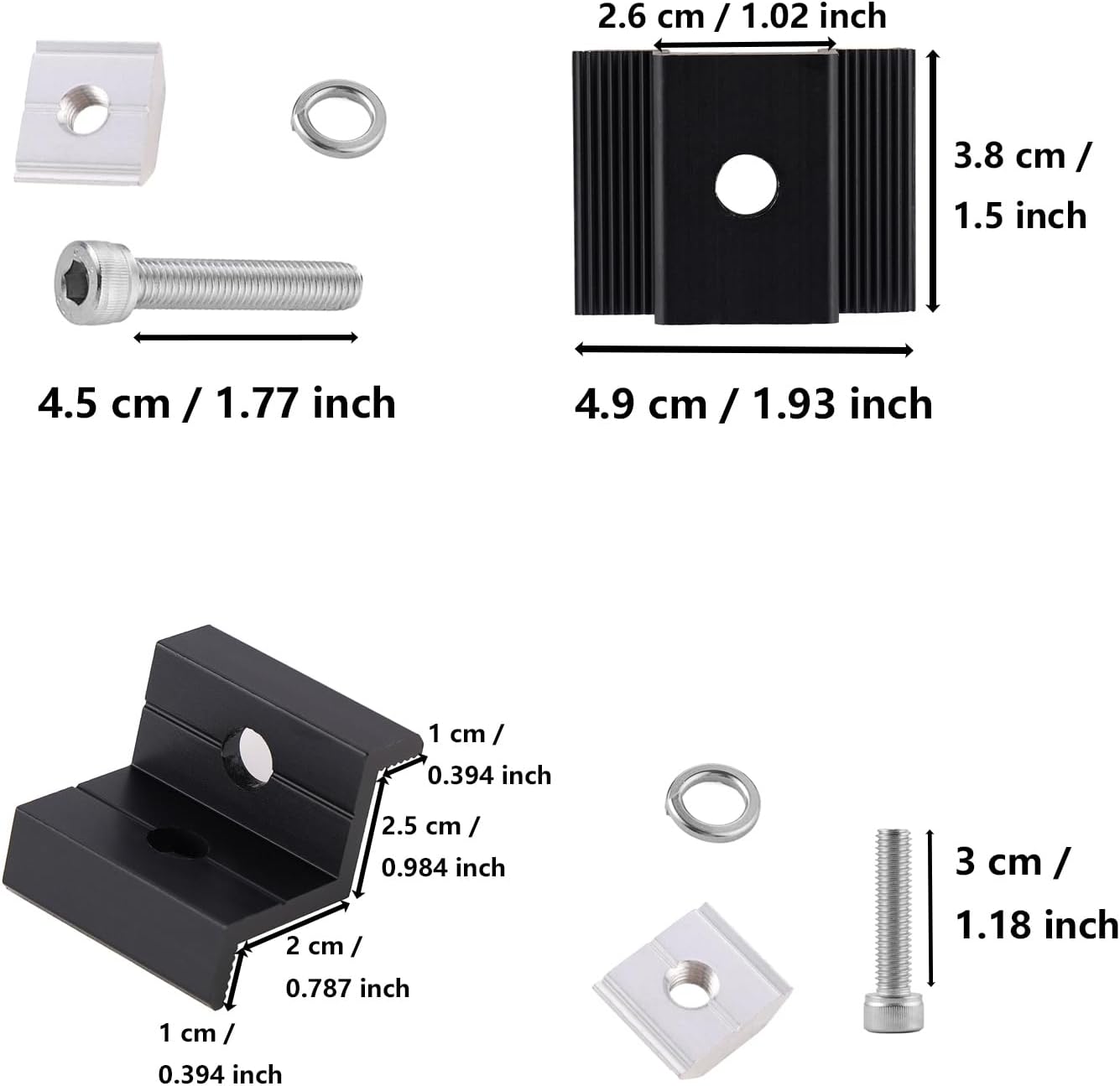

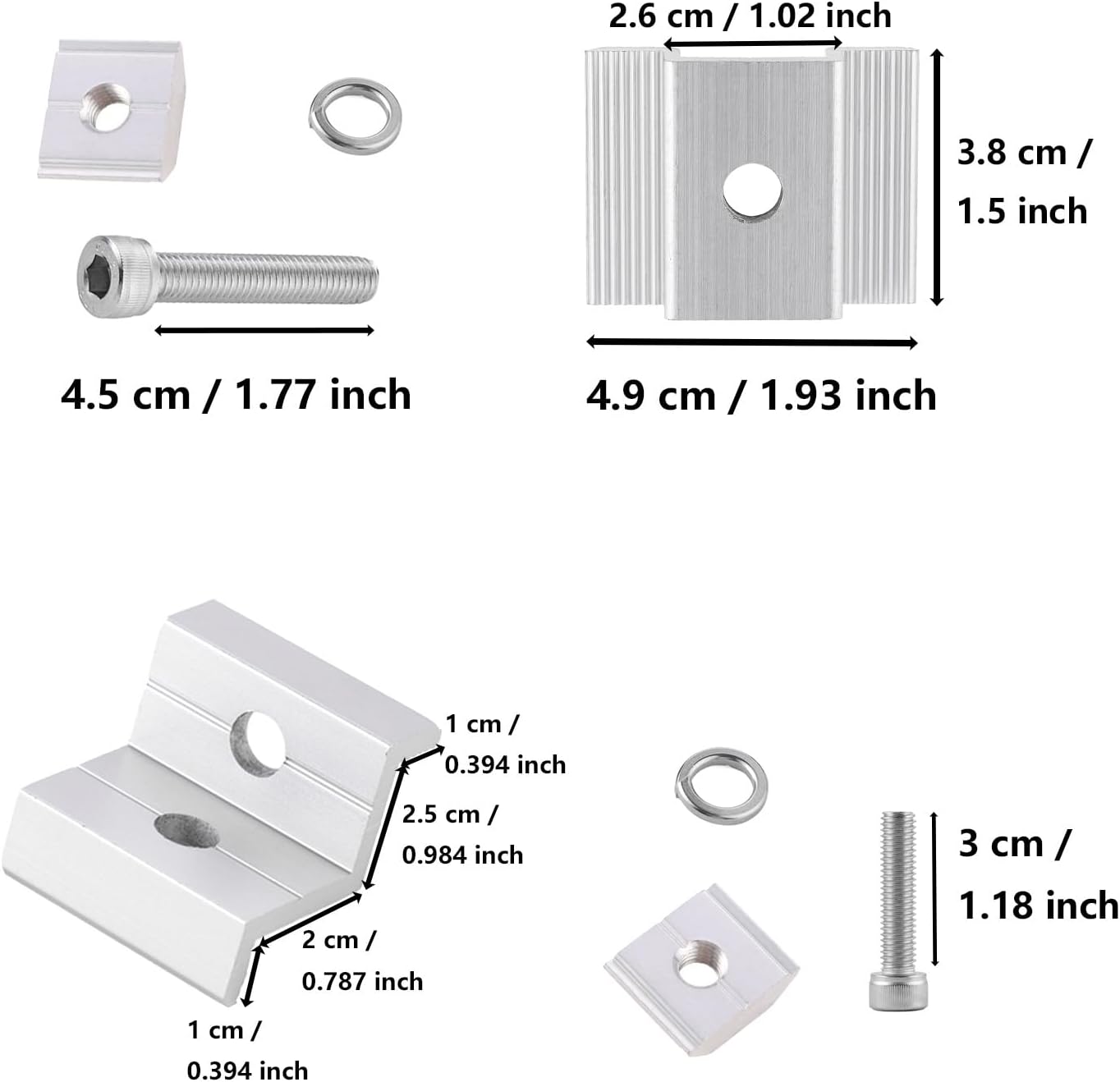

• 30/35 mm frame compatibility: Reversible end clamps and adjustable middle clamps fit the two supported framed-module sizes.
• Complete mounting hardware: Includes rails, middle clamps, end clamps, EPDM pads, and stainless steel screws.
• Silver and Black options: Choose a finish that coordinates with the module frame and surrounding mounting hardware.

Best For

• Four framed solar panels arranged in one row
• Compatible sheet-metal and tin-roof mounting structures
• RV and ground-mount projects with suitable attachment surfaces

Details & Specs

Compatibility & Notes

• Confirm the solar panel frame thickness before ordering.
• Confirm that the roof, vehicle, or mounting structure is suitable for the included attachment method and fasteners.
• Determine the required layout, spacing, structural capacity, sealing method, and fastening torque for the installation site.
• Roof and structural mounting work should be completed by a qualified installer where required.

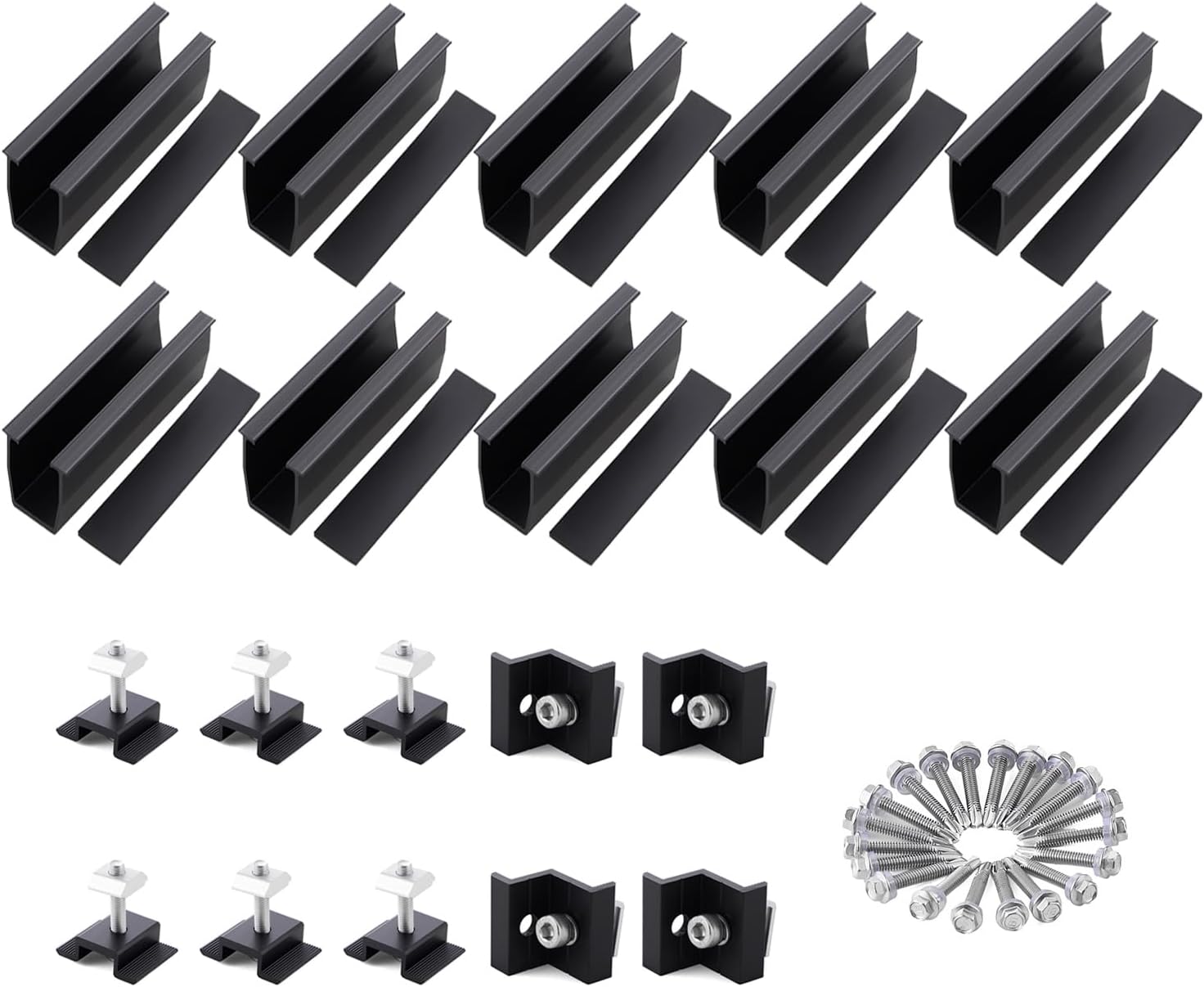

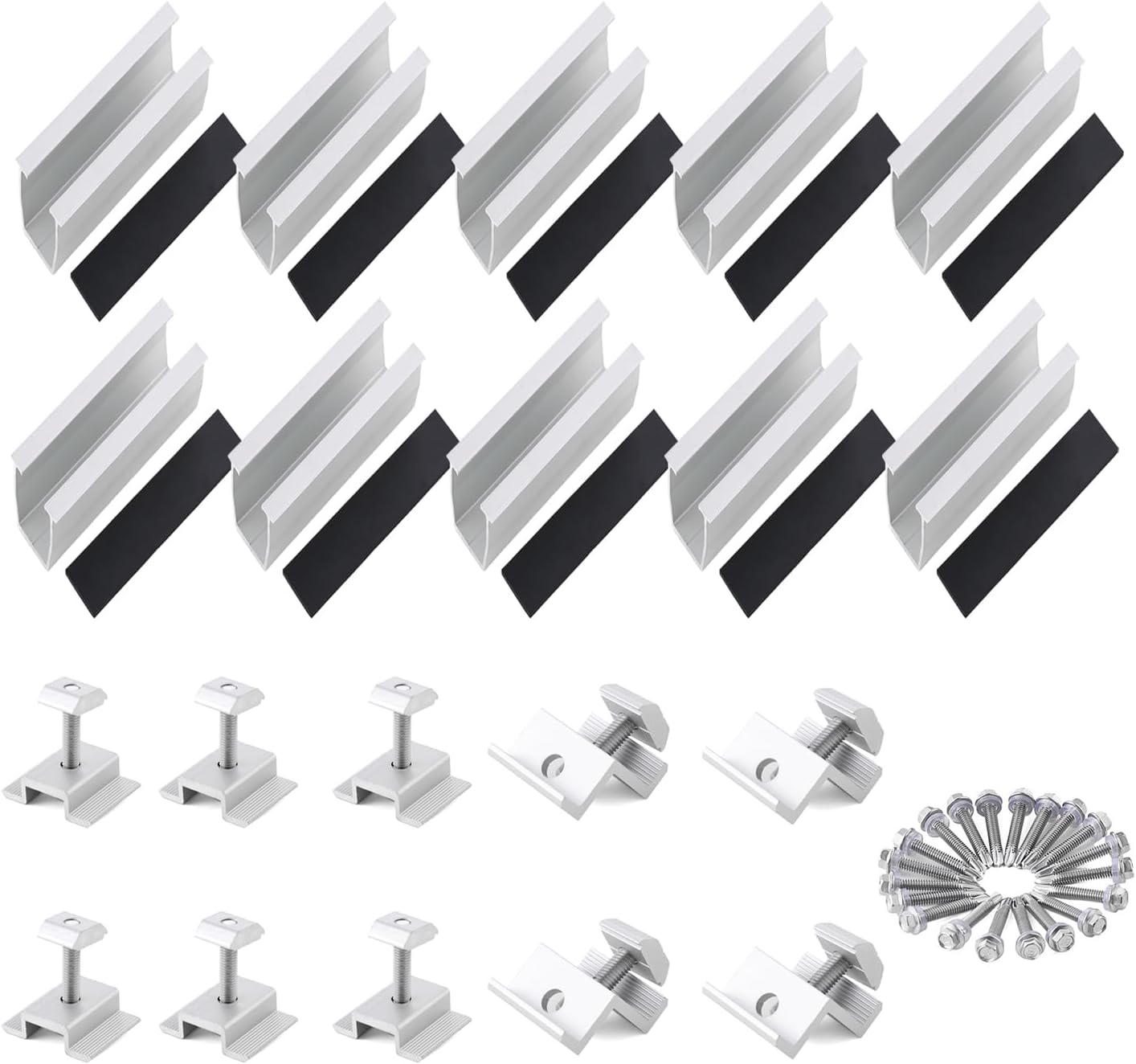

Package Contents

• 10 x 4.72-inch mini rails
• 6 x middle clamps
• 4 x reversible end clamps

• 20 x stainless steel screws
• EPDM rubber pads (fitted under the rails)

Buyer questions

What is in the box, and are rubber pads included?

Yes. The kit includes EPDM rubber pads that sit under the rails, together with 10 mini rails (4.72 in.), 6 middle clamps, 4 reversible end clamps and 20 stainless steel screws.

Can I mount more than four panels with one kit?

The kit is designed for four framed modules in a single row and lists no larger layout. For a bigger array, request a quote and state your layout.

Will it fit a panel with a 32 mm frame?

The listed frame thickness is 30 mm and 35 mm only. Measure your frame before ordering, since other thicknesses are not listed.

Can I install it on a tin or sheet-metal roof, or on an RV?

Suitable uses include sheet-metal and tin-roof structures plus RV and ground-mount projects with suitable attachment surfaces. You still need to check the surface suits the included fasteners and plan spacing, sealing and torque for your site.

Do I need a professional installer?

Roof and structural mounting work should be completed by a qualified installer where required.
