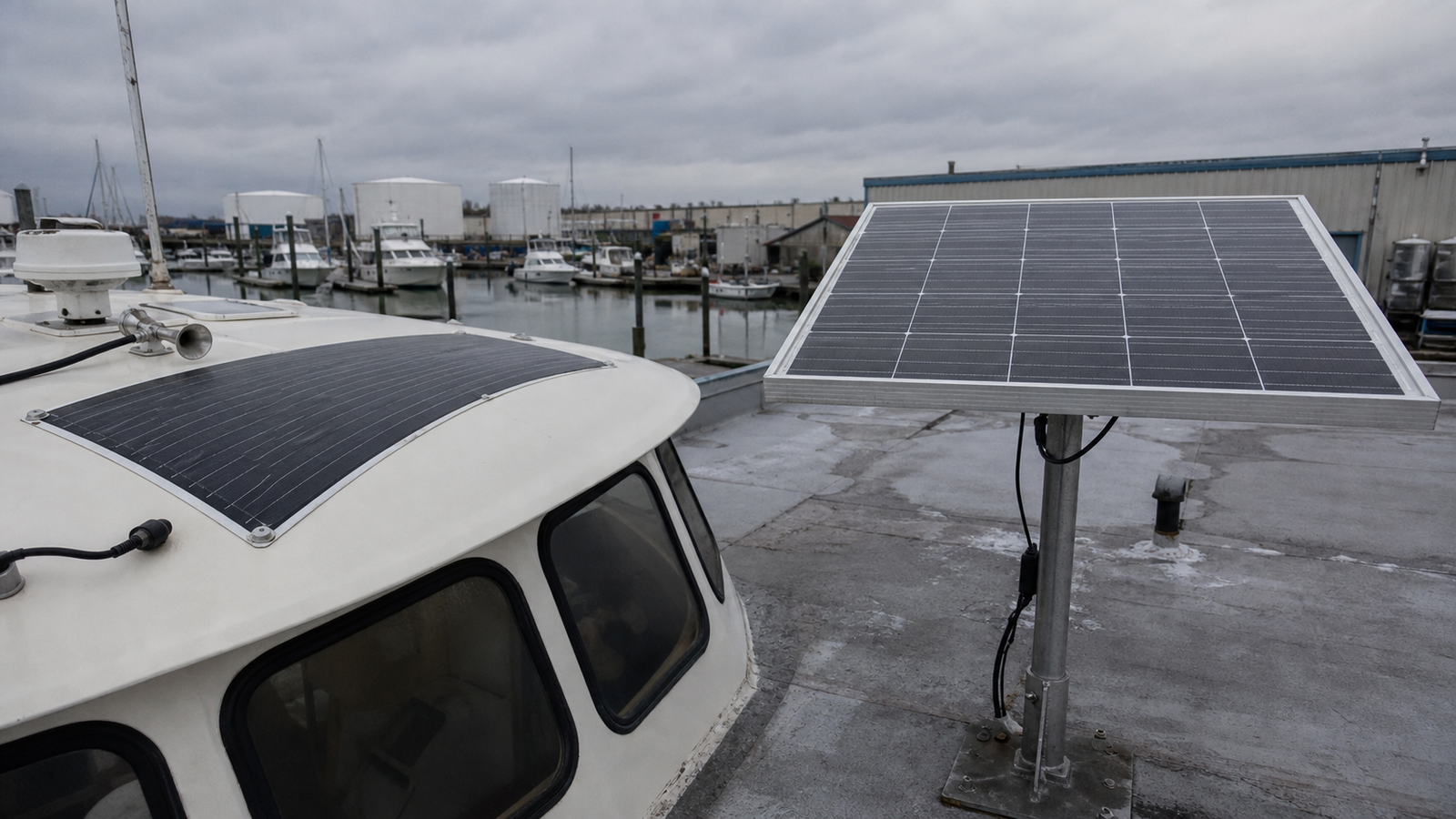

The decision in one table
| Your situation | Choose | Why |
|---|---|---|
| Curved deck, cabin top, van roof, equipment housing | Flexible | This is the case it exists for; a rigid frame will not sit on a curve |
| Weight is a hard limit — boats, aircraft, lightweight structures | Flexible | Roughly one fifth the weight of a comparable glass module |
| No penetrations allowed, or the surface cannot take a frame | Flexible | Can be bonded — but read the airflow section first |
| Embedded in a product you manufacture | Flexible or custom laminate | Built to your outline rather than a standard frame |
| Flat, strong surface with no weight limit | Rigid | Cheaper per watt, longer service life, simpler warranty |
| Fixed ground or pole installation | Rigid | The frame is the mounting interface; flexible needs a substrate |
| Hot location with no ventilation | Rigid | A bonded flexible panel with no air gap runs hot and ages fast |
| 20-year fixed asset | Rigid | Glass and aluminium outlast polymer laminate outdoors |
Where the real differences are
Cost per watt
Rigid wins, and by more than most people expect. Flexible panels cost more to make and more to replace. If you are choosing flexible on price, you have chosen the wrong product — flexibility is a capability you pay for, not a saving.
Service life
A glass-fronted module in a fixed installation is a long-life asset. A flexible panel's lifetime is set by its encapsulation and its thermal environment, and both are easier to get wrong. The decisive spec is the surface material: PET is cheap and yellows under sustained UV, often visibly within eighteen months; ETFE holds transmittance and is what belongs on anything expected to work outdoors for years. The economics are in the real cost of cheap flexible panels.
How they fail
Rigid panels mostly fail at the junction box, the connectors, or from physical impact. Flexible panels fail by delamination — the encapsulant separating from the cell, moisture entering, degradation spreading from the edges. Causes and prevention are in why flexible panels delaminate.
Temperature, which is the one people miss
Every panel loses output as it heats. A framed rigid module sits proud of its mounting surface and air moves under it. A flexible panel bonded flat to a roof has nowhere to dump heat, so it runs hotter, produces less, and ages faster — all at once. This single detail accounts for a large share of disappointing flexible installations.
Mounting
A rigid panel's frame is its mounting interface: clamps, rails, Z-brackets, pole mounts all attach to it, and the hardware is standardised. See brackets and mounts. A flexible panel has no frame, so it needs either adhesive, eyelets, or a substrate you build. That is more design work, and it is work that has to be done correctly once.
Bend radius
Flexible does not mean foldable. Every flexible panel has a rated bend radius, and exceeding it cracks cells invisibly. The panel keeps working, then fails months later with no external damage to point at. If your surface curves tightly, check the radius before assuming it will conform.
Two cases where the obvious answer is wrong
- "It is a boat, so flexible." Not necessarily. On a hard bimini or a flat coachroof with airflow underneath, rigid gives more watts per pound spent and lasts longer. Flexible earns its place on genuinely curved or walk-on surfaces. See marine solar.
- "It is an RV roof, so flexible." Many RV roofs are flat enough for rigid panels on tilt legs or Z-brackets, which also gives you the air gap and the option to tilt. Flexible wins on ribbed, curved or weight-critical roofs. See RV solar.
What we supply, and what we will talk you out of
We source both. Flexible formats are in flexible solar panels, small formats for embedded and IoT use in mini solar panels, and custom builds start at custom solar panels.
- Custom outline, voltage from 3 V to 48 V, connector to your spec, in ETFE, PET, fibreglass or glass.
- MOQ from 5, so a design can be proven before it is committed.
- Samples in 7–14 days; production typically 3–4 weeks after approval.
- Written specification before production, including bend radius, with goods inspected against it.
- Components sourced from ISO 9001, CE and RoHS certified partner factories, with pre-shipment QC evidence on every batch.
- If your surface is flat and strong, we will quote you rigid and explain why. Selling a flexible panel into a rigid application produces a complaint eighteen months later, which is worse for us than the smaller order today.
FAQ
Are flexible solar panels as efficient as rigid ones?
At the cell level they can use the same cells, so nominal efficiency is comparable. In service, flexible panels often underperform because they are bonded flat with no airflow and run hotter, and because a lower-grade PET laminate loses transmittance over time. The gap is caused by installation and encapsulation, not by the technology itself.
How long do flexible solar panels last?
Far more variable than rigid, because lifetime depends on the laminate and the thermal environment rather than on glass. ETFE with an air gap behind it does well outdoors for years; PET bonded flat to a hot surface can visibly degrade within a couple of seasons. Ask which material the surface is before comparing prices.
Can I mount a flexible panel with adhesive only?
You can, and it is the most common method, but it is also the most common cause of early failure. Bond around the perimeter rather than the whole back where possible, leave a gap for airflow, and accept that the panel is then effectively permanent. Where the surface may need service, use mechanical fixings.
Which is better for an RV or a boat?
It depends on the surface, not the vehicle. Flat, strong and ventilated favours rigid on brackets, which is cheaper per watt and lets you tilt. Curved, ribbed, walk-on or weight-critical favours flexible. Decide by looking at the surface rather than the category.
Do flexible panels need a different charge controller?
No. Controller choice follows the panel's voltage and current and the battery, not whether the laminate bends. What does change is your sizing assumption: if the panel will be bonded flat in a hot climate, budget for lower real-world output than the rating suggests.
Send us the surface, not the product name.
Tell us the shape and material of the mounting surface, the area available, the power you need and where it will be installed. We will say whether flexible actually helps, quote the rigid alternative if it does not, and specify the lamination against the service life you need — samples in 7–14 days, MOQ from 5.
