A 100 W solar panel supplies 5.56 A at an assumed operating voltage of 18 V, calculated as current = power ÷ voltage. Battery charging current is different: an ideal controller delivering 100 W at 14.4 V supplies 6.94 A. Actual current depends on sunlight, panel voltage, controller operation and battery acceptance.

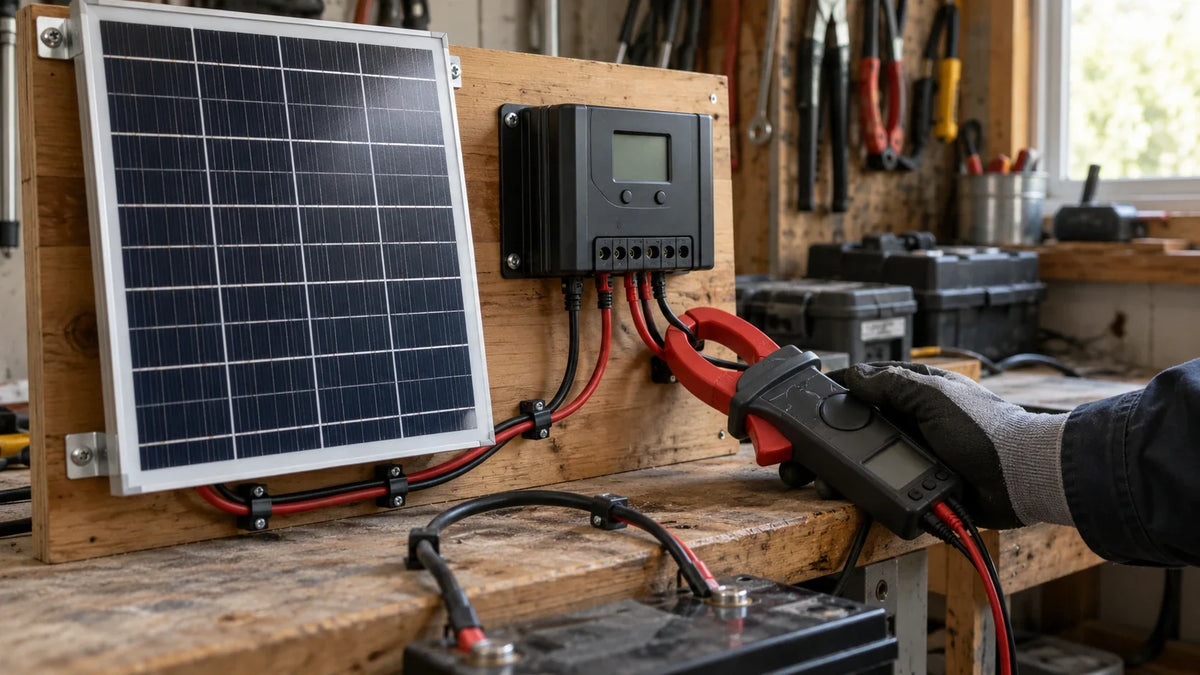

Your panel label says 100 W, but the charge controller displays fewer amps than you expected. The question how many amps is 100w solar panel needs a measurement point: current at the panel terminals and current entering the battery can differ, even while power passes through the system.
What does a 100 W panel rating mean in amps?
A 100 W solar panel supplies 5.56 A at an assumed 18 V operating point, using current = power ÷ voltage. Electric current is the rate of electric charge flow, measured in amperes.
The governing relation is I = P ÷ V, giving 100 ÷ 18 = 5.56 A. The 18 V value is an example input, not a specification for every 100 W panel.
Read maximum power voltage, or Vmp, and maximum power current, or Imp, on the actual datasheet; multiplying those two values gives the rated maximum power. Use the values from the same rated operating condition when checking that relationship.
A panel described for a nominal 12 V battery system does not necessarily operate at 12 V. Dividing 100 W by the battery's nominal voltage gives an arithmetic result, but does not establish the panel's terminal current.
| Assumed operating voltage | Calculation | Calculated current |
|---|---|---|
| 12 V | 100 W ÷ 12 V | 8.33 A |
| 14.4 V | 100 W ÷ 14.4 V | 6.94 A |
| 18 V | 100 W ÷ 18 V | 5.56 A |
| 20 V | 100 W ÷ 20 V | 5.00 A |
These rows describe separate operating points, not voltages a panel can necessarily supply on demand. A maximum power point tracking controller, abbreviated MPPT, converts panel power to the battery charging voltage; a pulse width modulation controller, abbreviated PWM, operates differently and does not provide the same voltage conversion.
For an illustrative MPPT conversion efficiency of 95%, battery current at 14.4 V becomes 100 × 0.95 ÷ 14.4 = 6.60 A. That efficiency is an assumption for calculation, not a measured controller result or a daily system efficiency.
The higher battery-side current does not mean the controller creates power. In this example, 18 V × 5.56 A represents approximately 100 W entering the controller, while 14.4 V × 6.60 A represents approximately 95 W leaving it, with rounding.
A current reading also needs its corresponding voltage. If the panel supplies an assumed 60 W at 18 V, its current is 60 ÷ 18 = 3.33 A; using the 100 W label in that calculation would overstate the current at that moment.
How long will a 100 W panel take to charge a 100 Ah battery?
A 100 W solar panel needs approximately 7.5 equivalent full-power hours to replace half the nominal energy of an assumed 12 V, 100 Ah battery when the assumed overall energy delivery factor is 80%. Replacing the entire nominal capacity takes 15 equivalent hours under that simplified model.
Nominal battery energy is voltage × capacity: 12 V × 100 Ah = 1,200 Wh. Replacing an assumed 50% deficit requires 600 Wh, and the modeled equivalent charging power is 100 W × 0.80 = 80 W.
The calculation is 600 Wh ÷ 80 W = 7.5 hours. At an assumed five peak sun hours daily, that equals 7.5 ÷ 5 = 1.5 solar days of energy production, rather than 7.5 consecutive daylight hours.
Battery chemistry, charging taper and connected loads affect completion time. Use the battery's specified charging profile and actual missing energy; a battery management system or charger can limit current even while sunlight remains available.
The solar battery charging and sizing guide explains the controller and battery decisions behind this calculation. For this system example, battery selection and procurement are handled locally.
How do you calculate a complete 100 W charging example?
A 100 W charging calculation must establish panel current and daily delivered energy separately, then subtract any operating loads. The following example assumes an 18 V panel operating point, five peak sun hours and an 80% overall daily delivery factor.
- Calculate panel current. At the assumed full-power operating point, 100 W ÷ 18 V = 5.56 A at the panel terminals.
- Calculate ideal daily energy. Multiply 100 W × 5 peak sun hours = 500 Wh before the modeled overall reduction.
- Calculate delivered energy. Apply the assumed overall factor once: 500 Wh × 0.80 = 400 Wh daily available to battery storage and loads.
- Calculate the battery deficit. A nominal 12 V × 100 Ah battery stores 1,200 Wh, so an assumed 50% deficit represents 600 Wh.
- Subtract the operating load. An assumed combined load consuming 300 Wh daily leaves 400 − 300 = 100 Wh daily for restoring the battery deficit.
- Calculate recovery time. Divide 600 Wh by the 100 Wh daily surplus to obtain six solar days under unchanged assumptions.
The 80% factor already represents the assumed overall daily delivery reduction. Do not multiply by the separate 95% controller example again unless the calculation explicitly separates controller efficiency from every other loss.
If you are asking how many watt hours does a 100 watt solar panel produce, this example gives 500 Wh ideal or 400 Wh delivered daily. Those are calculated scenarios, not a production forecast for a particular location.
Use energy measured over the same daily interval when subtracting consumption. The guide to loads a 100 W solar panel can support explains that watt-hour comparison in more detail.
How much charging current actually restores the battery?
Battery recovery current is the controller's output current minus simultaneous load current, so a positive charging display can coexist with slow battery recovery. In the worked daily balance, a 300 Wh load consumes most of the 400 Wh delivered energy, leaving 100 Wh for recovery.
This distinction changes the recovery estimate from 1.5 solar days without loads to six solar days with the assumed combined load. An instantaneous amp reading cannot reveal that daily balance unless the measurement also accounts for current flowing out to appliances.
For an instantaneous example, assume the controller supplies 6.60 A and connected loads draw 4.00 A from the same battery bus. Net battery charging current is 6.60 − 4.00 = 2.60 A; these current readings must be simultaneous and on the battery side of the controller.
Record daily delivered watt-hours and load watt-hours over the same interval. If the load equals generation, the panel maintains the energy balance but provides no surplus to restore an existing battery deficit.
Check whether the controller display reports solar input, controller output or net battery current before interpreting its amp reading. Panel-side amps and battery-side load amps cannot be subtracted directly because their operating voltages differ.
Which hardware specifications should a buyer compare?
A 100 W panel selection should match operating voltage to the controller and battery charging requirements, while panel dimensions must fit the installation. Rated watts alone cannot establish electrical compatibility.
Compare Vmp and Imp with the controller's operating range, then check open-circuit voltage and short-circuit current against the controller's limits. Include temperature effects when checking voltage limits, using the selected panel's datasheet coefficients.
Open-circuit voltage describes the panel with no external load, while short-circuit current describes the short-circuit condition. Multiplying those two values does not establish usable operating power because they occur at different operating points.
The small solar panel dimensions and voltage guide addresses the physical and electrical specifications needed for a constrained enclosure. A connector that fits mechanically still requires a polarity check.
For a custom format, the panel specification and sourcing options provide a relevant starting point for matching the footprint to the electrical requirement. LinkSolar is a China-based B2B supplier that specifies and quality-checks solar hardware through partner factories.
FAQ
How many amps does a 100 W solar panel produce at 12 V?
A 100 W source operating at exactly 12 V supplies a calculated 8.33 A, using 100 ÷ 12. A panel described for a nominal 12 V battery system can have a different operating voltage, so its panel-terminal current must be calculated using that voltage.
How long will a 100 W solar panel take to charge a 100 Ah battery?
A 100 W panel takes a calculated 7.5 equivalent full-power hours to replace a 50% deficit in an assumed 12 V, 100 Ah battery at 80% overall energy delivery. With five peak sun hours daily and no loads, the energy requirement equals 1.5 solar days. Battery charging limits can extend completion time.
Why are panel amps different from battery charging amps?
Panel current and battery charging current differ when a controller converts power between different operating voltages. An assumed 100 W panel operating at 18 V supplies 5.56 A, while an MPPT controller delivering 95% of that power at 14.4 V supplies approximately 6.60 A. Concurrent loads reduce the current available to charge the battery.
How many watts does a 100 watt solar panel produce per hour?
A panel delivering 100 W continuously for one hour produces 100 Wh of energy. Watts describe power, while watt-hours describe energy accumulated over time. A 100 W label does not mean the panel supplies 100 W throughout every daylight hour.
