Mini Solar Panel for IoT: 2026 B2B Sourcing Guide for Wholesale & OEM Buyers

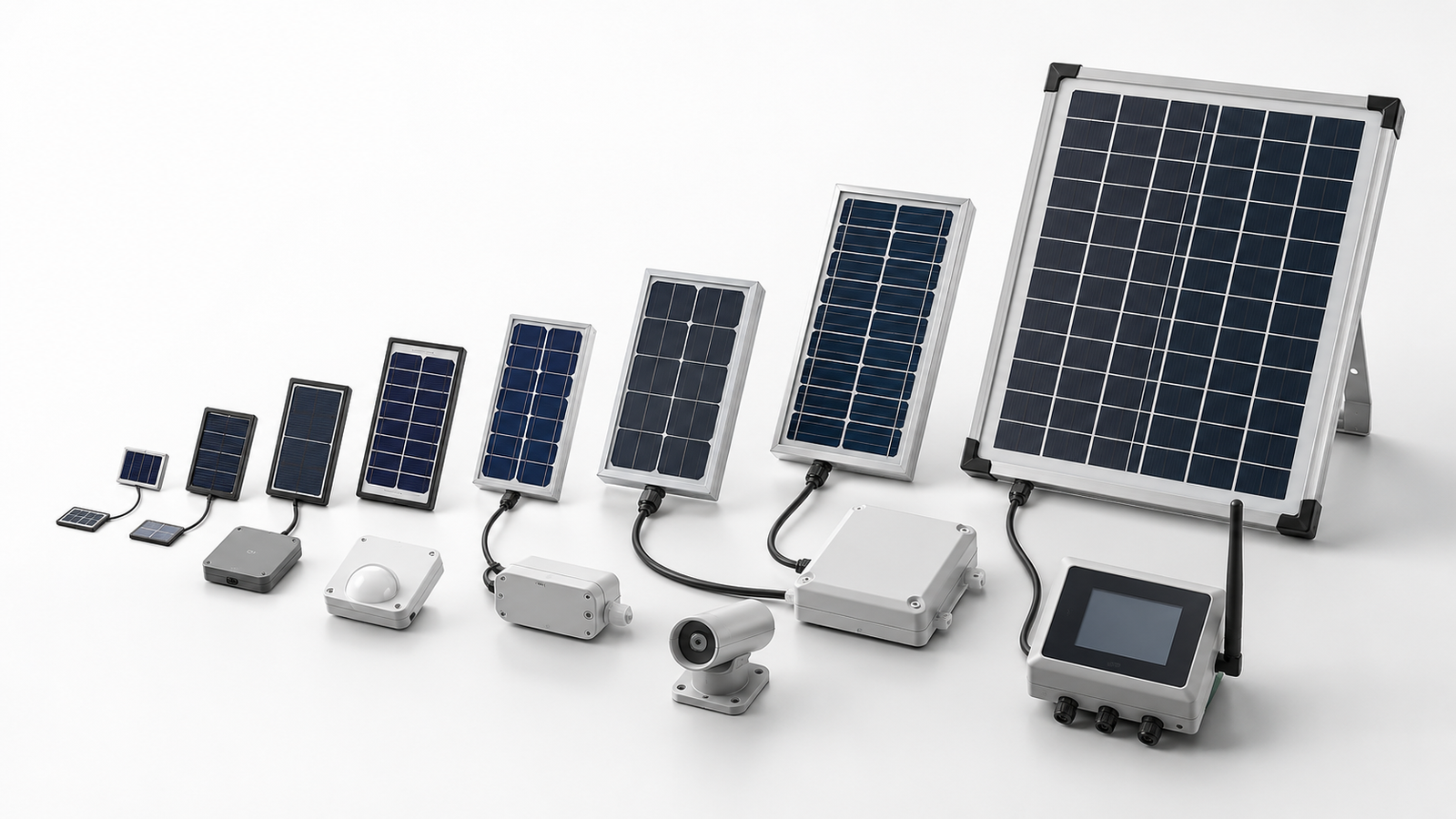

What Is a Mini Solar Panel for IoT?

A mini solar panel for IoT is a small-format photovoltaic module — typically between 35×22 mm (≈0.1W) and 200×170 mm (≈15W) — designed to power low-duty-cycle outdoor electronics like ESP32-based weather stations, LoRaWAN sensors, trail cameras, asset trackers, and remote monitoring nodes. Unlike consumer USB solar chargers, an IoT-grade panel runs at a fixed DC voltage tuned to the device (most commonly 5V or 6V), survives 25-year UV exposure with ETFE or tempered-glass encapsulation, and meets IP67 ingress protection so rain, snow, and dust never reach the cell.

The category exists because off-the-shelf consumer panels — those 5V "USB" panels you find on marketplaces — fail predictably in 18–36 months when deployed outdoors. Voltage drops under cloud cover, the laminate yellows from UV, and the unregulated output cooks the charge controller in a typical ESP32 dev board. We've sourced panels for IoT sensor power systems across agriculture, utilities, and security verticals, and the same pattern repeats: buyers who chase the lowest BOM cost re-tender within two seasons.

Why Consumer-Grade Solar Won't Work for Outdoor IoT Devices

The single biggest failure mode in IoT solar deployments isn't the cell — it's the mismatch between what the device draws and what the panel delivers when it's not noon in July. Consumer panels are rated under STC (Standard Test Conditions: 1000 W/m², 25°C, AM 1.5G), which almost never matches a real installation. A 1.2W "5V" panel can drop to 3.8V under partial shade and supply less than 200 mA — enough to brown-out the device's WiFi radio mid-handshake.

Three specific consumer-grade failures show up again and again in returns and field reports:

• PET laminate yellowing. Polyester (PET) laminate is cheap and flexible, but begins to yellow within 2–3 years of direct UV exposure. Output drops 15–25% before the device team even notices a battery problem. ETFE laminate (~3× the BOM cost) holds >95% transmission for 10+ years.
• Unstable open-circuit voltage frying charge ICs. An unregulated 6V "open" panel can swing to 9–10V at noon under cold conditions. A budget Li-ion charger like the TP4056 — ubiquitous in hobbyist ESP32 boards — will throttle, oscillate, or fail outright. Dedicated solar charge ICs (such as bq24074-class parts) handle the input variability that solar actually produces.
• Wattage-mislabeled cells. A common pattern in low-cost imports: a "2W" panel measures 1.1–1.4W under STC. The supplier sized for nominal current at peak voltage and rounded up. Industrial-grade suppliers test every panel and ship binned by measured output.

Sizing Your Solar Panel: Match Wattage to ESP32 / LoRaWAN Power Budget

The honest sizing rule for an outdoor IoT node: panel daily energy harvest ≥ 3× device daily consumption, where harvest assumes 3 hours of usable sunlight (not the 5–6 hours marketing copy assumes — most field sites have tree cover, latitude penalties, or seasonal snow). The 3× margin covers cloudy weeks, panel soiling, charge controller losses (~15%), and battery round-trip efficiency (~85%).

Two sizing shortcuts that save buyers from over- or under-spec'ing:

1. Measure your device, don't trust the datasheet. Plug a USB power meter inline for 24 hours. The number you get is what to size against — vendor "typical current" specs are usually best-case lab measurements with the radio off.
2. Buy the next size up if you're within 30% of the threshold. The cost delta from 2W to 4W is typically $1.20–$2.50 at wholesale. A second site visit to swap a undersized panel costs an order of magnitude more in field labor.

For a deeper sizing walkthrough with worked examples for agricultural sensors, see our agricultural IoT sensor sizing guide — the math is the same for any low-duty-cycle outdoor node.

The 7 Specs That Separate Industrial-Grade From Hobbyist Panels

Most spec sheets look interchangeable at first glance. These seven lines are where industrial and hobbyist diverge — and where the field-failure data sits:

1. Cell technology. Monocrystalline silicon is the only serious choice for IoT — higher efficiency per cm² and tighter manufacturing tolerance. Premium panels use SunPower IBC back-contact cells (125 mm or 166 mm format), which run 3–5 percentage points more efficient than standard mono cells. That margin matters when you're trying to fit a 4W panel onto a 200×100 mm housing.
2. Encapsulation. ETFE (ethylene tetrafluoroethylene) laminate for outdoor IoT — period. PET for indoor or short-life applications only. Glass/aluminum-frame for fixed-mount systems where UV exposure runs decades.
3. Open-circuit voltage (Voc). Should be ≤ 1.4× the nominal device input voltage. A "5V device" panel with Voc = 7.2V is fine; one with Voc = 9.5V will trip protection circuits in cold weather when Voc rises further.
4. Short-circuit current (Isc). Has to exceed your charge controller's input current rating with 25% margin. Charge controllers don't degrade gracefully — they fail closed.
5. Temperature coefficient. Power output drops ~0.4%/°C above 25°C. A 4W panel at 60°C cell temperature (common in summer) delivers about 3.4W. Specs that don't list temperature coefficient are hiding it.
6. Ingress protection. IP67 minimum for outdoor IoT — temporary submersion, full dust-tight. IP65 (water jets) is acceptable only for sheltered installations. Connectors are usually the failure point, not the laminate.
7. Output regulation. Most IoT clients we work with specify fixed 5V or 6V DC output to skip the DC-DC buck stage entirely — every conversion stage is 5–10% loss. A panel native to your device voltage saves both BOM cost and watt-hours.

The 4W and 8W modules in our mini solar panel catalog ship with switchable 5V/6V/9V/12V output, which lets a single SKU cover most trail-camera, security-camera, and sensor-node deployments without inventory fragmentation.

Certifications & Standards: IEC 61215, IP67, RoHS

For B2B procurement — especially anything entering EU, AU, or government-spec deployments — three certifications are non-negotiable:

• IEC 61215 — terrestrial PV module design qualification. Covers thermal cycling (200 cycles, -40°C to +85°C), damp heat (1000 hours at 85°C/85% RH), mechanical load, and hot-spot endurance. This is the certification that separates panels engineered for 10+ year outdoor life from panels engineered for last quarter's price target.
• IP67 — IEC 60529 ingress protection rating. Dust-tight (level 6) and immersion-resistant up to 1 meter for 30 minutes (level 7). Required for any IoT panel mounted outside a sealed enclosure. For deployments with sustained immersion risk — pump houses, marine sensors, sub-grade enclosures — step up to IP68, which adds continuous-immersion testing.
• RoHS & REACH — restriction of hazardous substances. EU compliance, but increasingly demanded in US enterprise procurement as well.
• ISO 9001 — quality management system audit at the manufacturing facility. Not a panel-level certification, but the document procurement teams ask for first when vetting any mini solar panel for IoT manufacturer. Suppliers without a current ISO 9001 certificate from a recognized body (TÜV, SGS, BV) typically fail enterprise-grade vendor audits.

CE marking covers electromagnetic compatibility for the EU market. FCC Part 15 covers the US equivalent. Both apply to the panel-plus-controller assembly when shipped together; bare panels without active electronics typically don't require either.

Mini Solar Panel Wholesale Pricing: What Drives Cost in 2026

Wholesale pricing for mini solar panels in 2026 sits in five tiers, driven mostly by cell technology and laminate choice. The numbers below reflect FOB China, MOQ 500 units, standard packaging:

Three buyer-side levers actually move price meaningfully:

1. Cell choice. Switching from SunPower IBC to standard mono drops cost 30–40%, but cuts output 3–5 percentage points and reduces cold-weather performance. For high-volume agricultural or asset-tracking deployments where every cm² counts, IBC pays back. For garage-sale-grade products, standard mono is fine.
2. Laminate. PET vs ETFE is a $0.80–$1.50/panel delta at 2–4W sizes. ETFE pays back if your end product warranty exceeds 24 months.
3. MOQ. The price elbow is at MOQ 500 → 2000 units. Below 500, tooling and setup cost dominate. Above 2000, panel pricing approaches cell cost + ~15% margin.

For a worked comparison of how custom specs change pricing, see our custom mini solar panel guide — same cell stack, different output formats and voltage, with line-item pricing.

Custom OEM & Private Label: Mini Solar Panel for IoT OEM Workflow

About 60% of our customers want some level of customization on their mini solar panel for IoT supplier order — fixed voltage tuned to their device, a specific mounting pattern, branded silkscreen on the back, or a custom cable harness. The realistic OEM workflow looks like this:

1. Day 0 — RFQ. Send required output (V, W), dimensions or housing constraints, target FOB unit price, MOQ, and target ship date. Include a photo of the end-device housing if you have one — saves three rounds of back-and-forth on connector orientation.
2. Day 1 — Quote & spec confirmation. 24 hours for a written quote with cell options, laminate options, and MOQ-tiered pricing. Anything slower than this is a vendor capacity signal — slower OEMs are usually pushing your job behind larger orders.
3. Day 2–3 — Sample build. For modifications inside our existing tooling envelope (voltage tap, cable type, silkscreen), sample build runs 1–2 days. New aluminum frame or non-standard cell layout pushes sample lead time to 10–14 days.
4. Day 5–7 — Sample delivered. Express courier worldwide, typically arrives Day 7. Buyer benches the sample, confirms output curve, ships back any failures.
5. Day 8–14 — Sample approval & PO. Sign-off triggers production scheduling.
6. Day 14–35 — Production. Standard mono cells: 2–3 weeks. SunPower IBC: 3–4 weeks (cell allocation is the bottleneck).
7. Day 35–50 — Ocean freight. FOB to US/EU port. Air freight cuts this to 5–7 days at 4–6× shipping cost.

Customer deployment: livestock-tracking startup, 5,000-unit order

A US-based livestock asset-tracking company came to us in late 2025 needing a panel under 12 cm² that could keep a LoRaWAN ear-tag tracker running through Montana winters. Their first vendor had shipped PET-laminated 5V panels — the laminate yellowed within one grazing season, and 40% of devices reported low-battery faults by January. We re-spec'd to a 50×35 mm SunPower IBC cell with ETFE laminate, 6V output (matched to their custom charge IC), and IP67-rated potting at the cable junction. Sample shipped in 8 days, production order of 5,000 units delivered in 25 days. As of the 2026 grazing season, field telemetry shows zero panel-related failures across the deployed fleet — a result driven by laminate choice and connector spec more than wattage.

Voltage customization is the most common request: 3V for ultra-low-power LoRaWAN nodes, 5V for ESP32-class devices, 6V for trail cameras and Reolink-class WiFi cameras, 12V for cellular gateways and small-pump applications. Skipping the DC-DC buck converter saves 5–10% of harvested energy — a real number when you're working with sub-1Wh/day energy budgets.

Installation, Waterproofing & Common Failure Modes

Most IoT solar deployments fail not because the panel was wrong, but because the installation introduced a failure mode the lab tests didn't catch. Three patterns dominate field returns:

1. Connector ingress, not laminate ingress

The panel is rated IP67. The cable gland or barrel connector you mounted it with isn't. Water wicks up the cable jacket, sits in the connector cavity, and the device shorts in 6–9 months. Fix: spec waterproof connectors at the BOM stage (M8/M12 industrial connectors, or moulded TPU cable assemblies), not as a field add-on.

2. Voltage mismatch frying the device

The most common Amazon-review failure mode for "solar panel killed my camera": a 12V panel wired to a 6V camera without a charge controller. The camera's protection circuit pops, and the warranty claim lands on the panel supplier. Fix: ship panel + matched controller as a kit when end-users self-install. For B2B integrators, document voltage compatibility on the data sheet's first page.

3. Tree canopy and seasonal angle penalties

Open-field installations harvest 5–6 hours of usable sunlight per day in mid-latitudes. Forest-canopy or partially-shaded installations drop to 2–3 hours. Northern-latitude winter sites lose another 30–50% from low solar elevation. The 3× sizing margin in the Sizing section assumes the harder case; if your deployment is full-sun open-field, you can size at 2× and save BOM. If it's tree canopy, you need to size at 4–5×.

For pole-mount or fixed-bracket installations supporting weather stations, asset trackers, and metering applications, our weather station solar systems and smart metering solar power kits ship as integrated panel-bracket-controller bundles — the failure modes above are pre-engineered out.

Frequently Asked Questions

What is the best mini solar panel for outdoor IoT use?

Short answer: A 2–4W monocrystalline panel with ETFE encapsulation, fixed voltage matched to your device (5V or 6V most common), and IEC 61215 + IP67 certification. For premium applications where every cm² of housing matters, SunPower IBC cells deliver 3–5 percentage points more output per unit area than standard mono cells.

How do I install a mini solar panel for an IoT device?

Short answer: Mount on a south-facing surface (northern hemisphere) at a tilt angle approximately equal to your latitude. Use waterproof M8/M12 connectors at the panel-cable junction — not the panel itself. Wire through a solar-rated charge controller (such as a bq24074-class IC) sized for your panel's short-circuit current with 25% margin. Direct connection to a generic Li-ion charger like the TP4056 will eventually fail under solar input variability.

Are mini solar panels for IoT waterproof?

Short answer: Industrial-grade IoT solar panels are rated IP67 (dust-tight, immersion-resistant to 1 meter for 30 minutes) at the laminate level. The cable gland and connector are usually the actual failure point, not the panel surface. Specify panel-plus-connector waterproof rating at the BOM stage.

Where can I buy mini solar panel for IoT wholesale?

Short answer: Direct from a mini solar panel for IoT supplier with IoT-specific tooling — voltage customization, ETFE laminate, sample-in-7-days workflow, and ISO 9001 certified manufacturing. Marketplace generalists list lower headline prices but ship PET-laminated panels with rounded-up wattage specs. Contact us for MOQ pricing on 1W to 12W modules.

What's the minimum order quantity for custom mini solar panels?

Short answer: 500 units for modifications inside existing tooling (voltage tap, cable harness, silkscreen). 2000 units for new aluminum frame or non-standard cell layout. Below 500, tooling and engineering setup dominate unit cost.

How long do mini solar panels last in outdoor IoT deployment?

Short answer: ETFE-laminated, IEC 61215-certified panels run 8–12 years at >90% rated output in temperate climates. PET-laminated panels yellow within 2–3 years and lose 15–25% output before any visible failure. The cell itself is rarely the failure mode — encapsulation and connectors are.

Last updated: May 8, 2026. LinkSolar is a B2B sourcing partner specializing in mini and custom solar panels for IoT, off-grid, and industrial monitoring applications. We work with audited manufacturing partners in China and ship globally with full IEC 61215 + IP67 documentation. For application engineering questions, see our IoT sensor power systems hub or our remote solar power system reference designs.
