What "bulk" actually means for Z brackets (and why MOQ matters)

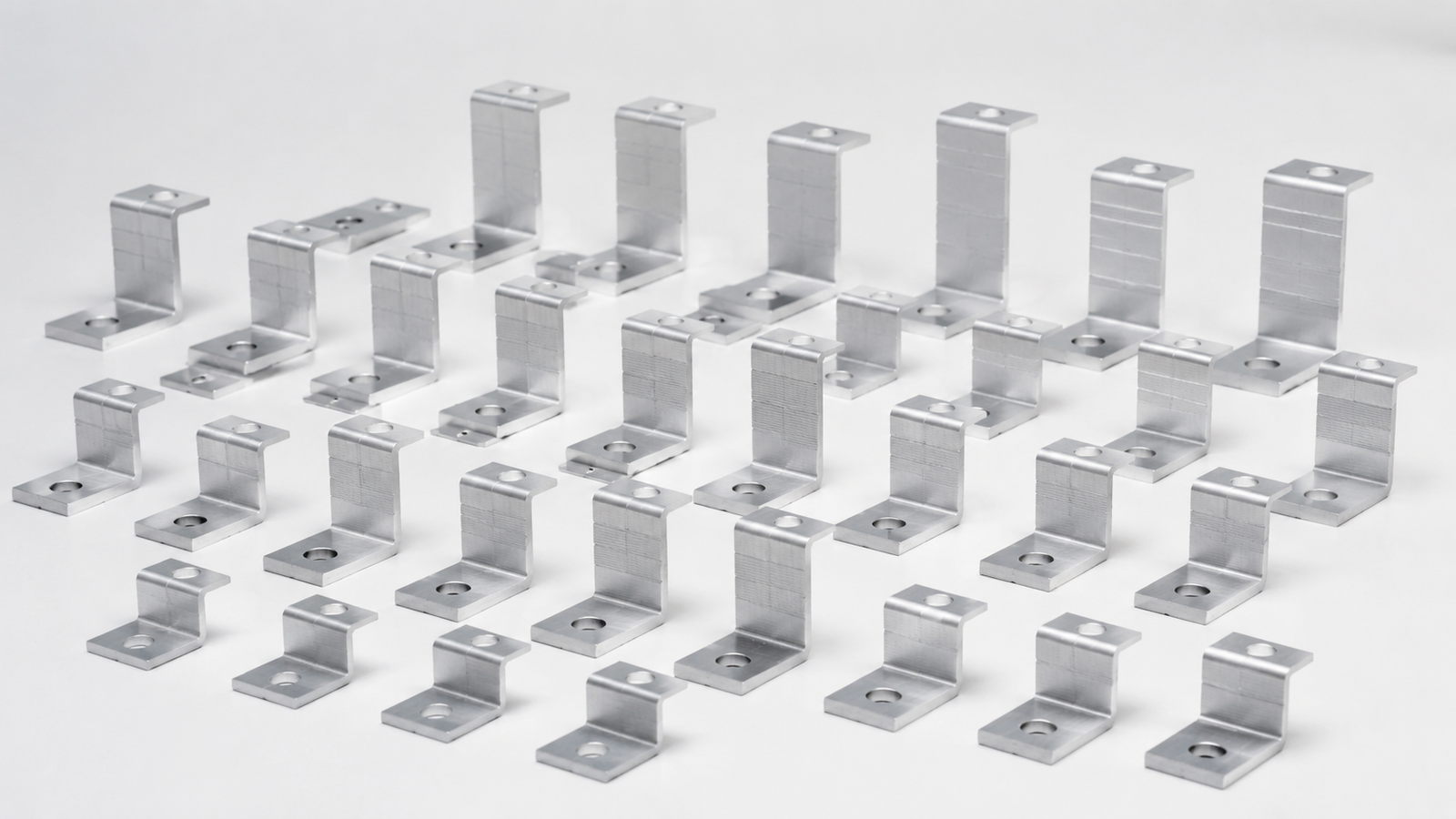

A Z bracket is a Z-shaped aluminum mount that holds a solar panel 1–4 inches above its mounting surface — most commonly an RV roof, ground rack, or commercial enclosure. They sell in sets of four (one per panel corner). When B2B buyers search "z bracket solar panel bulk" or "z bracket solar panel for sale" at scale, they fall into one of three tiers, and conflating them is the most common sourcing mistake. The same applies whether you are looking for a z bracket solar panel manufacturer, a sourcing partner, or a stocking distributor — the price and lead time math depends on which tier you actually fit into.
| Tier | Order size | Pricing reality | Typical buyer |
|---|---|---|---|
| Retail bulk | 10–100 sets | $8–15 per set on Amazon — no real markdown | RV upfitters, small installers |
| True wholesale | 500–5,000 sets | $3.50–6.00 per set FOB China | Distributors, EV/RV OEMs, surveillance trailer integrators |
| OEM scale | 10,000+ sets | $2.20–3.50 per set FOB, custom anodizing included | Solar kit assemblers, private-label brands |
If you are buying 200 sets and a supplier quotes you $7.50 — that is retail. The wholesale break begins at the second tier, and the price drop is not linear. The reason is tooling: a bracket factory will not break out a custom punch die, retool the press, and run a dedicated batch for under 500 sets. They run your order between bigger orders, on whatever stock alloy is loaded that day, and the price reflects that.
If you only need brackets for retail-tier installs, the Z bracket retail install guide covers anchor depth and Dicor sealing for end users.
The 4 Z-bracket failure modes that matter at 1,000+ unit scale
At 100 sets, a defect rate of 5% costs you a complaint email. At 5,000 sets, that same 5% is a 250-set RMA, a stop-shipment, and probably a Channel Letter from your biggest distributor. These are the four failure modes a sourcing engineer should screen for before signing a PO.
1. "Pot metal" disguised as 6063-T5 aluminum
Field data from Amazon teardowns shows that low-end Z-brackets often substitute zinc-aluminum die-cast scrap (informally called "pot metal") for 6063-T5 extruded aluminum. Both look identical after a sandblast finish, both feel similar in hand. The difference shows up under a magnifying glass at the bend radius — pot metal develops fine surface cracks; real 6063-T5 stays smooth. The functional consequence is brittleness. Z-brackets get bent on installation when an installer over-torques a screw. Pot metal snaps. 6063-T5 deforms.
The cheap supplier test: ask for an alloy mill certificate with the quote. A factory running real 6063-T5 has the cert in their drawer because their extrusion supplier issued it. A re-seller will go silent for two days, then send a generic "aluminum alloy" PDF.
2. Hardware downgrade in the kit
The bracket is half the SKU. The other half is the screw, washer, and nut kit packed with each set. Suppliers cut cost here first because buyers rarely inspect hardware until installation. Common downgrades: 201 stainless instead of 304 (visible rust within 12 months in coastal use), zinc-plated carbon steel mislabeled as stainless, and EPDM rubber washers replaced with low-grade neoprene that cracks under UV.
One r/solar member with 124 upvotes wrote: "Got a 50-pack from an Amazon seller — within a year half the screw heads were rust-pitted. The brackets were fine, the hardware was the problem." (source: r/solar discussion thread) That is the failure mode at scale: the brackets pass QC, the hardware fails 18 months in, and the warranty claim lands on whoever sold the kit.
3. Hole pattern drift between batches
This one only shows up if your buyers are bolting to a fixed pattern — a steel rack with pre-drilled holes, an EV roof with structured tie-down points, or a surveillance trailer subframe. Z-bracket factories run multiple punch dies, and dies wear. A 0.5 mm drift in the slot location is invisible at retail, but at OEM scale, it means 800 brackets in a 5,000-set order do not align, and your assembly line stops.
The fix in the RFQ: specify slot center-to-center distance with a tolerance (±0.3 mm) and require first-article inspection on every production batch.
4. Anodizing / powder coat thickness below spec
Most Z-brackets sold to North America come with either clear anodizing or matte black powder coat. Both are corrosion barriers; both have a minimum thickness spec for outdoor durability — typically 15 μm for anodizing and 60 μm for powder coat. Cheap factories run the line faster and end up at 5–8 μm anodizing, which oxidizes within two summers in humid climates. The supplier passes inspection because the finish looks correct on day one. Failure shows up at month 18, well past most return windows but inside any serious warranty period.
The 7-question Z-bracket OEM supplier vetting checklist
If you only have one hour for a first call with a prospective z bracket solar panel supplier or z bracket solar panel OEM partner, ask these seven questions in order. The answers separate a real bracket factory partner from a re-seller listing inventory.
- What aluminum alloy and temper do you use, and can you send the mill certificate? Correct answer: 6063-T5 or 6061-T6, with cert from the extrusion mill.
- What grade of stainless is in the screw kit, and is there a third-party material report? Correct answer: 304 stainless (or 316 for marine), with SGS or BV report on file.
- What is your MOQ for a private-label run with custom packaging? Correct answer: 1,000–2,000 sets for printed boxes, 500 sets for stock cartons with your label.
- What is the lead time for sample → sample approval → mass production → ready for shipping? Correct answer: sample 7–10 days, mass production 25–35 days for 5,000 sets.
- What is your defect rate, and what is your replacement policy? Correct answer: 1–2% defect rate quoted, free replacement on defects above 1.5% in any batch.
- Can you ship FOB or CIF, and which port? Correct answer: FOB Ningbo, Shanghai, or Shenzhen; CIF available at +5–8% over FOB.
- Will you accept third-party inspection (SGS, BV, AsiaInspection) before container loading? Correct answer: yes, buyer pays inspection cost (~$300–500 per inspection day).
If the answers to questions 1, 2, and 7 are vague, you are talking to a re-seller — not the factory. Re-sellers cannot send a mill cert because they do not own the relationship with the extrusion mill. Move on.
Aluminum gauge and alloy: the specs that must be in your RFQ
The Z-bracket spec sheet most B2B buyers receive is incomplete. It lists "aluminum" and a thickness in millimeters. That is not enough. A correct RFQ for bulk Z brackets specifies five dimensions of the material itself.
| Spec | Acceptable range | Why it matters |
|---|---|---|
| Alloy | 6063-T5 standard; 6061-T6 for higher load | Tensile strength and corrosion resistance |
| Wall thickness | 2.5 mm minimum, 3.0 mm preferred | Wind load capacity and bend resistance |
| Length (38 mm vs 100 mm) | 38 mm for low-profile RV/EV; 100 mm for ground mounts and ventilated installs | Determines panel-to-surface gap and airflow |
| Surface finish | Clear anodizing 15 μm min, or powder coat 60 μm min | UV and corrosion durability past year 2 |
| Slot tolerance | ±0.3 mm on center-to-center distance | Prevents alignment failure on pre-drilled racks |
Real-world note: the IEC 61215 wind load standard requires panel-and-mount systems to withstand 2,400 Pa (50 PSF) at minimum. A 38 mm Z-bracket made from 2.5 mm 6063-T5 with proper anchor-side pull-out values clears that comfortably. The same bracket made from 1.5 mm pot metal does not — and that is where most Amazon-tier complaints originate.
304 vs 201 stainless: a $0.04-per-bracket decision that decides warranty exposure
Every Z-bracket set ships with eight to twelve fasteners (depending on whether the kit includes nuts and washers). The cost difference between 304 stainless and 201 stainless on a single M6×25 mm bolt is roughly $0.005. Over a 4-piece kit, that is $0.04. Over a 5,000-set order, $200. Over a 50,000-set OEM run, $2,000.
For that $2,000, you get the difference between a fastener that survives 12 months of coastal salt spray (201) and one rated for 5+ years in the same conditions (304). For marine applications — boats, dock-mount surveillance trailers, coastal microgrid cabinets — 316 stainless is the right call, with a chromium and nickel content that handles chloride exposure even in the splash zone.
The supplier check: ask for an SGS or BV stainless verification report on the actual screws shipped, not a spec-sheet claim. Reputable factories have the report ready. Re-sellers will substitute screws between batches and hope nobody checks.
Certifications that apply to Z brackets (and the ones that don't)
This is where most supplier websites mislead. A bracket that mounts a panel does not, by itself, hold the certifications the panel holds. The relevant standards land in two buckets.
Standards that genuinely apply to the bracket itself:
- UL 2703 — the structural and electrical bonding standard for PV mounting systems. Most low-cost Z-brackets are NOT individually UL 2703 listed. Major racking systems (IronRidge, Unirac) are. If a buyer needs UL 2703 (US commercial installs, NEC code compliance), they need to specify a listed system, not a generic Z-bracket.
- IEC 61215 — the panel reliability standard, which includes mechanical load testing of the panel-and-mount as a system. The panel must pass; the mount used in the panel's certification must be similar to the mount the buyer uses on the roof.
- ISO 9001 — quality management at the factory level, applies to the bracket production process. Asking for ISO 9001 cert is a basic floor — most legitimate factories carry it.
- RoHS — relevant for the chromating/anodizing process and any electroplating on hardware. Required for EU shipments.
- CE — required for any EU import; covers the kit including hardware.
Standards that do NOT directly apply to brackets:
- IP67 / IP68 — these are ingress protection ratings for the panel itself (junction box, frame). Brackets do not carry IP ratings; they are exposed metal.
- MPPT / PWM — these are charge controller technologies inside the panel system. Irrelevant to the mount.
The reason this distinction matters: a supplier whose marketing page says "IEC 61215, UL 2703, IP67, MPPT certified" on a Z-bracket SKU is either uninformed or being deliberately misleading. If they cannot tell the difference between a panel rating and a mount rating, expect the same imprecision in the QC paperwork.
Container loading math for bulk Z-bracket orders
For orders above 1,000 sets, sea freight is the only economically rational mode. Air freight on a 5,000-set order would cost roughly $4,500–6,000 and add nothing the buyer cares about. Sea freight on the same order is $80–250 (fraction of one container, LCL — Less than Container Load).
Knowing how many sets fit a container shapes order timing:
| Container | Volume | Z-bracket sets (38 mm) | Z-bracket sets (100 mm + hardware kit) |
|---|---|---|---|
| 20'GP | ~28 m³ | ~22,000 sets | ~14,000 sets |
| 40'GP | ~58 m³ | ~46,000 sets | ~29,000 sets |
| 40'HQ | ~68 m³ | ~54,000 sets | ~34,000 sets |
The practical implication: if a buyer orders 25,000 sets, they should specify 40'GP loading explicitly in the PO. Otherwise the factory may default to a 20'GP plus LCL split, which doubles ocean freight cost. Ningbo and Shanghai are the two efficient export ports for z bracket solar panel China shipments — Shenzhen adds 5–10% on inland trucking and is generally only worth using when a buyer is consolidating brackets with other Guangdong-sourced product.
Buyers also need to budget for tariff exposure. The current US tariff stack on Chinese solar imports primarily targets cells, modules, and inverters — Z-brackets fall under HTS 7610.90 (aluminum structures), which does not carry the same AD/CVD layer but still attracts the Section 301 + reciprocal tariff combo. Add 20–35% to FOB price for landed cost in 2026.
OEM customization: what you can ask for at scale
Below 1,000 sets, customization is mostly about packaging — your label on a stock carton, your barcode, a printed insert. Above 5,000 sets, real product-level customization opens up.
- Custom anodizing color. Stock options are clear, matte black, dark bronze. At 5,000+ sets you can specify Pantone-matched colors (light bronze, champagne, military green) for an extra $0.30–0.60 per set. Lead time adds 5–7 days for the color batch.
- Custom slot pattern. Single-slot, dual-slot, slotted-vs-round combinations. The factory needs to cut a new punch die — one-time NRE charge of $400–1,200 amortized over your order.
- Custom dimensions. Non-standard heights (60 mm, 75 mm, 125 mm), wider feet for high wind regions, recessed bolt heads. Treat these like a new SKU; expect a 4-week tooling lead time before the first sample.
- Branded hardware kit. Laser-etched bracket logo, branded poly bag, custom carton. Adds $0.10–0.40 per set depending on detail.
- Pre-applied butyl tape or VHB pads. For RV-focused buyers, factory-applied 3M VHB strips on the bracket footprint save the installer 10 minutes per panel and reduce sealant errors.
If buyers also need the panel side custom-built — IoT mini panels with specific voltage profiles, or flexible panels in non-standard sizes — the same factory ecosystem that runs Z-bracket production usually has lines for custom solar panels running in parallel, which simplifies consolidation in a single shipment.
Pricing tiers: what's real markup vs. honest margin
The Z-bracket category is unusual in B2B sourcing because the COGS floor is well-known: aluminum at $2.20–2.80/kg, plus stainless hardware at $0.20–0.35 per bracket, plus packaging and labor. A 4-piece set at scale costs the factory roughly $1.40–1.90 to produce. Anything sold for $5+ at the wholesale tier carries margin from the supplier; anything sold for $9+ at retail bulk carries 3–5x markup.
| Channel | Order tier | Per-set price | Effective markup |
|---|---|---|---|
| Amazon retail | 1–10 sets | $8–15 | 4–7× |
| Distributor (US) | 100–500 sets | $5.50–8.00 | 3–4× |
| Direct from sourcing partner | 500–5,000 sets FOB | $3.50–6.00 | 1.8–3× |
| OEM at scale | 10,000+ sets FOB | $2.20–3.50 | 1.3–1.8× |
If a buyer is sourcing direct and getting quoted in the distributor band, the supplier is layering an unnecessary middleman margin. The honest test: ask for the FOB factory price excluding the supplier's service fee, then ask what the service fee covers (QC, document handling, third-party inspection coordination). If the answer is "we handle everything" without itemization, the markup is opaque.
For LinkSolar's own line, retail pricing on the solar panel bracket collection sits at $9.99 per 38 mm 4-piece set and $10.99 per 100 mm kit — that is the retail tier. Bulk and OEM quotes are issued by the sourcing team after RFQ.
4 common mistakes that bulk buyers make on first orders
Mistake 1: Not asking for a sample before committing
Roughly one in three first-time bulk buyers skips the sample step because they want to compress timeline. The downside: a 5,000-set order arriving with hardware downgrade or thin anodizing has no recourse — the buyer signed off on the spec sheet, not the actual physical product. A 10-day sample window saves 5,000 sets of regret.
Mistake 2: Specifying "stainless steel" without grade
"Stainless steel screws" can mean 201, 304, or 316. The supplier defaults to whichever is cheapest unless the buyer specifies. The RFQ line should read "M6×25 mm 304 stainless hex bolts, with a recognized accreditation body material report." That removes ambiguity.
Mistake 3: Underestimating tariff and freight on landed cost
FOB China at $4.50 per set is not the buyer's cost. Add 20–35% tariff (varies by HTS classification and current Section 301 + reciprocal stack), $0.30–0.80 per set sea freight at LCL volumes, plus customs broker fees, port handling, and inland trucking to warehouse. Landed cost typically lands 50–80% above FOB. For federal buyers exposed to NDAA Section 847 / FEOC compliance, the picture is more complicated still — Chinese-origin brackets may eliminate ITC eligibility on the parent project even if the brackets themselves are not the regulated component.
Mistake 4: Ignoring the alternative mount options
Z brackets are the right answer for RV roofs, ground mounts on small panels (under 150 W), and budget-tier installs. They are not the right answer for tilted ground arrays in high-wind regions, large commercial racking, or pole-mounted off-grid setups. For pole installs specifically, our pole mount installation guide walks through the structural math. Buyers sourcing for surveillance trailers or remote IoT gateways often need a mix — Z-brackets for the main panels, pole adapters for auxiliary cells.
Case study: how a 4,200-set Z-bracket order failed inspection
A surveillance trailer integrator placed a 4,200-set order through what they believed was a direct bracket factory, sourced via Alibaba. Quoted price: $4.10 per 38 mm Z-bracket set FOB Ningbo, including 304 stainless hardware and clear anodizing. Lead time quoted: 35 days. The trailer was a US municipal contract requiring Section 847 / FEOC review, and the integrator priced their bid based on the $4.10 number.
What went wrong, in order:
- Sample skipped. The integrator was on a tight schedule and approved the order from a spec sheet PDF rather than a physical sample. The supplier had stock photos that looked like 6063-T5 anodized aluminum.
- No mill cert requested. The first RFQ did not list mill cert as a deliverable. The supplier did not volunteer one, and quietly substituted a lower-grade alloy on the production batch.
- Hardware downgrade. Inspection of the production sample (after 3,000 sets had been pulled from the line) found 201 stainless screws labeled as 304. Field cost difference: roughly $200 across the order. Reputational cost: a stop-shipment notice from the integrator's QA team.
- Pre-shipment inspection failed. The integrator hired a recognized accreditation body for a pre-loading inspection ($420). The inspector found the screw downgrade plus 5 μm anodizing thickness against an 18 μm spec. The supplier refused to recall, citing "spec interpretation."
The order was eventually salvaged by paying a 12% premium for the supplier to re-source compliant hardware and re-anodize the brackets, plus a 3-week schedule slip that pushed the trailer integrator past their municipal RFP deadline. Total avoidable cost: roughly $7,400 plus a delayed contract.
The post-mortem identified three preventable steps: physical sample approval before PO, mill cert and a recognized accreditation body material report listed as RFQ deliverables, and a pre-shipment third-party inspection budgeted from day one. None of those three would have added more than $600 to the project. All three together would have caught the failure at sample stage rather than container stage.
Lead time benchmarks at each order size
| Order size | Sample lead | Production lead | Sea freight (US West Coast) | Total door-to-door |
|---|---|---|---|---|
| 500 sets | 7–10 days | 15–20 days | 18–25 days | ~6 weeks |
| 5,000 sets | 7–10 days | 25–35 days | 22–28 days | ~9 weeks |
| 25,000 sets (40'GP) | 10–14 days | 35–45 days | 25–32 days | ~12 weeks |
Buyers planning a Q3 inventory build need to commit POs by mid-Q1 for the 25,000-set tier. Compressing this timeline usually means switching to air freight on a partial shipment — viable for an emergency but not as a standing process. Air freight on bulk Z-brackets is a profit-killer.
Frequently asked questions from B2B Z-bracket buyers
Is there a US-made Z-bracket option for federal projects?
There are a small number of US-extruded aluminum bracket options, mostly through specialty fabricators rather than dedicated solar brands. They run roughly 2.5–3.5x the China-FOB price and have lead times comparable to imports. For projects requiring strict NDAA / FEOC compliance, this is the path; for commercial buyers, the math rarely works.
Can Z-brackets ship as part of a panel-plus-mount kit, palletized for distributor warehouses?
Yes. Most factories will pick-and-pack panel + bracket + hardware into kit cartons at $0.40–1.20 per kit depending on labor complexity. This adds 3–5 days to lead time but reduces distributor's warehouse handling cost.
What is the realistic defect rate to expect on a 5,000-set order?
1.5–2.5% is normal for established factories with documented QC. Below 1% is achievable but requires you to pay for line-end inspection (every set checked) — adds $0.10–0.20 per set. Above 3% on a finished batch is a red flag; the factory may be running unsupervised second-shift production.
Do I need an import broker, or can my freight forwarder handle Z-bracket customs?
For Z-brackets specifically, most freight forwarders can handle the HTS classification and customs entry. Where buyers need a dedicated broker is when Z-brackets ship in the same container as other categories (panels, batteries, controllers) with different duty rates. Mixed-cargo entries are where forwarders make mistakes; specialists do not.
What is the minimum spend to make a private-label run economically rational?
The break-even is roughly 2,000 sets when you factor tooling NRE, custom packaging design, and inventory carrying cost. Below that, stock-product with custom labels makes more sense. Above 2,000 sets with a clear branding plan, the per-set premium drops fast — at 10,000 sets, branding adds well under $0.50.
Can the factory hold inventory for a quarterly drawdown order?
Some factories will hold up to 60 days of inventory for known-good buyers, especially after the second order. Earlier than that, expect to take full delivery on production completion. A vendor-managed inventory arrangement is a relationship to build, not a first-order ask.
Next step: get a sample shipped within 10 days
The fastest way to evaluate a Z-bracket OEM partner is to spec a 4-set sample order and time the response. A real factory partner will:
- Acknowledge the RFQ within 24 hours
- Quote sample pricing (usually free for serious B2B buyers, with paid express shipping)
- Ship sample within 7–10 days of confirmation
- Include alloy mill cert + stainless verification report in the sample box
- Schedule a video walk-through of the production line on request
If a supplier cannot do all five within two weeks of first contact, they are not the partner you want for a 5,000-set production run. The cost of finding out at sample stage is two weeks; the cost of finding out after a PO is two months and a container of unusable inventory.
For LinkSolar's Z-bracket bulk and OEM quotes, browse the bracket catalog to confirm spec fit, then submit RFQ details via the contact form — the sourcing team replies within 24 hours with sample availability, FOB pricing tiered by quantity, and lead time confirmed by the factory partner. Sample request typically ships within 7 days; production lead time is documented per the table above.
