Solar Panel for Driveway Alarm Sensor: Stop Replacing Batteries

It's 2 AM, your driveway alarm is supposed to alert you when someone pulls in — and the batteries died three weeks ago. You just don't know it yet. That's the problem with battery-powered driveway sensors: they work great until they don't, and they never pick a convenient time to quit.

A small solar panel fixes this permanently. But you can't just slap any panel on a Guardline or Chamberlain sensor and call it done. Voltage has to match. Wattage has to cover actual draw. And the panel has to survive rain, snow, and UV for years outdoors.

This guide walks through exactly how to size, match, and mount a solar panel for your driveway alarm sensor — no electrical engineering degree required.

How Driveway Alarm Sensors Actually Use Power

Before you buy a panel, you need to understand what you're powering. Driveway alert systems come in three main sensor types:

PIR motion sensors detect body heat from people and vehicles. These are the most common type — Guardline, Hosmart, and most budget brands use PIR. They draw very little power in standby (microamps), then spike briefly when triggered to send a wireless signal to the indoor receiver.

Magnetic probe sensors bury in the driveway and detect the metal mass of a vehicle passing over them. More reliable than PIR for vehicle-only detection (won't trigger on deer or dogs), but the buried probe connects to an above-ground transmitter that needs power.

Infrared beam-break sensors use a transmitter and receiver on opposite sides of the driveway. When something breaks the beam, the alarm triggers. These draw slightly more power because the transmitter runs continuously.

All three types share the same basic power profile: a wireless transmitter that sleeps most of the time and wakes briefly to send alerts. Total daily energy consumption typically falls between 0.3 and 1 Wh per day — that's remarkably little power.

The Battery Problem (And Why Solar Solves It)

Most driveway sensors run on AA batteries:

Those battery life estimates assume moderate traffic. If your sensor triggers 50+ times a day (busy road nearby, wildlife, wind-blown branches), battery life drops fast — sometimes to 2–3 months.

The real cost isn't just batteries. It's the walk out to the sensor, unscrewing the housing, swapping cells, and — worst case — not realizing the sensor is dead until you actually need it. In cold climates, alkaline batteries lose 20–40% capacity below freezing, so the sensor you installed in September might be dead by January.

A solar panel paired with a rechargeable battery pack eliminates all of this. The panel keeps the battery topped up, the battery handles nights and cloudy stretches, and the sensor runs indefinitely.

Sizing the Right Solar Panel

Here's where most people over-think it — or under-think it.

Power math: Your sensor uses 0.3–1 Wh per day. Even in winter with only 2–3 hours of usable sunlight, a 1W panel produces 2–3 Wh per day. A 2W panel produces 4–6 Wh per day. Either size gives you a healthy margin.

The practical answer: a 1–2W mini solar panel is all you need. Going bigger doesn't help — there's nowhere to store the excess energy in a small rechargeable pack, and you're just wasting money and mounting space.

Voltage Matching — This Is Where People Mess Up

This is the part that trips people up. Your driveway sensor expects a specific voltage, and feeding it the wrong voltage will either do nothing or fry the electronics.

Why not just use a USB 5V panel? You can, if your sensor runs on 3× AA (4.5V nominal). A 5V panel through a simple voltage regulator or small charge controller works well. But for 3V sensors (2× AA), a standard 5V panel is too high — you need either a buck converter or a panel with native 3V output.

This is actually one of the things we deal with constantly at LinkSolar. Our mini solar panels come in custom voltages from 3V to 48V, specifically because off-the-shelf panels almost never match the actual voltage your device needs. A native-voltage panel — say, 4.5V output for a 3× AA sensor — is cleaner, more efficient, and eliminates the need for a separate voltage converter.

Picking a Panel: What Actually Matters

For a driveway alarm sensor, your panel needs to handle three things:

1. Weather Resistance

Your panel sits outdoors 365 days a year. Rain, snow, UV, temperature swings. This is non-negotiable.

ETFE-coated panels are the gold standard for long-term outdoor exposure. ETFE (ethylene tetrafluoroethylene) is the same material used on stadium roofs and industrial greenhouses — it resists UV degradation far better than PET lamination, which starts yellowing and losing output after 2–3 years of direct sun exposure. From our manufacturing experience, ETFE-laminated mini panels maintain 90%+ output after years of outdoor use where PET panels in the same conditions drop noticeably.

Glass-front panels are even more durable but heavier — overkill for a small driveway sensor application.

2. Physical Size

You're mounting this on or near a sensor housing that's maybe the size of a paperback book. A 1–2W panel is roughly the size of a smartphone or slightly larger. That's manageable. A 5W panel is the size of a tablet — probably bigger than you want unless you're mounting it on a nearby post.

3. Output Connection

Most mini solar panels come with bare wire leads or a micro-USB connector. For a driveway sensor, bare leads are actually better — you'll likely need to wire directly into the battery compartment or through a small charge controller.

Mounting Options

You have three practical mounting spots:

On the sensor housing itself. Some driveway sensors have flat tops that can accept a small panel attached with VHB tape or a bracket. This is the cleanest look but limits you to very small panels (under 1W). Also, the sensor's optimal position for detection isn't always the best position for sunlight.

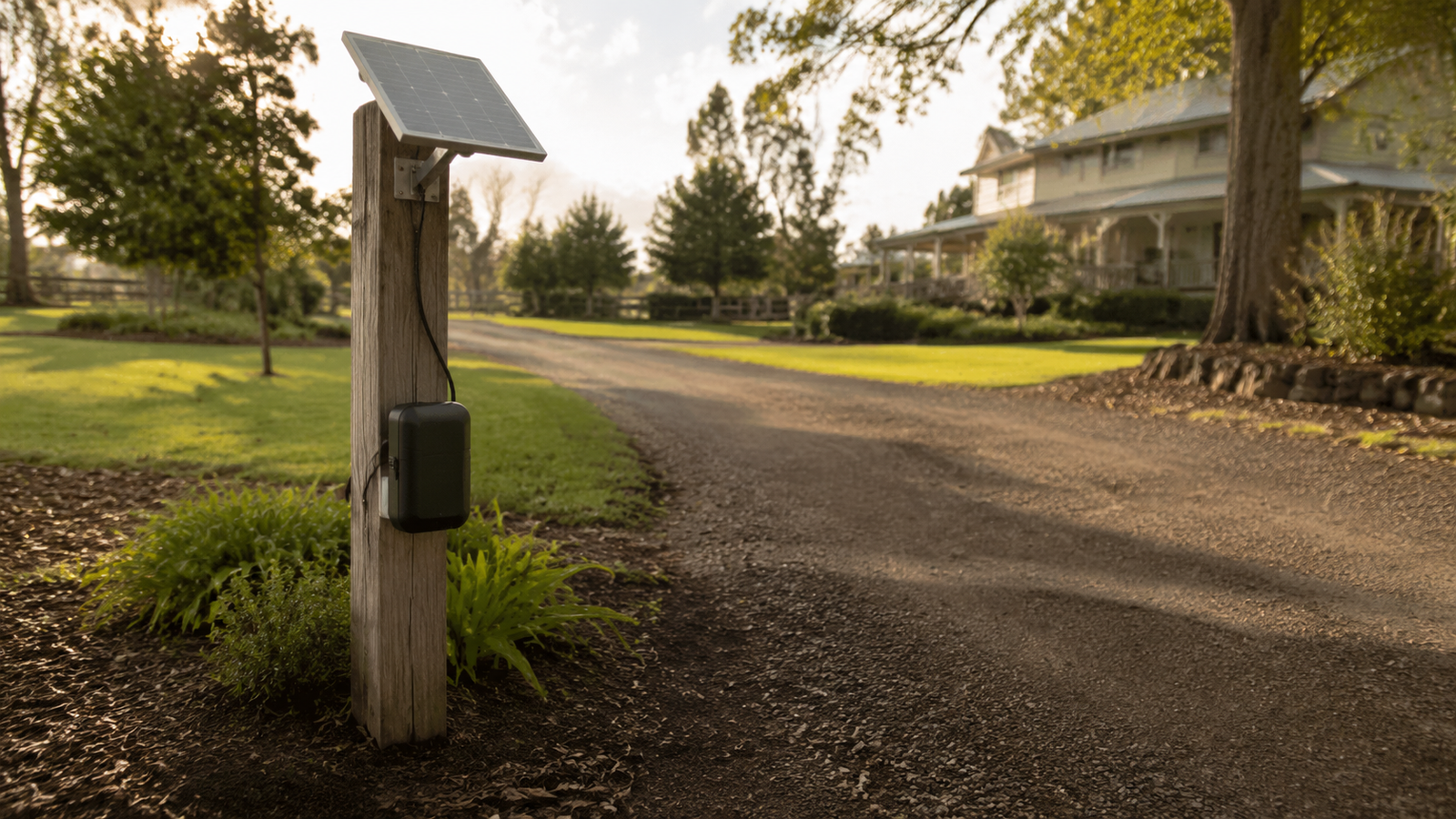

On a nearby post or fence rail. This is the most flexible option. Mount the panel where it gets the best sun exposure and run a short wire (3–6 feet) to the sensor. Use outdoor-rated wire and seal the connections with heat-shrink tubing or silicone. A simple L-bracket or pipe clamp handles the mounting.

On a dedicated ground stake. Several companies sell small panel mounting stakes you push into the ground. Angle the panel south (in the Northern Hemisphere) at roughly your latitude angle for best year-round production.

Whichever spot you choose, keep the panel face clean. A layer of dust or pollen can cut output by 20–30%. Snow coverage, obviously, drops it to zero — aim for a steep enough angle that snow slides off, or plan to brush it off occasionally.

Brand Compatibility Quick Reference

Here's how common driveway alarm brands match up with solar upgrades:

A note on "solar driveway alarms": A few brands now sell driveway sensors with built-in solar panels. These are typically very small panels (under 0.5W) that extend battery life rather than replace batteries entirely. If you're in a sunny climate with moderate trigger frequency, they work. In northern winters or high-traffic scenarios, an external 1–2W panel is more reliable.

What You'll Need (Complete Parts List)

For a typical Guardline-style sensor (3× AA, 4.5V):

• 1–2W solar panel, 5V output — our 0.18W panel works for very low-draw setups; for most driveway sensors, step up to a 1–2W panel for comfortable margin
• 3.7V lithium rechargeable battery (14500 size = AA form factor) or a small LiPo pack
• Simple charge controller (optional but recommended — prevents overcharging the battery)
• Outdoor wire (22 AWG stranded, 3–6 feet)
• Mounting hardware (bracket, VHB tape, or ground stake)
• Heat-shrink tubing + silicone sealant for waterproofing connections

Total cost: roughly $15–30 for the panel and charge controller, plus whatever you spend on wire and mounting.

Installation Tips From the Field

A few things that save headaches:

Test before you permanently mount. Connect the panel to your sensor on the ground first. Verify the sensor powers up and triggers correctly. Run it for a full day-night cycle if you can. Catching a voltage mismatch before you've drilled holes is much less annoying.

Seal every connection. Outdoor electronics fail at the connections, not the components. Heat-shrink tubing over solder joints, silicone over wire entry points, and make sure any exposed board or controller sits in a weatherproof enclosure (even a small food container with a hole for the wire works in a pinch).

Angle matters more than you think. A horizontal panel gets 30–40% less winter sun than one angled at 30–45°. On a post mount, angle it. On a flat sensor housing, you're stuck horizontal — compensate by going slightly bigger on the panel.

The Bottom Line

A driveway alarm sensor uses almost no power — 0.3 to 1 Wh per day. A 1–2W mini solar panel with the right voltage output keeps it running indefinitely, through winter, through cloudy weeks, without you ever touching a battery again. Match the voltage to your sensor's battery configuration (most are 4.5V from 3× AA), use ETFE lamination for UV durability, and mount the panel where it catches decent sun.

No complex wiring, no expensive equipment, no engineering degree. Just a small panel, a rechargeable battery, and a sensor that actually works when you need it.

Need a mini solar panel with a specific voltage output — say, 3V, 4.5V, or 6V — that fits a tight mounting space? We make custom mini solar panels as small as 35×22mm with voltage matched to your exact device. Browse our full mini solar panel collection or tell us your sensor model and we'll recommend a panel that fits.
