Size a solar panel for a gate opener to its daily gate cycles plus 24/7 standby draw, not just the motor's peak watts. The motor only runs for a few seconds per cycle, so the energy that actually drains the battery is the standby current of the control board and receiver, multiplied by every hour of the day.
Gate openers are not garage-door openers. They sit outdoors on a pillar or post, often far from mains power, and pull a higher inrush surge when a swing or slide motor breaks inertia. That surge sizes your battery and wiring, while daily energy sizes your panel.
Quick answer: A low-traffic residential gate (under ~20 cycles/day) typically runs on a 10-30W panel paired with a small 12V battery. High-cycle or commercial gates need more panel area and several days of battery autonomy to ride out cloudy spells. Treat these as starting estimates and confirm per project once you know cycle count, standby draw, and local sun hours.
The rule of thumb: standby load sets your minimum panel, and cycle volume plus weather autonomy set your battery. Get both wrong and the gate dies on the third overcast morning.
Gate Opener Solar Sizing at a Glance
Use this table as a first-pass starting point before you run the real numbers in the sections below.
| Gate type / cycles per day | Standby + cycle load | Starting panel range | Battery autonomy |
|---|---|---|---|
| Residential, low traffic (under 20) | Low standby, light cycling | ~10-20W | ~2-3 days |
| Residential, busy household (20-50) | Moderate | ~20-30W | ~3 days |
| Light commercial / shared drive (50-150) | Higher cycle energy | ~30-60W | ~3-5 days |
| High-cycle commercial (150+) | Heavy, near-continuous | ~60W+ (often multi-panel) | ~5 days+ |
For the off-grid panel formats that suit pillar-mounted gate kits, we source a range of mini solar panels through partner factories. Ranges shown are typical estimates; confirm exact draw against your specific opener's datasheet.
How to Size to Daily Gate Cycles
Size the system from daily energy use, not panel wattage. First add up everything the gate opener draws in 24 hours, then work backward to a panel and battery that cover it with margin.
The daily energy demand has two parts:
- Standby draw: the controller, receiver, and any sensors pulling current 24 hours a day, even when the gate sits still.
- Cycle draw: the energy used per open/close, multiplied by how many cycles the gate runs per day.
Express both in watt-hours per day (Wh/day). The math is straightforward once you have the inputs.
Daily energy (Wh) = (standby watts x 24) + (Wh per cycle x cycles per day). A low-traffic residential gate and a busy commercial entrance can differ by an order of magnitude, so count real cycles, not a guess.
Convert Wh/day to panel watts
Divide daily Wh by your site's peak-sun-hours to get a baseline panel size, then add margin. NREL solar research publishes regional sun-hour data. Peak-sun-hours vary by latitude and season, so use a conservative winter figure rather than an annual average.
Panel watts is roughly (Wh/day / peak-sun-hours) x margin. A 1.3-1.5x margin covers panel soiling, wiring loss, charge-controller inefficiency, and off-angle mounting.
| Input | Where it comes from |
|---|---|
| Standby watts | Opener spec sheet (confirm per project) |
| Wh per cycle | Opener spec or bench measurement |
| Cycles/day | Real site traffic count |
| Peak-sun-hours | Conservative winter value for the location |
Worked example, general terms
Suppose a gate draws a small standby load around the clock plus a measured energy slug each cycle, run a couple dozen times daily. Summed, that might land near a few tens of Wh/day for a light residential gate, or several hundred Wh/day for a high-traffic commercial one. Treat these as estimates and confirm against real specs.
Take the Wh/day figure, divide by a conservative peak-sun-hours value, apply the margin, and round up to the next standard panel size you can source. We supply small panels across common wattage tiers, so the sized number maps to real stock through our partner factories.
Size the battery for autonomy
The battery has to carry the gate through cloudy days and every night cycle, not just one evening. Multiply daily Wh by the number of autonomy days you want, then divide by the usable depth-of-discharge for your battery chemistry.
Battery capacity (Wh) = Wh/day x autonomy days / usable depth-of-discharge. Two to three autonomy days is a common starting point for mild climates; cloudy regions need more.
One detail drives controller and battery choice: the motor's inrush surge at start. The instantaneous current spike when the gate begins moving far exceeds the running draw, so the battery and charge controller must handle that peak without sagging or tripping. Confirm surge ratings per project before locking the bill of materials. For wiring the panel into the charge path, see our guide on how to connect mini solar panels.
How a Gate Opener Differs from a Garage Door
A gate opener lives outdoors on a pillar or post, exposed to weather and often far from mains power, so solar is frequently the only practical way to run it. A garage door opener, by contrast, sits indoors and almost always plugs into a nearby outlet.
That single difference reshapes the whole sizing job. The electrical load may be similar, but the operating environment is harsher and the power source is rarely a given.
| Factor | Garage door opener (indoor) | Gate opener (outdoor) |
|---|---|---|
| Power source | Mains outlet nearby | Often no mains within reach, solar is the practical option |
| Enclosure rating | Indoor, dry | Weatherproof panel, battery box, and connectors required |
| Temperature swing | Stable | Wide; affects battery capacity and autonomy |
| Surge exposure | Low | Higher; exposed wiring and long runs invite lightning-induced surge |
The two concerns that matter most outdoors are weatherproofing and surge protection. Both add hardware and cost that an indoor opener never needs.
- Weatherproofing: the panel, battery enclosure, and cable glands should carry a sealed ingress rating suitable for permanent outdoor exposure; confirm the target rating per project.
- Surge: long exposed cable runs and pillar mounting raise the risk of voltage spikes, so a surge arrestor or transient protector is worth specifying at the controller.
- Distance from mains: the further the gate sits from a building, the stronger the case for a standalone solar + battery kit over a trenched mains run.
If you are actually sizing an indoor unit instead, the load and autonomy math is lighter; see our off-grid garage door solar sizing guide for that sibling case.
We source weather-rated small panels and outdoor-suitable battery enclosures through partner factories, so a gate-opener kit can be specified to handle the exposure its indoor cousin avoids.
Mounting and Panel Choice
Mount the panel on the sunniest fixed structure near the gate, then match its voltage to the opener's battery. The two decisions that make or break an off-grid gate kit are placement and Vmp pairing.
Where to put the panel

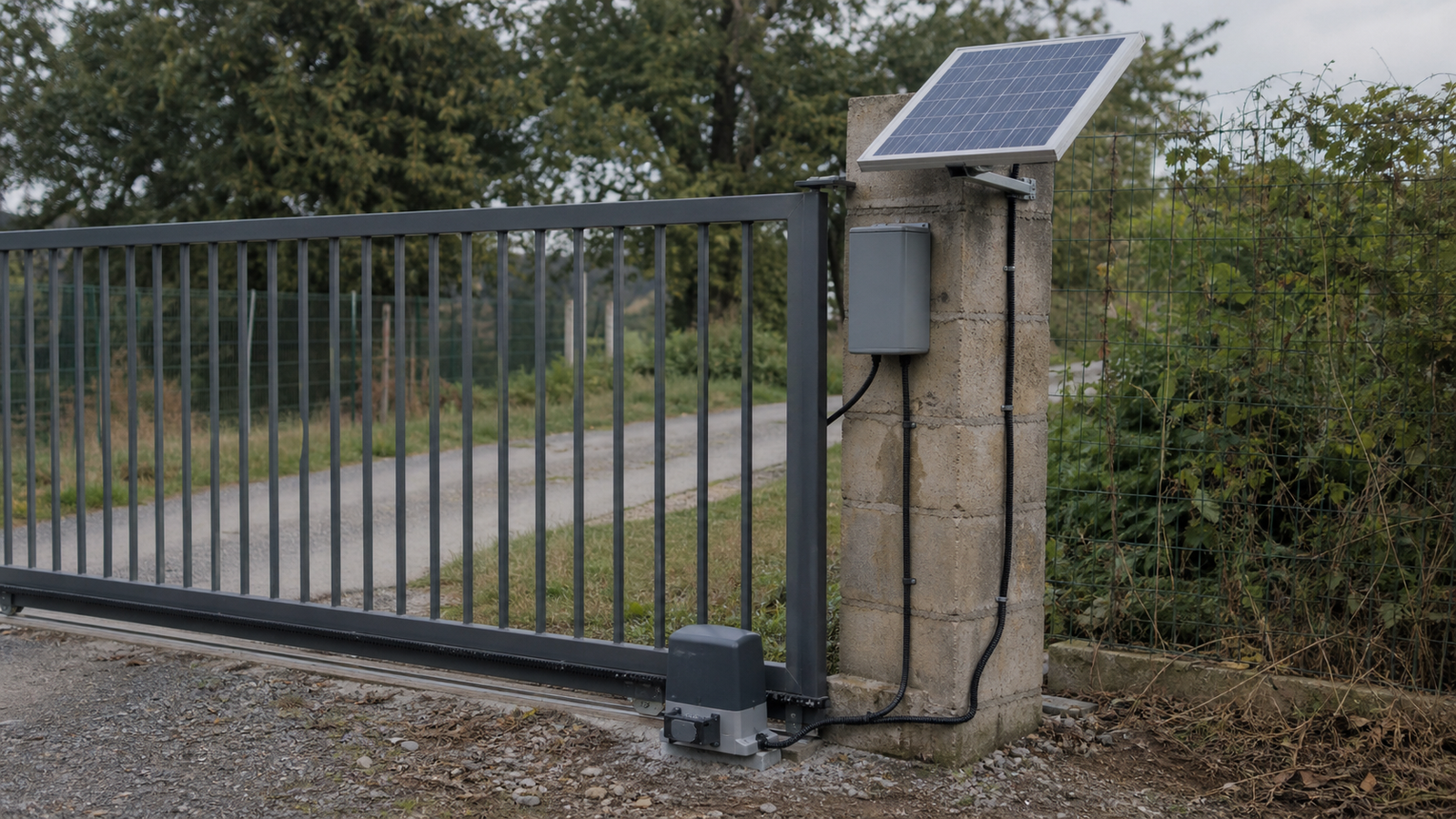

Aim for the spot with the most all-day, unshaded sun and the least vandalism exposure. Gate motors usually sit on a pillar or post, so the panel rarely has to travel far.
- Gate pillar / column top: best when the pillar clears shrubs and gateposts; keeps wiring short and the panel above tampering reach.
- Nearby fence-top or dedicated post: use when the pillar is shaded; raise the panel to clear hedges and parked vehicles.
- Building or wall above the gate: good security, but confirm the run length so voltage drop stays low.
Tilt the panel toward the equator (south in the northern hemisphere) at roughly your latitude angle, and keep it off the ground to deter theft and shading.
Match panel Vmp to the battery
Pick a panel whose Vmp comfortably exceeds the opener battery's nominal voltage so the controller can still charge in heat and low light. Gate openers typically run a 12V or 24V battery.
| Opener battery | Typical panel Vmp (estimate) |
|---|---|
| 12V system | ~17-22 V |
| 24V system | ~34-44 V |
These are general engineering ranges; confirm exact Vmp and your controller type (PWM vs MPPT) per project, since MPPT tolerates a wider panel-voltage window.
Sourcing the right panel
We source mini solar panels through partner factories in the small-format sizes gate kits need. For OEMs building branded gate systems, we supply custom mini solar panels with tailored outlines, mounting holes, connector type, and Vmp tuned to your controller. Share your battery voltage and enclosure footprint and we will match a panel to it.
Controller, Battery & Weatherproofing
Match the charge controller to the gap between your panel voltage and battery voltage. A PWM controller works when the two are close (for example, a nominal 18V panel charging a 12V battery), while an MPPT controller earns its cost when the panel voltage runs well above the battery, in low light, or in cold weather.
- PWM: cheapest, fine for small panels closely matched to a 12V battery.
- MPPT: recovers more usable charge when the voltage gap is wide or sun hours are short; worth it for higher-latitude or shaded pillar sites.
Size the battery for two jobs at once: autonomy and motor surge. Autonomy covers the cloudy days when the panel produces little, while surge covers the brief high-current spike each time the gate motor starts.
| Factor | What it drives | Typical guidance |
|---|---|---|
| Daily cycles | Energy use (Wh/day) | Count open + close events, confirm per project |
| Autonomy | Days of reserve | 2-4 days typical; more in cloudy regions |
| Motor surge | Discharge headroom | Battery must deliver peak start current without sagging |
Keep the controller and battery in a sealed enclosure rated IP65 or IP67 for outdoor pillar mounting, stepping up to IP68 in flood-prone spots. IP65 resists rain and dust; IP67 adds protection where flooding or hose-down is a risk.
Cold climates need extra autonomy margin. Low temperatures cut usable battery capacity and slow charging, so add reserve days and confirm the battery chemistry is rated for your site's minimum temperature.
We source weatherproof controllers, batteries, and enclosures through partner factories and can supply matched kits per project spec. For powering small monitoring devices on the same off-grid setup, see our guidance on solar for IoT sensors.
B2B Sourcing Checklist & FAQ
Use this checklist to qualify a solar-powered gate opener kit before you commit to volume. It keeps your sizing assumptions defensible and your supplier vetting tight.
When you brief a supplier, ask for documentation against each line below. We source mini and small panels through partner factories, so we can pull these records on your behalf and confirm every figure per project.
- Enclosure rating: IP65 minimum for the panel junction box and controller; IP67 or IP68 where flooding or wash-down is likely.
- Compliance docs: CE and RoHS declarations for EU-bound shipments, with the test reports attached, not just a logo on the box.
- Quality system: ISO 9001 partner factory, so process control is auditable across production runs.
- Panel qualification: IEC 61215 design qualification for crystalline modules, confirming thermal-cycling and damp-heat survival.
- Spec caveat: Treat all wattage, Wh/day, and autonomy numbers as typical ranges until bench-confirmed against your exact opener and climate.
Send your opener model, daily cycle count, and install region to ding@linksolar.net, and we will spec a kit and quote from our mini solar panels range.
What size solar panel for a gate opener?
A typical residential gate opener pairs with a small panel in roughly the 10W-30W range plus a matched battery, depending on cycle count and sunlight hours. Light-duty single-gate jobs sit near the bottom of that range; high-traffic or dual-leaf openers in cloudy regions push toward the top. Size to worst-case winter sun, then confirm the final figure per project.
Can solar run a gate opener without mains?
Yes, a correctly sized solar panel and battery can run a gate opener fully off-grid with no mains connection. The battery carries the opener through nights and overcast spells, while the panel recharges by day. Build in two to three autonomy days so a stretch of bad weather does not strand the gate.
Where do I mount the panel?
Mount the panel on the gate post, a nearby pole, or a wall facing the midday sun with no shading from trees, fences, or the gate leaf itself. Tilt it toward the equator at roughly your latitude angle to maximize winter yield. Keep the cable run short to limit voltage drop between panel, controller, and battery.
