Solar Panel Rail Kit Supplier: 2026 B2B Sourcing Guide (How to Vet, Compare, and Order)

What Is a Solar Panel Rail Kit and When Do You Need One?

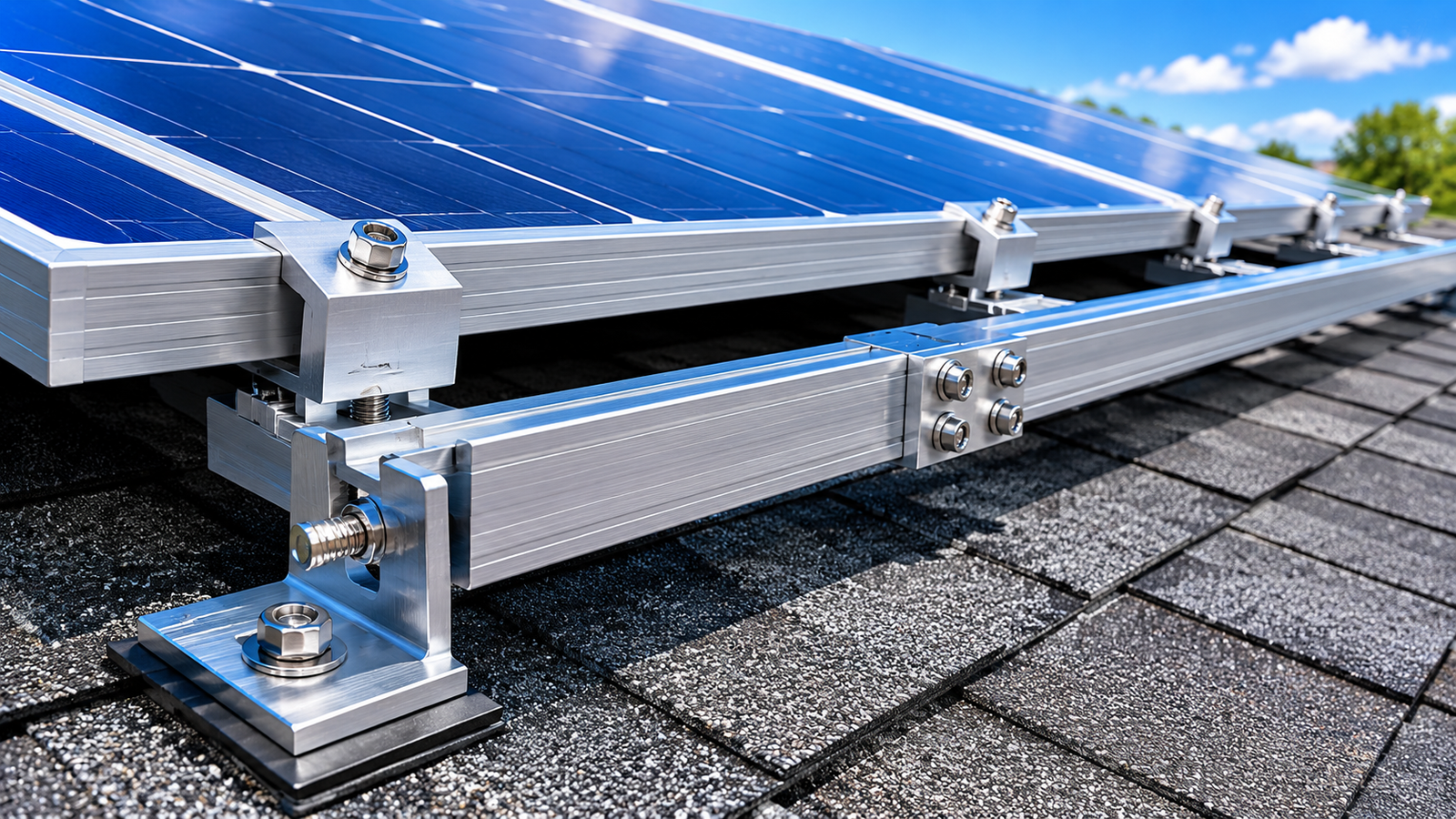

A solar panel rail kit is a packaged mounting system built around two parallel aluminum rails that span a roof or pole, with mid-clamps and end-clamps that secure the panels to the rails. A complete kit ships with the rails (typically anodized 6005-T5 or 6063-T6 aluminum extrusion), mid- and end-clamps sized for the panel frame thickness, splice connectors for joining rail sections, end caps, grounding lugs, and the appropriate roof attachment hardware (lag bolts for shingle roofs, L-feet for trapezoidal metal, or pole adapters for ground-mount applications).

Rail kits are the right choice when you're mounting two or more panels in a continuous array, when you need to hit a specific tilt angle, or when the local wind/snow load profile demands distributed load transfer rather than the point-load-only design of Z-brackets. For single-panel installs on RVs, sheds, or small remote enclosures, a Z-bracket kit is faster and cheaper. For arrays, anything serious enough to need a permit, or any commercial-grade install, rails are the standard.

We sourced and shipped over 80,000 rail kit assemblies in 2025 across our solar panel bracket and mounting catalog — including the 11.81 inch trapezoidal rail kit for metal roofing and the mini rail set for compact panels — and the patterns separating buyers who reorder from buyers who go silent are remarkably consistent. This guide walks through them.

Rail Kit vs Z-Bracket vs Tilt Mount: Which Mounting System for Which Application

The mounting system decision is mostly downstream of three variables: array size, surface type, and adjustability requirement. The matrix below is the version we hand to integrator customers when they're spec'ing a project:

The cheap-but-tempting option for distributors and small integrators is to standardize on Z-brackets for everything. It's a false economy: Z-brackets concentrate load at four screw points, and on anything larger than a 100W panel in a high-wind site, the failure mode is a panel tearing loose at the windward edge. Rail kits distribute load along the entire panel frame and ship with documented wind/snow load test data. For any commercial install — let alone any installation where insurance or building permits are involved — that documentation is what closes the project.

The 7 Specs B2B Buyers Should Filter Suppliers By

Spec sheets from low-end and audit-grade suppliers look almost identical at the line-item level. These seven items are where the differences live, and where the field-failure data sits:

1. Aluminum alloy & temper. 6005-T5 or 6063-T6 anodized extrusion is the standard. "Aluminum alloy" without an alloy spec is a red flag — some low-cost rails are zinc-aluminum die-cast (commonly called "pot metal"), which looks identical after sandblasting but cracks at bend radii under load. A magnet test won't tell you the difference; an ASTM E1251 spectrometer reading on a sample is the only reliable check.
2. Anodization thickness. Class II anodization (≥18 microns) for marine and coastal environments; Class I (≥10 microns) is fine for inland residential. Below 8 microns is a corrosion problem within 18–24 months. Most wholesale suppliers don't list anodization class on the public datasheet — ask for it explicitly in the RFQ.
3. Hardware metallurgy. 304 stainless steel for the bolts, nuts, washers, and grounding hardware — never carbon steel with zinc plating. Plated carbon steel rusts within one season at the bolt heads, especially where galvanic contact with aluminum is unprotected. Audit-grade kits include EPDM or stainless lock washers at every bolt point.
4. Clamp range. Mid-clamps and end-clamps are sized to specific panel frame thicknesses — typically 30–35 mm or 35–40 mm. A clamp that "fits all panels" usually means it doesn't seat properly on any of them. Specify the panel frame thickness in your RFQ; a serious solar panel rail kit supplier will ship clamps matched to your panel SKU rather than a one-size compromise.
5. Wind/snow load test data. Non-negotiable for commercial. IEC 61215 minimum test load is 50 PSF (2400 Pa). High-wind regions (Florida, Gulf Coast, IBC zone 4) demand documented capability up to 112 PSF (5400 Pa). Ask for the test report from a recognized lab (TÜV, UL, Intertek), not a self-declared spec sheet.
6. Grounding path certification. UL 2703-listed kits have a documented grounding path through the rails and clamps — the panel frame is electrically bonded to the rail without a separate ground wire to each panel. Without UL 2703, your installer has to run a continuous bare copper ground wire to every panel (slow, expensive, fragile). For US-permitted installs, UL 2703 is becoming a requirement, not a nice-to-have.
7. Splice and seal kit completeness. Long arrays need rail splices to bridge 4-meter rail sections; flat or shingle-roof installs need flashing + sealant kits. Suppliers shipping bare rails without splices or flashing are externalizing the integration cost. Audit-grade suppliers ship a complete BOM in one box.

A reasonable rail kit supplier will answer all seven questions on the first call. A supplier who deflects on alloy spec, anodization class, or wind load test data is signaling the answers — and the implications are not in your favor.

Wholesale Pricing & MOQ Tiers in 2026

Wholesale pricing for rail kits in 2026 sits in three tiers, mostly driven by aluminum spec, hardware metallurgy, and certification level. Numbers below reflect FOB China, MOQ 500 units, standard packaging — what you'd see on a typical solar panel rail kit supplier RFQ:

Three buyer-side levers actually move price meaningfully:

1. Rail length and packaging. Stock-length 4.2 m rails are the cheapest per-meter; cut-to-length adds $0.40–$1.20 per cut depending on volume. For container-shipped projects, telescoping or splice-able rails reduce LCL volume and shipping cost more than per-piece price.
2. Hardware bundling. Suppliers shipping rails-only with hardware sold separately can post a lower headline price; total landed cost is usually 20–30% higher once the buyer specs and orders matched fasteners, end-caps, and grounding hardware separately. Always quote the complete BOM.
3. Certification scope. UL 2703 listing adds $4–$8 per kit at MOQ 500 — driven by per-kit certification fees and traceable lot tracking. For commercial-permitted installs, the UL premium is paid back on the first install through reduced grounding labor.

Vetting a Solar Panel Rail Kit Supplier: 8-Item Audit Checklist

The single highest-leverage step in any rail kit sourcing project is the supplier audit. The eight items below are what we use when evaluating new manufacturing partners — and what serious procurement teams use when vetting incoming suppliers. Each item is binary: pass or fail.

1. Current ISO 9001 certificate from a recognized body. TÜV, SGS, BV, or DEKRA. Audit reports older than 12 months from a no-name body are a dodge. ISO 9001 is table stakes — suppliers without it typically can't service enterprise procurement at all.
2. Independent material test report on aluminum extrusion. An ASTM E1251 spectrometer reading or equivalent, dated within the last 12 months, on a sample from the actual production run. "Material certificate" from the extrusion vendor is acceptable as a starting point, but a third-party recheck is standard for high-value orders.
3. UL 2703 listing or written timeline to obtain it. If the supplier is mid-listing, they should produce a TÜV or UL test report and a clear date. If they say "we can do UL on request" without a price or timeline, the answer is no.
4. Wind/snow load test report from a recognized lab. Test method, lab name, date, and PSF rating documented in writing. Self-declared specs without a lab name are not test data — they're marketing copy.
5. Reference customers in your geography. Three customer names with contact permission, ideally in your country. A rail kit ordered for the US market is going to encounter inspector questions a Chinese-domestic-only supplier hasn't seen — you want a supplier whose existing customers have already worked through those questions.
6. Sample turnaround under 10 days. A serious supplier ships a sample of an existing SKU within 5–7 days and a customized sample within 10 days. Anything slower is either a capacity signal or a sign that "manufacturer" is actually a trading-only operation.
7. Detailed packaging list and HTS classification. Per-pallet weight, dimensions, and HTS codes for customs. Suppliers who can't produce this on day one have never shipped to your destination country. Surprises at the port get expensive fast.
8. Written escalation protocol for warranty claims. What happens if 5% of a 5,000-unit shipment shows anodization pitting at month 18? A serious supplier has a written policy. A risk supplier has "case-by-case" — which means whatever ad-hoc decision they make the day you call.

For larger procurement projects, supplement this checklist with a factory visit (in person or via live-streamed factory walk) before the production order. The 90-minute video call costs nothing; the 5,000-unit miss-spec it can prevent is a different story.

Custom OEM & Private Label: Solar Panel Rail Kit OEM Workflow

About 40% of B2B rail kit orders involve some level of customization — extruded length cut to a non-standard dimension, branded silkscreen or laser-etched logo on the rail, custom panel-clamp range, or a private-label-packaged kit with the buyer's branded box and instruction sheet. The realistic OEM workflow for a solar panel rail kit OEM order:

1. Day 0 — RFQ. Send panel SKU (or frame thickness), array size and target rail length, target FOB unit price, MOQ, and target ship date. Include a photo of the roof or mounting surface if non-standard.
2. Day 1–2 — Quote with multi-tier pricing. 24–48 hours for a quote across MOQ tiers (500 / 1,000 / 2,000 / 5,000 units). Anything slower is a vendor capacity signal.
3. Day 3–7 — Sample build. Standard SKU with logo or cut-to-length: 3–5 days. Custom clamp range or non-standard rail profile: 8–10 days plus tooling cost amortization on first 500 units.
4. Day 7–10 — Sample delivered. Express courier worldwide. Buyer inspects, fit-checks against actual panels, ships any non-conformance back.
5. Day 10–21 — Sample approval, PO, and production scheduling.
6. Day 21–45 — Production. Anodizing is the bottleneck on tight schedules — the surface treatment cycle is 6–10 days at a Class II thickness. Plan accordingly.
7. Day 45–65 — Ocean freight FOB to US/EU port. LCL takes longer than FCL but consolidates better for orders below 12 cubic meters.

Customer case study & deployment: telecom integrator, 4,000-kit standardization order

A telecom infrastructure integrator came to us in late 2025 needing to standardize their off-grid microcell solar enclosures. Their previous mounting vendor had been shipping mill-finish 6063 rails with plated steel hardware. After 18 months in coastal Florida deployments, anodization-free rails were showing visible white-rust corrosion at all bolt contact points, and three site visits had been triggered by panel-clamp slippage on rails that had warped under sun-cycle thermal expansion. We re-spec'd to UL 2703-listed Class II anodized 6005-T5 rails with 304 stainless hardware and matched mid-clamps for the integrator's specific panel SKU. Sample shipped in 8 days, the 4,000-kit production order shipped in 32 days. The integrator standardized the SKU across their 280-site rollout, and their post-install warranty rate on mounting-related issues dropped from 7% to under 1% in the first 12 months — driven entirely by the alloy spec, the hardware change, and the matched-clamp dimension.

Certifications & Standards: IEC 61215, UL 2703, ISO 9001

For B2B procurement entering the US, EU, AU, or government-spec market, four certifications matter:

• UL 2703 — Standard for Mounting Systems, Mounting Devices, Clamping/Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels. Covers structural strength, fire classification, electrical bonding/grounding path, and environmental load. The defining standard for any commercial-grade mounting system in the US market.
• IEC 61215 — Terrestrial PV module design qualification — referenced for wind/snow load test methods. Mounting kit suppliers cite IEC 61215-style mechanical load test data even though the standard itself targets the panel.
• ISO 9001 — Quality management system audit at the manufacturing facility. Required by enterprise procurement before any pricing discussion. Verify the certificate is current (within 3 years) and from a recognized accreditation body.
• RoHS & REACH — Restriction of hazardous substances. EU compliance required, increasingly demanded in US enterprise and government procurement.
• IP67 / IP68 for integrated junction boxes — Rails themselves are mechanical, not ingress-rated. But many rail-kit suppliers also ship integrated cable management or junction boxes. For coastal, marine, or sub-grade applications, demand IP67 minimum on any electrical component bundled with the rail kit; step up to IP68 for sustained immersion exposure.

Some buyers searching for rail kits also evaluate Z-bracket alternatives for smaller deployments. For volume Z-bracket sourcing — z bracket solar panel wholesale, z bracket solar panel oem, z bracket solar panel supplier, or z bracket solar panel bulk orders — the same audit checklist applies, with one addition: Z-bracket lift-off failure under high wind is the dominant field issue, so the wind load test data line is non-negotiable. Volume buyers running z bracket solar panel manufacturer evaluations should pay particular attention to alloy spec and screw-pull-out test reports.

Common Sourcing Mistakes (and How to Avoid Them)

1. Buying on headline price without total landed cost

The cheapest rail kit on a marketplace is almost always the most expensive at the install site once you add hardware (sold separately), missing splice connectors, no flashing, and the 30–40 minute per-panel installer overhead caused by bad clamp design. Calculate total landed cost: kit price + ancillary BOM + estimated install labor delta + RMA reserve. The audit-grade kit often wins on this number even if it's 2× the headline price.

2. Ignoring local wind/snow load codes

The IEC 61215 50 PSF default doesn't cover all US installations. Florida coastal: design for 112 PSF or higher. Mountain West snow zones: ground snow load can exceed 60 PSF before drift effects. Permitting fails on under-spec'd mounting more than on under-spec'd panels.

3. Mixing aluminum alloys with bare steel hardware

Galvanic corrosion at the bolt contact point — the fastest-failing interface in any outdoor mounting system. EPDM washers, stainless lock washers, or bonded EPDM-stainless combo washers at every bolt point. Plated carbon steel against aluminum without isolation is a 24-month failure mode in any humid or coastal climate.

4. Trusting "Class I anodized" labeling without thickness data

Anodization class without thickness measurement data is unverifiable. Ask for a Eddy current thickness test report or a microscopic cross-section on a production sample. The difference between 8-micron and 18-micron anodization isn't visible — it shows up after the first salt-fog season.

Frequently Asked Questions

What's the difference between a solar panel rail kit and a Z-bracket kit?

Short answer: A rail kit uses two parallel aluminum rails with mid- and end-clamps to distribute load along the panel frame. A Z-bracket kit uses four point-load brackets at the panel corners. Rail kits handle higher wind loads and support multi-panel arrays; Z-brackets are cheaper for single-panel installs on RVs, sheds, or small enclosures.

Where can I buy a solar panel rail kit at wholesale?

Short answer: Direct from a solar panel rail kit supplier with documented UL 2703 listing, IEC 61215 wind/snow load test reports, and ISO 9001-certified manufacturing. Marketplace generalists list lower headline prices but typically ship mill-finish 6063 with plated steel hardware that fails coastal or commercial inspections. Contact us for MOQ-tiered pricing on stock and OEM rail kits.

What's the minimum order quantity for a custom rail kit?

Short answer: 500 units for modifications inside existing tooling (cut-to-length, silkscreen, custom clamp range from existing dies). 2,000 units for a custom rail profile requiring new extrusion tooling. Below 500 units, tooling and engineering setup dominate the unit cost — at that scale, a stock SKU with optional add-ons usually beats a true custom run.

Are aluminum rails better than steel rails for solar panel mounting?

Short answer: Aluminum (specifically 6005-T5 or 6063-T6 anodized) is the industry standard for above-ground PV mounting — the strength-to-weight ratio supports long spans without ballast, and properly anodized aluminum doesn't corrode in coastal environments. Steel rails appear in some ground-mount and utility-scale applications, but for residential, commercial rooftop, and small ground-array installs, aluminum is dominant.

How long do solar panel rail kits last?

Short answer: Class II anodized aluminum rails with 304 stainless hardware run 25+ years in inland environments and 15–20 years in coastal/marine environments before any visible degradation. Mill-finish unanodized rails or rails with plated steel hardware show visible corrosion within 18–36 months in humid climates. Most failures are bolt-point galvanic corrosion, not extrusion failure.

Is UL 2703 listing required for residential solar installs?

Short answer: In most US jurisdictions, yes — for any system that connects to the utility grid and pulls a permit. UL 2703 covers the structural and electrical bonding requirements of the mounting system. Off-grid residential installs in some rural counties don't require UL 2703, but commercial, ITC-eligible, and net-metered installs almost always do.
