What Is Solar Power for a 4G LTE Gateway?

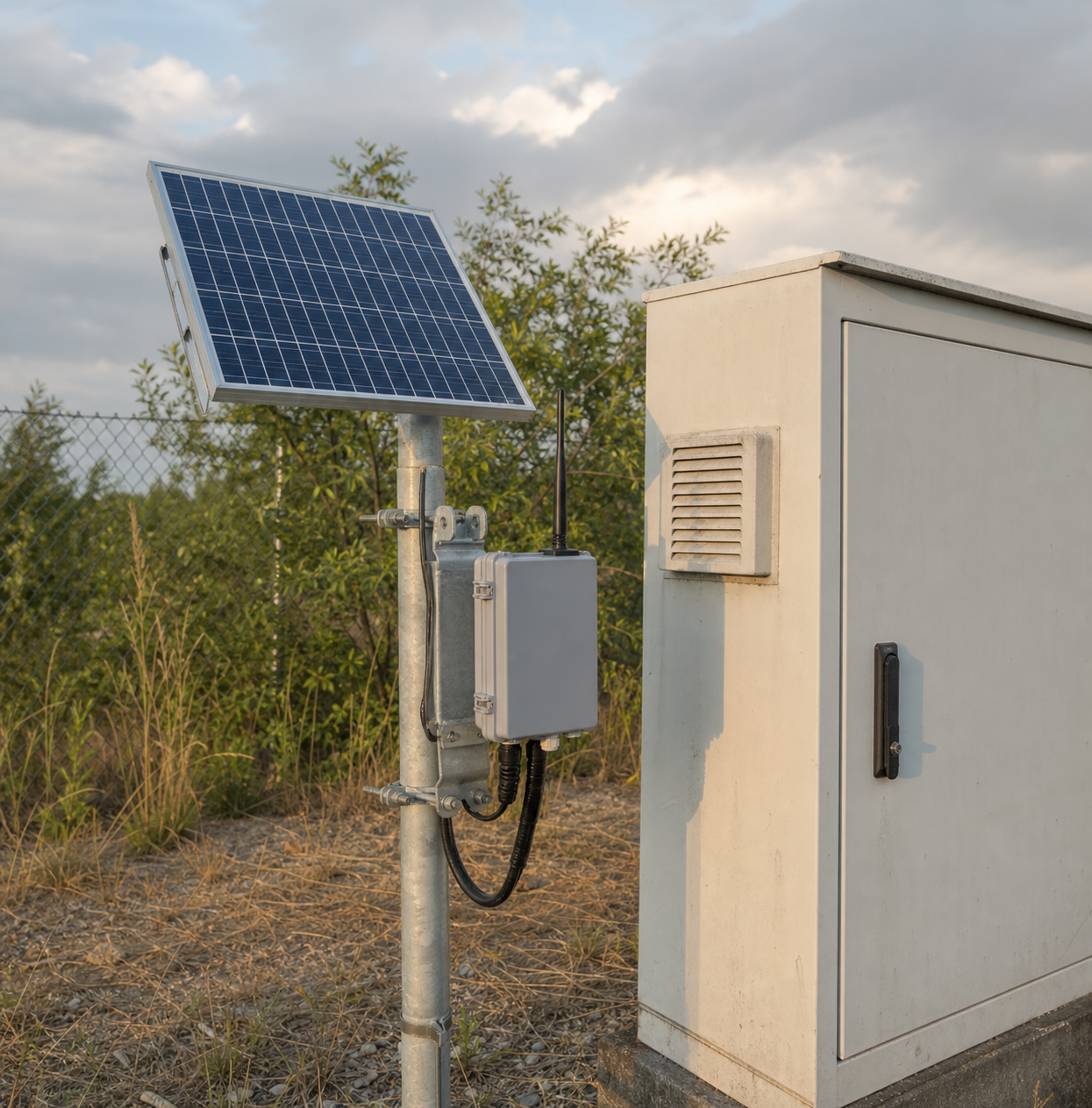

A solar power system for a 4G LTE gateway is a panel + battery + MPPT-controller bundle designed to keep an outdoor cellular router or M2M gateway online across multi-month off-grid deployment. Typical panel range: 12W to 30W, voltage 12V, dimensions 320×190 mm to 540×360 mm, with IP67 cable assembly and integrated charge controller for the 12V LiFePO4 battery.
The category exists because cellular gateway power profiles dwarf typical IoT sensor draws. A 16-channel cellular gateway with continuous LTE uplink + Ethernet backhaul to attached sensors draws 15–35 Wh per day — 30× more than a LoRaWAN sensor. We've sourced panels for IoT sensor power systems across industrial cellular router deployments — utility SCADA, oil & gas remote monitoring, agricultural cellular gateways, and disaster-response private 4G networks. The lesson repeats: undersized panels brown out the cellular radio mid-uplink, triggering registration loops that drain the battery faster than the panel can replenish.
Power Profile by 4G LTE Gateway Type
| Gateway type | Use case | Daily Wh | Recommended panel |
|---|---|---|---|
| Compact M2M cellular router (USB-C) | Ad-hoc cellular bridge, 1 sensor | 3–6 | 5W @ 5V USB-C PD |
| Outdoor cellular router with hourly uplink | Asset monitoring, low-rate telemetry | 8–12 | 10–12W MPPT @ 12V |
| Industrial cellular gateway with always-on LTE | Continuous data backhaul | 15–25 | 15–20W MPPT @ 12V |
| Carrier-grade 4G/5G NR private network gateway | Enterprise private cellular | 25–35 | 30W MPPT @ 12V + 50 Ah LiFePO4 |
| Cellular + Ethernet hub for sensor cluster | Smart-city node aggregation | 15–30 | 20W MPPT @ 12V + 30 Ah LiFePO4 |
The 7× spread between compact M2M router (3 Wh/day) and carrier-grade private network gateway (35 Wh/day) is why sizing without measuring backhaul mode + sensor cluster size wastes BOM cost on either end. Source: LinkSolar 2024–2025 deployed-fleet telemetry across industrial cellular projects.
Critical Specs for 4G LTE Gateway Solar
- Cell technology. Monocrystalline silicon; SunPower IBC for premium where panel area is constrained. 3–5 percentage points more efficient per NREL benchmark.
- Encapsulation laminate. ETFE for outdoor — 8–12 year UV resistance vs PET's 2–3 year yellowing window.
- Short-circuit current (Isc) headroom — critical for 4G LTE. Cellular radios pull 1.5–2.5A peak during cell registration. Panel Isc must exceed peak with 25% margin (12V system needs Isc ≥3.5A). Stock 1A-Isc panels starve the radio.
- MPPT controller integration. 12W+ panels need MPPT — 97.5% conversion efficiency vs PWM's 75–80%. On a 20W panel, that's 4–5W difference daily, the line between "running through January" and "brown-out by November."
- Voltage regulation. Native 12V matched to LiFePO4 charge IC skips DC-DC buck stage, saving 5–10% across deep-sleep gateway cycles.
- Voc margin. Voc ≤1.4× battery nominal voltage. 12V LiFePO4 takes panel Voc ≤17V. Cold-temp rise: 0.4%/°C below STC.
- Cable + connector waterproof rating. Panel IP67 + matched M8/M12 industrial connector. Gateway housing cable gland must match.
For deployment integration with outdoor security and monitoring solar systems, see our solar security camera systems hub and remote solar power system reference designs.
Sizing Workflow + 3× Margin Rule
The honest sizing rule for any outdoor 4G LTE gateway: panel daily harvest ≥ 3× device daily consumption, where harvest assumes 3 hours of effective sunlight (the conservative case for utility cabinet pole mounts shaded by trees, parking-lot installations behind buildings, or northern winter sites).
Two sizing shortcuts:
- Measure actual gateway draw with a 12V power meter for 24 hours. Vendor "typical current" specs are best-case lab data with backhaul radio off. Inline meter readings run 1.5–2.5× higher for cellular gateways.
- Measure burst current with oscilloscope. Cellular registration bursts last 100–500 ms but reach 2.5A. Stock current meters miss them. Spec your panel Isc against measured burst current, not average draw.
Wholesale Pricing & MOQ Tiers in 2026
| Tier | MOQ | Per-unit FOB (15W MPPT) | Tooling amortization |
|---|---|---|---|
| Sample / pilot | 10–100 | $35–$65 | None |
| Stock-customization | 500–2,000 | $22–$30 | $200–$1,200 spread |
| True wholesale | 2,000–10,000 | $17–$22 | Fully amortized |
| Strategic OEM | 10,000+ | $13–$17 | Custom tooling included |
Three buyer-side levers move price meaningfully:
- Cell choice. SunPower IBC vs standard mono drops 30–40% but cuts efficiency 3–5 percentage points.
- MPPT controller integration. Bundled MPPT adds $5–$10/unit at 15W tier but recovers 15–20% extra energy across deployment.
- MOQ. Price elbow at MOQ 500 → 2,000.
Deployment Environments
Utility SCADA cellular gateway
Pole-mount or cabinet-mount with 4G LTE backhaul to control center. NDAA Section 889 compliance critical. UL 2703 certification needed for permitted commercial mounting. 20W+ MPPT panel with 50 Ah LiFePO4 typical.
Oil & gas remote monitoring
Wellhead or pipeline cellular telemetry gateway. ATEX / IECEx certification may apply for hazardous-area zones. Marine-grade salt-fog testing for offshore platforms. Spec 316L stainless connector hardware and ETFE laminate.
Agricultural cellular gateway
Field-mount cellular gateway aggregating in-field sensors via Ethernet or RS485. Lower vibration than utility, but UV-saturated open field. ETFE laminate non-negotiable for 8+ year service life.
Disaster-response private 4G/5G NR gateway
Portable enclosure with redundant cellular uplink for emergency network deployment. Often paired with foldable solar panel + Li-ion power station rather than fixed battery. 30–60W foldable solar panel with USB-C PD output.
OEM Sourcing & 8-Item Vetting Checklist
- Current ISO 9001:2015 certificate from a recognized body (TÜV, SGS, BV, DEKRA).
- IEC 61215:2021 test report from accredited lab covering 200 thermal cycles, 1,000 hours damp heat, mechanical load.
- RoHS & REACH compliance documentation.
- NDAA Section 889 statement — required for US federal utility, defense, and critical-infrastructure cellular networks. Section 889 enacted 2019.
- FCC Part 15 / CE marking for bundled MPPT controller and any RF-emitting electronics.
- Sample turnaround under 10 days for stock-tooling modifications.
- Reference cellular customers in your geography — three customer names with contact permission.
- Detailed packaging list and HTS classification for customs clearance.
Cross-cluster sourcing — same audit framework applies
The 8-item supplier audit applies beyond 4G LTE gateway solar to the broader LinkSolar B2B sourcing catalog. Volume buyers running parallel evaluations on z bracket solar panel wholesale orders, z bracket solar panel oem programs, z bracket solar panel manufacturer audits, z bracket solar panel supplier comparisons, z bracket solar panel bulk container loads, mini solar panel for iot custom voltage tap, mini solar panel for iot wholesale tier pricing, mini solar panel for iot oem branding, mini solar panel for iot supplier vetting, mini solar panel for iot manufacturer reference checks, z bracket solar panel china OEM sources, z bracket solar panel for sale at retail tier, z bracket solar panel price benchmarking, z bracket solar panel best-in-class manufacturer identification, or z bracket solar panel review aggregations all use the same ISO 9001 + IEC 61215 + lab test report framework. The cluster differs; the audit doesn't. For permitted commercial mounting installations, also demand UL 2703 certification.
Customer case study: oil & gas SCADA integrator
A US oil & gas cellular SCADA integrator came to us in late 2024 needing 400 outdoor 20W MPPT solar panels for wellhead telemetry gateway rollout in West Texas. Their previous vendor had shipped 12W PET-laminated panels with PWM controllers. By month 6, 23% of gateways reported "battery low" alerts during summer monsoons (when cellular registration bursts spiked due to LTE band congestion) — traced to undersized panels (12W couldn't sustain continuous LTE backhaul + sensor scan + cellular re-registration loops) plus PET yellowing already starting at 60°C wellhead cabinet temps. We re-spec'd to 20W SunPower IBC panels with ETFE laminate, integrated MPPT controller, and 12V LiFePO4-matched output with 4A Isc burst capacity. Sample shipped in 9 days; 400-unit order delivered in 28 days. As of 2026 Q1, gateway uptime climbed from 78% to 99.6% across the deployed network.
Common 4G LTE Gateway Solar Failure Modes
1. Panel Isc below cellular burst current
The #1 4G LTE gateway failure: 1A Isc panel on a gateway whose cellular radio peaks at 2.5A. The radio starves mid-handshake, fails registration, loops endlessly trying to re-register, and the loop drains the battery faster than the panel replenishes. Fix: spec Isc ≥3.5A for 12V systems supporting LTE backhaul.
2. PWM controller on 12W+ panel
Budget PWM wastes 20–25% of panel output vs MPPT. On a 20W panel, that's 4–5W lost — enough to push the daily harvest from "barely enough" to "brown-out by November." Spec MPPT for any panel 12W and above on a cellular gateway.
3. Cable gland ingress at gateway housing
Panel laminate is rated IP67. Gateway housing cable gland is rated IP54 — or, more often, not rated. Water shorts the gateway in 6–9 months. Spec waterproof connectors at the BOM stage.
4. PET laminate at high cabinet temps
Wellhead cabinets, transformer enclosures, and equipment housings hit 50–65°C ambient cell temp. PET laminate at those temps yellows in 12–18 months instead of 2–3 years. ETFE adds $1–$3/unit but is mandatory for high-temp deployments.
Need a sample on your bench by next week?
Send gateway model, backhaul mode, and target wattage. We’ll quote within 24 hours and ship a sample in 7 days.
Request RFQ →Frequently Asked Questions
What size solar panel does a 4G LTE gateway need?
Short answer: Industrial cellular router with continuous uplink: 15–25W MPPT at 12V with 30 Ah LiFePO4. Compact M2M gateway with hourly uplink: 8–12W MPPT at 12V. Carrier-grade 4G/5G NR private network: 30W+ MPPT with 50 Ah LiFePO4.
What's the burst current spec for 4G LTE gateway solar?
Short answer: Cellular radios pull 1.5–2.5A peak during cell registration. Panel Isc must exceed burst with 25% margin — 12V system needs Isc ≥3.5A. Stock 1A-Isc panels starve the radio mid-handshake.
What's the MOQ for OEM 4G LTE gateway solar panels?
Short answer: 500 units for stock-tooling modifications. 2,000 units for non-standard cell layouts.
What certifications matter for cellular gateway solar?
Short answer: IEC 61215:2021, IEC 60529 IP67, ISO 9001:2015 from a recognized body, FCC Part 15 for bundled MPPT controllers, NDAA Section 889 for US federal industrial cellular networks.
How do I match panel voltage to my 4G LTE gateway?
Short answer: 12V SLA or LiFePO4 gateway battery → 12V solar panel via MPPT controller, with Voc ≤17V. Compact router with USB-C PD: 5V/3A USB-C panel with PD negotiation.
Where can I source 4G LTE gateway solar panels at wholesale?
Short answer: Direct from a custom solar panel manufacturer with documented IEC 61215 + ISO 9001, voltage 5V–48V customization, IP67 connectors, ETFE laminate, and 12W+ MPPT-bundled options. Contact us for MOQ pricing.
