Solar Panel Clamp Kit for 1-5/8 in. Strut Channel, Black, 10-Piece

Product Overview

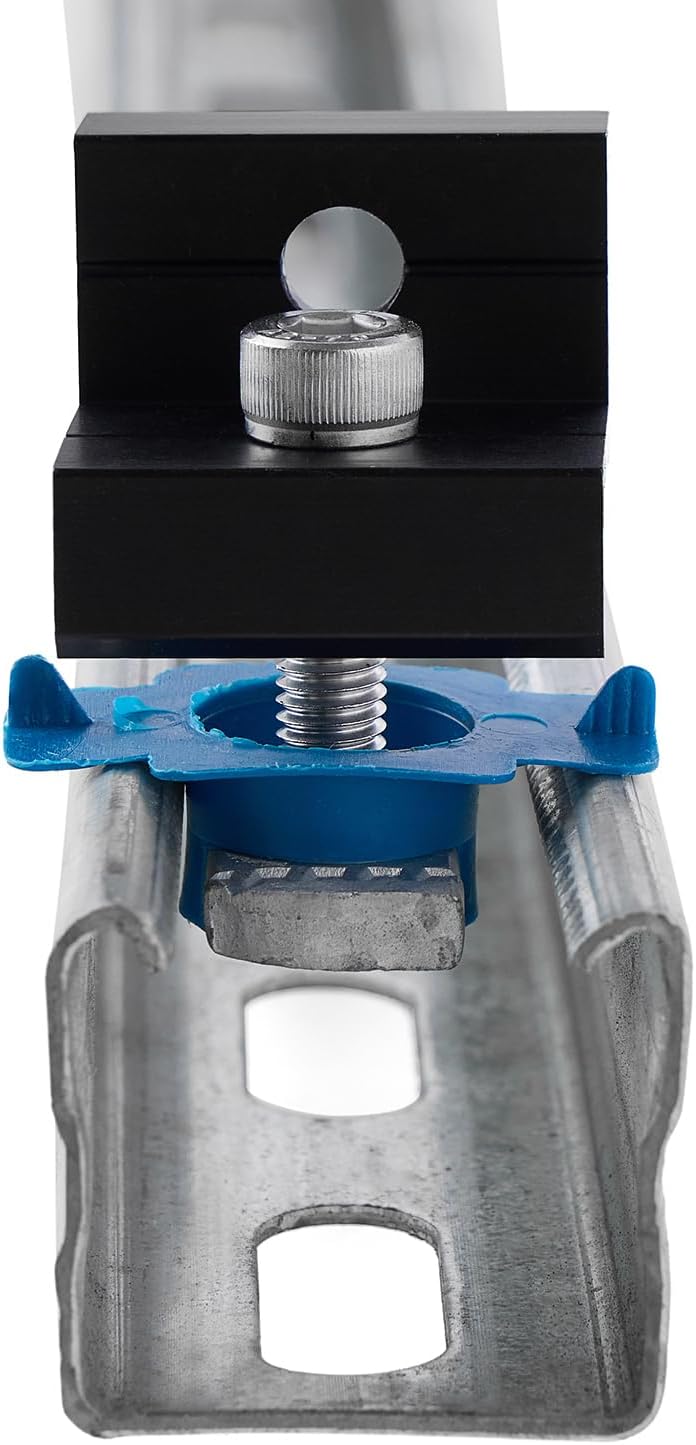

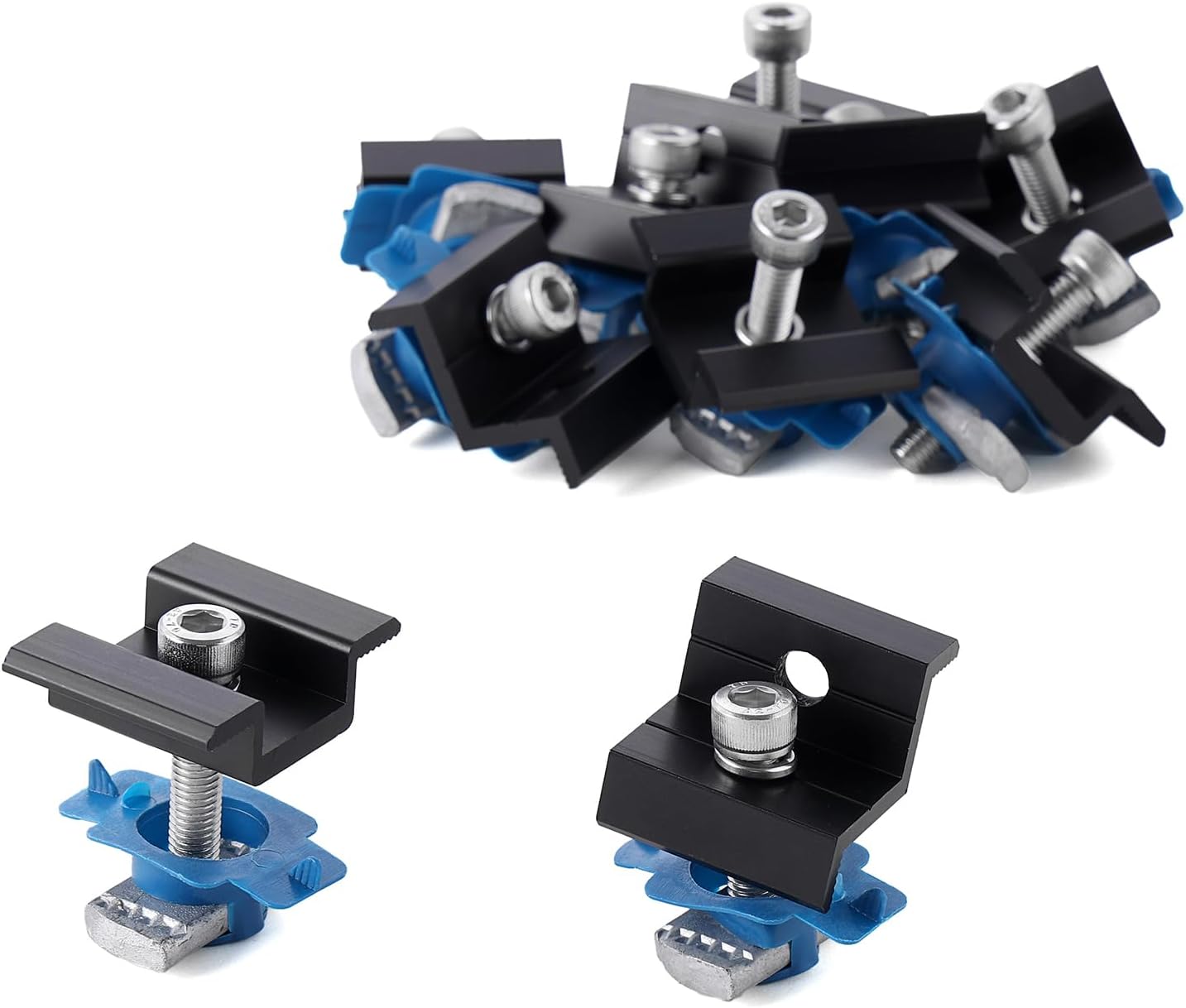

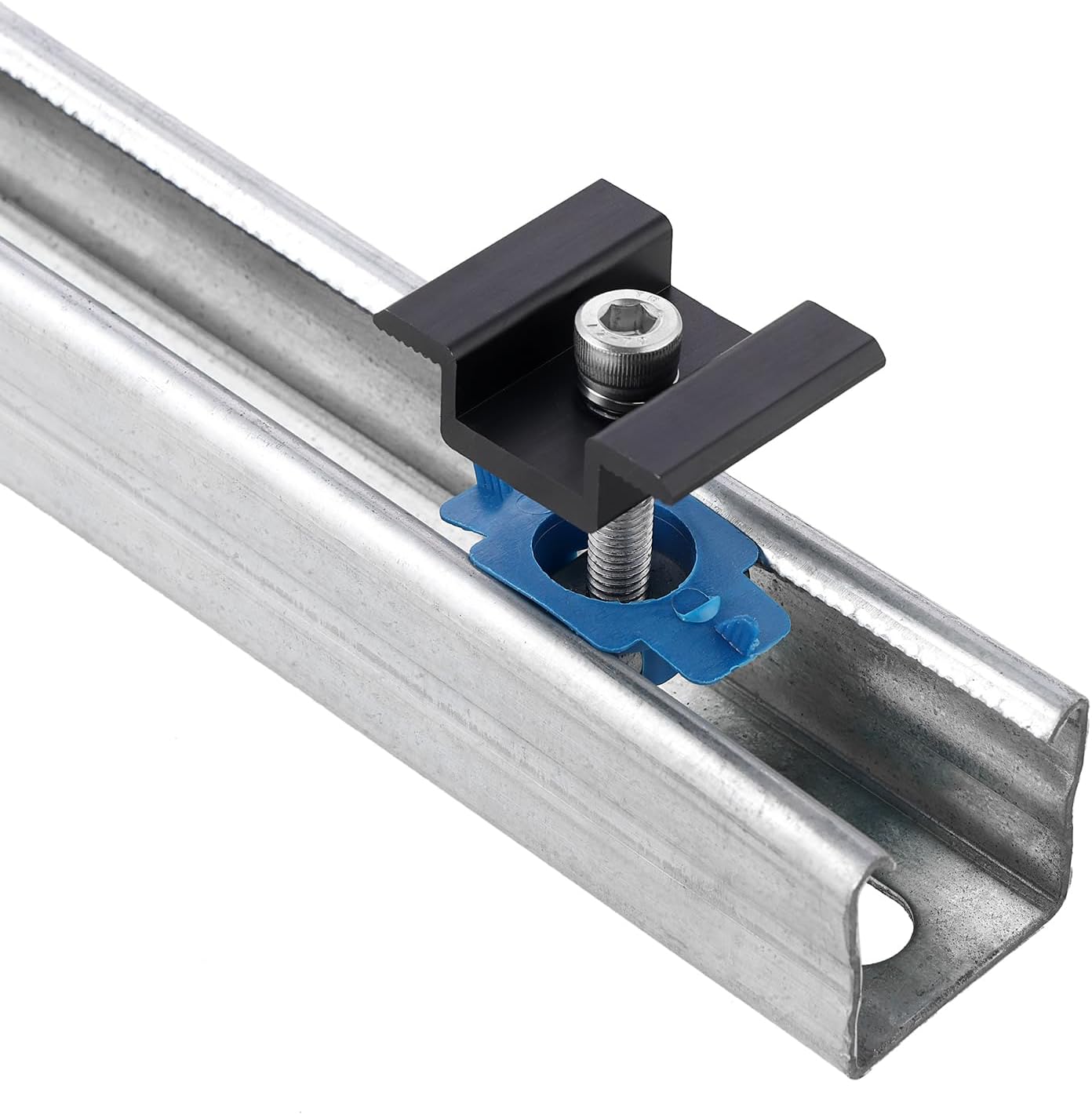

This solar panel clamp kit combines black mid and end clamps for securing a four-panel row to compatible 1-5/8-inch strut channels. The 10-piece set includes six mid clamps for adjacent module edges and four end clamps for the outside edges.

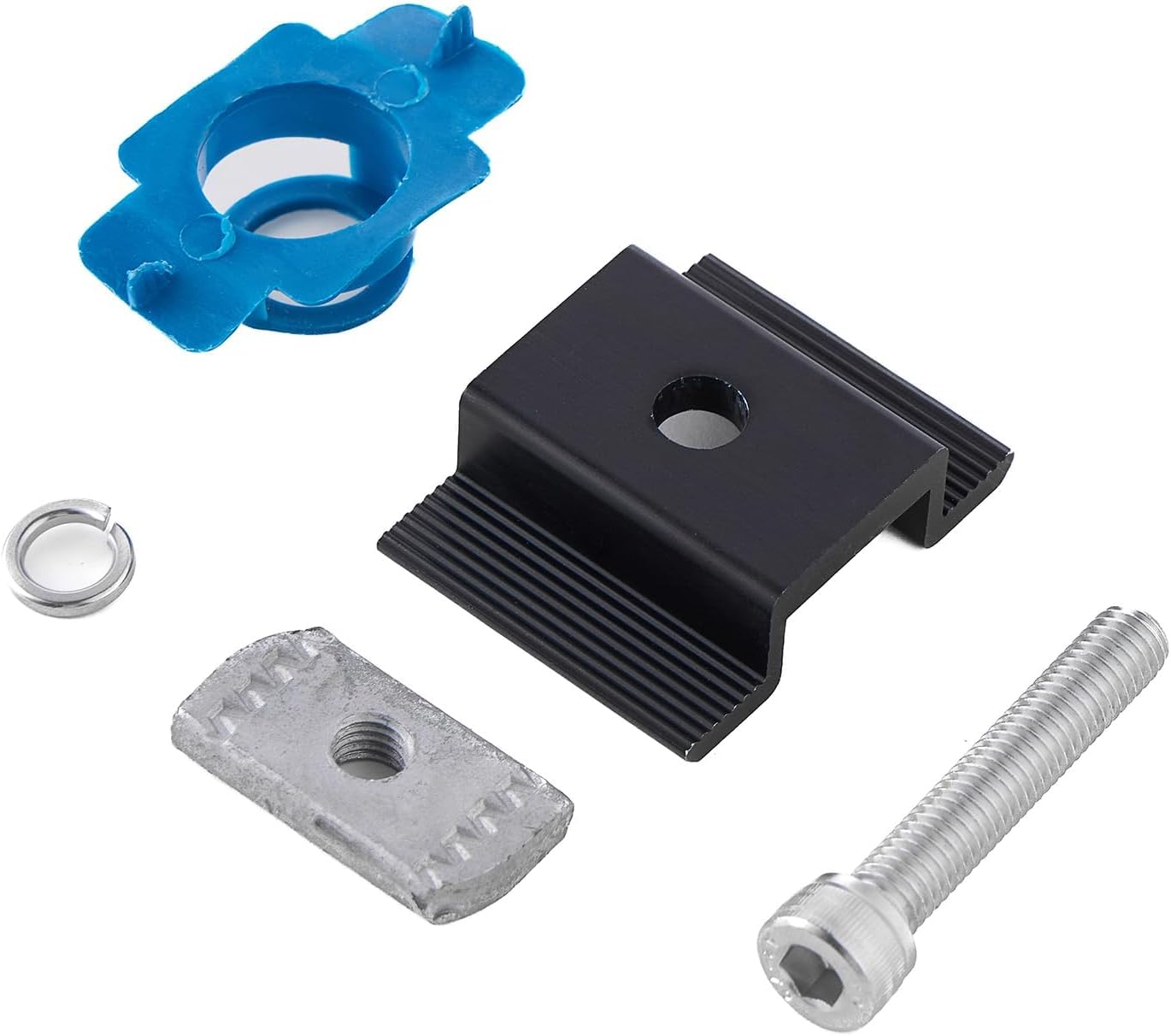

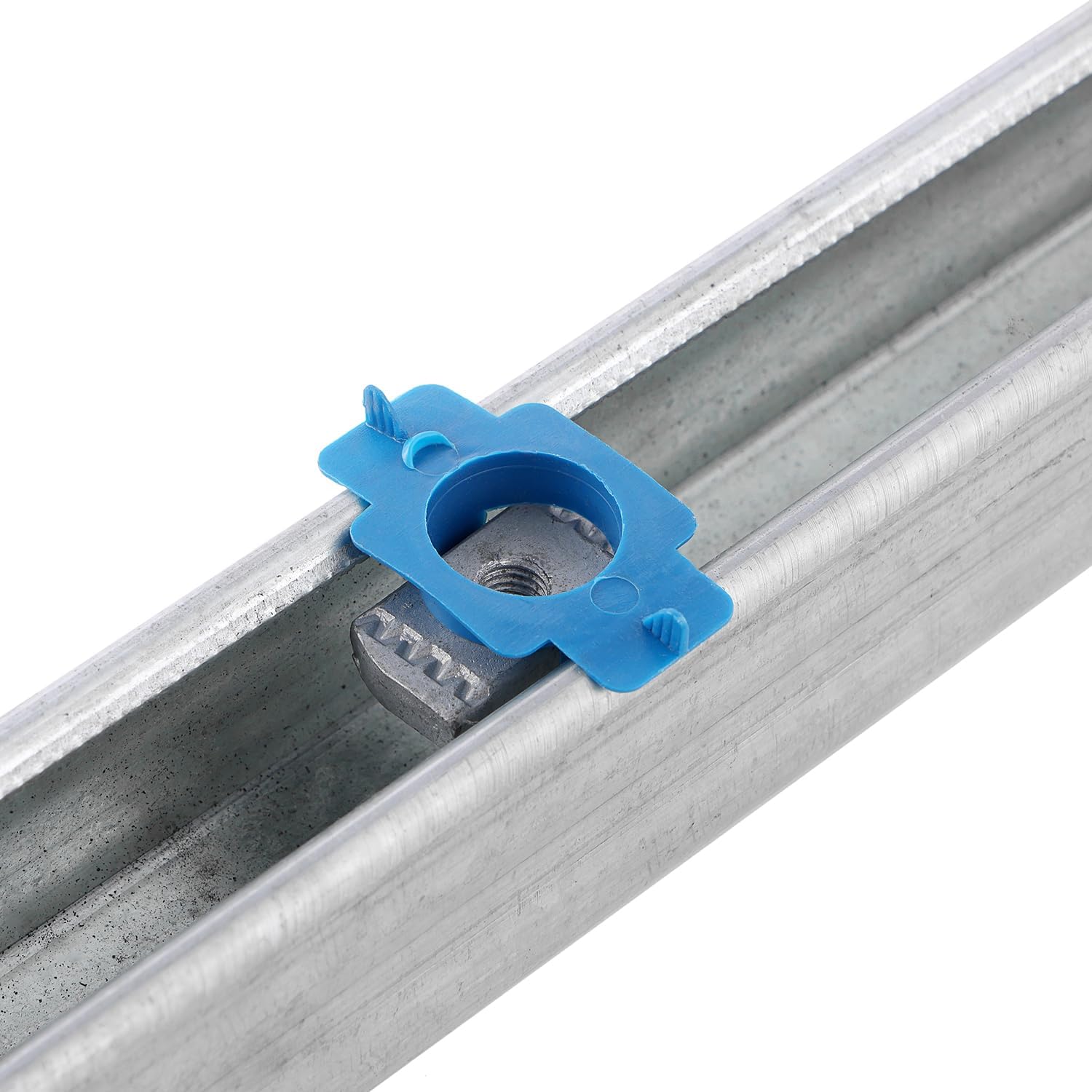

The clamps fit 30 mm and 35 mm framed solar modules, equivalent to approximately 1.18-1.38 inches. Black anodized aluminum clamp bodies are paired with stainless steel hardware, channel nuts, and blue retainers for positioning within a compatible strut profile.

Key Features

• Combined 10-piece kit: Six mid clamps and four end clamps provide the required clamp positions for a four-panel side-by-side layout.

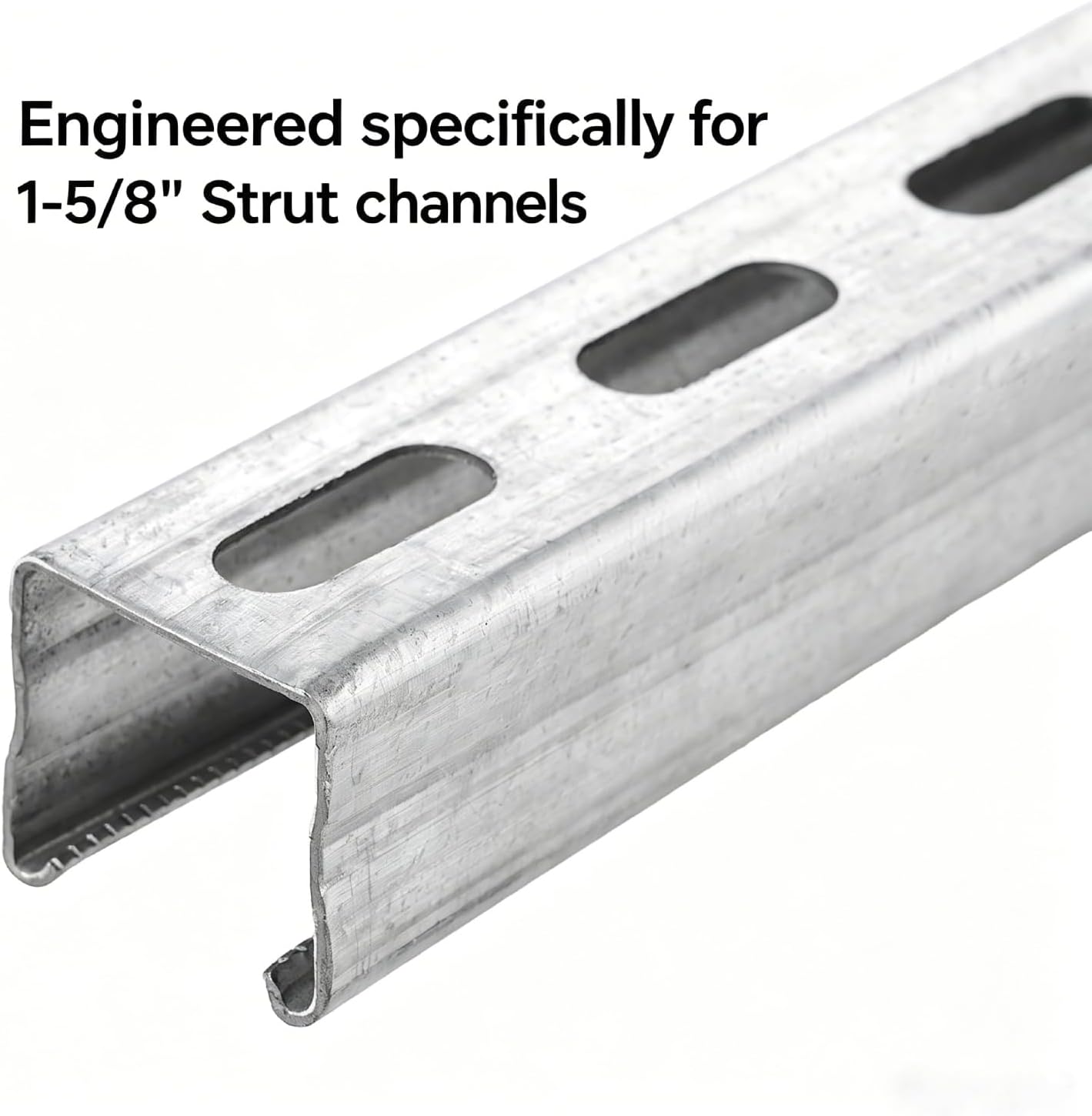

• 1-5/8-inch strut format: Channel nut assemblies fit compatible standard strut channels used in solar mounting structures.
• 30/35 mm frame fit: The clamp set supports two common framed-module thicknesses.
• Black anodized aluminum: The clamp finish coordinates with dark solar module frames and mounting hardware.

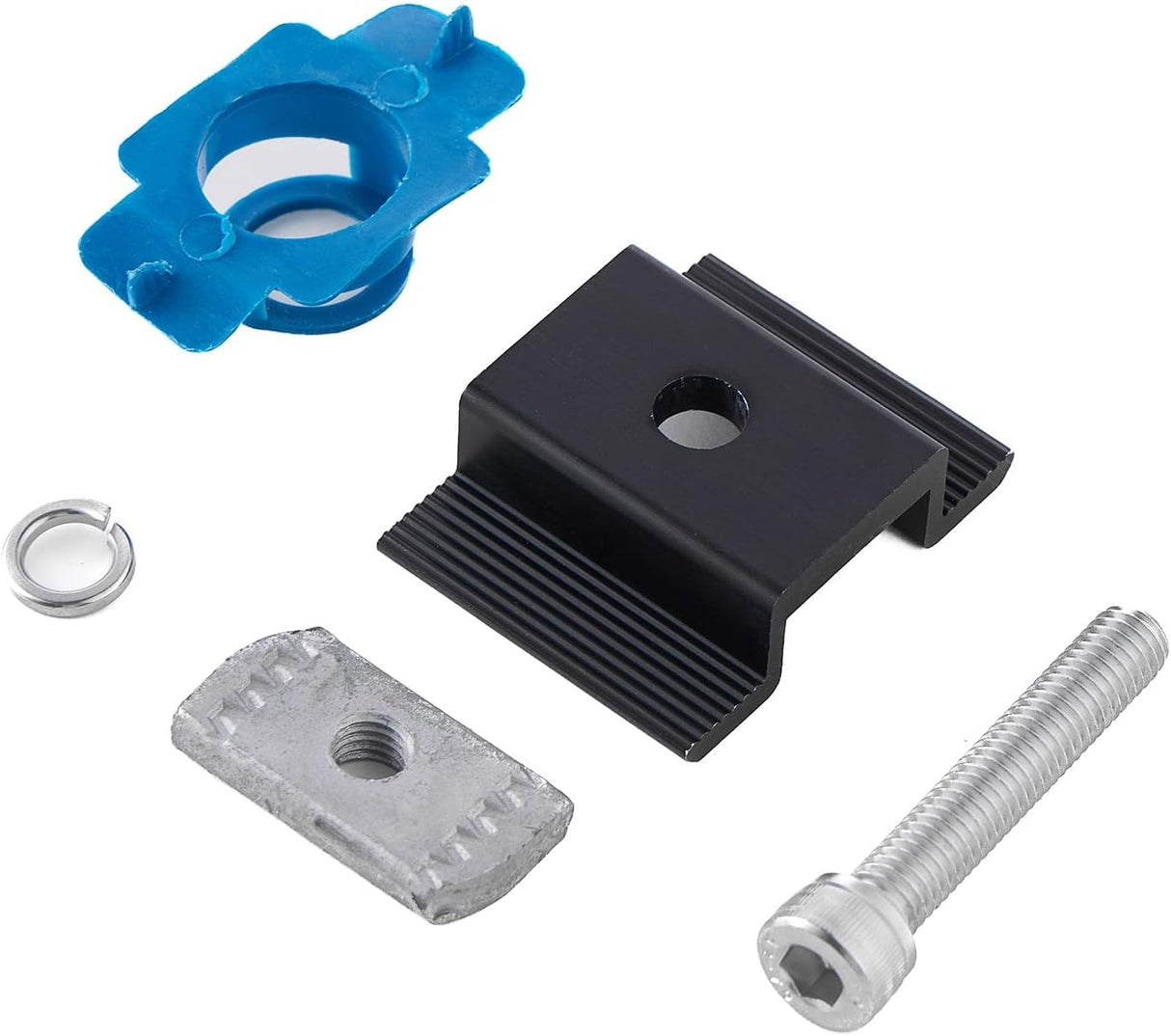

• Complete clamp assemblies: Each clamp includes its matching fastener, channel nut, and retainer.

Best For

• Four framed solar modules installed side by side
• Compatible roof, RV, and ground-mount structures built with standard strut channel
• Projects that require matching black mid and end solar panel mounting clamps

Details & Specs

Compatibility & Notes

• This clamp kit is not intended for 1-1/4-inch or 1-1/2-inch channels.
• Confirm the panel frame thickness and exact strut-channel profile before ordering.
• Follow the module and mounting-system manufacturer's fastening and torque requirements.
• Roof and structural mounting work should be completed by a qualified installer where required.

Package Contents

6 x mid clamp assemblies
4 x end clamp assemblies
