Why does one solar spotlight keep a tree lit all evening while another fades to a faint glow by nine?
An outdoor solar spotlight is an aimable LED light with a narrow beam, charged by a small solar panel and a battery. Choose it by beam angle and lumens for the target, battery watt-hours for the night and panel placement. A panel built into the head faces wherever the beam is aimed, so moving the panel onto a lead often gives it more sun.
The sections below compare a spotlight with path and flood lights, give typical beam angles and lumen tiers by target, and set a built-in head panel against a separate panel on a cable. A specs table follows, then placement and cable steps for uplighting a tree, and the list a garden-light brand sends to order the panel side of a spotlight batch.
LinkSolar supplies that panel side through its partner factories: custom mini solar panels shaped to a spotlight housing, with the exact outline, pad position and wire exit matched to the enclosure. Each panel is built to a target Vmp and Imp for the charger input, typically 0.1 to 20 W.
What makes a solar spotlight different from a path light or a flood light?
A solar spotlight throws a narrow, aimable beam at one object, while a path light marks the ground around its own post and a flood light spreads a typical 1,000 lm or more across a whole area. All three share the same basic parts: a small solar panel, a rechargeable battery, a dusk sensor and an LED. The main difference is the optics and the head.
According to the US Department of Energy, the small size and bright output of LEDs allow good optical control, while bulb-shaped lamps emit light in all directions and lose much of it inside the fixture. A small LED spotlight uses that control to put its output on a trunk or a statue instead of the lawn around it.
- Solar spotlight: A tilting head aims a focused beam at one target for accent lighting, uplighting a tree or lighting a sign.
- Solar path light: A fixed, low-output head points light down at the ground so people can see the edge of a walk or a border.
- Solar flood light: A wide, bright head covers a driveway, yard or doorway for area and security lighting, which makes it a separate product class.
For a first-time buyer, the practical split is aim. A spotlight is chosen by the object it lights, so beam angle and brightness carry more weight than on a path light, and the head has to hold the angle it was set to.
Solar spotlights suit gardens, entrances and signs where a mains cable is awkward to run and accent light through the evening is the goal. Larger or all-night loads suit a panel system with its own battery, and this comparison covers when a small solar light beats a real panel. LinkSolar supplies the panel side of these lights, with small panels sized for a spotlight head and separate panels that sit on a lead.
How bright should a solar spotlight be, and which beam angle fits the target?
A solar spotlight should have a beam angle that matches the shape of its target, a lumen output that matches the target's height, and enough battery watt-hours to hold that output for the hours you want it lit. Beam angle comes first, because it sets how much of the light lands on the object.
Beam angle is the width of the cone of light leaving the head in degrees. A small angle makes a tight, tall cone, and a large angle makes a broad, short one. Spec sheets usually group heads into three typical bands:
- Narrow, around 15 to 30°: this band suits tall, slim targets such as columnar trees, columns and flagpoles.
- Medium, around 30 to 45°: this band suits shrubs, statues and small trees.
- Wide, around 60 to 120°: this band suits washing a wall or lighting the face of a sign.
A wider beam spreads the same lumens over more area, so the target looks dimmer at the same output. Some heads have an adjustable lens that changes the beam angle, a feature worth looking for if the light may move to a different target later. On a listing, the beam angle tells a first-time buyer as much as the lumen figure does.
Typical lumen bands follow the target. An accent light on a shrub, statue or planter usually sits around 50 to 200 lm, a single tree uplight around 200 to 500 lm, and a sign or wall wash around 300 to 800 lm. Above around 1,000 lm the product is a flood light, which lights an area rather than one object and sits outside this guide.
Height and distance change the choice as much as brightness does. A taller target, or one set farther from the light, needs a narrower beam so the output still reaches the top. Adding lumens to a wide beam mostly lights the ground and the air around the target.
Brightness costs watt-hours, because the battery feeds the LED for every hour it is on. Many solar spotlights offer a high and a low mode: the high mode typically suits evening viewing, and the low mode is the setting that keeps the light on longer after a short winter day. When comparing listings, check that the battery watt-hours sit in the same use tier as the lumens, as the specs table below sets out.
Should the solar panel be built into the spotlight or mounted separately on a cable?
A solar spotlight needs a separate panel on a cable whenever the light must sit in shade or tilt steeply to aim upward, and a built-in panel works well only when the light sits in open sun and aims at a low angle. A panel on the head always faces the same way as the beam. Aiming the beam therefore also aims the panel.
According to PVEducation, the power density on a module is at its maximum when the module is perpendicular to the sun. Tilt a spotlight head back to uplight a canopy and a built-in panel tilts with it, often away from the midday sun. The steeper the aim, the less daylight the panel collects.
Shade adds to the loss. According to PVEducation, shading one cell in a module to half causes the output power of the whole module to fall to half. An uplight sits under the very leaves it lights, while a panel on a lead can be staked in open sun and the head stays at the trunk.
The card below sets the two layouts side by side, row by row.

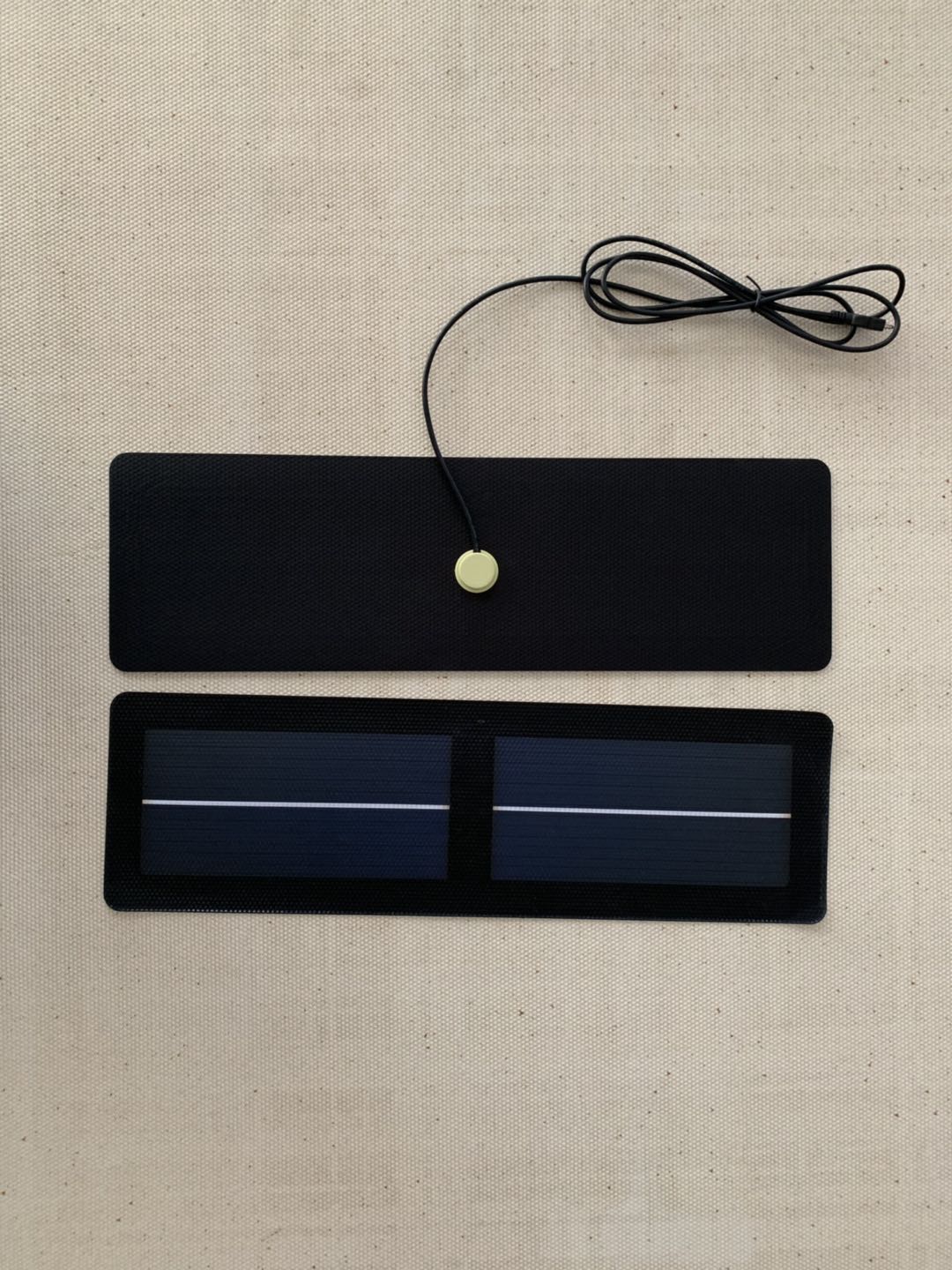

A separate panel harvests more and is usually larger, at a typical 1 to 5 W against 0.5 to 1.5 W for a panel on the head. The cost is a cable to route, a connector to seal against rain and a second stake or bracket for the panel.
The separate layout fits any uplight under a tree canopy, a spotlight in the shadow of a wall or hedge, and a head tilted steeply at a column or flagpole. The panel then sits on its own stake or bracket, angled toward the sun, while the head keeps the aim set for the target.
A built-in panel suits a spotlight that sits on an open lawn and aims low at a sign or a shrub. Head-sized panels in the LinkSolar catalogue show the scale: a 0.18 W 6 V panel at 45 × 45 mm with an ETFE face, and a 0.45 W 3 V panel at 60 × 45 mm with a tempered glass front.
For heads that see mostly diffuse or angled light, LinkSolar's custom mini panels use a layout and laminate chosen for that light. Most of these panels carry SMT-mounted back-contact cells on a PCB, and this guide explains why surface-mount cells get more watts from a small head.
Specs to compare before you order: accent, tree uplight or wall wash?
Before ordering an outdoor solar spotlight, decide its use tier first, then check that the beam angle, lumens, panel watts and battery watt-hours on the listing all sit in that same tier. A narrow 500 lm head on a 0.5 W built-in panel is a mismatch on paper, because the panel belongs to a smaller tier than the light it has to charge. Read the four numbers against one row of the table below, not one at a time.
Lists of the "best solar powered spotlights" are most useful read as a spec checklist rather than a ranking. Take each light on such a list, find its lumens, beam angle, panel W and battery Wh, and see which row each figure lands in. When the figures land in different rows, the lowest row, usually the panel or the battery, sets how long the light holds its output.
| Use tier | Lumens (typical) | Beam angle | Panel W | Battery Wh | IP | Mount |
|---|---|---|---|---|---|---|
| Accent (shrub, statue, planter) | 50 to 200 lm | 30 to 45° | 0.5 to 1.5 W, built-in | About 4 to 8 Wh | IP65 typical | Ground stake |
| Tree uplight | 200 to 500 lm | 15 to 30° | 1 to 3 W, usually separate | About 8 to 15 Wh | IP65 typical | Stake, panel on its own stake |
| Sign or wall wash | 300 to 800 lm | 60 to 120° | 2 to 5 W, separate | About 12 to 25 Wh | IP65 typical | Wall or ground bracket, panel above the sign |
Ranges are typical of consumer and landscape spec sheets and are not LinkSolar data.
The panel and battery columns change most from row to row. As the target grows taller or wider, the panel moves off the head onto its own stake or bracket, and the battery grows to hold a brighter beam through the evening. The mount column follows the panel, so a separate panel adds a second stake or bracket to the order.
An IP rating on the box is a claim about the finished light, so ask the supplier for its test report.
A brand or reseller building its own spotlight can send the use tier and the housing outline, and LinkSolar confirms which panel fits, starting from its small panels with published voltage, current and lead type. The collection's 'Outdoor Lighting & Signage' application filter narrows that list to lighting and signage uses.
How do you place a solar spotlight and route a separate panel cable?
A solar spotlight with a separate panel is placed in two positions: the light head where it shows the target best, and the panel where it gets open midday sun, joined by the shortest sealed cable that reaches. Each part gets its own stake or bracket, so the head can aim at the canopy while the panel faces the sky.
- Choose the target and its viewing side: Pick the tree, statue or sign, then note the window, path or gate it is seen from most often.
- Set the uplight close to the trunk: A typical position is around 0.3 to 1 m from the trunk, aimed up into the canopy and away from windows and paths.
- Find open sky for the panel: Pick a spot with no leaves, eaves or fence shading it at midday, within the typical lead length of around 3 to 5 m or an extension lead with waterproof plug connectors.
- Mount the panel facing the midday sun: Fix it on its own ground stake in soil, or on a wall or deck bracket on a hard surface.
- Route the cable along a protected line: Run the lead along bed edging or in a shallow trench, with a drip loop below each plug connector so water drips off before it reaches the seal.
- Test on the first night and lock the head: Check that the beam lands on the target after dark, then tighten the lockable joint so wind and mowing do not shift the aim.
Keep every run as short as the layout allows. The LinkSolar custom mini panel guidance is to size the wire gauge (AWG) for a voltage drop under 3 to 5 % and to protect the run with a small inline fuse. Longer runs favour a higher panel voltage, and 12 V and 18 V panels suit long cable runs where voltage drop matters.
For a small spotlight on a lead, the guide to choosing a 6 V panel for a light on a lead covers matching the panel to the light's charge input. As a scale example of a separate panel, the LinkSolar catalogue lists a 4 W panel with a switch-selectable 5 / 6 / 9 / 12 V DC output, a 5.5 × 2.1 mm DC output socket and a fixed mounting bracket.
A garden layout where one panel and one shared battery feed several fixtures is a different sizing job, covered in the guide to sizing one panel for a multi-fixture lighting run.
What does a garden-light brand send to order the panel side of a solar spotlight?
A garden-light brand or reseller building its own solar spotlight sends the head or panel outline, the charge input the panel feeds and the cable and connector it needs, and gets back a panel specification before volume is agreed. A first brief for the panel side usually covers these lines.
- Head outline: the outline in mm, with cut-outs marked for the lens, the light sensor or any fixings.
- Panel position: built into the spotlight head, or a separate panel on its own stake or bracket.
- Charge input: the target Vmp and Imp, or the input range of the charge IC the panel feeds.
- Lead and connector: the lead length plus the termination, such as JST, MC4, bare tails, a right-angle exit or a potted gland.
- Front surface: ETFE, matte PET or glass, chosen for the housing and how the head is handled.
- Mounting: adhesive back, screw holes, snap-fits or a bracket for the separate panel.
- Field checks: polarity labelling and a test pad so an installer can spot-check output on site.
- Logo and batch quantity: any OEM marking on the panel and the planned size of the order.
LinkSolar is a sourcing partner on the China side with direct factory-side QA, and it supplies the panel side of a spotlight build: custom panels with your connector and cable length, with the exact outline, pad position and wire exit matched to your enclosure. The cell type is confirmed in writing before the order, and each batch gets one specification review and one pre-shipment inspection with photo and video evidence. OEM marking, custom labelling and neutral packaging are available for resale.
Shape follows the housing. For a slim fixture or a spotlight that washes a sign from its top rail, the catalogue carries a long narrow 2.1 W 18 V panel at 247 × 44.5 mm with an ETFE face and polarity-marked rear solder pads. A brand with a square head or a wider sign rail sends that outline instead, and the reply sets cell layout and connector to match.
FAQ: outdoor solar spotlights
What color temperature works best for solar landscape spotlights?
Warm white is the common choice for solar landscape spotlights aimed at trees, planting and stone. According to ENERGY STAR, lower Kelvin numbers look warmer: 2200 to 3000 K matches incandescent light, 3500 to 4100 K is whiter and 5000 to 6500 K is a bluer white. Check the Kelvin figure on the listing, because the word white alone can mean any of those bands.
Can one solar panel run several spotlights?
One solar panel can run several spotlights when the fixtures share one battery and one charge controller sized for their combined load. In that setup, the panel watts and battery watt-hours cover the total of all the heads on the run. Spotlights that each carry their own built-in battery need a panel each.
Do solar spotlights work in shade?
A solar spotlight with a built-in panel barely charges in shade, so after a shaded day it gives a short, dim evening. The practical fix is a separate panel on a lead, which sits in open sky while the head stays under the tree it lights. Check the lead length before ordering so the panel reaches a sunny spot.
Can you aim a solar spotlight at a wall or sign?
A solar spotlight can light a wall or sign when it has a wide beam, typically 60 to 120°, and a head that locks at the set angle. Place the panel above or beside the sign where nothing shades it, and set the head far enough back that the beam covers the whole face.
Next step
Once the target sets the tier for beam, lumens and battery watt-hours, one check remains: does the panel sit where the sun is?
LinkSolar supplies the panel side of spotlight batches for garden-light brands and installers. To request a quote, send a spotlight panel enquiry with the head outline, the charge input and the lead length.
