Which solar pond aerator fits your pond, when most listings bury the depth it works at, the air pump watts and whether it keeps running before dawn?
A solar pond aerator is a solar panel driving an air pump that pushes air through tubing to a diffuser, or powering a floating fountain that splashes the surface. Size it by pond area and depth. Then compare air pump W, airflow in L/min, panel W and battery Wh, and choose battery backup if fish need oxygen at night.
The sections below cover the parts of a solar pond aerator, diffuser versus fountain, a six-step sizing method for a small pond up to 1 acre, and why night running needs a battery. They end with the specs to compare on any listing and how a pond-equipment brand orders the panel side. Brands building small pond products can start from custom small panels for pond and garden products, built to mm-level outlines with a target Vmp and Imp, typically 0.1 to 20 W.
What is a solar pond aerator, and how does it get oxygen into the water?
A solar pond aerator is an off-grid aeration system in which a solar panel powers an air pump on the bank, and the pump pushes air through weighted tubing to a diffuser that releases bubbles into the pond. It needs no mains cable run to the water's edge. A typical system has six parts, and each one shows up as a line on the listing.
- Solar panel. The panel turns daylight into DC power for the pump and, where one is fitted, the battery.
- Charge controller. The controller regulates charging so the battery is neither over-charged in strong sun nor drained flat overnight.
- Battery (optional). A battery stores daytime energy so the pump keeps running after sunset.
- Air pump. The pump sits on the bank and is typically a diaphragm or piston type, rated in watts and in airflow.
- Weighted tubing. Weighted or self-sinking tubing carries the air from shore out to the diffuser and stays down without floats.
- Diffuser. The diffuser splits the air into fine bubbles below the surface.
In the typical mechanism, the rising bubbles lift deeper water to the surface, where it exchanges oxygen with the air before it mixes back down. Airflow from the pump and the depth of the diffuser set how much water that circulation reaches.
According to the University of Arkansas at Pine Bluff, 2026, solar diffuser models carry their own panels, and some also carry batteries so they can run at night. That battery choice is the main split between kits, and the night-running section below sizes it.
Pond owners, farms, aquaculture operators and landscapers look at solar units when the pond sits far from a mains outlet. Operators who also track dissolved oxygen can read the guide on powering dissolved oxygen probes around the clock for the monitoring side.
Diffuser or fountain: which type of solar pond aerator does your pond need?
A diffuser-type solar pond aerator suits ponds with real depth because its bubbles lift bottom water to the surface, while a solar pond fountain aerator mainly agitates the surface around its float and suits shallow or ornamental water. Pond depth is the first thing that splits the two types. Pond shape comes second.
A fountain aerator floats a small pump that throws water into the air, so oxygen exchange happens in the spray and in the ripples around the float. It is visible and pleasant to watch from a house or a path, and in shallow water that surface agitation typically reaches most of the pond. As depth grows past a few feet, water near the bottom typically sees little of that mixing.
Diffuser aeration keeps the air pump on the bank and sends air through weighted tubing that sinks from the shore to a diffuser on or near the bottom. The rising bubbles move the whole water column, so bottom water reaches the surface and exchanges oxygen with the air. It runs quietly with nothing showing above the water, and one air pump can feed several diffusers through a manifold, the typical layout for deeper ponds.
Pond shape changes the diffuser count as well as the type. A round pond usually works with one diffuser point near the deepest spot, while a long, narrow pond or one with separate arms typically needs two or more points so water at each end keeps moving. The sizing steps below set that count against surface area and the deepest point you measure.
Garden basins and bird baths use a small fountain pump in a few inches of water, where the display matters more than aeration. For that case, the guide to panel-direct and battery-buffered setups for small fountain pumps covers panel sizing. The rest of this guide covers ponds.
How do you size a solar aerator for a small pond or a 1 acre pond?
A solar pond aerator is sized from surface area and maximum depth first, then from air pump watts and airflow at that depth, then from daily run hours, and only then from panel watts and battery capacity. The same six steps apply to a water garden and to a 1 acre pond, with larger figures at each step.
- Measure the pond. Record the surface area in acres or m² and the depth at the deepest point.
- Choose the aeration type from depth. Surface or fountain agitation typically suits shallow water, and bottom or near-bottom diffusers typically pay off once depth grows past a few feet.
- Set the diffuser count from area and shape. Typical counts are 1 on a small pond, 1 to 2 up to about 1/4 acre and 2 to 4 on about 1 acre, with an extra point for a long or narrow pond.
- Pick the air pump by watts and by airflow rated at the working depth. Typical listings run 2 to 10 W at 2 to 10 L/min for a small pond, 15 to 40 W at 10 to 40 L/min up to about 1/4 acre and 40 to 120 W at 40 to 100 L/min in the 1 acre class, often split across two pumps.
- Decide the daily run hours. Choose daylight-only running or running through the night, since pump watts multiplied by run hours gives the load in Wh/day.
- Convert Wh/day into panel watts and battery capacity. Add 20 to 30 % for system losses, divide by the worst-month peak sun hours for panel W, and size the battery for 1 to 3 days of autonomy, more in snowy or overcast regions.
Rated airflow falls as diffuser depth rises, so ask the seller for the L/min figure at your own working depth before comparing pumps. A listing that gives only watts leaves the airflow at depth unknown.
One horsepower is about 746 W, so a mains aerator sized at a typical 1/2 to 1 hp per surface acre draws about 373 to 746 W. That is why a solar system for a 1 acre pond is a battery-backed build with a few hundred panel watts, while a small-pond kit runs on 5 to 25 W of panel. For the general arithmetic behind step 6, see the watt-hour method for sizing a water pump panel.
Does a solar pond aerator need to run at night, and how big a battery does that take?
A solar pond aerator that protects stocked fish should keep running through the night, because pond oxygen usually reaches its low point around dawn, and that takes a battery sized for the hours of darkness. Ornamental ponds and daytime circulation can run on sun alone. For stocked ponds, battery capacity becomes the main spec.
According to SRAC Publication 370 (1989), dissolved oxygen concentrations in ponds are typically lowest at dawn and highest during late afternoon. According to University of Maryland Extension (2021), a common strategy is to run aerators on timers overnight, for example from midnight to 8 AM. Sun-only diffusers without storage go offline in exactly those hours, when aeration is needed most.
A sun-only aerator is a night watchman who clocks off at sunset. It moves water through the afternoon, when oxygen is already near its daily high, and stops for the hours that follow.
The night battery works out like this for one example build, not a recommendation. A 60 W air pump running through 10 h of darkness uses 60 W × 10 h = 600 Wh. With about 80 to 90 % usable depth of discharge on LiFePO4, the bank needs about 700 Wh, which is around 60 Ah at 12 V.
Running the same pump for 24 h takes 1,440 Wh/day. Adding 25 % for losses gives 1,800 Wh, and dividing by 4 worst-month peak sun hours gives about 450 W of panel. That panel figure is why a night-running build is a different class of system from a small sun-only kit.
- Sun-only kits: suit ornamental ponds and daytime circulation, where the pump can stop at sunset.
- Battery-buffered kits: suit stocked ponds that need air through the night and before dawn.
- LiFePO4 bank: handles deep daily discharge and outdoor temperature swings, and the guide on which battery chemistry holds up at an unattended site compares the options.
- Enclosure: keep the battery and controller in a shaded, vented box mounted above flood level.
- Panel voltage: size the array voltage to the bank, as covered in matching panel voltage to a 12 V battery bank.
For the controller, the checklist listed with a 10 A, 12 V MPPT charge controller in the LinkSolar catalogue works as a template for any 12 V pond build. Verify the array open-circuit voltage, the controller current limit, battery voltage and chemistry, polarity and cable sizing before the first connection.
Specs to compare before you order: what should the best solar pond aerator listing show?
The best solar pond aerator for a given pond is the one whose listing states air pump W, airflow in L/min at depth, panel W, battery Wh, controller type, diffuser count, tubing length and IP rating, and whose numbers sit in the same tier as the pond. A listing that leaves out several of these lines cannot be compared side by side with another. Check each point below against the area and depth you measured.
- Air pump watts: the running draw of the pump in W, which sets the panel and battery figures that follow.
- Airflow at depth: rated airflow falls as diffuser depth rises, so ask for the L/min figure at your working depth.
- Panel watts: the panel rating in W, read against the pump draw and the hours the pump is meant to run.
- Battery capacity: the battery in Wh, or in Ah with its voltage, and whether the kit includes one at all.
- Controller type: MPPT or PWM plus the current limit, and this guide on when an MPPT controller earns its place on a small array covers the trade-off.
- Diffuser count: the number of diffusers one pump feeds, since the airflow divides between them.
- Tubing length: the length of weighted tubing supplied, which has to reach from the pump on the bank to the deepest point.
- IP rating: The two digits of an IP rating grade protection against dust and water, so ask the supplier for its test report on the pump housing and the controller box.
Match each listing to one row of the table below. When the pump watts and airflow sit in a smaller tier than the pond, trust those two numbers over the acreage in the product title. A kit with no battery belongs in the first row whatever its panel size, because it stops when the sun goes down.
| Pond tier | Aeration type | Air pump W (typical) | Airflow (typical) | Panel W (typical) | Battery (typical) | Diffusers |
|---|---|---|---|---|---|---|
| Water garden or small pond, shallow | Fountain or single diffuser | 2 to 10 W | 2 to 10 L/min | 5 to 25 W | None or a small pack | 1 |
| Up to about 1/4 acre | Diffuser | 15 to 40 W | 10 to 40 L/min | 50 to 150 W | 12 V 20 to 50 Ah | 1 to 2 |
| About 1/2 to 1 acre, night running | Diffuser | 40 to 120 W, often two pumps | 40 to 100 L/min | A few hundred W | 12 V 100 Ah or more | 2 to 4 |
Ranges are typical of retail listings and are not LinkSolar data.
If the panel is the part holding your aerator build back, LinkSolar can quote panels built to your air pump's voltage and connector.
How does a pond-equipment brand or reseller order the panel side?
A pond-equipment brand or reseller building its own solar pond aerator sends LinkSolar, a sourcing partner working with partner factories in China, the air pump's voltage and watts, the run profile, the battery and the mounting site, and gets back a panel specification before any volume is agreed. A first inquiry carries these lines.
- Pump voltage and running watts: the air pump's rated voltage and the watts it draws at working depth.
- Run profile and site: daylight only or night running, plus the location and its worst month for sun.
- Battery: battery voltage and chemistry, for example a 12 V LiFePO4 bank.
- Outline and weight: the panel outline and any weight limit set by the housing or bracket.
- Connector and cable: the plug on the controller or pump side and the cable length to the shore box.
- Front surface: glass where rigidity matters more than weight, ETFE or PET where weight is the limit.
- Mounting: pole, tilt or ground mounting at the pond edge.
- Marking and packaging: OEM marking, custom labelling or neutral packaging for resale.
- Batch quantity: the planned order size, which sets the price at your quantity.
LinkSolar works as a sourcing partner on the China side with direct factory-side QA, and its partner factories build custom panels from 3 V to 48 V with JST, MC4 or bare-tail leads. The reply to a brief is a buildable specification covering cell layout, target Vmp and Imp, lamination and connector, with a price at your quantity. Each batch gets one specification review and one pre-shipment inspection with photo and video evidence.

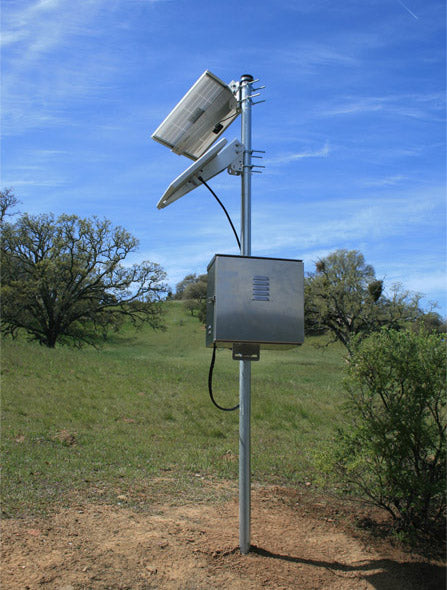

For the mounting site, pole mounts that lift the panel above bank vegetation reduce shading, improve orientation and make tampering harder. The universal pole mount kit holds panels of 5 W to 50 W on poles of 50.8 to 114.3 mm (2.0 to 4.5 in) outside diameter, rated to 100 km/h wind and 1.1 kN/m² snow load, in 5052 aluminium with stainless hardware.
Battery-backed builds with a few hundred panel watts usually sit on the ground. Telescopic tilt brackets hold 15° to 60° and are rated to a 500 W module. LinkSolar lists adjustable tilt legs and ballast plates for a shoreline pad, where the plates give a non-penetrating base on grass or a concrete pad.
FAQ: solar pond aerators
Does a solar pond aerator work on cloudy days?
A solar pond aerator runs on cloudy days only as far as its power source allows, because panel output falls with the light and a sun-only air pump slows or stops. A battery-backed system carries the pump through overcast hours on stored energy, so size the battery autonomy for the site's cloudiest month.
What should the best solar pond aerator listing show?
The best solar pond aerator for a given pond is one whose listing states air pump watts, airflow in L/min at the working depth, panel watts, battery watt-hours, controller type, diffuser count and tubing length. Those figures should sit in the same size tier as the pond's surface area and maximum depth.
Can one solar air pump feed more than one diffuser?
One solar air pump can feed more than one diffuser through a manifold that splits the air line into separate weighted tubes. The airflow divides between the outlets, so check the L/min each diffuser receives at the working depth.
How far from the pond can the air pump and panel sit?
The air pump and panel of a solar pond aerator can sit away from the water, but longer tubing typically adds back pressure and lowers the airflow at the diffuser. A common layout puts the panel in full sun and the air pump, controller and battery in a shaded box, joined by cable and a short run of weighted tubing.
What is the difference between a solar pond aerator and a solar pond pump?
A solar pond aerator moves air into the water through a diffuser or a surface fountain, while a solar pond pump moves the water itself, for a filter or a water feature.
Next step
Measure the pond's surface area and its deepest point, then decide whether the aerator has to run through the night. With those two answers, compare listings on air pump watts, airflow at the working depth, panel watts and battery watt-hours.
Pond-equipment brands and installers who need the power side of an aerator build can source panel, controller and battery power packages for off-grid equipment through LinkSolar. Send the air pump's voltage and running watts, the daily run hours and the site location to request a quote.
