Solar Panel for Asset Tracking: 2026 Sourcing Guide for GPS, Cargo & Livestock Telematics

What Is a Solar Panel for Asset Tracking?

A solar panel for asset tracking is a small-format photovoltaic module — typically 35×22 mm to 200×130 mm, rated 0.1W to 8W — designed to keep the lithium battery in a GPS, cellular, or LoRa-based asset tracker topped up across multi-month outdoor deployment. Unlike consumer USB chargers, these panels run at fixed DC voltage tuned to the tracker (3V, 5V, or 6V), survive 8–12 years of outdoor UV with ETFE encapsulation, and meet IP67 ingress protection so rain and dust never reach the cell.

The category exists because consumer-grade USB panels fail predictably on outdoor trackers within 18–36 months. Voltage swings under cloud cover brown out the radio mid-handshake. PET laminate yellows from UV exposure. Unrated cable connectors let water wick into the device housing. We've sourced panels for IoT sensor power systems across cargo container, livestock, and fleet vehicle deployments — and the same pattern repeats: buyers who chase lowest BOM cost re-tender within two seasons.

Power Profile by Tracker Type

Asset trackers split into four power-profile classes, each demanding a different panel size. The numbers below are deployed-fleet measurements, not lab specs:

The 16× spread between LoRaWAN ear-tag (0.3 Wh/day) and continuous-uplink telematics (25 Wh/day) is why panel sizing without a duty-cycle measurement is a guess. Source: LinkSolar deployed-fleet telemetry across 2024–2025 customer projects.

The Critical Specs for Outdoor Asset Tracker Solar

Spec sheets look interchangeable until you read line 5. Six lines decide whether the panel survives the deployment environment:

1. Cell technology. Monocrystalline silicon for any outdoor tracker. Premium uses SunPower IBC back-contact cells (125 mm or 166 mm format), 3–5 percentage points more efficient than standard mono per NREL benchmark. The efficiency margin matters when the tracker housing constrains panel area to ≤60 cm².
2. Encapsulation laminate. ETFE for outdoor — full stop. PET yellows visibly in 2–3 years of UV exposure, dropping output 15–25%. Glass-fronted modules are tougher but heavier than asset-tracker mounts can carry.
3. Open-circuit voltage (Voc) margin. Voc should be ≤1.4× nominal device input. A 5V tracker takes a panel with Voc ≤7.2V. Cold weather raises Voc 0.4%/°C below STC — a "5V" panel reading 7.2V at +25°C climbs to ~8.1V at -10°C, which trips protection on a 6V-input charge IC.
4. Short-circuit current (Isc) headroom. A 4G LTE radio pulls 1.5–2.5A peak during cell registration — 10× the average draw. Stock panels with 0.5A short-circuit current can't supply the burst, forcing the tracker to brown-out mid-handshake.
5. Cable + connector waterproof rating. The panel laminate is rated IP67. The cable gland on your tracker enclosure must match. Specify M8 or M12 industrial connectors at the BOM stage, not as a field add-on.
6. Output regulation. Native voltage (3V or 5V or 6V) skips the buck converter, saving 5–10% of harvested energy. For sub-1Wh/day energy budgets, that 10% is the difference between running through January and going dark.

For the smallest commercially-shipped form factors, see our custom mini solar panel sub-pillar, which documents 35×22 mm cell cuts up to standard module size.

Sizing Workflow + 3× Margin Rule

The honest sizing rule for any outdoor asset tracker: panel daily harvest ≥ 3× device daily consumption, where harvest assumes 3 hours of effective sunlight (the conservative case for cargo containers stacked in shadow, livestock under tree canopy, or northern winter sites with low solar elevation).

The 3× margin covers cloudy weeks, panel soiling, charge-controller losses (~15%), and battery round-trip efficiency (~85%). Sites with full-sun exposure can size at 2× and save BOM. Tree-canopy or container-shadow sites need 4–5× or accept seasonal brown-outs.

Two sizing shortcuts that save buyers from spec misses:

1. Measure actual draw with USB power meter for 24 hours. Vendor "typical current" specs are best-case lab measurements with the cellular radio off. Inline meter readings run 1.5–2.5× higher than datasheet for tracker-class devices.
2. Confirm Voc-at-coldest-deployment-temp. Cargo containers in winter ocean transit hit -10°C to -20°C. Run the Voc number against your charge IC's max input voltage at that temp.

Wholesale Pricing & MOQ Tiers in 2026

2026 wholesale pricing for asset-tracker solar panels breaks into four MOQ tiers. Numbers reflect FOB China for a 2W ETFE-laminated panel with 5V output, M8 IP67 cable assembly, and basic silkscreen:

Three buyer-side levers move price meaningfully:

1. Cell choice. Switching from SunPower IBC to standard mono drops cost 30–40% but cuts efficiency 3–5 percentage points.
2. Tariff exposure. Section 301 + Section 201 + AD/CVD on Chinese-origin panels stack to ~99% by Q1 2026 for US-bound shipments. Southeast Asia routing or domestic content adds 8–14% landed cost but bypasses the stack. For full math, see our Chinese solar panel tariff 2026 deep dive.
3. MOQ. Price elbow at MOQ 500 → 2,000. Below 500, tooling and engineering setup dominate.

Deployment Environments: Container, Livestock, Fleet, Marine

Each deployment environment changes which spec lines bind:

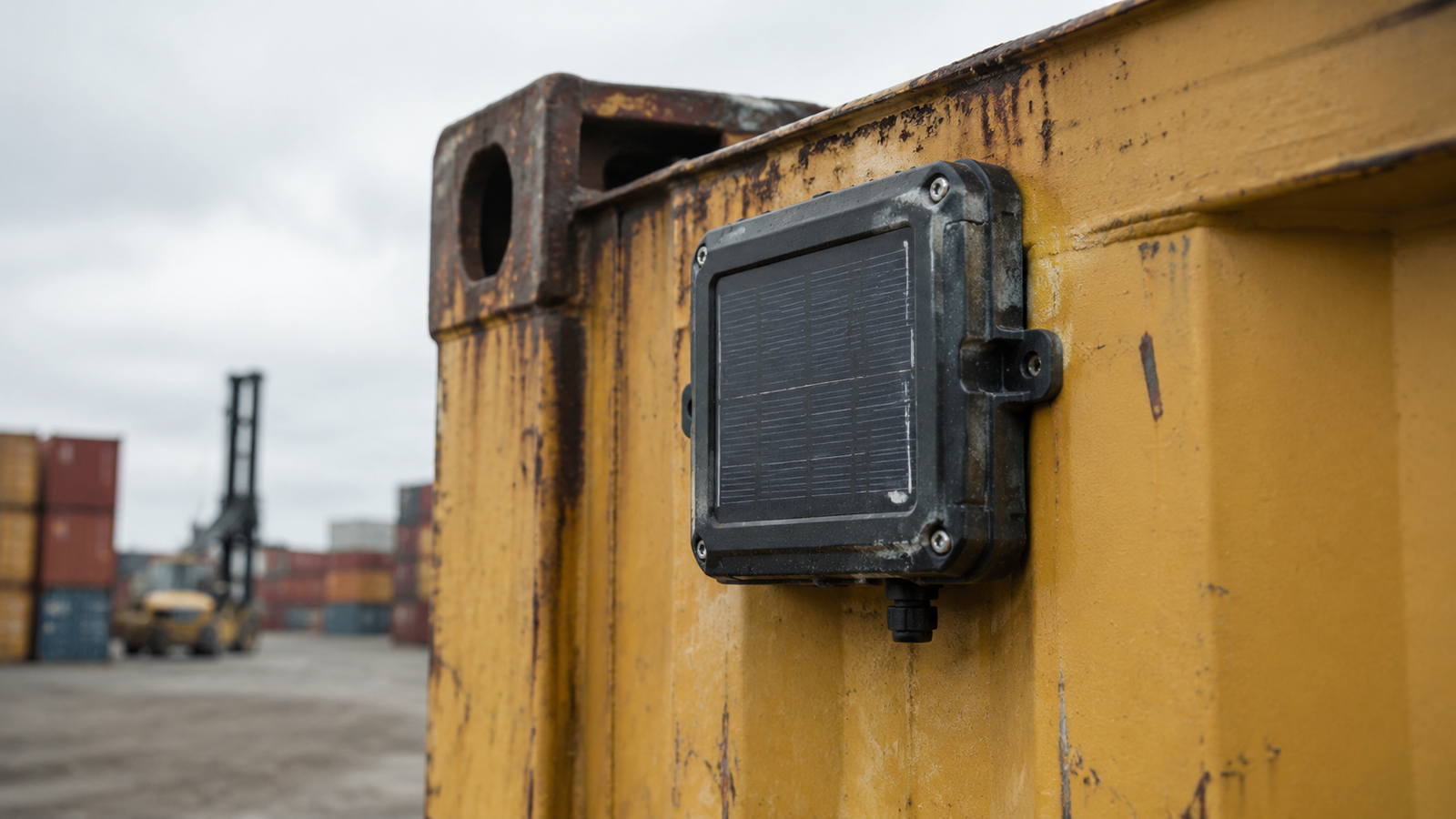

Cargo container (Pacific transit, port stack)

Salt fog corrosion + 1–2 hours of usable sun + extreme temperature swing. Spec ETFE laminate (resists salt) + IP68 cable potting (sustained immersion possible) + 5× sizing margin. Tracker mounted on container roof or door frame with steel adhesive backing.

Livestock ear-tag (open pasture, tree canopy)

Smallest panel form factor — 35×22 mm to 50×35 mm — bonded directly to ear-tag housing. UV-stable encapsulation matters because tags stay on animals for 18–24 months. SunPower IBC cells let the panel hit 0.5W in <12 cm² area. For B2B agricultural sizing examples, see our agricultural IoT sizing guide.

Fleet vehicle (rooftop or windshield mount)

Vibration tolerance + UV + thermal cycling from -30°C to +80°C in cabin. Vibration is the silent killer — panels rated for static install fail under continuous road vibration within 12–18 months. Spec mechanical load test data per IEC 61215 cyclic load section.

Marine / offshore monitoring

Salt spray, sustained immersion possible, UV at sea level. Step up from IP67 to IP68 per IEC 60529, demand titanium or 316L stainless connector hardware. ETFE laminate non-negotiable — PET fails within one season at sea.

OEM Sourcing & 8-Item Vetting Checklist

The single highest-leverage step in any asset-tracking solar OEM project is the supplier audit:

1. Current ISO 9001:2015 certificate from a recognized body — TÜV, SGS, BV, or DEKRA. Audit reports older than 12 months from a no-name body fail enterprise telematics procurement.
2. IEC 61215:2021 test report from accredited lab — covering 200 thermal cycles (-40°C to +85°C), 1,000 hours damp-heat at 85°C/85% RH. Source: IEC 61215-1:2021 Terrestrial PV modules — Design qualification.
3. RoHS & REACH compliance documentation — required for EU procurement and increasingly demanded by US enterprise.
4. NDAA Section 889 statement — required for US federal, defense, and critical-infrastructure fleet deployments. Section 889 was enacted in 2019.
5. FCC Part 15 / CE marking for any bundled charge controller or RF-emitting electronics.
6. Sample turnaround under 10 days for stock-tooling modifications. Anything slower is a capacity signal.
7. Reference telematics customers in your geography — three customer names with contact permission. Panels for US fleets face FCC-Part-15-adjacent questions a Chinese-domestic-only supplier hasn't seen.
8. Detailed packaging list and HTS classification — per-pallet weight, dimensions, HTS codes for customs clearance.

Cross-cluster sourcing — same audit framework applies

The 8-item supplier audit above applies beyond asset tracker solar to the broader LinkSolar B2B sourcing catalog. Volume buyers running parallel evaluations on z bracket solar panel wholesale orders, z bracket solar panel oem programs, z bracket solar panel manufacturer audits, z bracket solar panel supplier comparisons, z bracket solar panel bulk container loads, mini solar panel for iot custom voltage tap, mini solar panel for iot wholesale tier pricing, mini solar panel for iot oem branding, mini solar panel for iot supplier vetting, or mini solar panel for iot manufacturer reference checks all use the same ISO 9001 + IEC 61215 + lab test report + sample turnaround framework. The cluster differs; the audit doesn't. Mounting hardware specifically also benefits from UL 2703 certification (PV mounting structural and grounding standard), which becomes mandatory for permitted commercial installations even though it usually doesn't apply to small-form-factor IoT panels.

Customer case study: livestock asset-tracking startup

A US livestock asset-tracking company came to us in late 2025 needing a panel under 12 cm² that could keep a LoRaWAN ear-tag tracker running through Montana winters. Their first vendor had shipped PET-laminated 5V panels — the laminate yellowed within one grazing season, and 40% of devices reported low-battery faults by January. We re-spec'd to a 50×35 mm SunPower IBC cell with ETFE laminate, 6V output (matched to their custom bq24074 charge IC), and IP67-rated potting at the cable junction. Sample shipped in 8 days; the 5,000-unit order shipped in 25 days. As of the 2026 grazing season, field telemetry shows zero panel-related failures across the deployed fleet. The fix wasn't more wattage — it was the laminate, the connector, and the voltage matching done at the BOM stage.

Common Asset Tracker Solar Failure Modes

1. 12V panel + 3.7V Li-ion tracker without charge controller

The #1 marketplace-review failure mode: "solar panel killed my tracker." A 12V open-circuit panel can hit 18V at noon under cold conditions. The tracker's protection circuit pops, and the buyer assumes the panel was defective. Fix: ship panel + matched controller as a kit, or specify voltage compatibility on the spec sheet's first page.

2. Connector ingress, not laminate ingress

The panel is rated IP67. The barrel connector you mounted on the tracker enclosure is rated IP54 — or, more often, not rated. Water wicks up the cable jacket, sits in the connector cavity, and the tracker shorts in 6–9 months. Spec waterproof connectors at the BOM stage.

3. Sizing for nameplate sun hours

"5–6 hours of sun per day" is open-field, mid-latitude, peak season. Cargo containers stacked in shadow get 1–2 hours. Livestock under tree canopy gets 2–3 hours. Northern winter sites lose another 30–50%. Plan for the worst week, not the marketing-deck average.

4. Trusting nameplate wattage without binned-output data

Low-end suppliers round up wattage — a "2W" panel measures 1.1–1.4W under STC. Audit-grade asset-tracker panel manufacturers ship binned by measured flash-test output. Ask for the production-batch flash-test report.

Frequently Asked Questions

What size solar panel does an asset tracker need?

Short answer: For an hourly-uplink GPS tracker drawing 2–4 Wh/day, a 2–3W panel at 5V keeps the battery topped up. For 4G LTE trackers uploading photos: 5–8W. LoRaWAN ear-tags need only 1W. Sizing rule: panel daily harvest ≥3× device daily consumption.

What's the smallest solar panel for asset tracking?

Short answer: 35×22 mm at 0.11W is the smallest commercially-shipped — built for livestock ear-tag LoRaWAN trackers in credit-card-sized housings. Below 0.11W the cell area can't sustain microamp battery trickle in cloudy weeks.

What voltage should an asset tracker solar panel output?

Short answer: Most cellular and LoRa GPS trackers run on 3.7V Li-ion or 3.3V regulator. Match panel to 5V or 6V via charge IC, with Voc ≤7.2V to avoid tripping cold-weather protection. A direct 3V panel works for ultra-low-power LoRaWAN without buck conversion.

How long do asset-tracker solar panels last?

Short answer: ETFE-laminated, IEC 61215-certified panels run 8–12 years at >90% rated output in temperate climates. PET-laminated panels yellow within 2–3 years and lose 15–25% output. The cell rarely fails — encapsulation, connectors, and battery cycling are the actual failure modes.

What certifications matter for asset tracking solar?

Short answer: IEC 61215:2021, IEC 60529 IP67, ISO 9001:2015 from a recognized body (TÜV, SGS, BV), FCC Part 15 for charge controllers, and NDAA Section 889 for US federal fleet deployments. RoHS & REACH for EU shipments.

Where can I source asset tracker solar panels at wholesale?

Short answer: Direct from a custom solar panel manufacturer with documented IEC 61215 + ISO 9001, voltage 3V–48V customization, IP67 connectors, and ETFE laminate. Contact us for MOQ-tiered pricing on 0.5W to 12W modules.

Last updated: May 9, 2026. LinkSolar is a B2B sourcing partner specializing in custom solar panels for IoT, asset tracking, and industrial monitoring. We work with audited manufacturing partners in China and ship globally with full IEC 61215, IP67, and ISO 9001 documentation. For more, see our IoT sensor power systems hub, or custom solar panel pillar.
