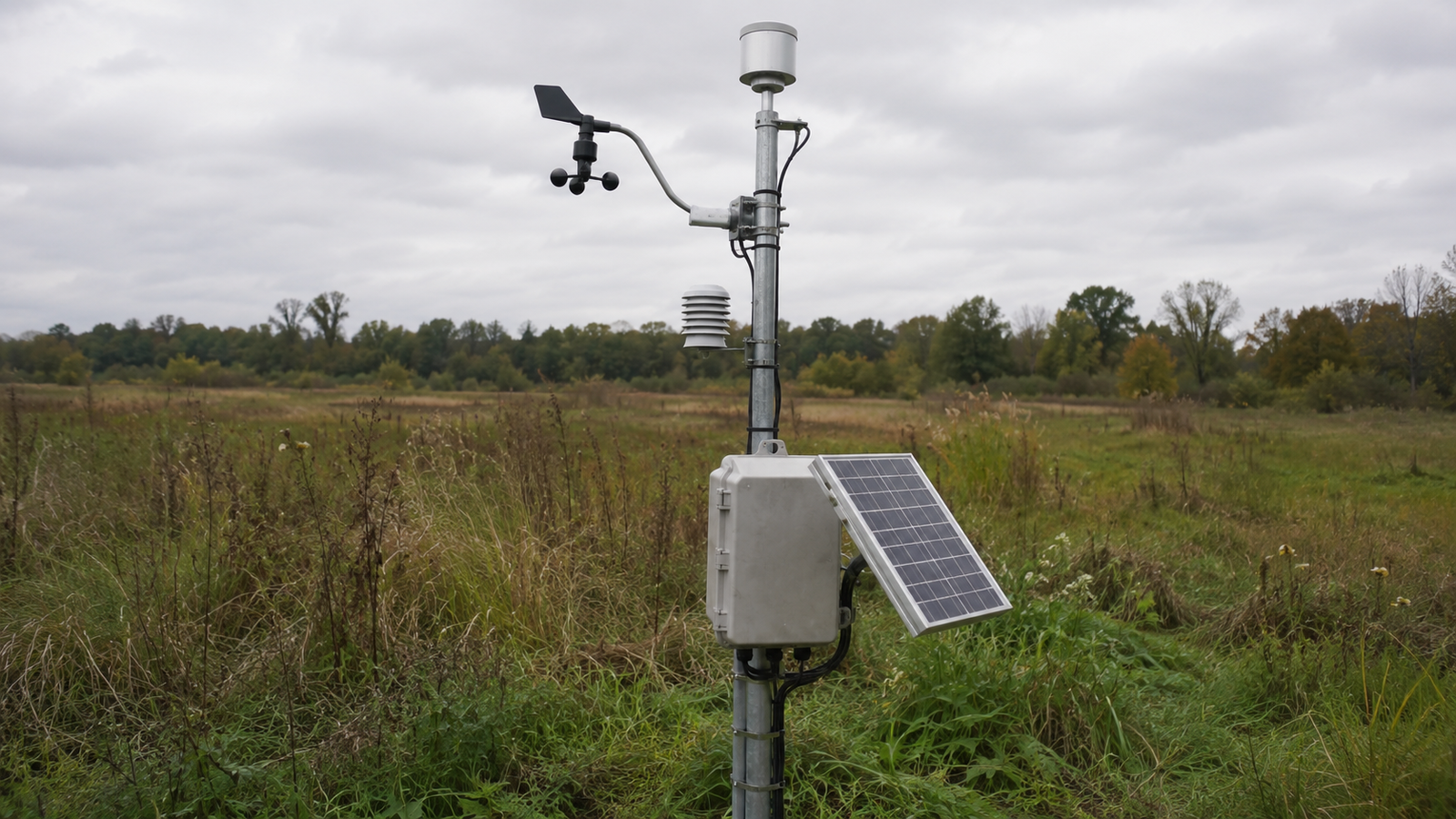

What Is a Solar Panel for Environmental Monitoring?
A solar panel for environmental monitoring is a small-format photovoltaic module — typically 1W to 12W, dimensions 80×80 mm to 320×190 mm — designed to keep an environmental sensor station's battery topped up across multi-month outdoor deployment. Common sensor types: air-quality (PM2.5/CO2/VOC), water-quality (conductivity/pH/turbidity), meteorological (temp/humidity/wind/radiation), soil moisture, noise level, and seismic.
The category exists because environmental sensors deploy in places stock panels weren't designed for. A water-quality sonde at the bottom of a 4-meter monitoring well needs IP68 rather than IP67. An air-quality node on a rooftop in Phoenix sees 65°C cell temperatures that drop nameplate output 16%. We've sourced panels for IoT sensor power systems across municipal air monitoring, watershed protection, agricultural microclimate, and industrial emission tracking — and the same lesson repeats: the panel that ships matters less than the spec line you negotiated upfront.
Power Profile by Environmental Sensor Type
Environmental sensors split into five power-profile classes, each demanding a different panel size. Numbers are deployed-fleet measurements:
| Sensor type | Sample rate | Daily Wh | Recommended panel |
|---|---|---|---|
| Soil moisture LoRaWAN | 15-min uplink | 0.3–0.6 | 1W @ 3V/5V |
| Air-quality PM2.5/CO2 (low-rate) | 15-min uplink | 0.8–1.5 | 2W @ 5V |
| Air-quality with active fan + cellular | 5-min upload | 3–5 | 5W @ 6V |
| Water-quality sonde (multi-parameter) | Hourly | 2–4 | 3–5W @ 6V |
| Weather station with radiation | Continuous + hourly upload | 8–12 | 8–12W MPPT @ 12V |
| Seismic/full meteorological + camera | Continuous | 15–25 | 20W MPPT @ 12V |
The 50× spread between LoRaWAN soil moisture (0.3 Wh/day) and full meteorological station (25 Wh/day) is why panel sizing without measuring duty cycle wastes BOM cost on either end. Source: LinkSolar 2024–2025 deployed-fleet telemetry across 6 environmental monitoring vertical projects.
Critical Specs for Environmental Monitoring Solar
- Cell technology. Monocrystalline silicon for any outdoor environmental sensor. Premium uses SunPower IBC back-contact cells (125 mm or 166 mm format), 3–5 percentage points more efficient. The margin matters when sensor housing constrains panel area to ≤80 cm².
- Encapsulation laminate. ETFE for outdoor — 8–12 year UV resistance vs PET's 2–3 year yellowing window. For water-quality sondes deployed underwater, glass-fronted modules add another 5+ years of service life.
- Ingress protection. IP67 minimum (1 m / 30 min per IEC 60529). For sustained-immersion environments — water-quality sondes, sub-grade vault deployments, fountain monitoring, marine buoys — step up to IP68, which adds continuous-immersion testing.
- Open-circuit voltage (Voc) margin. Voc ≤1.4× device input. Cold weather raises Voc 0.4%/°C below STC — a 7.2V Voc panel reaches ~8.4V at -25°C. Run the cold-temp number against your charge IC's max input voltage.
- Cable + connector waterproof rating. Panel laminate is rated IP67. Cable gland on sensor enclosure must match. Spec M8 or M12 industrial connectors at the BOM stage.
- Salt-fog and corrosion resistance. Coastal air-quality stations and marine water-quality sondes need 304 or 316L stainless connector hardware. Plated carbon steel rusts within 6 months at the bolt heads.
- Output regulation. Native voltage matched to sensor's charge IC. 5V/6V for Li-ion battery sensors, 12V for SLA/LiFePO4 stations. Skipping the buck converter saves 5–10% energy across deep-sleep cycles.
For agricultural and watershed sensor sizing examples, see our agricultural IoT sensor sizing guide.
Sizing Workflow + 3× Margin Rule
The honest sizing rule for any outdoor environmental sensor: panel daily harvest ≥ 3× device daily consumption, where harvest assumes 3 hours of effective sunlight (the conservative case for forest watershed monitoring, urban canyon air-quality nodes, or northern winter weather stations).
Two sizing shortcuts:
- Measure actual draw with USB power meter for 24 hours. Sensor vendor "typical current" is best-case lab data with the radio off. Inline meter readings run 1.5–2.5× higher.
- Confirm Voc-at-coldest-deployment-temp. Northern weather stations hit -30°C. Cargo-monitoring marine sensors hit -10°C. Run Voc math against your IC's max input.
Wholesale Pricing & MOQ Tiers in 2026
2026 wholesale pricing for environmental monitoring solar panels — FOB China, MOQ 500, standard packaging, 2W ETFE-laminated 5V panel with M8 IP67 cable:
| Tier | MOQ | Per-unit FOB | Tooling amortization |
|---|---|---|---|
| Sample / pilot | 10–100 | $8–$22 (cost-plus) | None |
| Stock-customization | 500–2,000 | $3.40–$5.80 | $200–$1,200 spread |
| True wholesale | 2,000–10,000 | $2.80–$4.20 | Fully amortized |
| Strategic OEM | 10,000+ | $2.20–$3.30 | Custom tooling included |
Three buyer-side levers move price meaningfully:
- Cell choice. SunPower IBC vs standard mono drops 30–40% but cuts efficiency 3–5 percentage points.
- IP rating. IP67 to IP68 upgrade adds $0.40–$0.90/unit at 2–4W sizes (extra potting + tested connector). Pays back for any aquatic, sub-grade, or marine deployment.
- MOQ. Price elbow at MOQ 500 → 2,000.
Deployment Environments & Spec Variations
Air-quality monitoring (rooftop, urban canyon)
UV-saturated rooftop install, ambient temp 25–60°C cell temp range. ETFE laminate non-negotiable. Mount panel with at least 25 mm air gap below for thermal cooling — gap-less mounts add 10–15% derating from heat.
Water-quality sondes (creek, well, fountain)
IP68 or higher, since sondes routinely submerge during high-flow events. Glass-fronted modules with marine-grade junction box. Cable jacket TPU rated for sustained immersion.
Weather stations (mountain, plains, coastal)
Vibration tolerance + extreme temp swings + ice load. IEC 61215 mechanical load test report critical. Coastal coast salt-fog testing additional documentation. Spec 304 or 316L stainless mounting hardware.
Soil-moisture and microclimate (agricultural)
Smallest form factor — 50×35 mm to 80×80 mm — bonded directly to sensor housing. UV-stable, low-current bias for LoRaWAN node deep sleep cycles.
OEM Sourcing & 8-Item Vetting Checklist
- Current ISO 9001:2015 certificate from a recognized body — TÜV, SGS, BV, DEKRA. Audit reports older than 12 months from no-name body fail enterprise environmental monitoring procurement.
- IEC 61215:2021 test report from accredited lab — covering 200 thermal cycles (-40°C to +85°C), 1,000 hours damp heat at 85°C/85% RH. Source: IEC 61215-1:2021 Terrestrial PV modules — Design qualification.
- RoHS & REACH compliance documentation — EU-required, increasingly demanded by US enterprise.
- NDAA Section 889 statement — required for US federal environmental monitoring (USGS / EPA / state agencies). Section 889 enacted 2019.
- FCC Part 15 / CE marking for any bundled charge controller or RF-emitting electronics.
- Sample turnaround under 10 days for stock-tooling modifications.
- Reference environmental customers in your geography — three customer names. Panels for US watershed deployments face questions a Chinese-domestic-only supplier hasn't seen.
- Detailed packaging list and HTS classification — per-pallet weight, dimensions, HTS codes for customs clearance.
Cross-cluster sourcing — same audit framework applies
The 8-item supplier audit above applies beyond environmental monitoring solar to the broader LinkSolar B2B sourcing catalog. Volume buyers running parallel evaluations on z bracket solar panel wholesale orders, z bracket solar panel oem programs, z bracket solar panel manufacturer audits, z bracket solar panel supplier comparisons, z bracket solar panel bulk container loads, mini solar panel for iot custom voltage tap, mini solar panel for iot wholesale tier pricing, mini solar panel for iot oem branding, mini solar panel for iot supplier vetting, or mini solar panel for iot manufacturer reference checks all use the same ISO 9001 + IEC 61215 + lab test report framework. The cluster differs; the audit doesn't. For permitted commercial mounting installations, also demand UL 2703 certification (PV mounting structural and grounding standard). Buyers comparing z bracket solar panel china OEM sources, evaluating z bracket solar panel for sale at retail tier vs wholesale, benchmarking z bracket solar panel price across vendors, identifying z bracket solar panel best-in-class manufacturers, or reading z bracket solar panel review aggregations should apply the same audit framework as the environmental sensor solar buyers above.
Customer case study: agricultural microclimate startup
A US agricultural-tech company came to us in late 2024 needing a 6V/3W panel under 110×80 mm to power soil-moisture nodes deployed at 4-acre intervals across orchards. Their first vendor had shipped PET-laminated panels with unrated cable connectors. By the second growing season, 28% of nodes reported brown-out, traced to cable-gland water ingress combined with PET yellowing reducing output 17%. We re-spec'd to ETFE-laminated panels with M8 IP67 connectors and a fixed 6V output matched to the node's bq24074 charge IC. Sample shipped in 9 days; the 8,000-unit reorder shipped in 28 days. As of the 2025 harvest season, field telemetry showed under 1% panel-related node failures — driven entirely by laminate choice and connector spec at the BOM stage.
Common Environmental Monitoring Solar Failure Modes
1. Cable gland ingress, not laminate ingress
Panel laminate is rated IP67. The cable gland on your environmental sensor enclosure is rated IP54 — or, more often, not rated. Water wicks up the cable jacket, sits in the connector cavity, the sensor shorts in 6–9 months. Spec waterproof connectors at the BOM stage.
2. Sizing for nameplate sun hours
"5–6 hours of sun" is open-field, mid-latitude. Watershed sensors under canopy get 1–2 hours. Urban canyon air-quality nodes get 2–3 hours. Northern winter sites lose another 30–50%. Plan for the worst week.
3. PET laminate on UV-saturated rooftop installations
Air-quality stations on rooftops yellow within one summer. Output drops 15–25% before any visible failure. ETFE adds $0.80–$1.50/unit but pays back across the warranty period.
4. Trusting nameplate wattage without binned-output data
Low-end suppliers round up wattage. Audit-grade environmental sensor panel manufacturers ship binned by measured flash-test output. Ask for the production-batch flash-test report.
Need a sample on your bench by next week?
Send sensor type, voltage, and target wattage. We’ll quote within 24 hours and ship a sample in 7 days.
Request RFQ →Frequently Asked Questions
What size solar panel does an environmental monitoring sensor need?
Short answer: Air-quality sensor uplinking every 15 min: 1–2W at 5V. Water-quality sonde with conductivity + pH every hour: 3–5W at 6V. Full weather station with anemometer + radiation sensor + cellular: 8–12W MPPT at 12V. Sizing: panel daily harvest ≥3× device consumption.
What's the MOQ for OEM environmental monitoring solar panels?
Short answer: 500 units for stock-tooling modifications. 2,000 units for non-standard cell layouts or custom aluminum frames. Below 500, tooling and engineering setup dominate unit cost.
What certifications matter for environmental monitoring solar?
Short answer: IEC 61215:2021, IEC 60529 IP67 (or IP68 for sub-grade and marine), ISO 9001:2015 from a recognized body (TÜV, SGS, BV), RoHS & REACH for EU. NDAA Section 889 for US federal environmental monitoring.
How do I match panel voltage to my environmental sensor?
Short answer: 3.7V Li-ion sensors take 5V/6V panel. 12V SLA/LiFePO4 stations take 12V panel. Voc ≤1.4× device input to avoid cold-weather protection trip. A direct 3V panel works for ultra-low-power LoRaWAN sensors.
What's the smallest environmental monitoring solar panel?
Short answer: 35×22 mm at 0.11W is the smallest commercially-shipped — for in-canopy temperature/humidity microsensors. Practical floor for any sensor doing radio uplink is 1W (80×80 mm).
Where can I source environmental monitoring solar panels at wholesale?
Short answer: Direct from a custom solar panel manufacturer with documented IEC 61215 + ISO 9001, voltage 3V–48V customization, IP67/IP68 connectors, and ETFE laminate. Contact us for MOQ-tiered pricing on 1W to 12W modules.
Sourcing solar for a 2026 environmental monitoring product launch?
Whether you need 500 units of a voltage-customized 2W air-quality sensor panel or 10,000 units of an OEM-branded 5W water-quality sonde panel, we’ll quote in 24 hours and ship a sample in 7 days.
