Solar Panel for Pipeline Cathodic Protection: Sizing, Autonomy, and Selection

By LinkSolar Engineering Team  •   9 minute read

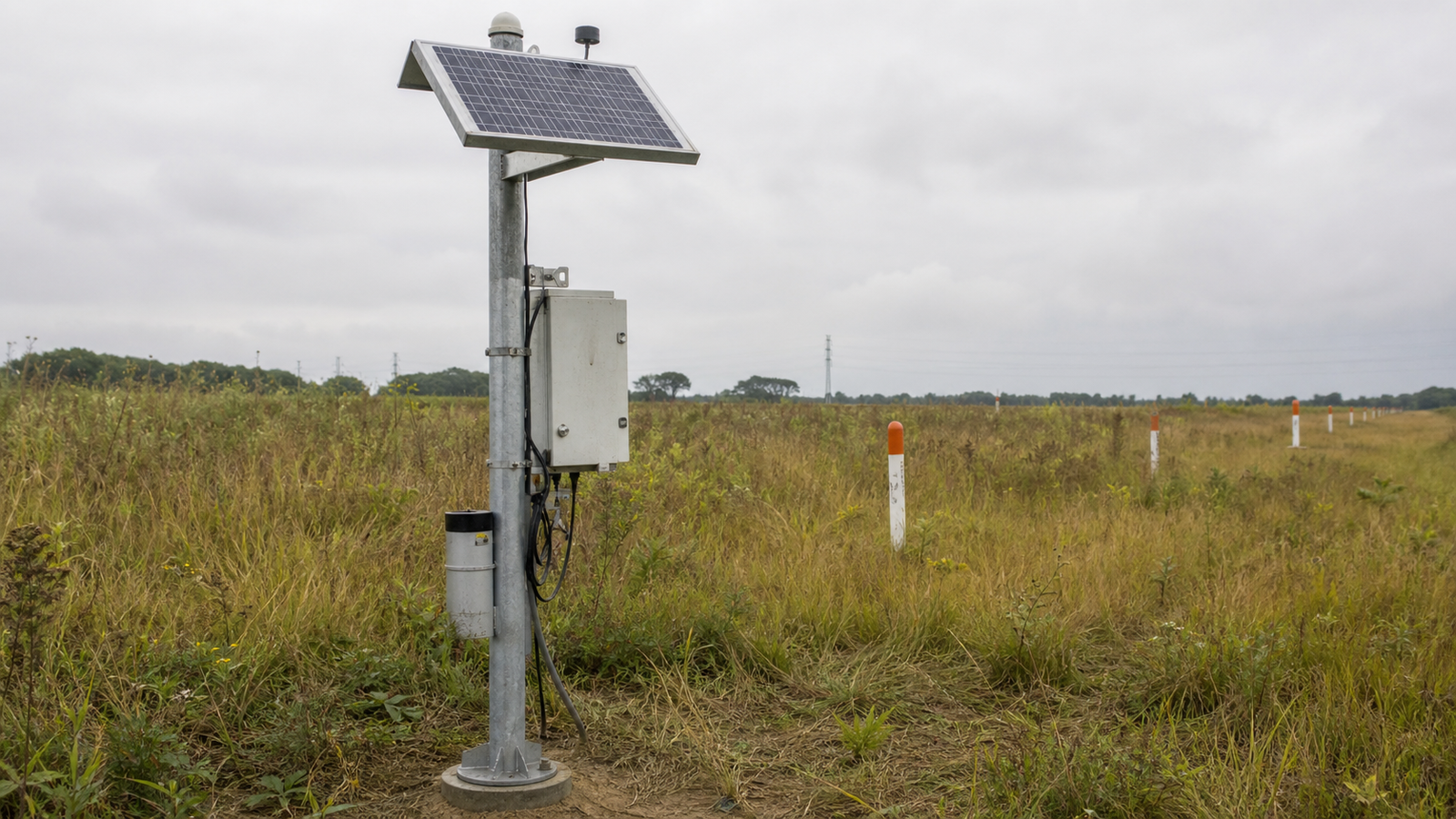

A solar-powered cathodic protection monitoring station mounted on a pole along a pipeline right-of-way, with pipeline marker posts visible in open terrain.

The most common spec error we see on remote-power orders is undersizing the battery bank, not the panel — and pipeline cathodic protection is where that mistake gets audited. The panel math is straightforward. The battery autonomy math is where CP projects fail compliance reviews.

Quick answer: A solar panel for pipeline cathodic protection monitoring typically runs 12–50 W depending on site latitude, paired with an MPPT charge controller and a battery bank sized for 5–7 days of autonomy — the figure pipeline integrity audits check. Size from the 24-hour load first; the panel is the last number, not the first.

Here's how to get both numbers right, plus the panel selection table by CP system size and the field notes that keep stations alive between annual visits.

What Cathodic Protection Actually Requires from a Power Source

Metallic pipelines corrode. Impressed current cathodic protection (ICCP) systems push DC current through the soil from an anode bed to the pipeline, making the pipe surface cathodic (negative) relative to the surrounding earth. This suppresses the oxidation reaction that causes metal loss.

Two categories of CP power demand on remote pipeline segments:

System Type Typical Power Draw Duty Cycle
Full ICCP rectifier 50–500W continuous 24/7
CP monitoring RTU + reference electrodes 2–8W average Intermittent (logging + periodic cellular upload)
Small impressed current unit (remote anode) 5–25W continuous 24/7
Test point data logger 0.5–2W Intermittent

Full-scale rectifiers need grid power or large off-grid solar arrays. This article covers the CP monitoring RTUs and small impressed current units in the 5–25W range, which is exactly where compact solar panels with integrated charge controllers make sense.

WHERE SOLAR SITS
The CP Monitoring Power Chain
Power chain for a solar-powered cathodic protection monitoring station Solar panel feeds an MPPT charge controller, which charges the battery bank sized for 5 to 7 days of autonomy, which powers the CP monitoring RTU and reference electrodes reporting over cellular. Solar panel pole-mounted, tilted MPPT controller integrated on 12W/25W Battery bank 5–7 day autonomy CP RTU + reference electrodes
Note: full ICCP rectifiers (50–500W continuous) sit outside this chain — they need grid power or a large dedicated array.

Why Remote Pipeline Segments Default to Solar

Pipeline ROWs (rights-of-way) run through places where AC power doesn't exist. Period.

A small solar panel and weatherproof battery enclosure mounted on a pole beside a pipeline right-of-way in remote grassland.

Running a utility drop to a remote CP test station or RTU commonly costs tens of thousands of dollars depending on distance to the nearest transformer. For a monitoring unit drawing 5W, that's absurd. Thermoelectric generators (TEGs) fueled by pipeline gas used to be the default alternative, but environmental regulations and fugitive emissions tracking have made solar the path of least resistance — literally and bureaucratically.

Solar also eliminates the ongoing fuel logistics problem. A TEG needs gas pressure regulation, fuel line maintenance, and periodic site visits for combustion system servicing. A properly sized solar system needs a site visit once a year to check connections and clean the panel.

Sizing the Panel: Start from Load, Not from Sunlight

Work backwards from the load profile. Here's the sizing sequence:

Step 1: Establish the 24-hour energy budget. Example: CP monitoring RTU drawing 4W average (includes cellular modem cycling on for 60-second data uploads every 4 hours). Daily energy = 4W × 24h = 96 Wh/day.

Step 2: Apply system losses.

Loss Factor Typical Value
Battery charge/discharge efficiency 85–90% (AGM), 95% (LiFePO4)
MPPT controller efficiency 95–97.5%
Wiring and connector losses 2–5%
Dust/soiling derating 5–10%
Temperature derating 5–15% (depends on site)

Combined system efficiency: 65–75% (conservative for extreme climates). Adjusted daily energy = 96 Wh / 0.70 = 137 Wh/day. Why module output moves with light and temperature this way is standard cell physics, laid out in DOE's photovoltaic technology basics.

Step 3: Divide by peak sun hours. For pipeline corridors in the northern US (Montana, North Dakota, Alberta), winter PSH can drop to 2.5–3.5 hours. Gulf Coast and Middle East sites get 5–6+ hours.

  • Required panel wattage = 137 Wh / 3.0 PSH = ~46W (worst-case northern winter)
  • Required panel wattage = 137 Wh / 5.5 PSH = ~25W (Gulf Coast / Middle East)

This is why location dictates panel size more than load does. A 25W panel handles the same RTU that needs a 50W panel 1,500 miles north.

The Battery Autonomy Problem: 5–7 Days Is Not Optional

Here's where pipeline CP solar diverges from every other small solar application.

A snow-covered solar-powered cathodic protection monitoring station next to a pipeline in a cold winter corridor.

Pipeline integrity management plans — built around NACE SP0169 / AMPP practice — typically require 5–7 days of battery autonomy, meaning the system must continue operating through a full week of zero solar production. This isn't a suggestion. Operators who can't demonstrate adequate autonomy during regulatory audits get findings.

Why 5–7 days? Extended winter storms, volcanic ash events, heavy snowfall on panels, or simply consecutive overcast days in northern latitudes. Pipeline corrosion doesn't pause for weather. Research programs such as Sandia National Laboratories' energy storage systems program publish the battery-aging and reliability data behind these conservatisms.

Battery sizing for 5-day autonomy on our 96 Wh/day example:

  • Required stored energy: 96 Wh × 5 days = 480 Wh
  • AGM depth of discharge limit (50%): 480 / 0.50 = 960 Wh → 80 Ah at 12V
  • LiFePO4 depth of discharge (80%): 480 / 0.80 = 600 Wh → 50 Ah at 12V

For 7-day autonomy, multiply accordingly. Two 50 Ah AGM batteries in parallel or a single 100 Ah LiFePO4 covers most CP monitoring RTU applications.

Panel Specs That Matter for CP Applications

Spec Why It Matters for Pipeline CP
Voltage output Must match charge controller input. 12V nominal (Vmp 17–18V) is standard for CP battery systems
MPPT vs PWM charging MPPT recovers 15–20% more energy in low-light conditions — critical for northern pipeline corridors. Our 25W MPPT solar panel has the controller integrated, eliminating a separate enclosure and wiring
Encapsulation Glass-tempered front is the only option for 20+ year pipeline service life. PET laminate degrades in 3–5 years of UV exposure
Operating temp range Pipeline sites range from −40°C to +60°C. Panel must be rated accordingly
Mounting compatibility Pole mount is the default for pipeline CP — panels can't sit on the ground (flood risk, vegetation overgrowth, animal damage). Our pole mount kit handles panels up to 50W on standard 2–3" schedule 40 pipe. (Rooftop racking variants in North America fall under UL 2703; pipeline pole mounts don't.)
Hail rating IEC 61215 minimum (25mm ice ball at 23 m/s). Pipeline corridors in the Great Plains need this

Panel Selection by CP System Size

CP Application Power Draw Recommended Panel Battery (5-day, AGM)
Test point data logger 0.5–2W 12W MPPT ($58.90) 12V 18Ah
CP monitoring RTU (cellular) 3–8W 25W MPPT ($85.60) 12V 55–80Ah
Small impressed current unit 10–25W 2× 25W or custom panel 12V 100–200Ah
RTU + small rectifier combo 15–30W Custom panel (quoted per spec) 12V 200Ah+ or LiFePO4

Our 12W MPPT panel at $58.90 and 25W MPPT at $85.60 both include integrated MPPT charge controllers with 97.5% conversion efficiency. This matters in pipeline applications because a separate external charge controller means another enclosure, another set of connections to weatherproof, and another failure point in a system that's visited once or twice a year.

PANEL BY APPLICATION
Typical panel size by CP application (W)
Typical solar panel size by cathodic protection application, in watts Test point data logger: about 12 watts. CP monitoring RTU with cellular: about 25 watts. Small impressed current unit: about 50 watts, often two 25 watt panels or a custom module. Panel size scales with continuous draw and site latitude. Test point logger ~12 W CP monitoring RTU ~25 W Impressed current unit ~50 W
Note: midpoints for a mid-latitude site; northern winter sites size up per the PSH math above.

For multi-component stations — panel, controller, battery, and load management as one spec — the full architecture is covered in our remote solar power system configurations.

NACE/AMPP Standards Reference

For corrosion engineers writing CP solar power specs, the relevant standards:

  • NACE SP0169 / AMPP SP21169 — Control of External Corrosion on Underground or Submerged Metallic Piping Systems. Section on power source reliability.
  • NACE SP0286 — Electrical Isolation of Cathodically Protected Pipelines.
  • NACE TM0497 — Measurement Techniques Related to Criteria for Cathodic Protection on Underground or Submerged Metallic Piping Systems.
  • API 1160 — Managing System Integrity for Hazardous Liquid Pipelines (includes CP monitoring requirements).
  • 49 CFR 192/195 — US DOT PHMSA regulations requiring adequate CP and monitoring on regulated pipelines.

None of these standards prescribe a specific solar panel brand or configuration. They prescribe outcomes: adequate protection current, continuous monitoring capability, and documented reliability. Your solar power system is a means to those outcomes.

Field Notes from the Sourcing Side

Pole mount is non-negotiable. Ground-level installations get buried in snow, submerged in flash floods, and chewed by wildlife. The CP installs we see spec'd for ground mounting tend to get retrofitted to pole mount within a couple of seasons. Start with the pole mount bracket and save yourself the retrofit cost.

Tilt angle matters more at high latitudes. At pipeline sites above 45°N, winter sun angle is so low that a fixed-tilt panel at latitude +15° can capture close to double the energy of a horizontal mount. Our pole mount bracket is adjustable, which is the whole point for pipeline applications spread across different latitudes.

Connector quality kills more systems than panel quality. MC4 connectors that aren't properly crimped and heat-shrunk develop resistance over 2–3 years of thermal cycling. High-resistance connections mean voltage drop, charge controller confusion, and eventual battery death. Panels ship with factory-crimped connectors, but if you're extending cables in the field, use proper MC4 crimp tools, not wire nuts. Keep enclosure glands at IP67, and step up to IP68-rated connectors on any run where the riser or trench can flood.

Custom Panel Configurations for CP

Standard 12W and 25W panels cover most CP monitoring RTU applications. For larger impressed current systems or multi-RTU installations, we commission custom panels through our partner factories:

  • Voltage output configurable from 6V to 48V
  • Wattage from 5W to 100W+ in single-panel configurations
  • Glass-tempered encapsulation standard for pipeline-grade durability
  • Entry path: stock panels ship at retail with no minimum; custom samples typically run 7–14 days with the tooling fee refunded against the production order; custom production quoted per spec and volume
  • Production lead time: typically 3–4 weeks after sample approval
  • Compliance pack with each production order: IEC 61215 module qualification, CE/RoHS declarations, and the partner factory's ISO 9001 certificate

Pipeline CP Solar FAQ

What size solar panel do I need for cathodic protection monitoring?

A cellular CP monitoring RTU typically needs a 25W MPPT panel at mid latitudes and up to ~50W on northern winter corridors, driven by worst-month sun hours rather than the load itself. Test-point loggers run on 12W; full rectifiers need a different class of array entirely.

How many days of battery autonomy does pipeline CP monitoring require?

Five to seven days of autonomy is the figure pipeline integrity management plans typically require and auditors check. The battery must run the full load through a week of zero solar production — storms, snow cover, or consecutive overcast days — because corrosion doesn't pause for weather.

Can solar power a full cathodic protection rectifier?

A full ICCP rectifier drawing 50–500W continuous needs grid power or a large dedicated off-grid array, not a compact panel. Solar in the 12–50W class fits CP monitoring RTUs, test-point loggers, and small impressed current units — the intermittent and low-continuous loads on remote segments.

The bottom line: run the load calculation with the sizing sequence above, and let the autonomy requirement size the battery before the panel. Once you have your daily Wh and site PSH numbers, send them with your pipeline location and CP system model — we'll confirm panel and battery sizing before you order: request a CP power spec review. US line: +1 716-728-3519.
