Running cables to every camera and sensor is expensive. Relying on batteries alone is worse: someone has to climb ladders every few months to swap them, and once the battery dies, your “security” camera is just a box on the wall.

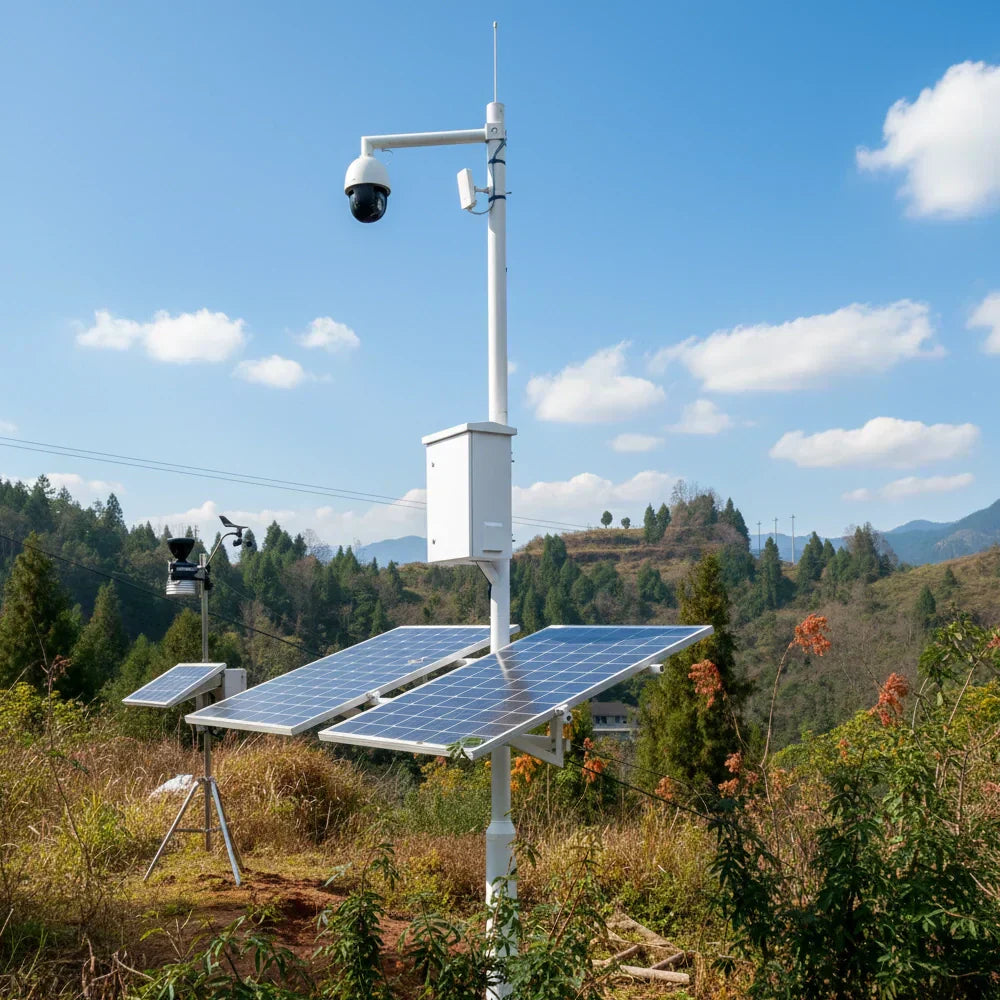

That’s why so many projects now turn to solar power for security cameras and sensors. A small solar panel, a charge controller and a battery can turn a remote camera into a truly off-grid sensor solar power system.
In practice, many teams discover the same pattern:
- Everything works in summer
- The camera starts dropping offline in winter or during long cloudy spells
- The datasheet says “10 W panel”, but on site it simply doesn’t keep up
Most of the time, the problem is not that “solar doesn’t work”, but that the power design was done too casually.
This guide walks through, step by step, what it takes for a small solar panel for security cameras to work reliably in the field.
1. Start with the real energy use, not just “5 W rated”
Before you look at solar panels, you need to know roughly how many watt-hours per day (Wh/day) your camera or sensor actually uses.
Just knowing “the camera is 5 W” is not enough, because security devices do not draw constant power:
- Most of the time they sit in standby or low-bit-rate mode.
- Power spikes when they record video, turn on IR LEDs, or send data.
- Some systems only upload short clips; others stream live video for long periods.
For a 4G or Wi-Fi camera, at minimum you should know:
- Standby power – the baseline to stay connected.
- Peak power – when recording, transmitting and using night vision.
- Daily usage pattern – roughly how many minutes per day it spends in “high power” mode.
For PIR sensors, door contacts, environmental sensors, the numbers are smaller but the logic is the same:
- Quiescent current in sleep mode (often in µA or mA).
- How often they wake and for how long.
- Whether they use wireless transmitters or indicator LEDs.
Ideally, you ask your hardware team or supplier for an estimated daily energy budget, such as:
“In typical use this 4G camera consumes about 5–8 Wh per day.”
That single number will drive everything else you size.
2. Convert Wh/day into “how many watts of panel do we need?”
How much energy a small solar panel can produce per day depends on three main factors:
- The panel’s rated power in watts (W).
- The effective sun hours at your site (season, latitude, shading, tilt).
- The overall system efficiency – controller, wiring, battery charge/discharge losses.
A simple but realistic rule that shows up across many solar sizing guides is:
- In winter or cloudy regions, expect only 2–4 effective sun hours per day.
- For small systems, assume 50–70% overall efficiency after all losses.
Get a Custom Solar Panels Quote
Example
- Device energy use: 5 Wh/day
- Candidate panel: 5 W mini panel
- Effective winter sun: 2 hours/day
- System efficiency: 60%
Estimated daily energy from the panel:
5 W × 2 h × 0.6 ≈ 6 Wh/day
On paper that just covers 5 Wh/day. But there’s almost no safety margin. A few days of bad weather, some dirt on the panel, colder batteries – and your system will fall behind and shut down.
In the field, a more robust design would:
- Add 30–50% safety margin on top of the calculated panel size,
- Use larger panels in high-latitude, cloudy or heavily shaded sites,
- Or reduce load (shorter clips, fewer uploads, lower bit rate) if panel size is constrained.
That’s why in real projects, a “small solar panel for security cameras” is often 8–15 W, not 5 W – especially when you want the camera to stay online through winter.
3. Batteries and controllers: the hidden failure points
When a solar-powered camera fails, people often blame the panel first. On real sites, the more common root causes are battery sizing and poor power electronics.
3.1 Battery capacity is about Wh and days of autonomy
For a security camera, the battery has two jobs:
- Smooth solar input during the day.
- Power the system through the entire night, and through cloudy periods.
If you need the system to survive 2–3 days without useful sun, the battery must cover at least 2–3× your daily energy use, plus extra for low temperature and aging.
Example:
- Device uses 5 Wh/day.
- You want 3 days of autonomy.
You need roughly:
5 Wh/day × 3 days = 15 Wh of usable energy
Depending on chemistry (Li-ion, LiFePO₄, etc.), you would then choose a larger nominal capacity so you are not cycling 0–100% every day. In cold climates, remember that usable capacity can drop to 50–70% of nominal at sub-zero temperatures.
3.2 Controller efficiency and standby losses
Low-quality DC-DC converters or MPPT/PWM controllers can quietly consume a surprising amount of power.
In off-grid sensor solar power systems where the load is small, a controller with high idle current or poor conversion efficiency can eat a significant share of your energy budget.
A good controller for small systems should:
- Have low quiescent current in the tens of µA to low mA range.
- Offer predictable charge and discharge behaviour across temperature.
- Operate efficiently over the expected input and output voltage ranges.
This is worth documenting in your product pages and datasheets so engineers understand the difference between a hobby module and an industrial power stage.
4. Mounting and placement: your “10 W panel” can behave like 5 W
Even the best-sized panel can underperform if it’s mounted badly.
4.1 Panel direction vs camera direction
Security cameras must face the area of interest. Solar panels should face the sun.
If you bolt the panel rigidly to the camera bracket, one of them will be compromised. In many cases, the result is:
- Camera has a good view,
- Panel faces the wrong way and winter yield collapses.
Better practice is to use separate or articulated solar mounting brackets for security cameras so that:
- Cameras aim at doors, gates or fences.
- Panels aim toward the equator (south in the northern hemisphere), with a sensible tilt and minimal shade.
4.2 Shade and partial obstruction
Branches, eaves, cables and even the camera arm itself can cast shadows at critical times of day. With small panels, partial shading has a disproportionately large effect.
On site, it’s worth:
- Observing the installation point at different times, especially mornings and afternoons in winter.
- Reserving a “corridor of light” for the panel.
- Using pole mount or extension brackets to raise or offset the panel if needed.
4.3 Maintenance and cleaning
Dust, pollen, leaves and bird droppings all reduce output over time. Most vendor troubleshooting guides for “solar panel not charging” start with: check for adequate sunlight, clean surface, and secure connections.
Design for:
- Panel angles that allow rain to help wash debris away.
- Brackets that can tolerate occasional wiping or hosing.
- Cable routing that avoids water pooling and strain.
If you’re supplying brackets and hardware, these are useful, concrete benefits to highlight.
5. Typical configurations you can safely recommend
To make life easier for engineers and integrators, you can condense the sizing logic into a few reference configurations.
5.1 Residential driveway / perimeter camera
One or two Wi-Fi or 4G cameras, medium activity, relatively open sky.
- Goal: reliable year-round operation; occasional short outages acceptable in extreme weather.
- Recommended: 8–15 W mini panel + appropriately sized lithium battery (for 2–3 days autonomy).
- Mounting: adjustable wall or eave bracket.
5.2 Construction site or farm temporary monitoring
Rough environment, frequent moves, several cameras at one location.
- Goal: re-usable, easily redeployed systems with minimal cabling.
- Recommended: 10–20 W panel per camera or a larger shared solar kit for multiple cameras, plus larger battery pack.
- Mounting: quick-release pole mounts or transportable frames; consider theft and impact.
5.3 Low-power sensor networks (PIR, door contacts, environmental sensors)
Many nodes, very low per-node power, high cost to visit sites.
- Goal: maintenance-free operation over long periods.
- Recommended: 2–5 W panel per node + small battery or supercapacitor; highly integrated design to minimise wiring and failure points.
- Special focus on performance under low light and low temperature.
On your website, these scenarios can map directly to bundled kits or recommended combinations, instead of leaving customers to guess.
6. Common pitfalls: why “looks fine on paper” still fails on site
Across many projects, the same mistakes repeat:
- Sizing from summer sun only. Calculations based on bright summer days but deployed in climates where winter sun is weak and days are short.
- Over-optimistic battery assumptions. Counting nameplate capacity without subtracting losses for temperature, aging and partial state-of-charge cycling.
- Ignoring controller, cable and connector losses. Long, thin cables and multiple connectors cause voltage drop; inefficient controllers waste energy as heat.
- Mounting panels wherever they fit. Panels installed under eaves, behind parapets, or in partial shade, because it was convenient for the installer.
Spelling these out clearly in your guides and product documentation both reduces support costs and builds trust that you understand real-world deployments, not just lab conditions.
7. When to move from off-the-shelf parts to a custom solar module
If you are powering a handful of cameras or a short-term setup, well-chosen standard small solar panels for security cameras are often enough. You pick sensible wattage, pair it with a suitable battery and bracket, and you are done.
You should start thinking about custom solar panels and power kits when:
- You are building a production camera or sensor product to sell at scale.
- Your systems must survive extreme climates or long maintenance intervals.
- You want the panel, enclosure and mounting to form a clean integrated design instead of an add-on.
In those cases, a purpose-built mini or small solar panel can be tuned for:
- Exact voltage and current range your electronics need.
- Dimensions and mounting holes that match your housing or pole hardware.
- Encapsulation materials (glass, ETFE, flexible laminates) chosen for your environment.
- Pre-assembled cables and connectors in the right length and gauge.
That is where a specialist manufacturer like LinkSolar adds real value: you can prototype quickly with standard panels, then, once requirements are clear, move to an OEM module that improves reliability and reduces install time across every deployment — without overselling what solar can do.
