Roof Solar Monitoring System
$1,29900 USD
Unit price
/
Unavailable
Quickly evaluate the performance of rooftop PV systems. This plug-and-play kit combines an on-module sensor for irradiance, module backsheet temperature, tilt, and azimuth with a wireless gateway and cloud dashboard. A built-in model estimates theoretical energy and compares it with your actual energy to provide a clear performance ratio (PR) assessment—viewable 24/7 from web or mobile.
Key Benefits
- Plug-and-play: No complex system integration—start measuring and evaluating within minutes.
- 4-in-1 sensing: Simultaneous readings for irradiance, temperature, tilt and azimuth improve accuracy of PR analysis.
- Theoretical vs. actual: Onboard model calculates expected generation and compares it to site production for actionable insights.
- Remote O&M: Cloud dashboard and mobile app for continuous monitoring, alerts and historical trends.
- Low-impact install: Self-powered, wireless design minimizes cabling and works on existing arrays.
- Expandable: Can integrate with other plant platforms to enrich data and workflows.
What’s Included

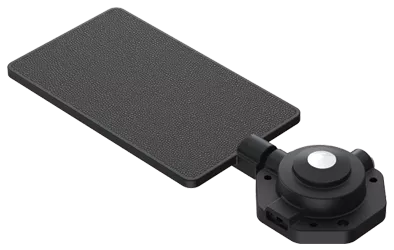

- Sensor unit (self-powered) mounted at the PV module edge

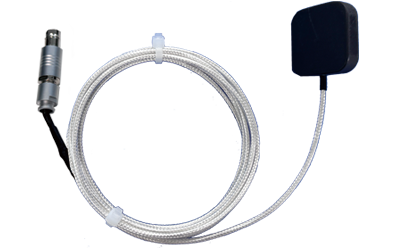

- Backsheet temperature probe

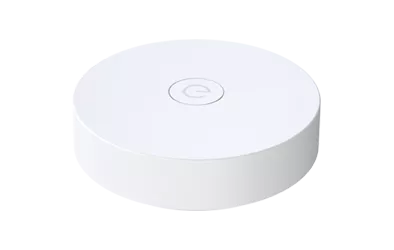

- Wireless data gateway

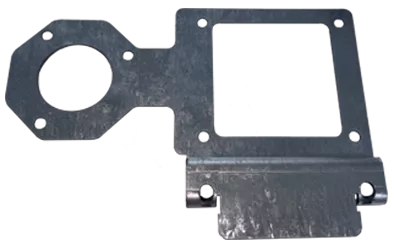

- Mounting hardware kit
- Access to cloud dashboard / mobile app

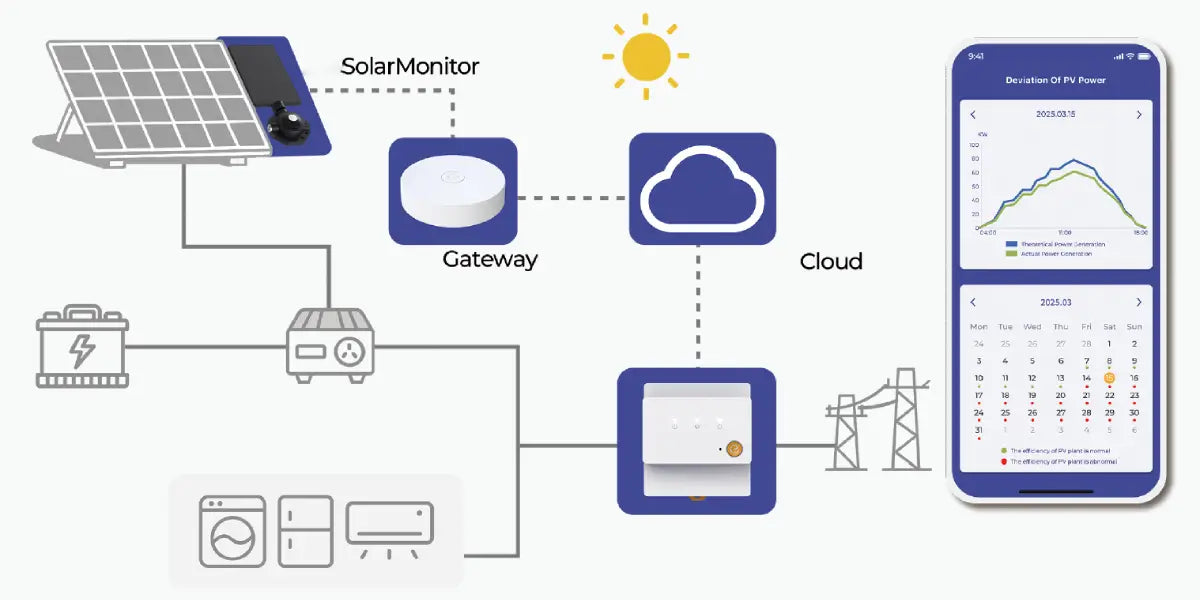

How It Works
- Fix the sensor to the module frame and attach the backsheet temperature probe.
- Pair the sensor with the wireless gateway; data is pushed to the cloud automatically.
- Bind the site in the dashboard to view irradiance, temperature, tilt/azimuth, modeled energy and PR in real time.
Typical Use Cases
- Commercial & industrial rooftop PV
- Schools, campuses and public buildings
- Performance audits of existing sites and O&M optimization
Basic Specs (summary)
- Measurements: Plane-of-array irradiance, module backsheet temperature, tilt, azimuth
- Power & comms: Self-powered sensor, wireless link to gateway
- Analytics: Real-time theoretical energy model and PR comparison
Note: Detailed electrical and communication parameters can be provided upon request.
