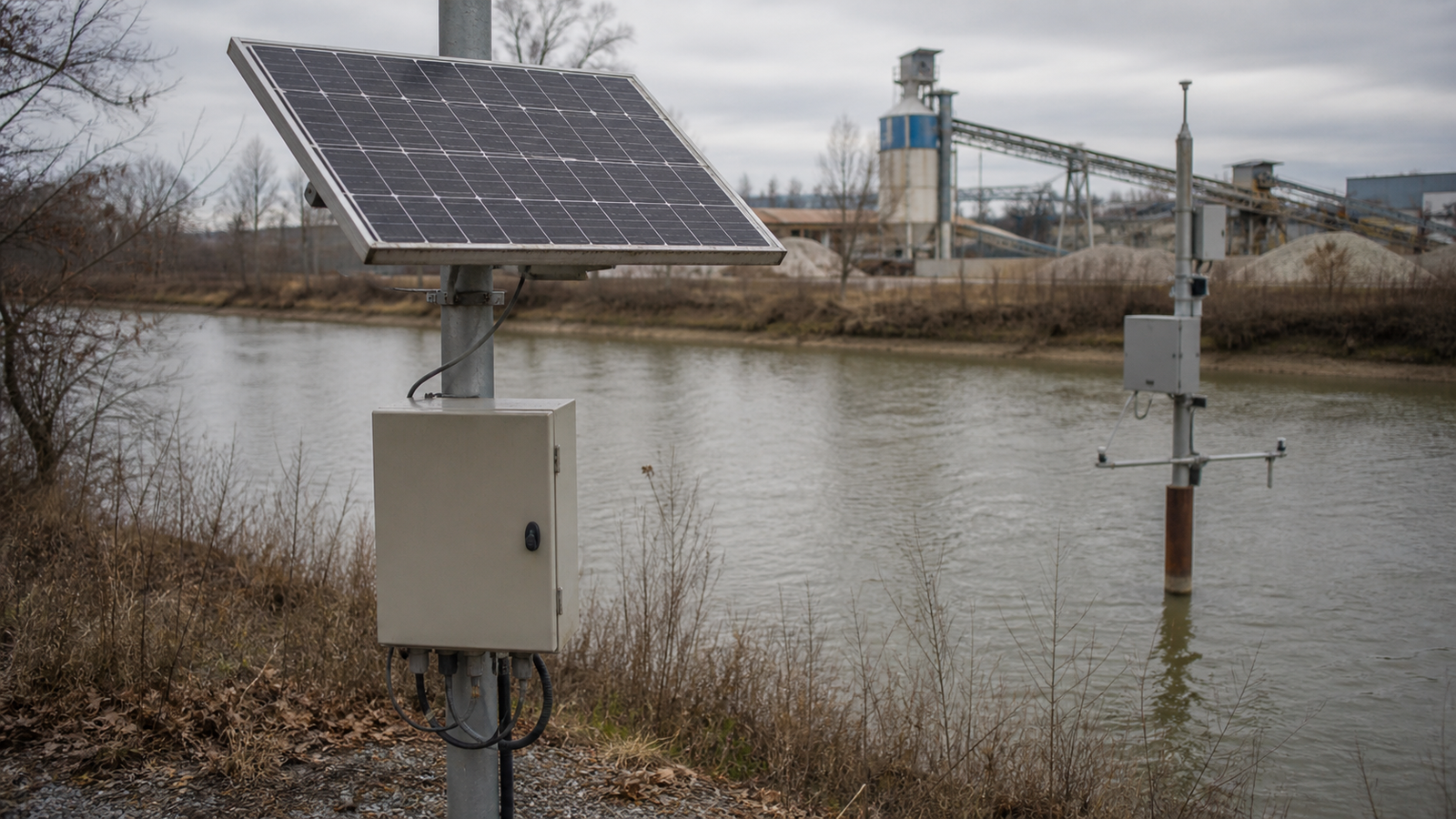

A satellite-IoT systems integrator asked us to quote only the power layer for river-monitoring stations in Peru: solar panel, MPPT charge controller, battery, enclosure, and pole mount. Not the water-level sensor. Not the telemetry unit.
That split is standard in remote solar power systems sourcing: the integrator owns the instrument layer, we supply the power layer complete. Buying the power layer as a finished subsystem, not as loose components, is what this guide is built around.
This guide is written for integrators and OEM engineers who buy industrial remote power systems as a subsystem, not solar specialists. It covers 24-hour load sizing, autonomy days, buy-complete versus assemble-yourself tradeoffs, an RFQ checklist, and real remote solar power system configurations we've quoted for water-level, SCADA, and camera-tower deployments.
What a Complete Remote Solar Power System Includes
A remote solar power system is five subsystems working as one unit: solar panel, charge controller, battery bank, enclosure, and mount. Each line item on a vendor quote should map to one of these five. A quote that skips any one of them is incomplete, regardless of how low the headline price runs.
| Subsystem | What to check on the quote | Typical spec range |
|---|---|---|
| Solar panel | Cell type (monocrystalline), IEC 61215 design qualification, frame wall thickness | 40–300 W for monitoring loads |
| Charge controller | MPPT vs. PWM regulation type, rated conversion efficiency | MPPT ~97.5% vs. PWM 75–80% |
| Battery bank | Chemistry (LiFePO4 or sealed lead-acid), capacity in Wh, cycle life | sized to autonomy days × daily load in Wh |
| Enclosure | IP rating, vented or sealed design, gasket and latch hardware | IP65–IP67 (IP68 where temporary submersion is a risk) |
| Mounting | Pole or ground mount, wind-load rating, hardware material (UL 2703 governs rooftop PV racking in North America) | rated to local wind zone |
Integrators should insist the quote itemizes all five subsystems as separate line items, not a bundled solar-kit price. Missing line items are where thin-spec vendors hide cost cuts — panels can look identical in photos while frame wall thickness and backsheet material differ underneath. Instead of comparing pictures, ask every vendor for three numbers:
- Frame or profile wall thickness, in mm
- Alloy grade (6063-T5 or similar), stated on the quote
- Rated load for the mount, in Pa or psf
A supplier that can't produce these three numbers, or answers vaguely, is not worth a low price.
The charge controller line deserves particular scrutiny. MPPT controllers run at roughly 97.5% conversion efficiency and recover 15–20% more usable energy than PWM controllers in weak or angled light, a real gap on wooded or shaded monitoring sites. Custom output voltage from 3V to 48V is available through our partner factories when the load requires a non-standard rail.
Size the Load First: The 24-Hour Watt-Hour Method
A remote solar power system is sized from a 24-hour watt-hour (Wh) load profile, not from panel wattage — panel wattage is the last number you calculate, not the first one you pick. Four steps convert a device list into an array wattage number, and panel size falls out at the end, not at the start.
- List every device on the system with its draw in watts and duty cycle over 24 hours, then sum the results into a daily watt-hour figure.
- Multiply that daily Wh figure by a system-loss factor, typically 1.2, to cover charge controller, cable, and battery round-trip losses.
- Divide the loss-adjusted Wh by the site's worst-month peak sun hours to get the array wattage.
- Apply a winter/soiling derate, typically 1.2–1.3, and round up to the next standard panel size.
In a bridge structural-health-monitoring inquiry we handled, the accelerometers and tilt sensors barely registered on the load budget: they draw milliwatts. The load that actually set array size was the LoRaWAN gateway backhauling the sensor data, pulling continuous watts around the clock rather than the instruments themselves. Split continuous loads (gateways, 4G modems) from pulse loads (sensor wake-ups, camera events) before totaling anything — for per-instrument breakdowns on multi-sensor sites, see sizing solar for environmental monitoring stations.
Typical daily energy figures show the gap: a battery-backed sensor node at 50–200 mW runs roughly 1.2–4.8 Wh/day, a 4G camera averaging 3–6 W runs roughly 72–144 Wh/day, and a LoRaWAN gateway at 5–12 W continuous runs roughly 120–288 Wh/day. Sites that add alarm relays and RTU polling shift that math further; see SCADA integration and alarm loads for the duty-cycle detail.
Autonomy Days and the Low-Temperature Trap
Autonomy is the number of consecutive days a battery bank can run the full load with zero solar input. Five days is a common baseline for unattended monitoring sites. Stand-alone PV test procedures such as NREL's define usable battery capacity and hours-of-autonomy as measured quantities, not design guesses.
The sizing math is one line: battery Wh = daily load Wh × autonomy days ÷ usable depth-of-discharge (DoD). A 20 Wh/day load with 5-day autonomy at 80% DoD (typical for LiFePO4) needs a 125 Wh bank; the same load at 50% DoD (typical for sealed lead-acid) needs 200 Wh. Chemistry choice changes pack size before cost — see battery chemistry trade-offs for remote monitoring.
Low temperature is where correct sizing math can still fail. LiFePO4 cells discharge fine below freezing, but the 0 °C charge cutoff means the pack must reject charge current below that point. A datasheet listing "operating range −20 °C to 60 °C" can still strand a station its first winter if the controller keeps charging a cold battery, since that number often describes discharge behavior, not charge behavior.
Ask the supplier which of the two the datasheet number covers before ordering. Two mitigations handle the cutoff:
- A pack with built-in low-temperature charge protection or a heating pad, which manages the cutoff automatically
- A charge controller configured with its own low-temp lockout, for packs without internal protection
See cold-climate battery performance for the full failure sequence.
Bus voltage is a smaller decision but not trivial. Loads above roughly 200 W, or long cable runs, favor 24 V over 12 V, since doubling bus voltage halves current and cable losses for the same power. Module output behavior in the low-irradiance conditions common to winter storms is covered in the DOE's overview of PV technology basics; how that output gets stored and dispatched is covered in the DOE's guide to systems integration basics.
Buy a Complete System or Assemble Components Yourself?
For a multi-site rollout, a pre-integrated remote solar power system usually costs less in total than sourcing panel, controller, battery, and enclosure from separate vendors and assembling them in-house. For a single pilot site, that math often flips the other way.
The trade-off breaks down across five factors that drive total cost on a fleet deployment:
| Factor | Complete system | Self-assembled |
|---|---|---|
| Engineering hours | One spec review | Component matching plus enclosure fabrication |
| Warranty | One accountable party | Four to five separate warranties to track |
| Shipping | One consolidated shipment, one PI | Multiple POs and customs entries per vendor |
| Spare-parts logic | Matched replacements from one source | Mixed SKUs across multiple vendors |
| Commissioning risk | Bench-tested as a complete unit before shipment | First full integration happens in the field |
Self-assembly still wins under specific conditions. If you're deploying to one or two sites, already have in-house electrical staff who can commission on-site, and hold panels, controllers, or enclosures on the shelf, buying components separately can cost less than a pre-integrated kit. The kit's premium buys you consolidation, not magic.
Complete systems sourced through our partner factories start at MOQ 10 sets and are bench-tested as a complete unit before shipment. A multi-site order moves as one proforma invoice and one consolidated shipment, not five separate vendor relationships to coordinate.
The RFQ Checklist: 7 Things to Lock Before You Order
A complete RFQ for a remote solar power system answers seven questions before a supplier has to ask them back. Missing any one of these turns a quote request into a week of email clarification, and a rushed quote based on guesses is the fastest way to receive an undersized system.
Copy this list into your RFQ document and fill in each line before you send it:
- 24-hour load profile in Wh. Attach the table from your sizing calculation — it is the single input that determines panel wattage, battery capacity, and everything downstream.
- Site data. Coordinates or worst-month peak sun hours, ambient temperature range, and wind exposure at the mounting location.
- Autonomy requirement in days. State whether the site is reachable in winter, since that changes how much buffer the battery bank needs to carry.
- Battery chemistry and charge-temperature protection. Specify a low-temperature charge cutoff or heater requirement if the site sees sub-zero conditions.
- Compliance documents to request. Module design qualification to IEC 61215, CE/RoHS declarations, a UN38.3 transport test report for any lithium pack, and the factory's ISO 9001 quality-system certificate — ask for the actual documents, not a logo on a datasheet.
- Structural numbers for the mount. Frame material grade and rated load, since photos don't show wall thickness but the numbers do.
- Commercial terms. MOQ (complete systems through our partner factories start at 10 sets), a sample-unit path before volume, target Incoterms, and QC evidence — we provide pre-shipment inspection with photo and video report on partner-factory orders.
If the deployment needs a non-standard panel size or voltage, read how custom solar panel sourcing works before you lock line 5. An RFQ written this way usually gets a firm quote in days instead of a week of clarification emails. Sample panels typically ship in 7–14 days and volume production runs 3–4 weeks at the panel level — confirm system-level lead times per configuration.
Remote Solar Power System FAQ
How much does a remote solar power system cost?
Remote solar power system cost tracks the 24-hour load and autonomy requirement, not a fixed list price. A sensor-node system and a gateway-class system with cellular or satellite backhaul can differ by an order of magnitude in panel size and battery capacity. Send us your load table for a firm number.
What size solar panel do I need for a remote monitoring station?
Panel size for a remote monitoring station comes from daily watt-hour consumption times a loss factor, divided by worst-month peak sun hours, then derated for tolerance and soiling. The same method sizes any remote solar panel deployment, from SCADA sites to solar power for remote cabins. Communications hardware such as cellular modems and satellite radios usually dominates the load, not the instruments — size for the radio, not the sensor.
Can these systems work in freezing climates?
Remote solar power systems work in freezing climates if the battery pack has low-temperature charge protection or an internal heater. The spec that matters is charge temperature range, not operating range: a battery can discharge in the cold but still be damaged while charging in it. LiFePO4 packs must not charge below 0°C.
What is the minimum order for a complete system?
Complete systems sourced through our partner factories start at MOQ 10 sets. Single sample units are available below that threshold, quoted per configuration rather than off a price list, so you can validate performance on site before committing to volume.
The bottom line: size from the 24-hour load, verify the charge-temperature spec, and lock the seven RFQ lines before you order. Run the load table for your deployment, then send it with your site coordinates for a spec confirmation. We'll check panel size, battery, and low-temperature protection against your numbers and reply with a firm quote — request a system spec review to get started.
