The biggest risk at a remote railroad crossing isn't picking the wrong solar panel. It's assuming the same panel that powers a trail camera can keep a grade crossing flasher alive through 10 consecutive overcast days in January.
Railroad crossing warning systems sit in a unique corner of solar design: they draw almost nothing most of the time, then demand full power the instant a train approaches — and the penalty for a dead battery isn't a missed notification. It's a collision.
That gap between "low average consumption" and "zero tolerance for downtime" is exactly where most off-the-shelf solar setups fall short. Here's what the power budget actually looks like, what the standards require, and how to spec a solar array that meets AREMA signal-grade reliability.
The Power Budget: Not What You'd Expect
Railroad crossing warning systems aren't continuously running high loads. The duty cycle is intermittent but the standby draw never stops.
| Component | Active Power | Duty Cycle | Notes |
|---|---|---|---|
| LED flashers | 5–15W | During train approach only | Typical activation 2–8 min per event |
| Warning bells/horns | 10–30W | During train approach only | Highest instantaneous draw |
| Standby electronics | 1–3W | 24/7/365 continuous | Track circuit monitoring, PTC sensors, communication |
| Track circuit monitors | 3–8W | Continuous or periodic | Depends on detection technology |
| PTC/communication modules | 5–25W | Periodic transmit bursts | Cellular or radio backhaul |
Here's the math that trips people up: a crossing might only activate 6–12 times per day for 2–5 minutes each time. That's maybe 30–60 minutes of high-draw operation daily. But the standby electronics — track circuit monitors, PTC sensors, communication modules — pull 1–3W around the clock. That's 24–72Wh per day just keeping the system awake.
Add in 2–4 activations during the worst-case day (conservative for a low-traffic branch line), and your daily energy budget lands somewhere around 40–120Wh depending on the specific equipment.
Why Railroad Standards Change Everything
This isn't a security camera that goes offline for an hour and you miss a package thief. AREMA (American Railway Engineering and Maintenance-of-Way Association) signal standards set the bar at a completely different level.
Key requirements that affect solar sizing:
- 10-day battery autonomy minimum. The system must operate for 10 consecutive days with zero solar input. Some jurisdictions require 14 days. This isn't theoretical — it covers extended winter storms, volcanic ash events, heavy snow cover on panels.
- No single point of failure. Redundant charge controllers, dual battery strings, and sometimes dual panel arrays.
- Temperature extremes. Battery capacity at -30°C can drop 40–60% for lead-acid. The solar array needs to compensate for this capacity loss.
- 20+ year service life expectation. Railroad signal equipment doesn't get replaced on a 5-year cycle. The panel needs to match.
For context: if your standby draw is 2W continuous (48Wh/day) and you need 10-day autonomy, the battery bank alone needs to store at least 480Wh usable — which means 800–960Wh nameplate capacity for lead-acid (50–60% usable depth of discharge) or 550–600Wh for LiFePO4.
Panel Sizing: Where the Numbers Land
The solar array needs to replenish a full 10-day battery deficit within 3–5 sunny days after a prolonged storm. That recovery requirement, not the daily consumption, drives the panel size.
| Scenario | Daily Load | 10-Day Reserve | Min. Panel Size | Recommended Array |
|---|---|---|---|---|
| Low-traffic branch line (standby + 4 activations) | ~60Wh | 600Wh | 25–30W | 50W (2 × 25W) |
| Moderate traffic (standby + 8–12 activations) | ~90Wh | 900Wh | 40–50W | 100W (2 × 50W or 4 × 25W) |
| High traffic + PTC comms | ~150Wh | 1,500Wh | 60–80W | 150–200W array |
These numbers assume 4 peak sun hours — adjust upward for northern latitudes or heavy winter cloud cover. Alaska installations might need 2× the panel capacity of Arizona ones for the same load.
The typical deployment pairs two or more panels in an array. A single 25–50W panel handles the standby and communication electronics. The full array — often 100W or more — covers the activation loads and battery recovery.
The Communication and Monitoring Side
Here's where it gets interesting for panel selection. The warning lights and bells are the visible part of the system, but the electronics underneath — track circuit monitors, PTC (Positive Train Control) sensors, cellular modems for remote status reporting — have their own power profile.
These components typically draw 8–25W during active transmission and 1–5W in standby. They're the perfect use case for a dedicated smaller panel with its own MPPT charge controller, isolated from the main warning system power bus.
Why isolate them? Because if the communication module has a fault that drains its battery, it shouldn't take the warning flashers down with it. Separate power buses with separate solar inputs is standard practice in signal-grade installations.
Our 25W MPPT panel is built for exactly this kind of auxiliary power application. The integrated MPPT controller runs at 97.5% conversion efficiency — that matters when you're squeezing every watt-hour out of limited winter sunlight. Compare that to PWM controllers at 75–80% efficiency, and you're recovering 15–20% more energy from the same panel area. Over a 10-day autonomy window, that margin is the difference between a system that barely survives and one that has headroom.
Panel Construction for Railroad Environments
Railroad rights-of-way are harsh. Vibration from passing trains, ballast dust, temperature cycling from -40°C to +60°C, and the occasional rock kicked up by maintenance equipment.
What to look for in panel construction:
- Glass encapsulation over polymer. PET laminate starts degrading after 2–3 years of UV exposure — yellowing reduces output. ETFE is better but glass is the only option that matches a 20-year signal equipment lifecycle. This is why we use glass encapsulation on panels destined for infrastructure applications.
- Sealed junction box rated IP67 or better. Ballast dust and rain infiltration will corrode connections within 2 years otherwise.
- MC4 or hardwired connections. Field-crimped connections in a railroad environment are a maintenance liability.
- Hail rating. IEC 61215 requires 25mm ice ball impact testing. Railroad installations in tornado-prone corridors should spec panels tested at 35mm.
Voltage Selection and Charge Architecture
Most railroad signal systems run on 12V or 24V battery buses. Panel voltage selection needs to account for:
- MPPT controller input range. An MPPT controller needs panel Vmp (voltage at maximum power) to be at least 2–3V above battery voltage to regulate properly. A 12V battery system needs panels with 17–18V Vmp.
- Wire run length. Remote crossings often mount panels 15–30 meters from the signal bungalow. Longer runs at low voltage mean higher I²R losses. 24V systems cut current in half versus 12V, reducing wire losses by 75%.
- Series vs. parallel stringing. Two 25W panels in series doubles voltage (better for long cable runs); in parallel doubles current (better for partial shading tolerance if one panel gets covered by snow).
For custom voltage requirements, panels can be configured from 3V to 48V output. Railroad applications typically need 18V or 36V Vmp to feed 12V or 24V battery banks through MPPT controllers.
Installation Considerations
Panel mounting at railroad crossings follows a different logic than rooftop or ground-mount residential.

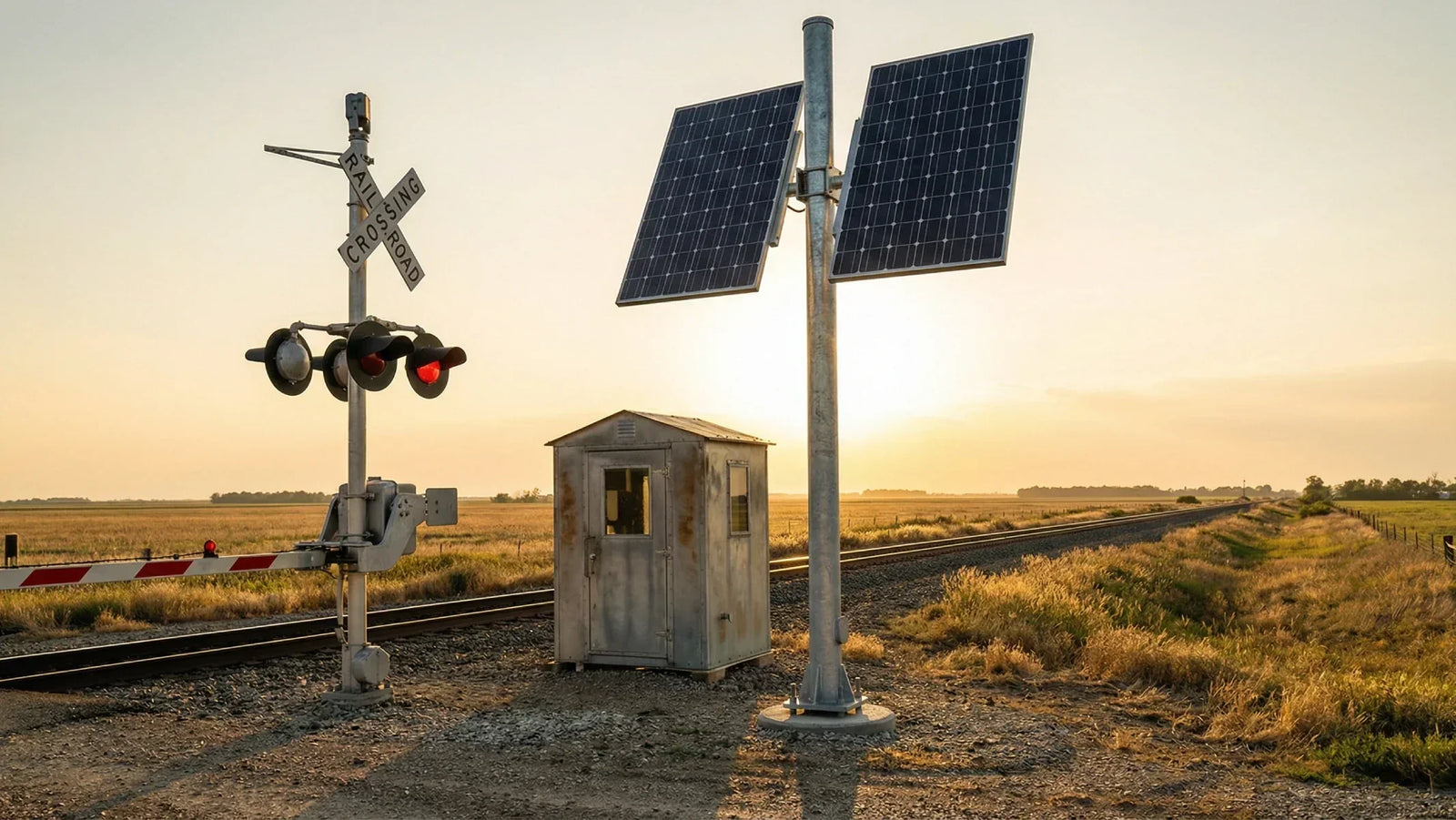

Pole mount is standard. Ground-level panels get buried by snow, covered by vegetation, and damaged by maintenance equipment. Pole-mounted arrays at 3–4 meters height avoid all three problems. The pole also serves double duty as the signal mast in some configurations.
Orientation matters more than usual. Most residential systems face south (in the Northern Hemisphere) and call it done. Railroad crossing panels need to account for right-of-way clearing — trees are typically cleared in a specific corridor, so panel orientation should maximize exposure within that cleared sightline.
Anti-theft mounting. Remote crossings are targets for copper thieves (wiring) and occasionally panel theft. Security bolts, tamper-resistant hardware, and elevated mounting all help.
For a detailed look at pole mounting and remote solar power system design, including cable management and grounding requirements, we've put together system-level guidance for infrastructure applications.
What This Means for Procurement
If you're speccing solar for railroad crossing warning systems, the bill of materials typically includes:
- Primary array: 2–4 panels, 100–200W total, glass-encapsulated, 18V or 36V Vmp
- Auxiliary panel: 1 × 25W for communication/monitoring electronics (separate MPPT)
- Battery bank: Lead-acid (cheaper, proven, handles cold) or LiFePO4 (lighter, deeper DoD, longer cycle life) — sized for 10–14 day autonomy
- Charge controller(s): MPPT, not PWM — the efficiency difference is too significant at these duty cycles
- Mounting: Pole mount, hot-dip galvanized, rated for local wind zone
The panels themselves are the straightforward part. The engineering is in the system design: battery sizing for autonomy, charge controller configuration for recovery rate, and redundancy architecture for signal-grade reliability.
Next Step
Run your load calculation with the actual equipment draw specs from the signal manufacturer, then check whether your autonomy requirement is 10 days or 14. Those two numbers — daily Wh and autonomy days — determine everything else. If you need panels configured to a specific voltage and wattage for a crossing project, send us your load profile and site coordinates — we'll confirm panel sizing, voltage configuration, and pricing before you commit to an order.
