Solar Panel Roof Mounting Kit with Black Mini Rails, 4-Panel

LinkSolar  |  SKU: MNT-RG122-B-10
$4795 USD
Taxes and shipping calculated at checkout.

Features
  • Four-panel configuration: Ten mini rails and the matching clamp set support a four-panel single-row layout.
  • Compact mini rails: 4.72-inch aluminum alloy rail sections create distributed mounting points without long rail sections.

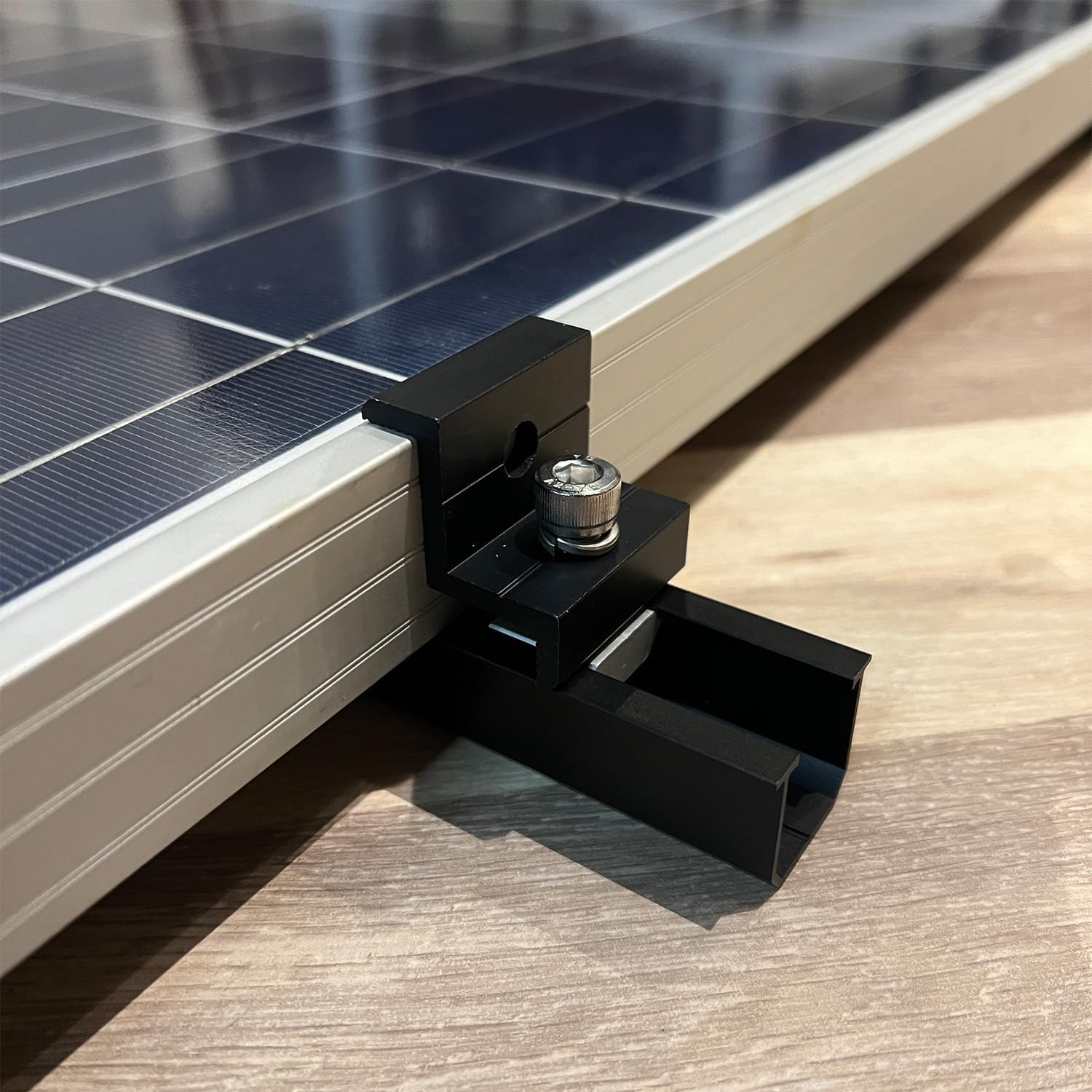

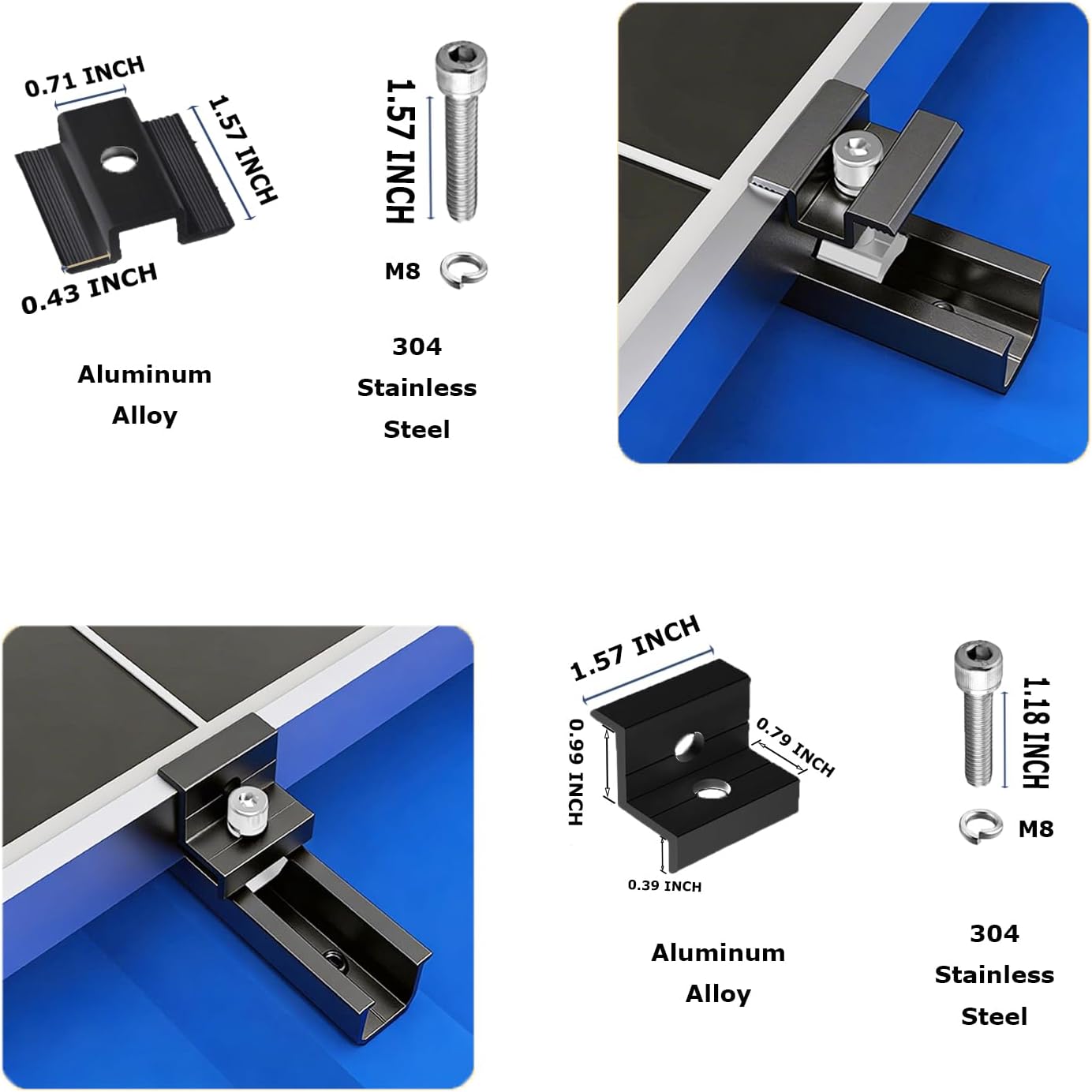

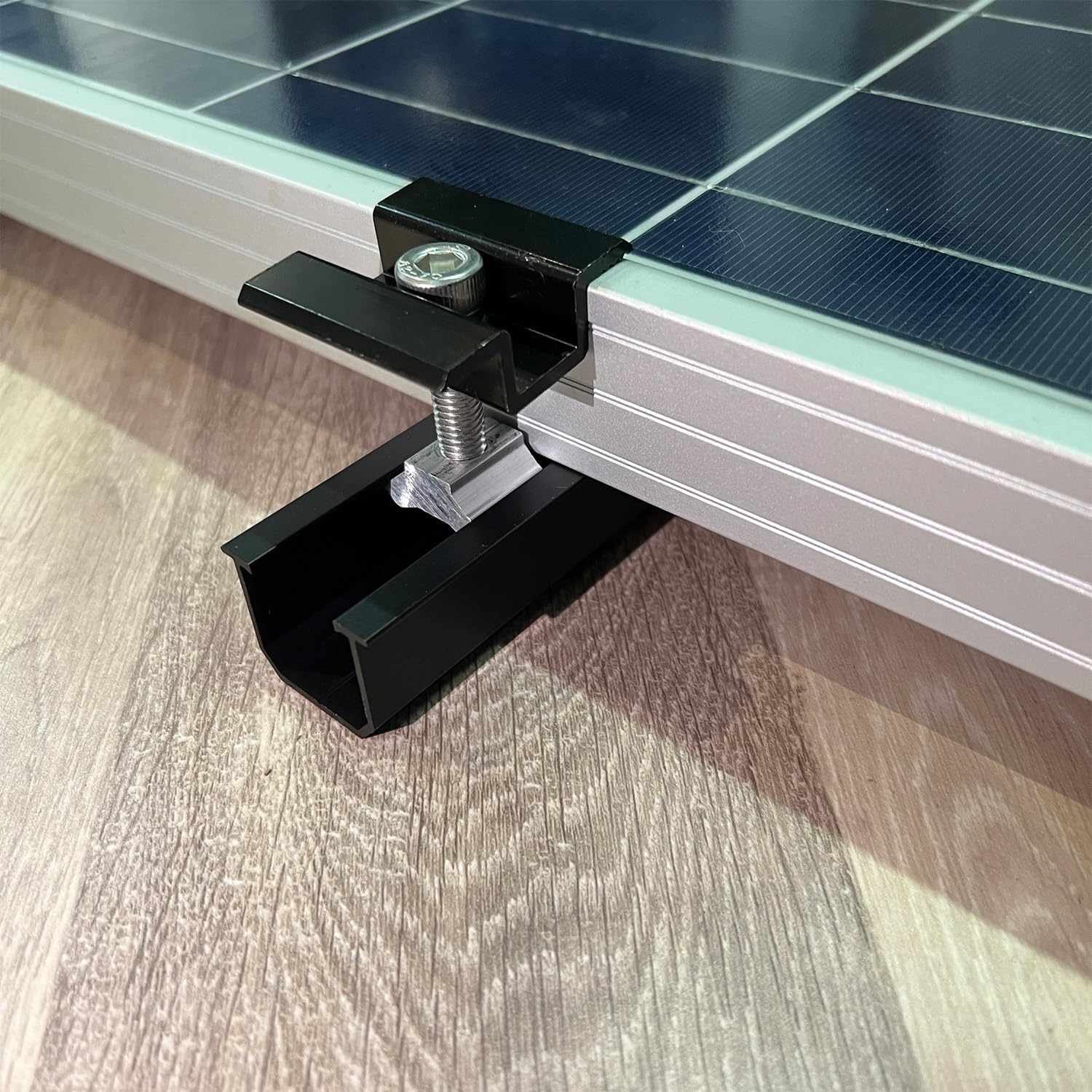

  • Adjustable clamp hardware: End and middle clamps support framed modules in the confirmed 1.18-1.38 in. thickness range.
  • Complete installation set: Rails, EPDM pads, clamps, and stainless steel screws are included for one coordinated hardware package.

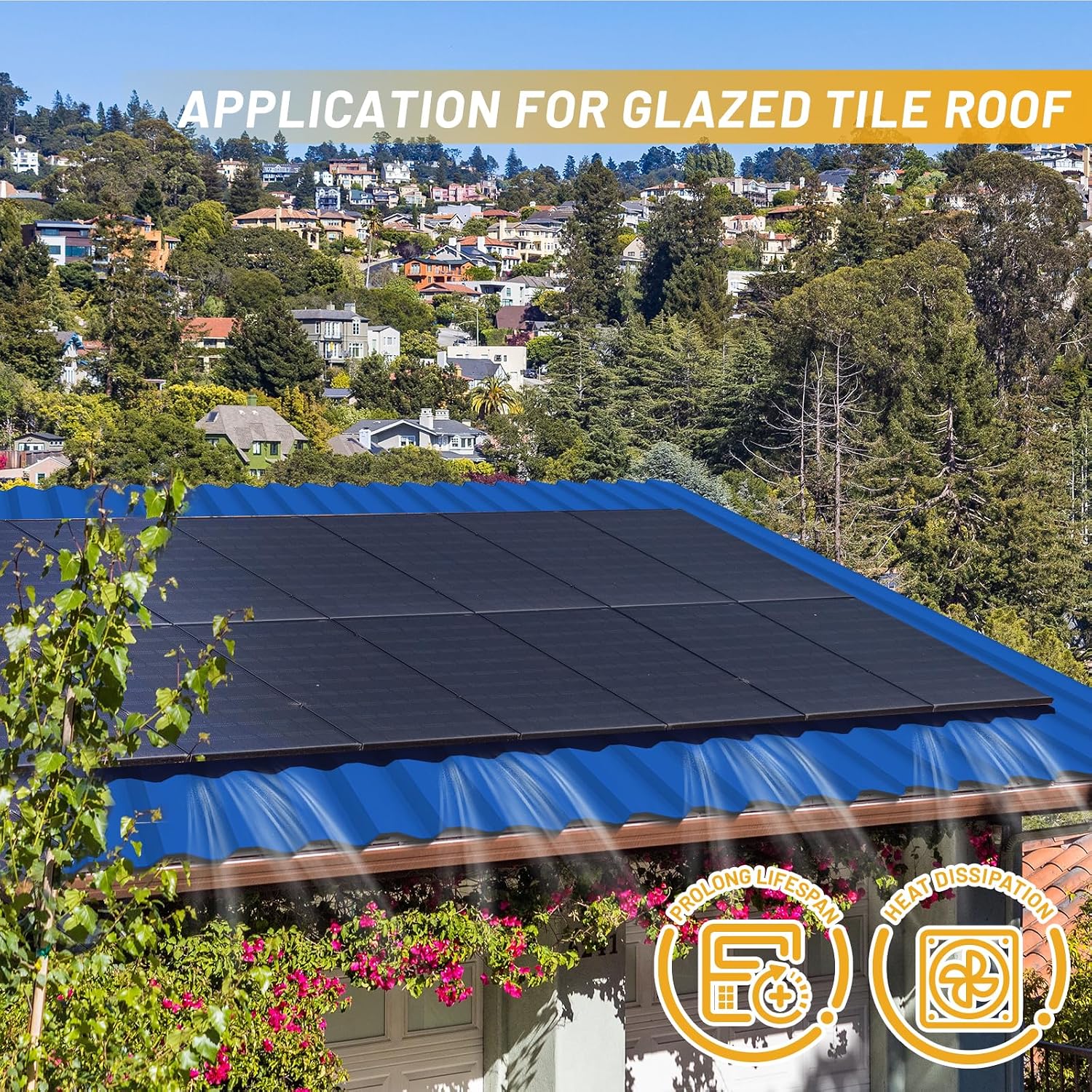

  • Roof and mobile-solar use: Suitable for compatible tin, sheet-metal, flat-roof, RV, cabin, and ground-mount structures when the attachment surface and fasteners are appropriate.

Product Overview

This solar panel roof mounting kit uses black 4.72-inch mini rails, adjustable clamps, EPDM pads, and stainless steel screws for a four-panel framed solar module layout. The compact rail sections provide distributed mounting points without requiring full-length rail runs.

The mounting hardware supports framed modules in the 1.18-1.38 in. range, covering common 30 mm and 35 mm panel frames. Its black finish coordinates with dark module frames and creates a more consistent installed appearance.

Key Features

  • Four-panel configuration: Ten mini rails and the matching clamp set support a four-panel single-row layout.
  • Compact mini rails: 4.72-inch aluminum alloy rail sections create distributed mounting points without long rail sections.
  • Adjustable clamp hardware: End and middle clamps support framed modules in the confirmed 1.18-1.38 in. thickness range.
  • Complete installation set: Rails, EPDM pads, clamps, and stainless steel screws are included for one coordinated hardware package.
  • Roof and mobile-solar use: Suitable for compatible tin, sheet-metal, flat-roof, RV, cabin, and ground-mount structures when the attachment surface and fasteners are appropriate.

Best For

Ideal for four-panel roof, RV, and compatible ground-mount installations where compact mini rails are preferred over full-length mounting rails.

Details & Specs

Product type Solar panel roof mounting kit
Configuration 4-panel black kit
Compatible panel frame sizes 1.18-1.38 in. / approximately 30-35 mm

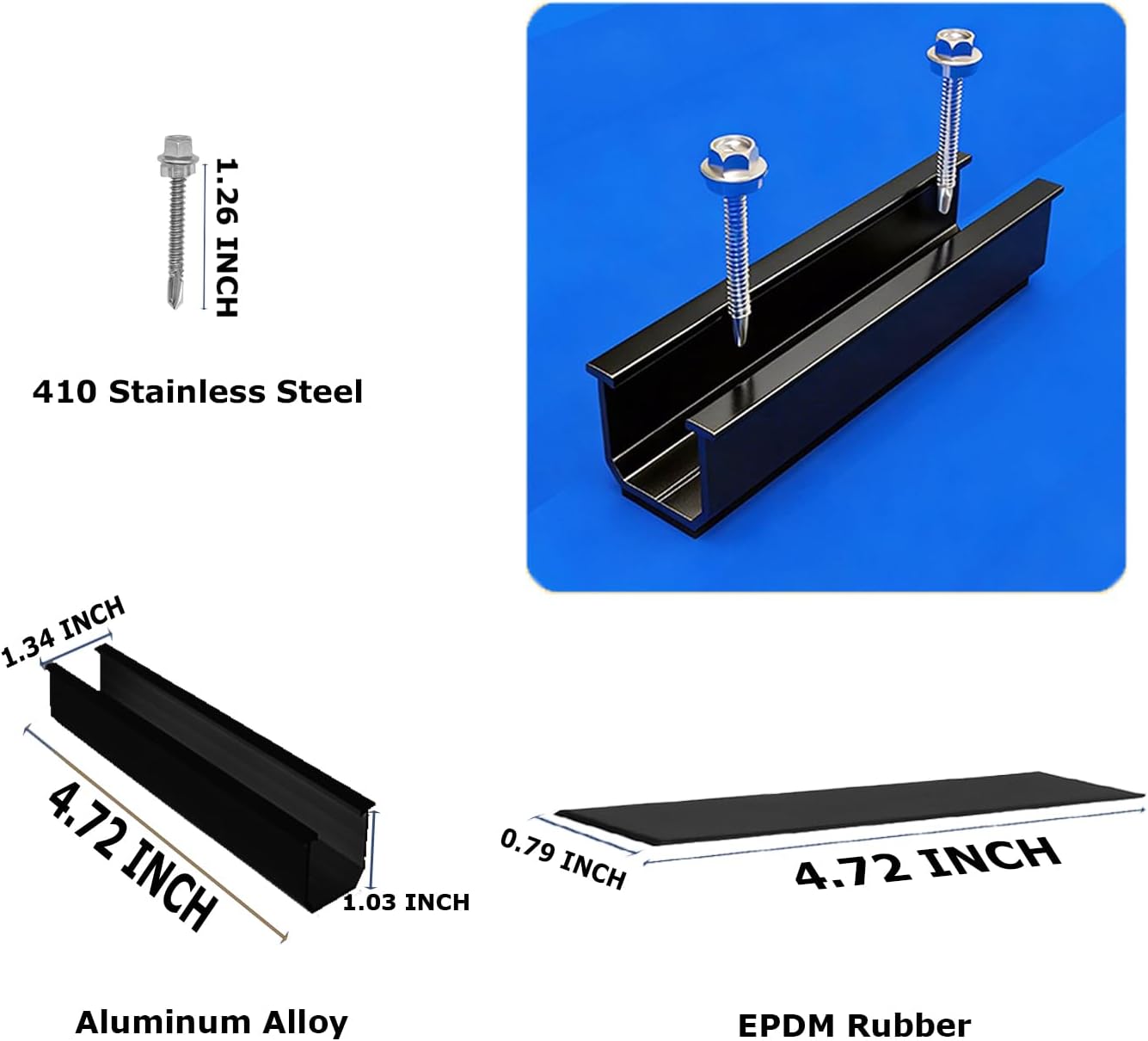

Mini rail length 4.72 in. / approximately 120 mm
Rail and clamp material Aluminum alloy
Pad material EPDM rubber
Screw material Stainless steel

Compatibility & Notes

  • Confirm the solar panel frame thickness before ordering.
  • Confirm that the roof, vehicle, or mounting structure is suitable for the included attachment method and fasteners.
  • Determine the required layout, spacing, structural capacity, sealing method, and fastening torque for the installation site.
  • Roof and structural mounting work should be completed by a qualified installer where required.

Package Contents

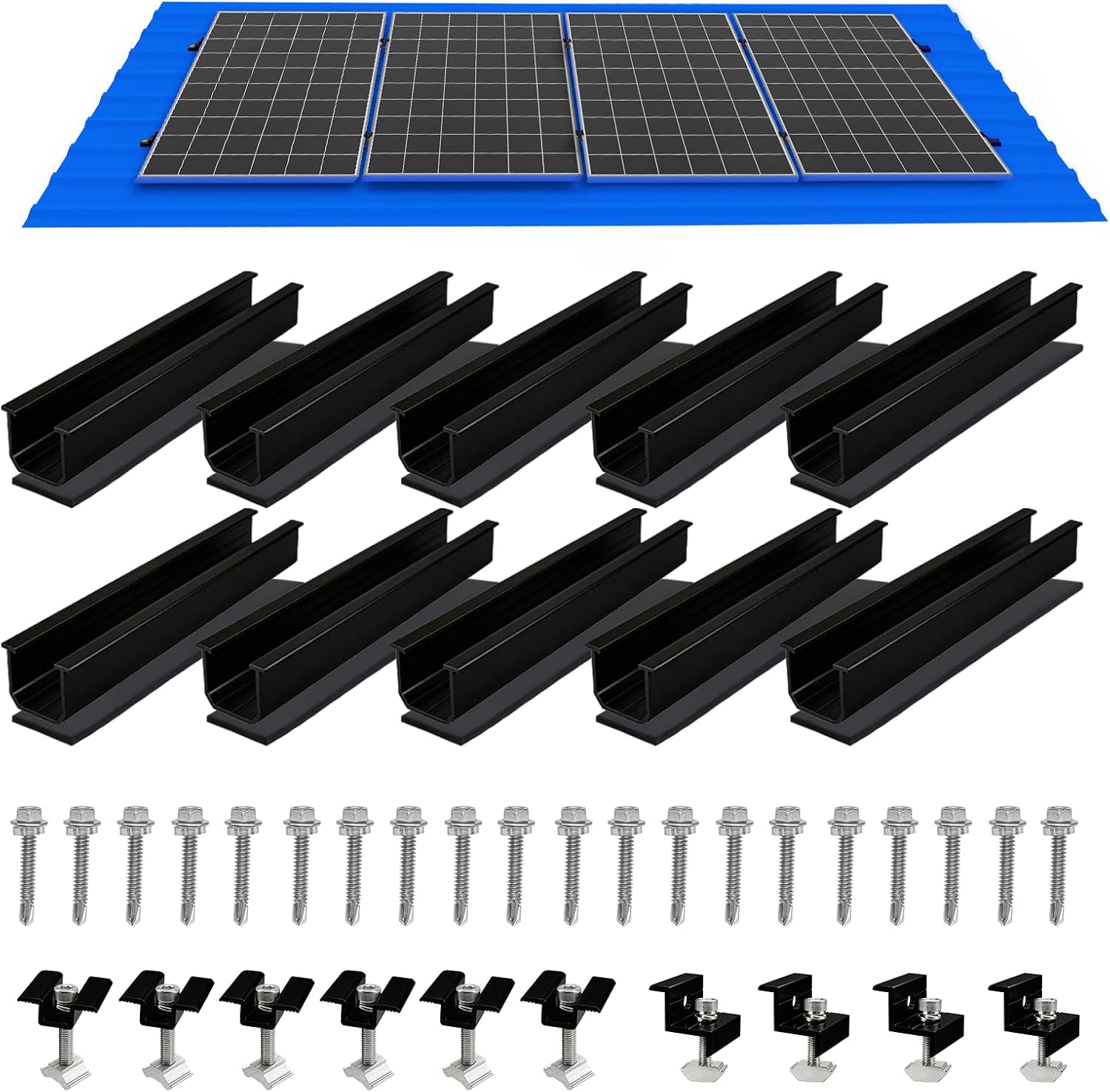

Each kit includes 10 black 4.72-inch mini rails, 10 EPDM pads, 6 middle clamps, 4 end clamps, and 20 stainless steel screws.
