Solar Panel Grounding Lug Clamps - 6/10/20 Sets
From
$1423 USD
Unit price
Grounding Hardware at a Glance
These solar panel grounding lug clamps provide a connection point for a grounding conductor on compatible photovoltaic mounting rails. Each compact assembly combines a rail clamp, bolt, and conductor-lug section, with pack sizes for projects of different scales.
Clamp & Conductor Connection

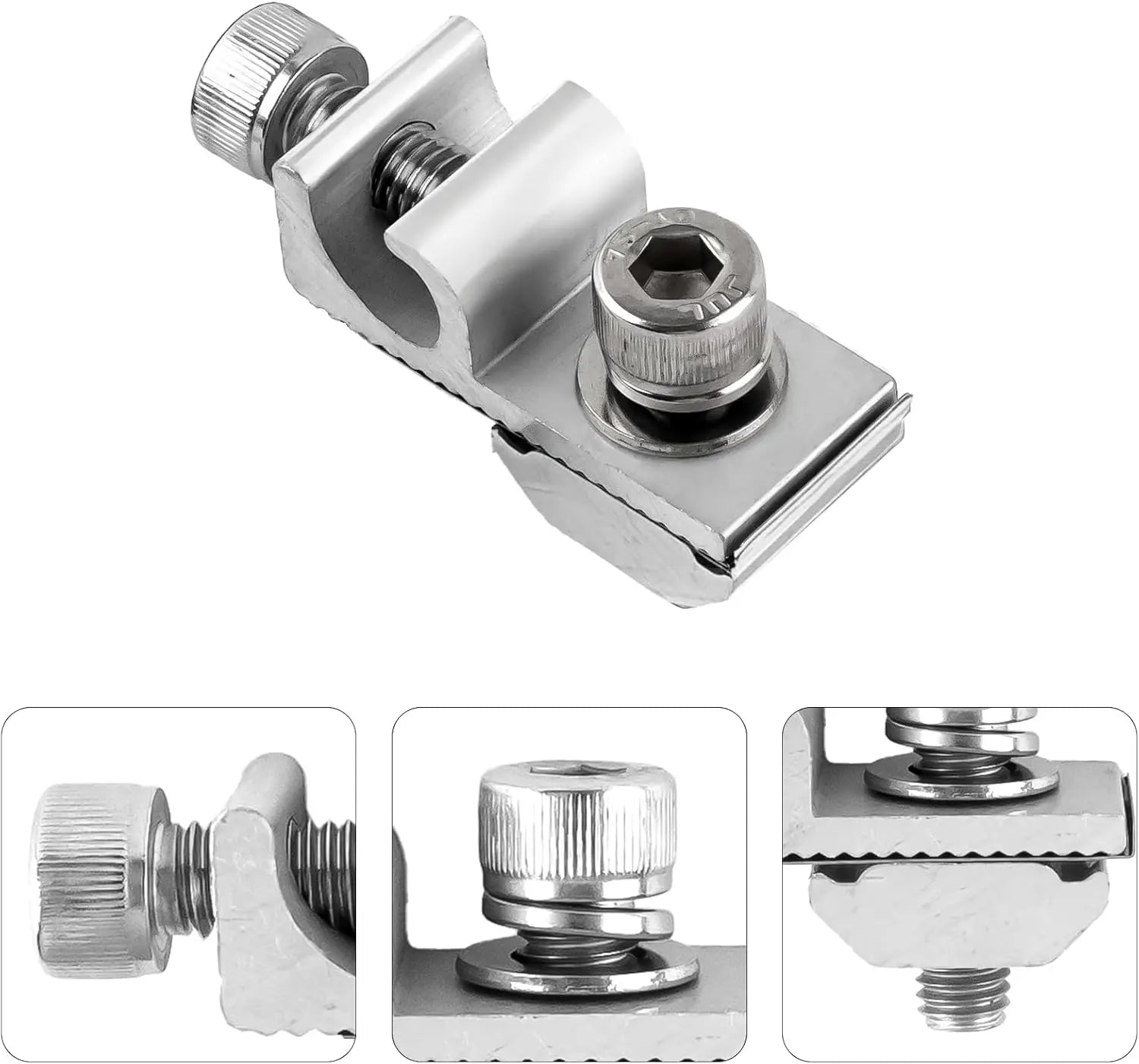

- Integrated assembly: combines the rail attachment and conductor connection point.
- Compact rail hardware: fits compatible photovoltaic rail and channel profiles.

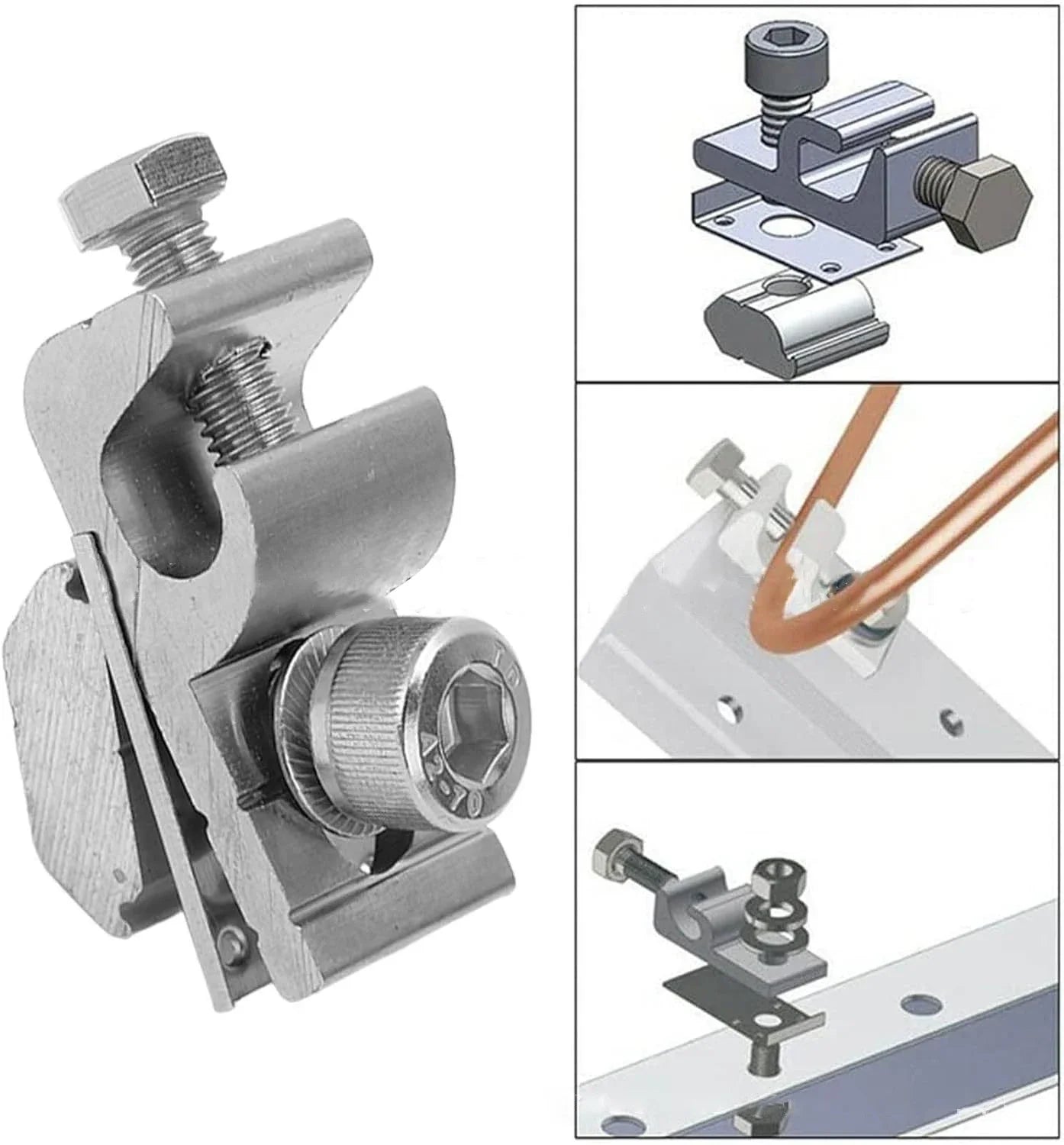

- Visible connection layout: reference images show representative clamp and conductor positions.
Pack Sizes
| Product Type | Solar panel grounding lug clamp |
|---|---|
| Assembly | Rail clamp, bolt, and grounding-conductor lug |

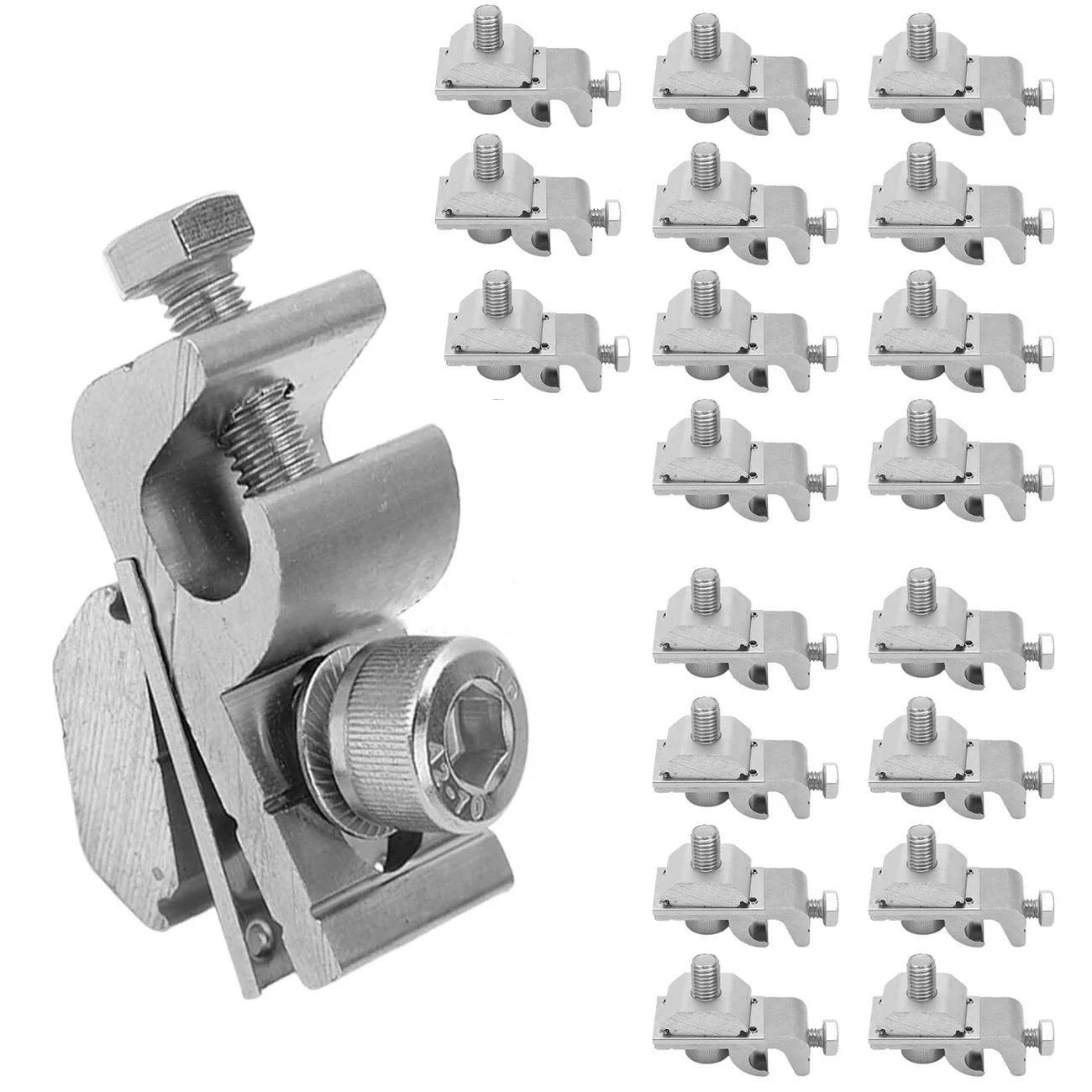

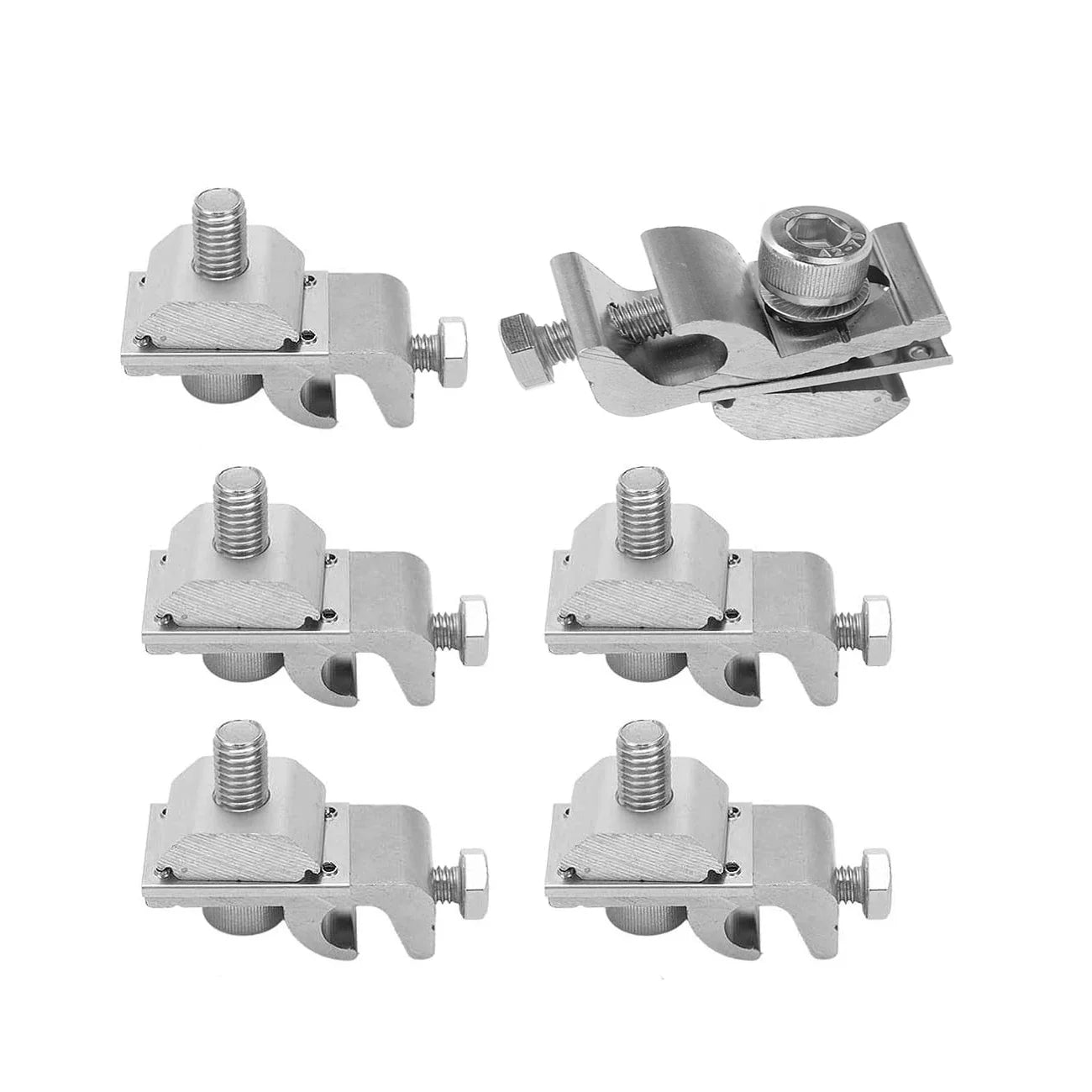

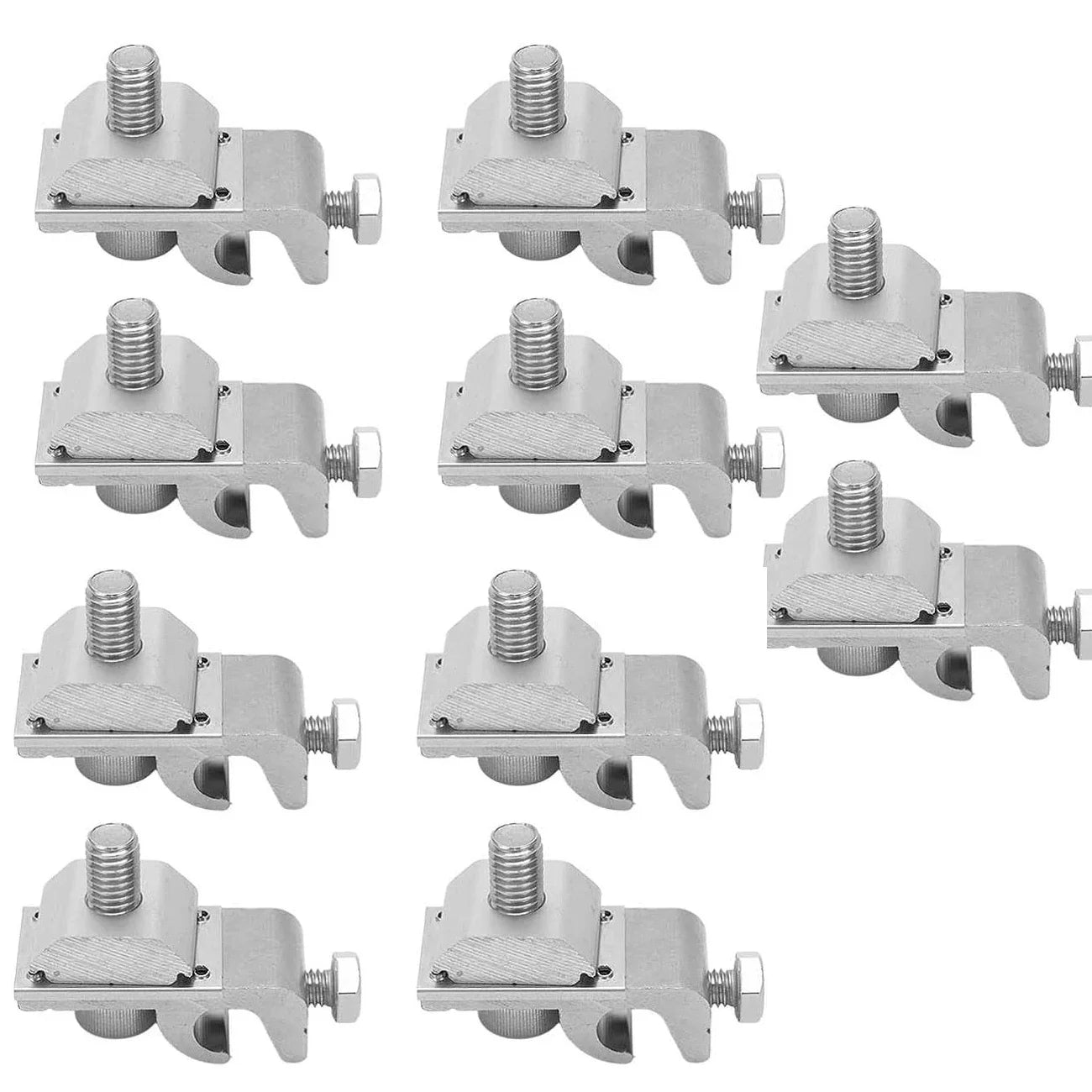

| Pack Options | 6, 10, or 20 sets |

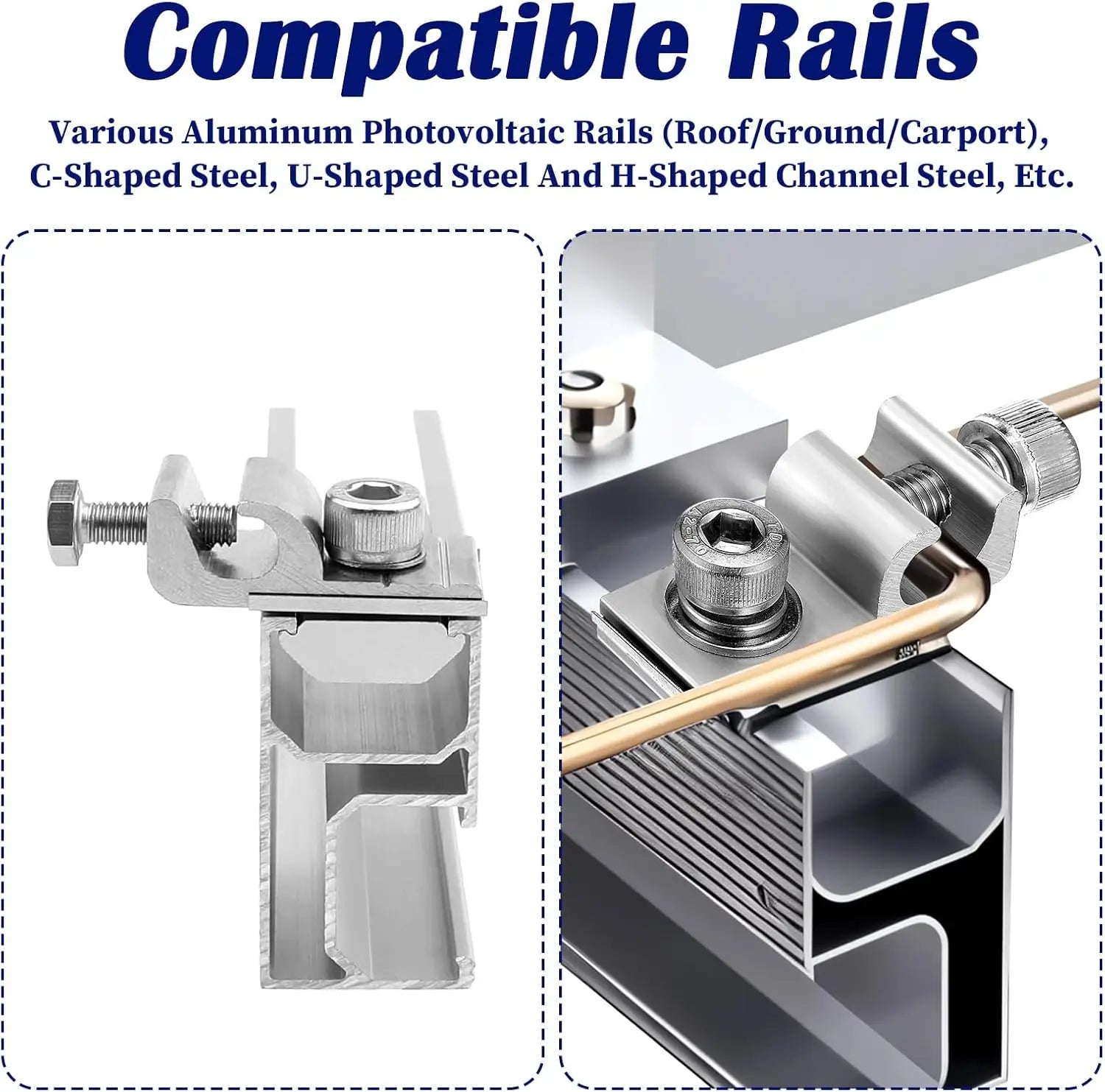

Rail Compatibility
Use the clamps only with rail profiles, conductor materials, and conductor sizes confirmed as compatible with the planned grounding and bonding design.

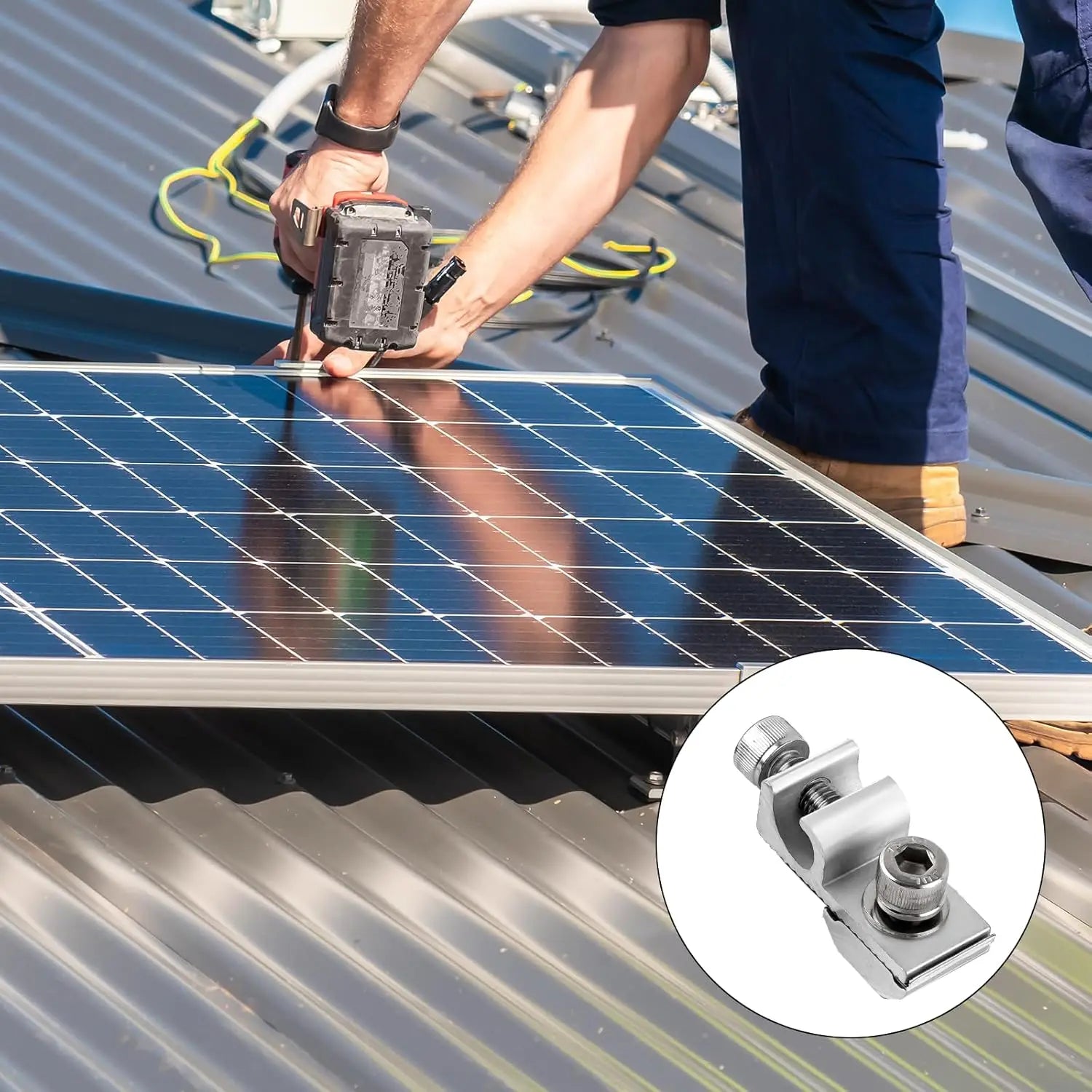

Installation Checks
Confirm the required bonding method, conductor size, tightening torque, environmental rating, and applicable electrical rules before installation. Grounding and bonding work should be designed and completed by a qualified person using compatible components.
