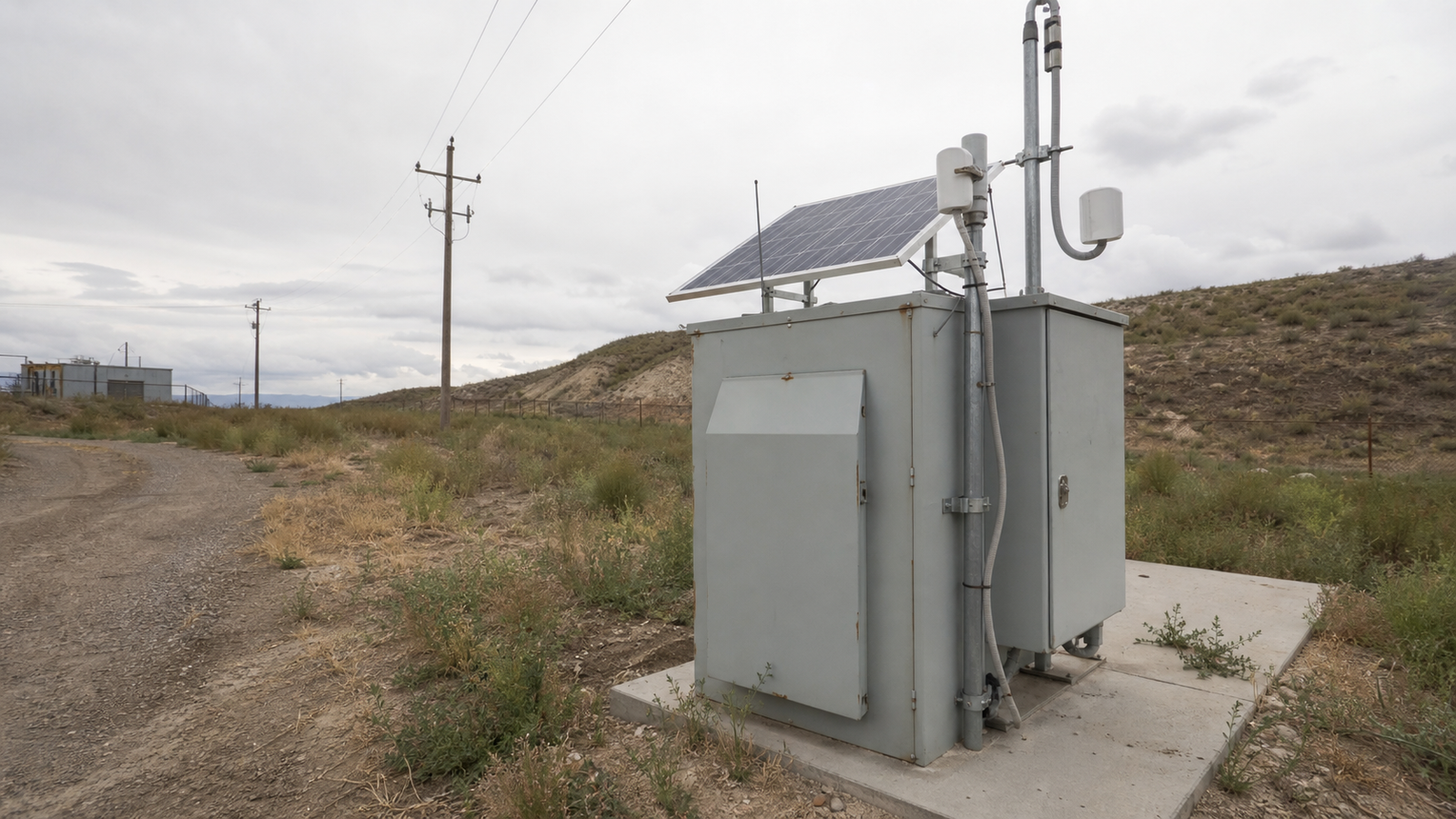

Two solar power cabinets can carry the same amp-hour rating on the spec label and still behave nothing alike in the field. One is a sealed enclosure that gets pulled and replaced whole when the battery bank or charge controller fails; the other holds four independent modules a technician swaps in minutes. The label doesn't show that difference — the internal architecture does.
What follows walks through the four core modules (charge, battery, comms, output), how to size amp-hour capacity to real load, environmental spec requirements for outdoor enclosures, the modular-versus-monolithic trade-off, and a procurement checklist for your RFQ.
The Four Modules Inside a Solar Power Cabinet
A modular solar power cabinet typically splits into four functional modules: a charge module, a battery module, a communications module, and an output module, each replaceable without opening the others.
Charge module. This module holds the MPPT controller and the input breakers for the solar array. MPPT conversion runs at a typical 97.5%, against 75-80% typical for PWM controllers, so less of the array's output is lost as heat before it reaches the battery.
Battery module. LiFePO4 packs sit on a DIN rail or tray with their own breaker and low-temperature charge protection. Isolating the battery on its own rail lets a technician swap a pack without touching the charge or communications wiring.
Communications module. A 4G router or LoRaWAN gateway draws a typical 5-12 W continuous through dedicated antenna feed-throughs in the cabinet wall, running day and night unlike cycling DC sensor loads. Sizing this draw correctly matters for battery runtime — see our breakdown of solar power for outdoor LoRa gateways for gateway-specific power budgets.
Output module. DC distribution and fusing sit here, sized to the site's downstream circuits. An optional inverter drops in when the site also runs AC loads such as pumps or lighting alongside the DC-only sensors and radios elsewhere in the cabinet.
The wiring between modules is what determines whether a swap takes 10 minutes or half a day. Look for labeled busbars, keyed connectors that only mate one way, and a wiring diagram shipped inside the cabinet door. Unlabeled point-to-point wiring turns a routine module swap into a fault trace, because nobody on site can tell which wire feeds which terminal without testing each one.
Cabinets built to this four-module standard are available through our partner factories, giving integrators a common footprint to standardize on across sites.
Cabinet Sizing: From Amp-Hours to Autonomy Days
A solar power cabinet's amp-hour (Ah) label only becomes meaningful once it converts to usable watt-hours: Wh = Ah × nominal voltage × usable depth-of-discharge (DoD). The Ah number by itself says nothing about runtime; DoD is the variable that swings hardest, since it depends on LiFePO4 versus lead-acid chemistry choices inside the cabinet. Two cabinets can carry the same Ah sticker and hold very different usable energy once chemistry and DoD are factored in.
A 200 Ah LiFePO4 bank at 12.8 V nominal holds 2,560 Wh. At roughly 80% usable DoD that works out to about 2,050 Wh usable. Against a 400 Wh/day load, that is roughly 5 days of autonomy — a common baseline for unattended monitoring sites.
Three steps convert a load list into an Ah spec:
- Compute the daily load in Wh by summing device draw across the full 24-hour list, including standby current.
- Multiply that daily Wh figure by the number of autonomy days the site requires.
- Divide the result by (nominal V × DoD) to get the Ah rating to spec for the cabinet.
Cabinets in the 50–500 Ah range cover most monitoring and telemetry sites; anything larger usually means the load list needs pruning before the cabinet needs growing. Sizing logic that extends beyond a single cabinet, pairing solar input with battery storage across a full system, follows the same math — see the DOE's solar-plus-storage sizing basics for that broader context.
Heat, Cold, and IP Rating: The Environmental Spec
Heat, not sunlight, is the main environmental threat to a solar power cabinet. UV and moisture wear down enclosures over years, but heat works on a shorter clock: it accelerates the chemical aging of the battery inside. A cabinet that runs hot loses usable capacity faster than one that runs cool, regardless of how good its seals are.
A widely used rule of thumb puts battery calendar-life loss at roughly double for every 10°C above 25°C. That is why cabinet placement (the shade side of the pole, a clear path for convective airflow) matters as much as the IP number stamped on the door. Research programs such as Sandia National Laboratories' energy storage systems program publish battery-aging and safety data worth checking before committing to a hot-climate deployment.
LiFePO4 chemistry must not charge below 0°C; charging a cold cell causes lithium plating and permanent capacity loss. The cabinet-level fix is a battery-module heater pad or a charge lockout that holds off charging until the cell warms up. When you spec a cabinet for cold-climate battery behavior, ask for the charge temperature range, not just the operating range — the two numbers are rarely the same.
IP65 is a typical rating for the cabinet body, paired with IP67 cable glands at every entry point (flood-prone sites step the glands up to IP68). A fully sealed box keeps dust and water out but traps the heat the battery is trying to shed. A vented design breathes better but needs filtered louvers to keep dust and insects out, and the right choice depends on how much dust and flood exposure the site actually sees — a cheaper vented box wins in a dry, temperate climate.
Why Modular Beats Monolithic for Field Service
On a fleet of remote sites, a modular solar power cabinet cuts mean repair time because a failed function becomes a module swap instead of a whole-cabinet diagnosis. A technician isolates the faulty module, swaps in a replacement, and is back on the road within the same site visit. A monolithic cabinet turns the identical fault into a point-to-point wiring trace across the whole enclosure, often ending in a truck roll back to the shop for bench repair.
| Factor | Modular cabinet | Monolithic build |
|---|---|---|
| Field diagnosis | Isolate by module | Trace point-to-point wiring |
| Repair action | Swap module, minutes | Bench repair or full replacement |
| Spares to stock | A few module types | One spare cabinet per variant |
| Technician skill needed | Follow swap procedure | Electrical fault-finding |
| Upfront cost | Modestly higher | Lowest per unit |
| Fleet standardization | Same module works across every site variant | Unique wiring layout per cabinet build |
| Downtime exposure | Site back online same visit | Site down until parts or crew arrive |
A monolithic build still wins in three situations: a single site close enough that commissioning and repairs are both a same-day drive, loads so small the whole cabinet costs less than one module, or a site scheduled for decommissioning within a couple of years. Outside those cases, modularity is an operations investment. With no fleet to operate, there is little for that investment to return.
On multi-site SCADA networks the alarm side matters just as much as the power side. A modular comms bay makes it easier to standardize SCADA alarm integration across every site in the fleet, instead of reworking alarm wiring cabinet by cabinet.
The Cabinet Procurement Checklist
Six items make up the cabinet procurement checklist: module interchange documentation, battery paperwork, wiring diagrams, environmental specs, a regulatory check, and commercial terms. Request all six before you sign a proforma invoice. Missing any one of them turns a cabinet order into an email thread with the factory.
- Module interchange documentation. Get written confirmation that charge, battery, comms, and output modules can be swapped without re-wiring, with part numbers for each module position. Ask for the factory's internal position IDs, not supplier model names.
- Battery and panel paperwork. Request the UN38.3 transport test report for the lithium pack, CE/RoHS declarations, the factory's ISO 9001 certificate, and IEC 61215 design qualification for the panels feeding the cabinet. These are documents, not datasheet logos.
- Wiring diagram and labeled busbars. Every cabinet should ship with both, photographed during pre-shipment QC. On orders placed through our partner factories, we provide photo and video inspection reports before the cabinet leaves the dock.
- Environmental spec in writing. Get the cabinet's IP rating, the charge temperature range (not just the operating range), and whether a battery heater is fitted. These three numbers determine whether the cabinet suits your deployment climate.
- Regulatory check for US installs. Stationary energy-storage installations in the US may fall under NFPA 855 — ask your AHJ.
- Commercial terms. Modular cabinets through our partner factories start at MOQ 10 sets, with a sample-unit path available first. One proforma invoice, one consolidated shipment.
Panel, mount, and cabinet specified together avoid mismatches that show up after the cabinet ships — see complete remote solar power system configurations for the full system spec.
Solar Power Cabinet FAQ
What size solar power cabinet do I need?
Cabinet size follows a fixed formula: daily load in Wh times autonomy days, divided by nominal voltage times usable depth of discharge. A 200 Ah LiFePO4 cabinet covers roughly 400 Wh/day loads for about 5 days of autonomy. Compute the load first, then pick the Ah tier — not the reverse.
Can I add modules to a cabinet later?
Module additions work if the cabinet was ordered as a modular design with spare bays and busbar capacity specified upfront. Retrofitting a monolithic cabinet usually means replacing it rather than expanding it. Ask for the expansion limit in writing at RFQ time, not after the cabinet ships.
How much does a solar power cabinet cost?
Cost follows the battery tier and module count, not a fixed list price. A 50 Ah sensor-site cabinet and a 500 Ah telecom cabinet sit in different purchase classes entirely. Send a load table for a firm quote rather than asking for a ballpark figure.
What is the minimum order?
Modular cabinets sourced through our manufacturing partners start at MOQ 10 sets. A single sample unit can be quoted per configuration first, so your field crew can trial the swap procedure before committing to a fleet rollout.
One thing we see from the factory side: the cabinets that age best are the ones ordered with the boring paperwork attached — wiring diagram, charge-temp spec, module interchange docs. Those are the fleets where any technician can service any site, not just the one who built it. The bottom line: spec the modules, the Ah tier, and the paperwork together. Send your load table and site climate, and request a cabinet spec review before you order.
