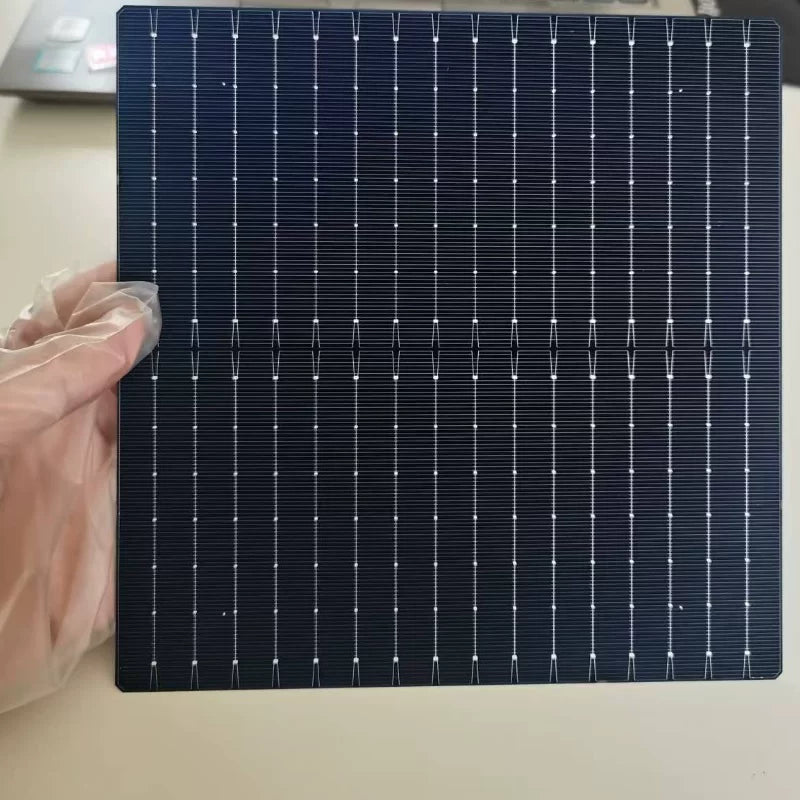

182 x 183.75mm 8.54W N-Type TOPCon Solar Cells
8.54W TOPCon Cell
These 182 x 183.75mm 8.54W TOPCon solar cells use an N-Type bifacial format and are available in four pack quantities. Rated cell efficiency is 25.5%, and the electrical values below support detailed string and module planning.

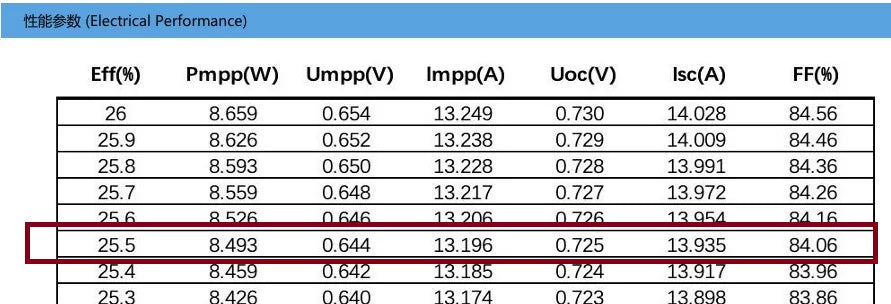

Electrical Parameters
| Peak Power (Pmax) | 8.54W |
|---|---|
| Dimensions | 182mm x 183.75mm |
| Voltage at Pmax (Vmpp) | 0.62V |
| Current at Pmax (Impp) | 14A |
| Open-Circuit Voltage (Voc) | 0.75V |
| Short-Circuit Current (Isc) | 14.9A |
| Cell Efficiency | 25.5% |
| Fill Factor (FF) | 82.32% |
Pack Sizes
Choose 10, 20, 50, 100 cells. Confirm the selected quantity before ordering and keep the large-format cells supported during handling, storage, and assembly.
Bifacial Module Planning
Plan the series and parallel layout around the confirmed voltage and current values. Match representative cells, validate conductor sizing and soldering, and verify encapsulation, rear-side optical access, back construction, insulation, lamination, mounting clearance, and finished electrical safety.
Planning with N-Type TOPCon Bifacial Cells

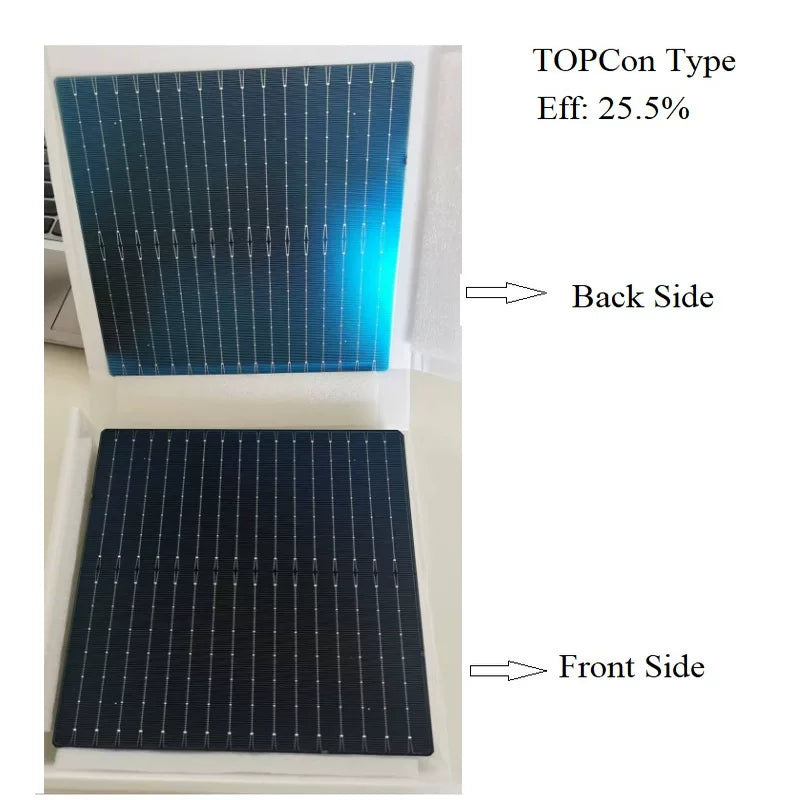

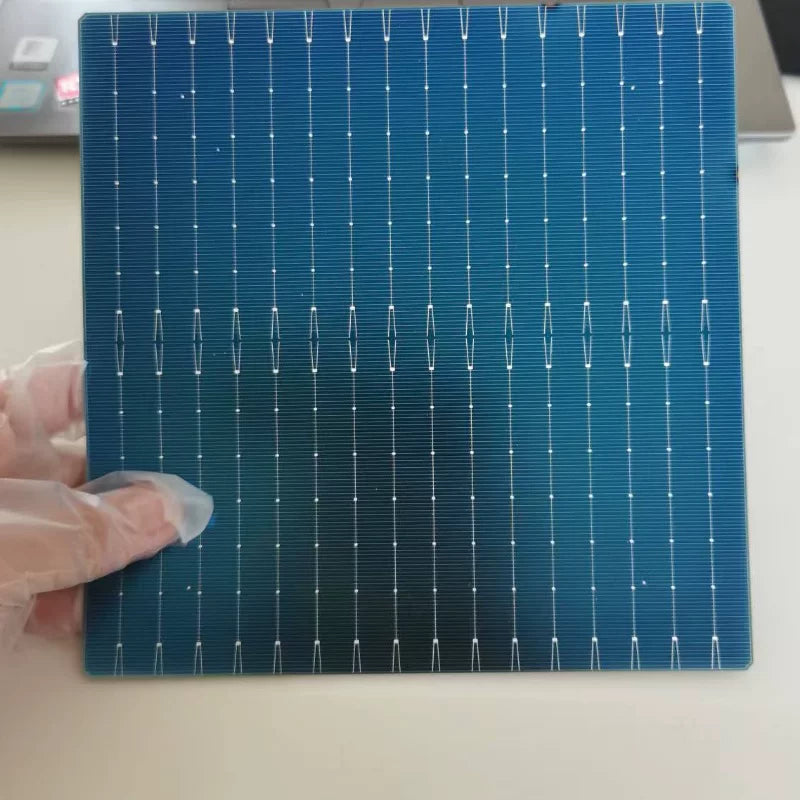

The N-Type bifacial format is the planning story of this cell: light reaching the rear side can contribute to output, so the module design has to account for rear-side optical access, back construction, insulation and lamination alongside the usual front-side stack. The electrical parameters above — 0.62V at maximum power, 14A working current, 0.75V open-circuit and 14.9A short-circuit — are the values to design strings around, with a rated cell efficiency of 25.5% and a fill factor of 82.32%.
Because these are large-format cells at 182 x 183.75mm, keep them supported during handling, storage and assembly, and confirm the pack quantity against the planned string count before ordering.
Buyer questions
What cell technology are these?
N-Type TOPCon in a bifacial format, 182 x 183.75mm, with a rated cell efficiency of 25.5% and a fill factor of 82.32%.
What electrical values do I plan strings around?
Peak power 8.54W, voltage at Pmax 0.62V, current at Pmax 14A, open-circuit voltage 0.75V and short-circuit current 14.9A. Match representative cells and validate conductor sizing and soldering for the intended module.
What pack sizes are available?
10, 20, 50 or 100 cells. Confirm the selected quantity before ordering, and keep the large-format cells supported during handling, storage and assembly.
What does the bifacial design require from my module?
Rear-side optical access and a back construction that protects insulation and lamination — plan encapsulation, mounting clearance and finished electrical safety around both faces.
LinkSolar supplies solar cells to B2B buyers; ships from China.
